Honeywell HD31H(X) Manuel utilisateur

Performance Series Camera

User Guide

Document 800-18605 – Rev A – 06/2014

HD30H(X)

HD31H(X)

HD40H(X)

2 HD40H(X)/HD30H(X)/HD31H(X) Camera User Guide

800-18605 – Rev A – 06/2014

Thank you for purchasing our product. If there are any questions, or

requests, please do not hesitate to contact the dealer.

This manual applies to HD40H(X), HD30H(X) and HD31H(X) cameras.

The information in this publication is believed to be accurate in all respects.

However, Honeywell cannot assume responsibility for any consequences

resulting from the use thereof. The information contained herein is subject

to change without notice. Revisions or new editions to this publication may

be issued to incorporate such changes.

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

3 HD40H(X)/HD30H(X)/HD31H(X) Camera User Guide

800-18605 – Rev A – 06/2014

NOTE: Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme à la norme NMB-003

du Canada.

EU Conformity Statement

This product and - if applicable - the supplied

accessories comply with the applicable harmonized

European standards listed under the Low Voltage

Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS

Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with

this symbol cannot be disposed of as unsorted municipal

waste in the European Union. For proper recycling,

return this product to your local supplier upon the

purchase of equivalent new equipment, or dispose of it at designated

collection points. For more information see: www.recyclethis.info.

Safety Instructions

These instructions are intended to ensure that users can use the product

correctly to avoid danger or property loss.

The precautions are divided into “Warnings” and “Cautions”.

Warnings: Serious injury or death may occur if any of the warnings are

neglected.

Cautions: Injury or equipment damage may occur if any of the cautions

are neglected.

4 HD40H(X)/HD30H(X)/HD31H(X) Camera User Guide

800-18605 – Rev A – 06/2014

Warnings

WARNING: Installation and servicing should be performed only by qualified

and experienced technicians to conform to all local codes and to maintain

your warranty.

WARNING: This device is configured for 12 V DC operation only. Do not

connect to a higher voltage. Use only with NRTL approved Class 2 or LPS

power supplies. To prevent potential ground loop issues, a separate PSU

should be used for each camera.A multiple-output PSU may be used if the

multiple output PSU has isolated and protected (2 Amax) outputs.

Cautions

CAUTION: The light emitted from the near-infrared light emitting diodes

(LEDs) provides illumination over a wide area. This light is not considered

a risk to the unshielded human eye. However, as with any light source, it is

recommended that normal precautions be taken to avoid unnecessary

Warnings Follow these

safeguards to prevent

serious injury or death.

Cautions Follow these

precautions to prevent potential

injury or material damage.

5 HD40H(X)/HD30H(X)/HD31H(X) Camera User Guide

800-18605 – Rev A – 06/2014

exposure. For example, avoid staring into the beam or viewing the LEDs

directly with optical instruments at close range.

Important Safety Instructions

Read and keep these instructions.

Ensure that your installation area can safely support 3 times the weight

of the camera.

Do not install the camera in extreme temperature conditions. Only use

the camera where temperatures are within the limits shown in the

camera specifications. Be especially careful to provide ventilation

when operating under high temperatures.

Do not install indoor rated cameras where they will be exposed to rain

or moisture.

To prevent damage to the imager, do not aim the camera toward an

extreme light source.

Do not touch the camera lens, dome or bezel (front glass plate).

Do not drop the camera or subject it to physical shock.

Do not use strong or abrasive cleaners, clean only with a soft cloth and

mild detergent or alcohol.

Do not open the camera or attempt to service it yourself. Refer all

service issues to your dealer.

6 HD40H(X)/HD30H(X)/HD31H(X) Camera User Guide

800-18605 – Rev A – 06/2014

Table of Contents

Introduction..................................................................................................... 7

Product Features................................................................................ 7

Overview............................................................................................. 8

Installation..................................................................................................... 10

Ceiling/Wall Mounting for HD40H(X) Camera............................... 10

Ceiling/Wall Mounting for HD30H(X) Camera............................... 13

Ceiling/Wall Mounting for HD31H(X) Camera............................... 16

Power Supply.................................................................................... 20

7 HD40H(X)/HD30H(X)/HD31H(X) Camera User Guide

800-18605 – Rev A – 06/2014

Introduction

Product Features

This series of camera adopts a new generation imaging sensor with high

sensitivity and advanced circuit design technology. It features high

resolution, low image distortion, and low noise, which makes it ideal for

surveillance systems and image processing systems.

High-performance sensor supplies high resolution high-quality images

IR LEDs enables day/night surveillance (HD30H and HD31H)

Day/night automatic switching

ATW provides high color rendition

Automatic electronic shutter control to adapt to the different

surveillance environments

Automatic gain control, with adaptive brightness

High SNR provides high-quality image

Ingress protection: IP66-rated (HD30H and HD31H)

Notes: HD40H(X) camera does not support day/night auto switching and

IP66 ingress protection.

8 HD40H(X)/HD30H(X)/HD31H(X) Camera User Guide

800-18605 – Rev A – 06/2014

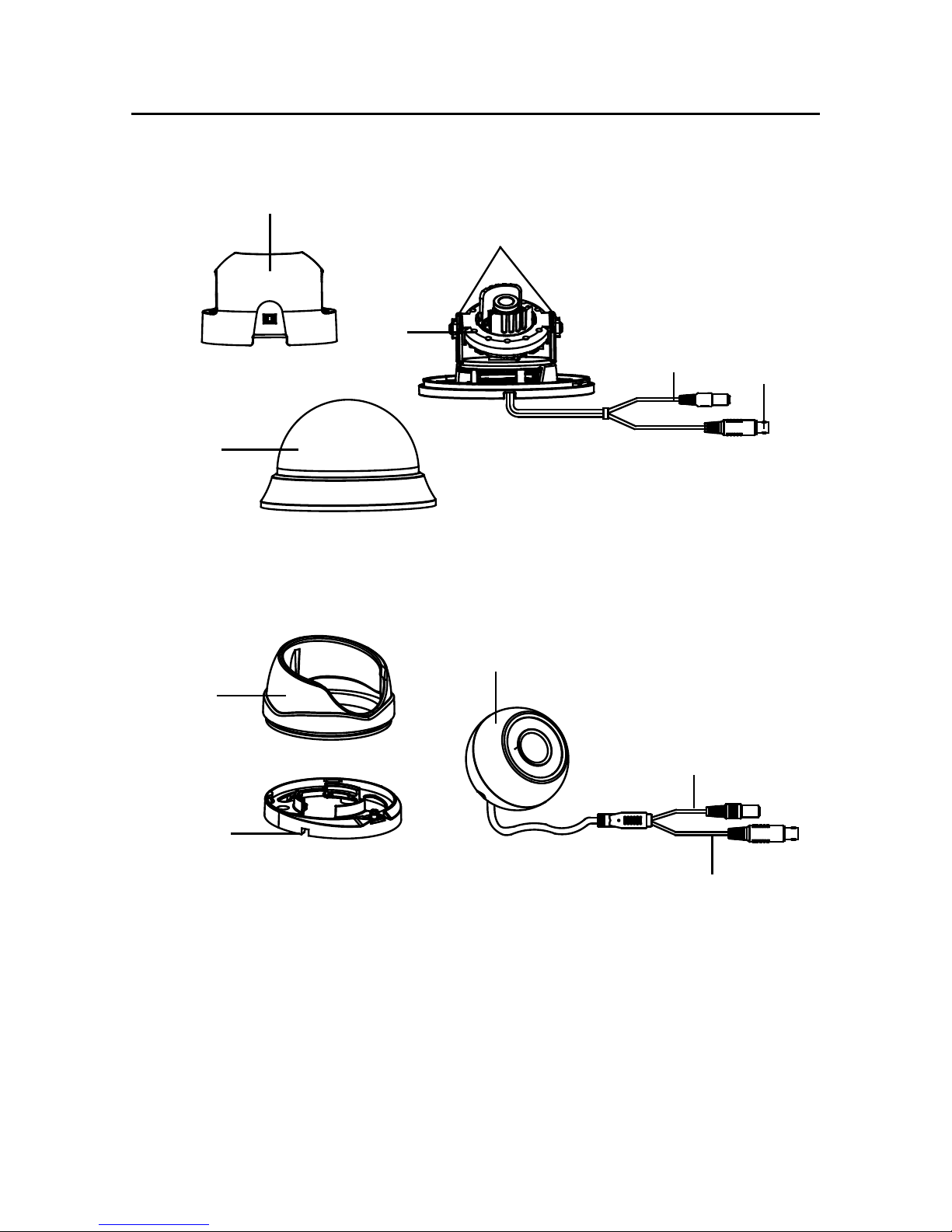

Overview

Figure 1-1 Overview of HD40H(X) Camera

Figure 1-2 Overview of HD30H(X) Camera

Power

Cable Video

Cable

Lower

Dome

Black Liner

Camera

Lock Screw

Enclosure

Mounting

Base

Camera

Power Cable

Video Cable

9 HD40H(X)/HD30H(X)/HD31H(X) Camera User Guide

800-18605 – Rev A – 06/2014

Figure 1-3 Overview of HD31H(X) Camera

Enclosure

Trim Ring

Camera

Lock Screw

Video Cable

Power Cable

Zoom & Focus

10 HD40H(X)/HD30H(X)/HD31H(X) Camera User Guide

800-18605 – Rev A – 06/2014

Installation

Before you start:

•Make sure that the camera is in good condition and all of the assembly

parts are included.

•Make sure that all related equipment is powered-off during the

installation.

•Check that the camera specification agrees with the installation

environment.

•To avoid damage, ensure the power supply voltage matches your

camera requirements.

•If the product does not function properly, please contact your dealer or

the nearest service center. Do not disassemble the camera for repair

or maintenance by yourself.

•Make sure that the installation surface is strong enough to withstand

three times the weight of the camera.

Ceiling/Wall Mounting for HD40H(X) Camera

Steps:

1. Hold the mounting base, and rotate the lower dome counterclockwise

to disassemble the lower dome and the black liner (see Figure 1-5).

2. Drill the screw holes and the cable hole in the ceiling/wall according to

the supplied mounting template.
