Honeywell HCC484TPX Manuel utilisateur

1/3" HIGH RESOLUTION FULLY FEATURED COLOUR CAMERA

HCC484TPX

The Honeywell Systems HCC484TPX 1/3"CCD high resolution colour camera is

the premier choice for any surveillance application. One of Honeywell Video

Systems Series high-end camera line, the sophisticated HCC484TPX delivers

superior low light performance to satisfy even the most stringent viewing

requirements. The HCC484TPX features a high resolution of 480 TV lines and

Digital Signal Processing (DSP) for clean, sharp images.

Adaptable to varying light levels, the HCC484TPX features a high sensitivity of

0.1 lux @ F1.2 and 0.001 lux with digital slow shutter for unprecedented

sensitivity in extremely low light conditions. Three user-selectable BLC windows

provide the flexibility to view high contrast scenes from almost any angle. The

camera features Black Mask BLC, which reduces bright glaring light from a scene

(for example, removes the glare from car headlights for license plate identification).

The HCC484TPX offers quick and easy setup via the On-screen Display (OSD)

menu or via RS-485 remote control. The camera can be installed using

conventional coax or unshielded twisted pair (UTP) with its built-in NVT

transceiver. UTP provides the ultimate in flexibility and offers a significant

advantage in labour and material savings. Installers can back focus the camera

quickly and easily using its convenient thumbwheel. The HCC484TPX mounts

using a 1/4"-20 UNC mounting shoe. Also, the camera has an auto sensing

12 VDC/24 VAC power supply feature for multiple camera connection.

Market Opportunities

The HCC484TPX is one of Honeywell Video Systems Series products that deliver

increased flexibility, superior performance, and advanced technologies for today's

most demanding applications, including parking garages, office buildings and

educational institutions. This full featured camera is ideal for use with Honeywell

Video Systems Series of Digital Video Recorders.

Features

• Ultra low light 0.001 lux with Digital

Slow Shutter

• Powerful back light compensation

through 3 modes BMB™

(Black Mask BLC) control

• OSD menu control/camera

title setting

• High resolution 480 TVL picture

quality through DSP

• Remote control through RS-485

Honeywell Security

Aston Fields Road

Whitehouse Industrial Estate

Runcorn

Cheshire WA7 3DL

Tel: 0844 800 0235

Fax: +44 (0) 1928 701063

www.honeywell.com/security/uk

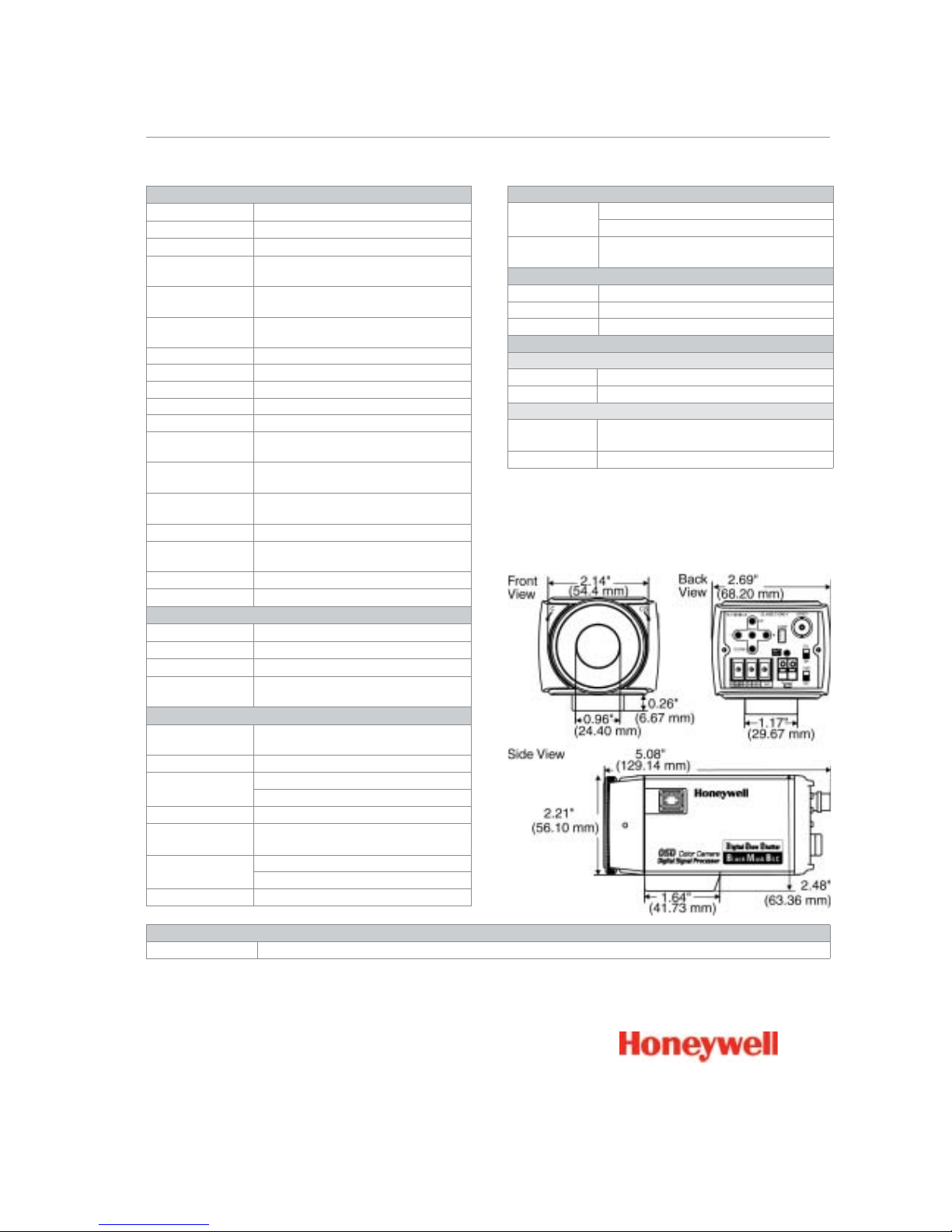

SPECIFICATIONS

HVSHCC484TPX01EN0706DSXX

July

2006

HCC484TPX

Operational

Video Standard PAL

Scanning System 625 lines (PAL)

Image Sensor 1/3" CCD, 470K pixels (PAL)

Number of Pixels

(H x V) 752 x 582 (PAL)

Minimum

Illumination

0.1 lux @ F1.2 (30 IRE)

0.001 lux @ F1.2 (128X DSS)

Horizontal

Resolution 480 TVL

Video Output 1.0 Vp-p @ 75 Ohms

Sync System Internal/Line lock

S/N Ratio More than 50 dB (AGC off)

Auto Gain Control Off/On switch (4 - 38 dB)

ALC Auto iris: Video drive/DC drive

Automatic

Electronic Shutter 1/50 – 1/15,000 sec (PAL)

White Balance ATW/AWC/Indoor/Outdoor/Fluorescent/

Manual/One Push WB

Line Lock Phase

Adjustment Adjustable AC line lock, ±90°

BLC On/Off (3 modes)

BMB™

(Black Mask BLC) On/Off (3 modes)

OSD Camera title setting/Menu control

Remote Control RS-485

Electrical

Input Voltage 24 VAC/12 VDC (Non polarised)

Input Tolerance 17 - 28 VAC, 10 - 16 VDC

Surge Suppression 1.5 kW transient

Power

Consumption 4 W (max)

Mechanical

Dimensions

(W x H x D)

2.68" x 2.2" x 4.72"

68 mm x 56 mm x 120 mm

Weight 0.84 lb (380 kg)

Construction Housing: Aluminium

Finish: Light grey

Camera Mount 1/4-20 UNC mounting shoe

Lens Mount C/CS adjustable top or bottom

thumbwheel

Connector Video Output: BNC, UTP Push terminal

Lens: 4-pin connector

Power Input Push terminal block

Ordering

HCC484TPX 1/3" High Resolution Colour Camera with DSP, BMB control, 480 TVL, 24 VAC/12 VDC, PAL

NOTE: Honeywell reserves the right, without notification, to make changes in product design or specifications.

Regulatory

Emissions FCC, CE (EN55013)

Immunity CE (EN50130-4)

Safety EU: 73/23/EEC LVD

Environmental

Temperature Operating: 14°F to 122°F (-10°C to 50°C)

Storage: -4°F to 158°F (-20°C to 70°C)

Relative

Humidity 0 to 90% non-condensing

Accessories

Lenses

HLD28V8F95L 2.8 - 8 mm, F0.95, DC Auto Iris

HLD5V50F13L 5.0 - 50 mm, F1.3, DC Auto Iris

Housings and Mounts

HHC12 Series Housings with optional heater/blower and

mounts

MC1600WT Camera wall mount
