Honeywell XP 1991i Manuel utilisateur

Granit™ XP 1991i

Cordless Industrial Area-Imaging Scanner

Quick Start Guide

1991-EN-QS-01 Rev (a)

12/19

Agency Model: 1991iSR and 1991iMR+

Note: Refer to your User Guide for information about cleaning

your device.

Getting Started

Turn off computer’s power before connecting the scanner, then

power up the computer once the scanner is fully connected.

When the base is connected and powered up, put the scanner in

the base to establish a link. The green LED on the base flashes

to indicate the scanner’s battery or charge pack is charging.

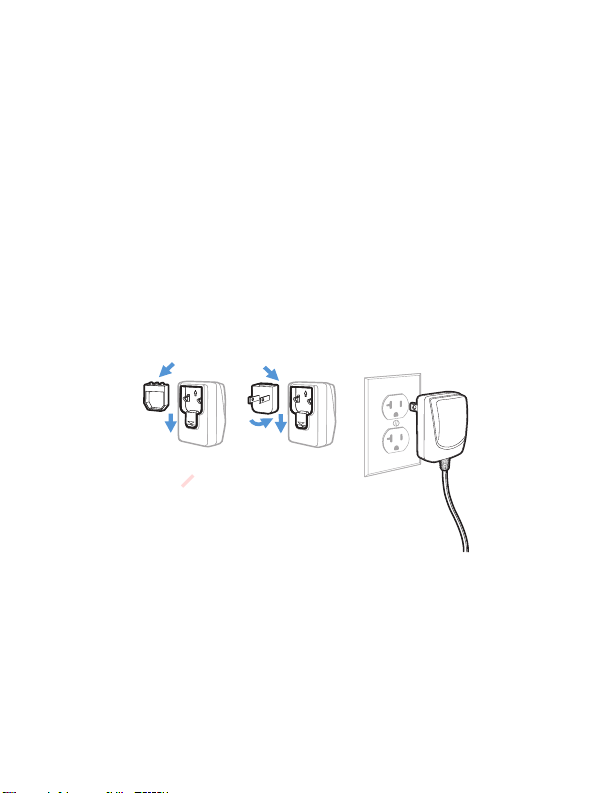

Power Supply Assembly (if included)

Note: The power supply must be ordered separately, if needed.

Connecting the Base

USB:

Note: If you are charging the scanner using the USB cable, the

current available for charging is reduced and charge times

are increased. Charging via the power supply is faster.

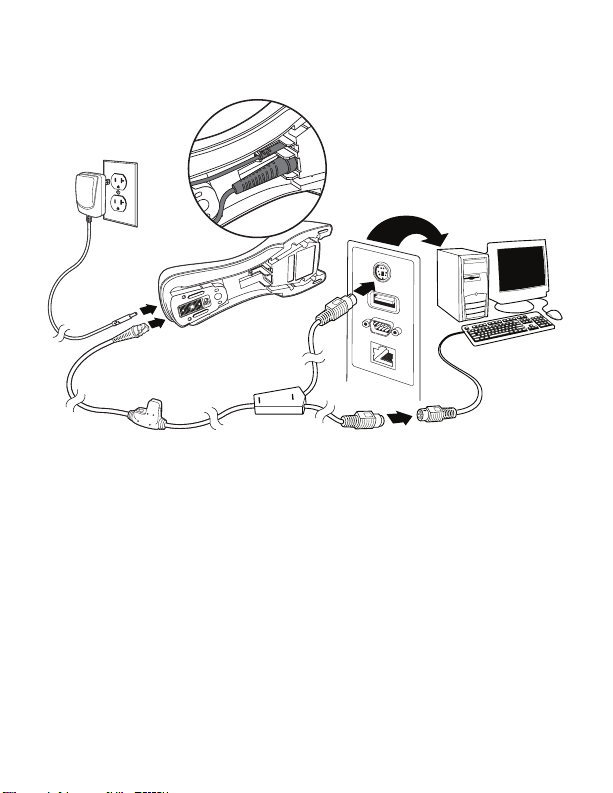

Keyboard Wedge:

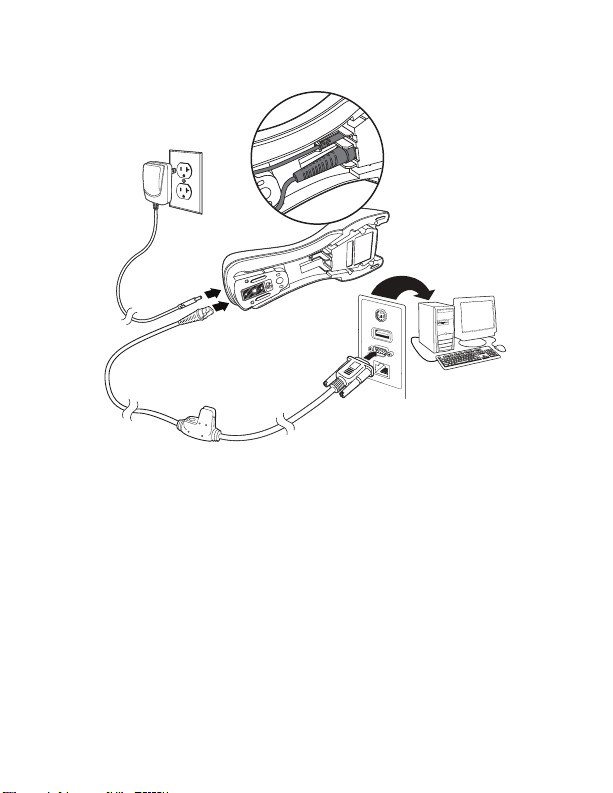

RS232 Serial Port:

Reading Techniques

The view finder projects an aiming beam

that should be centered over the bar code,

but it can be positioned in any direction for

a good read.

Note: If the scanner beeps 3 times when

scanning a bar code, the link has not

been established. If the scanner

beeps once, the link has been

established.

Standard Product Defaults

The following bar code resets all standard product default set-

tings.

Standard Product Defaults

USB Serial

Scan the following code to program the scanner to emulate a

regular RS232-based COM Port. Apple® Macintosh computers

recognize the scanner as a USB CDC class device and automati-

cally use a class driver.

Note: No extra configuration (e.g., baud rate) is necessary.

USB PC Keyboard

Scan the following code to program the scanner for a USB PC

Keyboard.

If you are using a Microsoft® Windows® PC, you must

download a driver from the Honeywell website. The

driver will use the next available COM Port number.

USB Serial

USB PC Keyboard

Keyboard Country

Scan the appropriate country code below to program the key-

board layout for your country or language. By default, national

character replacements are used for the following characters:

#$@[\]^‘{|}~ Refer to the ISO 646 Character Replacements chart

in your User Guide to view the character replacements for each

country.

USA (Default)

Belgium

Denmark

Finland

France

Germany/Austria

Note: For a complete list of country codes, see the User Guide for

your product.

Locked Link

If you link a scanner to a base using the Locked Link Mode,

other scanners are blocked from being linked if they are inad-

vertently placed into the base. If you do place a different scan-

ner into the base, it will charge the scanner, but the scanner will

not be linked.

Great Britain

Italy

Norway

Spain

Switzerland

Locked Link Mode

(Single Scanner)

To use a different scanner, you need to unlink the original scan-

ner by scanning the Unlink Scanner bar code.

Override Locked Scanner

If you need to replace a broken or lost scanner that is linked to a

base, scan the Override Locked Scanner bar code with a new

scanner, and place that scanner in the base. The locked link will

be overridden; the broken or lost scanner’s link with the base will

be removed, and the new scanner will be linked.

Unlinking the Scanner

If the base has a scanner linked to it, that scanner must be

unlinked before a new scanner can be linked. Once the previous

scanner is unlinked, it will no longer communicate with the

base. Scan the Unlink Scanner bar code to unlink a scanner.

Override Locked Scanner

Unlink Scanner
