Honeywell Evohome Instructions d'utilisation

Application Manual

2evotouch

Content

1. Introduction ............................................................................................................................3

1.1 Wireless communication........................................................................................................................................ 3

1.2 Product overview ................................................................................................................................................... 4

2. Application examples ............................................................................................................6

2.1 Single zone thermostat with boiler control............................................................................................................. 6

2.2 Two zone system with zone valves........................................................................................................................ 8

2.3 Multizone system with radiators........................................................................................................................... 10

2.4 Multizone system with radiators and remote sensor............................................................................................ 12

2.5 Multizone system with underoor heating individual room thermostat ................................................................ 14

2.6 Multizone system with underoor heating individual room sensor....................................................................... 16

2.7 Multizone system with radiators and underoor heating...................................................................................... 18

2.8 Multizone system with mixing valve and radiators............................................................................................... 20

2.9 Multizone boiler control with up to 4 controllers................................................................................................... 22

3. Application settings .............................................................................................................23

4. Generic Binding....................................................................................................................24

4.1 Conguration modes .......................................................................................................................................... 24

4.2 Sensor binding .................................................................................................................................................... 27

4.3 Binding the evotouch controller to the HR80 radiator controller .......................................................................... 28

4.4 Binding the evotouch controller to the BDR91 / HC60NG / R6660D relay module.............................................. 31

4.5 Binding the evotouch controller to the OPENTHERM-Bridge boiler feedback .................................................... 33

4.6 Binding the evotouch controller to the HM80 mixing valve controller ................................................................. 35

4.7 Binding the evotouch controller to the HCE80(R) / HCC80(R) underoor heating controller .............................. 37

4.8 Binding the evotouch controller to the DT92 room adjuster/sensor..................................................................... 40

4.9 Binding the evotouch controller to the HCW82 room adjuster/sensor or to the HCF82 room sensor.................. 42

4.10 Binding the evotouch controller to the HB85 temperature sensor ....................................................................... 44

Application Manual 3

Introduction1.

As part of the wide range of Honeywell´s product portfolio for wireless communication products we provide heating

solutions for individual zoning control. This application manual explains examples for heating solutions, particularly for

radiator, underoor and electrical heating control.

Wireless communication1.1

The peripherals communicate with the evotouch controller based on our proven RF wireless technology 868 MHZ.

The products include a transceiver which allows bi-directional (two-way) communication or uni-directional (one-way)

communication with the evotouch controller.

DT92 HCW82 HCF82 HB85

HCE80 (R)

HCC80 (R)

BDR91 HC60NG

evotouch

HM80 HR80

4evotouch

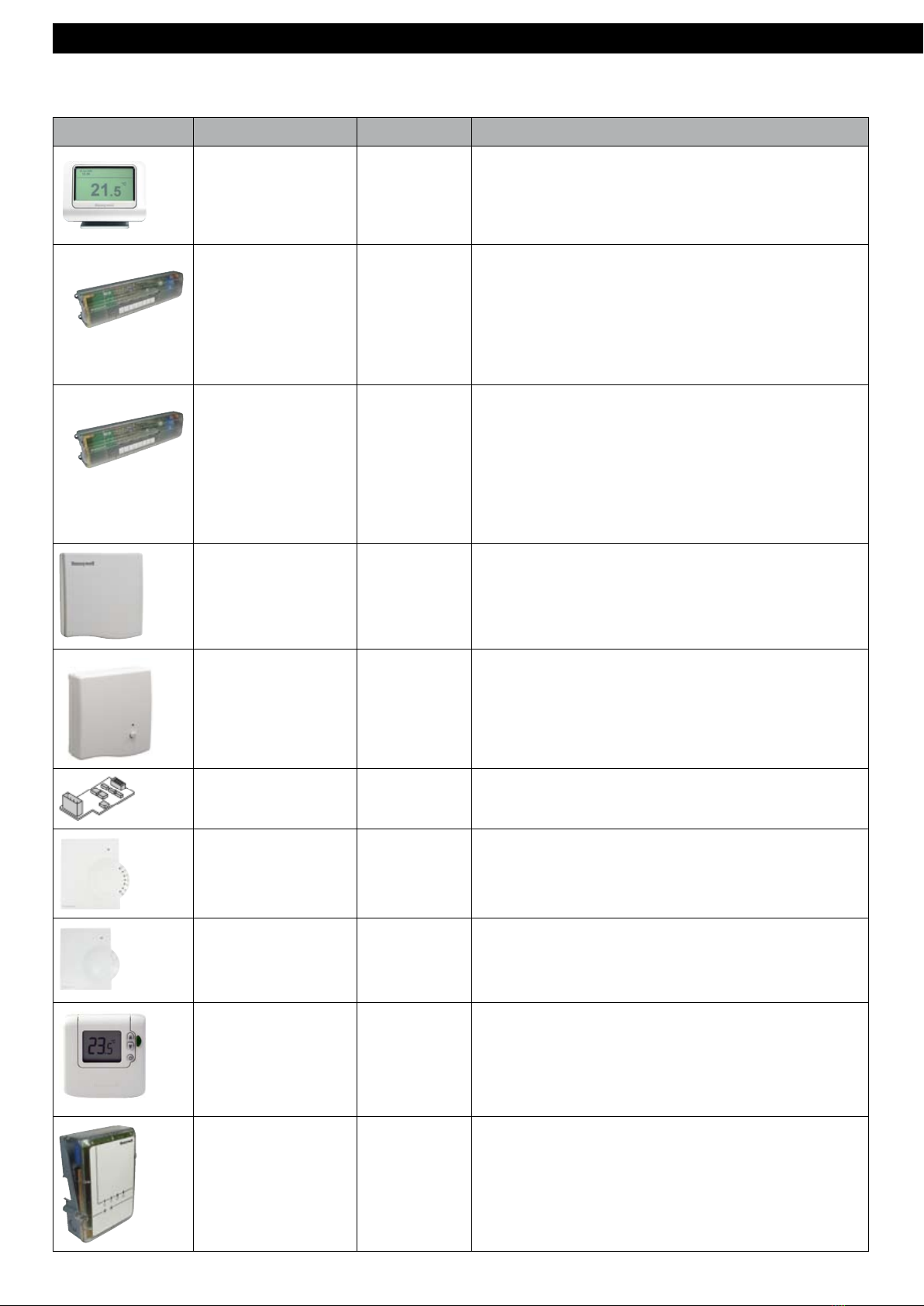

Product overview1.2


Product

OS number Description

evotouch controller Modern designed multizoning controller with touch

screen display for up to 8 zones. With individual time

program for each zone, guided programming, text-based

user guide.

Underoor heating

controller

HCE80(R) Underoor heating controller for up to 5 zones. Pump

control, analogue output for boiler feedback MCR200,

MCR40, EXCEL controllers. External antenna required.

Optional wireless boiler feedback via relay BDR91. Each

output can drive up to 3 thermal actuators. The HCE80R

has the same conguration, but instead of an analogue

output it has an integrated boiler relay.

Underoor heating

controller

HCC80(R) Underoor heating controller for up to 5 zones. Pump

control, analogue output for boiler feedback MCR200,

MCR40, EXCEL controllers. Antenna integrated.

Optional wireless boiler feedback via relay BDR91. Each

output can drive up to 3 thermal actuators, transceiver

868 MHz. The HCC80R has the same conguration, but

instead an analogue output it has an integrated boiler

relay.

External antenna HRA80 External active antenna for HCE80(R). Up to

3 controllers can be connected to one antenna,

transceiver 868 MHz.

OPENTHERM-Bridge R8810A1018 OPENTHERM-Bridge interface for boiler control (heat

on demand), transceiver 868 MHz.

Extension module HCS80 3 zones upgrade for HCE80(R) / HCC80(R) from 5 to

8 zones.

Room sensor HCF82 Room unit with integrated temperature sensor, battery-

powered (2x1,5V AA LR6), transmitter 868 MHz.

Room sensor /

setpoint adjustment

HCW82 Room unit with integrated temperature sensor /

setpoint adjustment +/– 12 °C. Window contact, battery-

powered (2x1,5V AA LR6) or external power supply,

transmitter 868 MHz.

Digital room unit DT92 Digital room unit with integrated temperature sensor

and setpoint adjustment 8 to 30 °C, battery-powered

(2x1,5 V AA LR6), transceiver 868 MHz.

Mixing valve controller HM80 Mixing valve controller for 3-position mixing valve. With

pump control and ow temperature sensor connection.

Adjustable parameters: valve run time, pump running

time, min./max. ow temperature, manual override

buttons to open/close valve, receiver 868 MHz.

Application Manual 5


Product

OS number Description

Radiator controller HR80 Radiator controller with energy-saving features,

e.g. window function, manual setpoint override, display

operating status and battery exchange. Fits valves

of brands Honeywell Braukmann, MNG, Heimeier,

Junkers, Oventrop beginning from 03/1998. Adaptors

for Danfoss, Herz, Vaillant, Oventrop available. Battery-

powered (2x1,5 V AA LR6), transceiver 868 MHz.

Relay module 5 A BDR91 Relay module with change over contact 5 A,

transceiver 868 MHz.

Relay module 8 A HC60NG/

R6660D

Relay module with change over contact 8 A,

receiver 868 MHz.

Outdoor sensor HB85 Module with integrated temperature sensor for

measuring the outside temperature. Battery-powered

(2x1,5 V AA LR6), transmitter 868 MHz.

Accessories

Thermal actuator MT4-230 NG Thermal actuator normally closed 230 V AC

Thermal actuator MT4-230 NO Thermal actuator normally open 230 V AC

6evotouch

Application examples2.

Single zone thermostat with boiler control2.1

HB85

BDR91

evotouch

Boiler room Zone 1

Zone 1

Notes

The internal room sensor of the• evotouch controller must be activated

BDR91 relay module or OPENTHERM-Bridge can be used•

Application Manual 7

Application description

This application shows 1 zone boiler control where the evotouch controller controls the boiler directly depending on heat

demand via the BDR91 relay module (switching ON/OFF).

The internal room sensor of the evotouch controller is used in order to measure the room temperature.

Option

Outdoor sensor•

The HB85 outdoor sensor measures the outside temperature. It must be installed if data is required.

Steps to do

Activate the internal room sensor of thefevotouch controller. See section 4.2

Bind BDR91 relay module / OPENTHERM-Bridge to thefevotouch controller. See section 4.4

Check RF communication.f

8evotouch

Two zone system with zone valves2.2

BDR91

Zone 2 Zone 1

evotouch

Zone 2

Boiler room Zone 1

BDR91

DT92

Notes

The internal room sensor of the• evotouch controller must be activated for zone 1

Instead of DT92 the HCW82 / HCF82 room units can be used•

Application Manual 9

Application description

For zone 1, the internal room sensor of the evotouch controller is used.

Zone 2 requires the DT92 room unit for the room temperature measurement and local remote setpoint adjustment.

The setpoints can be altered directly on the evotouch controller by manual override, time program, lifestyle actions and

DT92 as well. The same actual room temperature setpoint will be displayed on the evotouch controller and DT92.

In total, 8 zones can be controlled individually.

Options

Heat demand•

The evotouch controller calculates the heat demand and communicates it to the boiler relay BDR91 / HC60NG or

OPENTHERM-Bridge which controls the boiler.

Outdoor sensor•

The HB85 outdoor sensor measures the outside temperature. It must be installed if data is required.

Steps to do

Activate the internal room sensor of thefevotouch controller for zone 1. See section 4.2

Bind thefevotouch controller to the DT92 as room/setpoint sensor to zone 2. See section 4.8

Bind thefevotouch controller to the BDR91 / HC60NG relay module to zone 1 and zone 2. See section 4.4

Optional: Bind thefevotouch controller to the BDR91 relay module / OPENTHERM-Bridge

for boiler control. See section 4.5

Optional: Bind thefevotouch controller to the HB85 sensor for outdoor temperature. See section 4.10

Check RF communication for each sensor and actuator individually.f

10 evotouch

Multizone system with radiators2.3

Example: 6 zones, up to 8 zones are possible

evotouch

BDR91

Zone 2

Zone 4 Zone 5 Zone 6 ... 8

Zone 3

Boiler room Zone 1

HR80

Notes

The internal room sensor of the• evotouch controller must be activated for zone 1

• Zone 1: HR80 internal room sensor not used

Optional boiler feedback: BDR91 relay module or OPENTHERM-Bridge•
