Honeywell CF4680 Manuel utilisateur

CF4680 2D Imager Module

For Customer-Facing Designs

Quick Start Guide

CF4680-EN-QS Rev A

5/21

What is the CF4680 2D Imager Module?

The CF4680 is a 2D imager module designed to be integrated

into fixed mount enclosures, such as a self-service kiosk. It

includes:

• N4680 scan engine

• USB interface (USB-B connector)

•Exitwindow

• Movement detector used to start a reading session

• User feedback pins

Required Accessories

• Standard USB-A to USB-B cable

Additional Documentation

The following documents are available for the CF4680:

• CF4680 Installation Guide

• N4680/CF4680 User Guide

These documents are available from your local Honeywell OEM

representative.

CF4680 Front View

Mounting

holes (x4)

Exit

window

CF4680 Back View

Movement

detector

Ribbon cable

sensor to PCB

USB-B

connector

Distance selection

switch

User

feedback

pins

Scan

engine

Ribbon cable

engine to PCB

PCB View

Flex connector

to scan engine

Flex connector

to movement detector

USB-B

connector

User feedback

pins

Distance selection

switch

Connecting the CF4680 to a Host

By default, the CF4680 is in USB PC Keyboard interface.

1. Connect a standard USB cable (standard USB-A to USB-B)

to the CF4680 and to the USB port on the host.

2. Power-up the host.

3. Verify that the CF4680 is on by presenting a bar code in

front of the scan window. The white LED should turn on and

read the bar code.

Note: The CF4680 does not beep to indicate a good read unless

this has been setup by the user with the user feedback pins.

See the CF4680 Installation Guide for more details

(available from your local Honeywell OEM representative).

Distance Selection Switch

Use this switch to select the range to be used to detect an object

and trigger the scan engine. The distance is measured from the

outside of the exit window.

• Position 1—0 to 10 cm (4 in)

• Position 2—0 to 20 cm (8 in)

• Position 3—0 to 30 cm (12 in)

Position

Configuration

You can configure your scanner two ways:

• Reading configuration bar codes

• Using the EZConfig Cloud for Scanning tool

Configuration Bar Codes

Scan configuration bar codes to set up your scanner. All avail-

able configuration bar codes are available in the N4680/

CF4680 User Guide. Contact your local Honeywell OEM repre-

sentative for more information.

EZConfig for Scanning Tool

Use the EZConfig for Scanning tool to configure your scanner

Online:

1. Go to the Honeywell https://hsmftp.honeywell.com.

2. Register (if you haven’t already), then login.

3. Browse to Software >Barcode Scanners > Software > Tools

and Utilities > EZConfig for Scanning > Current and

download the tool.

4. Open EZConfig to configure your scanner.

Basic Setup

Here are some basic menu bar codes that may be useful for test-

ing. For more setup options see the N4680/CF4680 User Guide

(available from your local Honeywell OEM representative).

Note: The * symbol indicates the default value.

Interface

For USB serial interface, you must install the USB driver before

connecting your scanner. Contact your local Honeywell OEM

representative to get the latest USB driver.

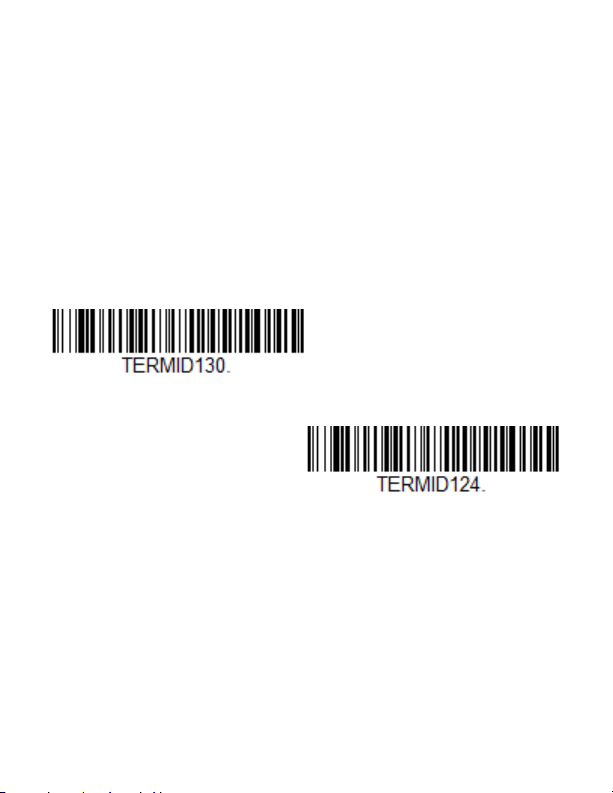

USB Serial Interface

USB PC Keyboard *

Keyboard Country Layout

The default keyboard is United States.

French

German

Italian

All Symbologies

All Symbologies On

All Symbologies Off
