Honeywell Captuvo SL22 Manuel utilisateur

Captuvo™SL22/42
Enterprise Sled for Apple
®
 iPod touch
®
 5/6 and iPhone
®
 5
Quick Start Guide
CAPTUVOSL22-42-QS Rev C
09/15
Aller à www.honeywellaidc.com pour le français.
Vai a www.honeywellaidc.com per l'italiano.
Gehe zu www.honeywellaidc.com für Deutsch.
Ir a www.honeywellaidc.com para español.
Перейти на русскоязычный сайт www.honeywellaidc.com.
Pro češtinu jdi na www.honeywellaidc.com.
Pre slovenčinu choďna www.honeywellaidc.com.
Idźna stronę: www.honeywellaidc.com po quick start w języku polskim.
Türkçe için lütfen www.honeywellaidc.com sayfasını ziyaret ediniz.
Para Português, acesse www.honeywellaidc.com.br.
如要到中国 www.honeywellaidc.com（简体）。
查看繁体版请登陆 www.honeywellaidc.com.

Getting Started

Scan this bar code with your smartphone or visit

www.honeywellaidc.com/captuvoinstructions for a

Getting Started video.

The Captuvo SL22 Enterprise Sled (Agency Model: SL-ES-C) used

with the Apple®iPod touch®5/6 mobile digital device and the Cap-

tuvo SL42 (Agency Model: SL-ES-C) used with the Apple iPhone®5

include an optional integrated imager for scanning all types of bar

codes. An optional magnetic stripe reader (MSR) for reading cards

with magnetic stripes is also available for non-healthcare sleds.

Note: An imager is standard with the healthcare devices.

Note: Honeywell is not an authorized Apple repair center. Please

return only your sled to us for repair. Honeywell is not liable

for any non-Honeywell product shipped to our repair center.

Note: Refer to your Apple iPod touch and iPhone documentation for

important product and safety information.

User Documentation

To download the sled documentation, visit www.honeywellaidc.com.

For more information about the sleds, visit www.honeywellaidc.com/

honeywellios/captuvoenterprisesleds.html.

Note: Due to the availability of different models, your sled may look

slightly different from the illustrations included in this

document.

Front View

Mini USB Port

(for charging)

Scan

Button

Speaker

Door Release

(non-healthcare sleds

only)

Volume (SL42)/

Scan Buttons

On/Off Button

Door Release

(non-healthcare

sleds only)

Charging Contacts

(for charge base only)

Battery Door

Speaker

Audio Jack

(non-healthcare

sleds only)

Back View – Non-Healthcare Sled

Main Camera Access

Magnetic

Stripe Reader

(optional)

Lanyard Slot

Imager (optional)

Security Mechanism

(non-healthcare

sleds only)

LED

Security Mechanism

(non-healthcare

sleds only)

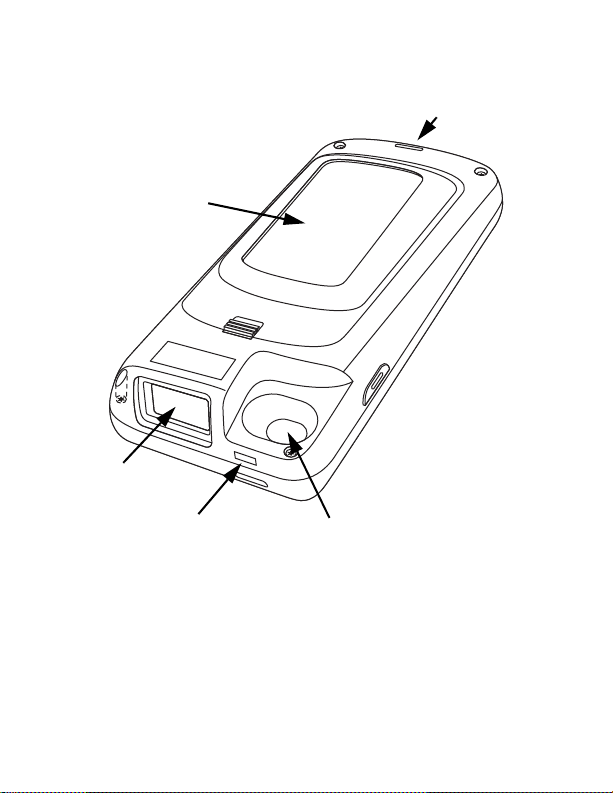

Back View – Healthcare Sled

Main Camera Access

Lanyard Slot

Imager

LED

Battery Door

Inserting the Battery

Ensure all components are dry prior to mating sleds/batteries with

peripheral devices. Mating wet components may cause damage

not covered by the warranty.

We recommend use of Honeywell Li-Ion battery packs. Use of any

non-Honeywell battery may result in damage not covered by the

warranty.

There is a danger of explosion if the batteries are incorrectly

replaced. Replace the batteries with only the same or equivalent

type recommended by the manufacturer. Dispose of used batter-

ies according to the recycle program for batteries as directed by

the governing agency for the country where the batteries are to be

discarded.

Non-Healthcare Sled Battery (1150 mAh)

Battery Door

Battery

Healthcare Sled Battery (3340 mAh)

Battery Door

Battery

Installing the Apple Device into a Non-

Healthcare Sled

1. For non-healthcare sleds, open the door by pushing the top

toward the front of the sled.

2. Slide your device into the sled.

Note: Be careful that the connectors are not accidentally damaged.

Installing the Apple Device into a

Healthcare Sled

1. For healthcare sleds, remove the four TORX (T6) screws on the

back of the unit.

Note: If you are using an Apple iPhone 5c, carefully remove the

adapter that is pre-installed in the sled. If you are using an

Apple iPhone 5/5s, leave the adapter installed.

Adapter
