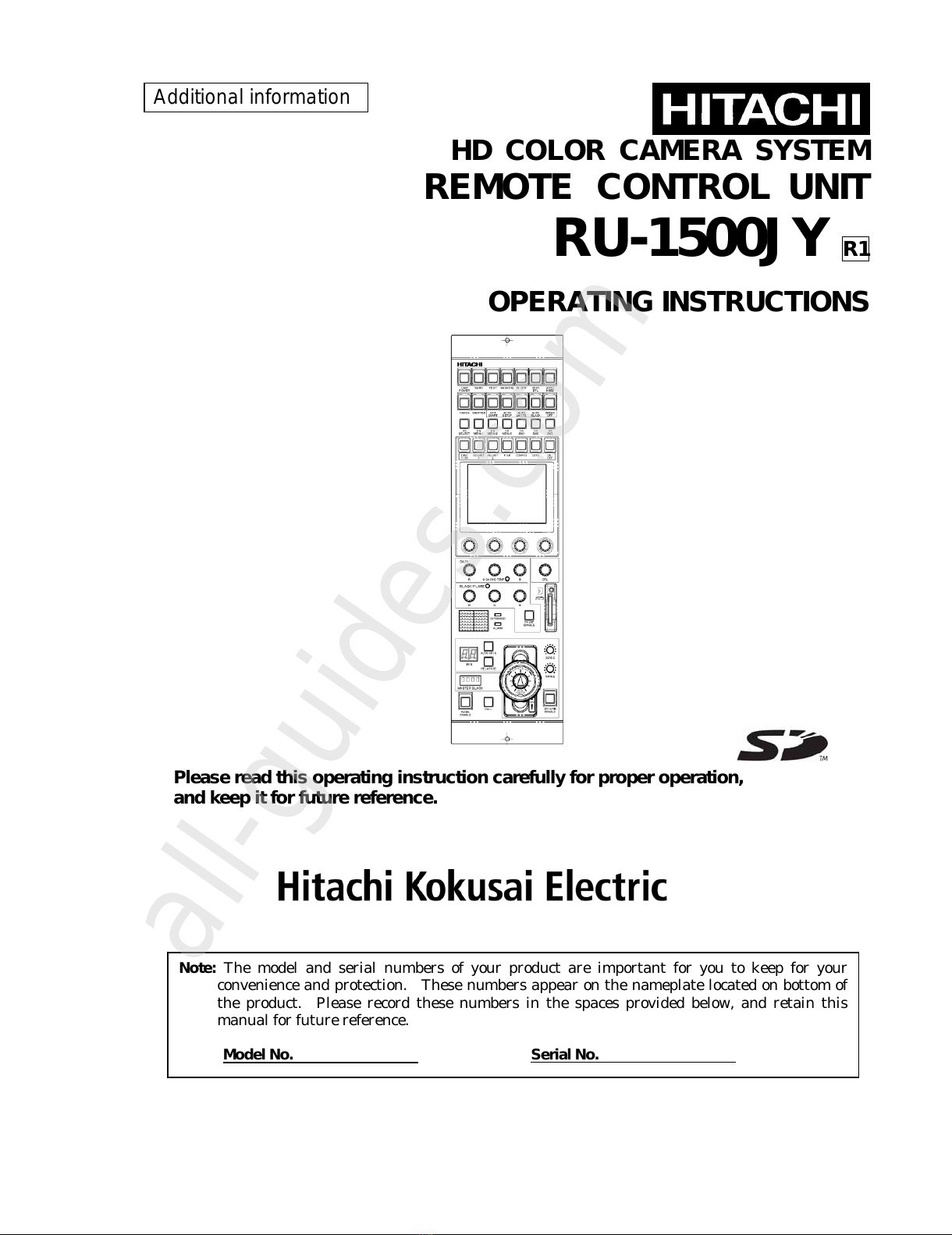

Hitachi RU-1500JY Manuel d'installation
HD COLOR CAMERA SYSTEM
REMOTE
CONTROL UNIT
RU-1500JY R1
OPERATING INSTRUCTIONS
Please read this operating instruction carefully for proper operation,
and keep it for future reference.
Note: The model and serial numbers of your product are important for you to keep for your
convenience and protection. These numbers appear on the nameplate located on bottom of
the product. Please record these numbers in the spaces provided below, and retain this
manual for future reference.
ModelNo. SerialNo.
Additional information
All manuals and user guides at all-guides.com
all-guides.com
1

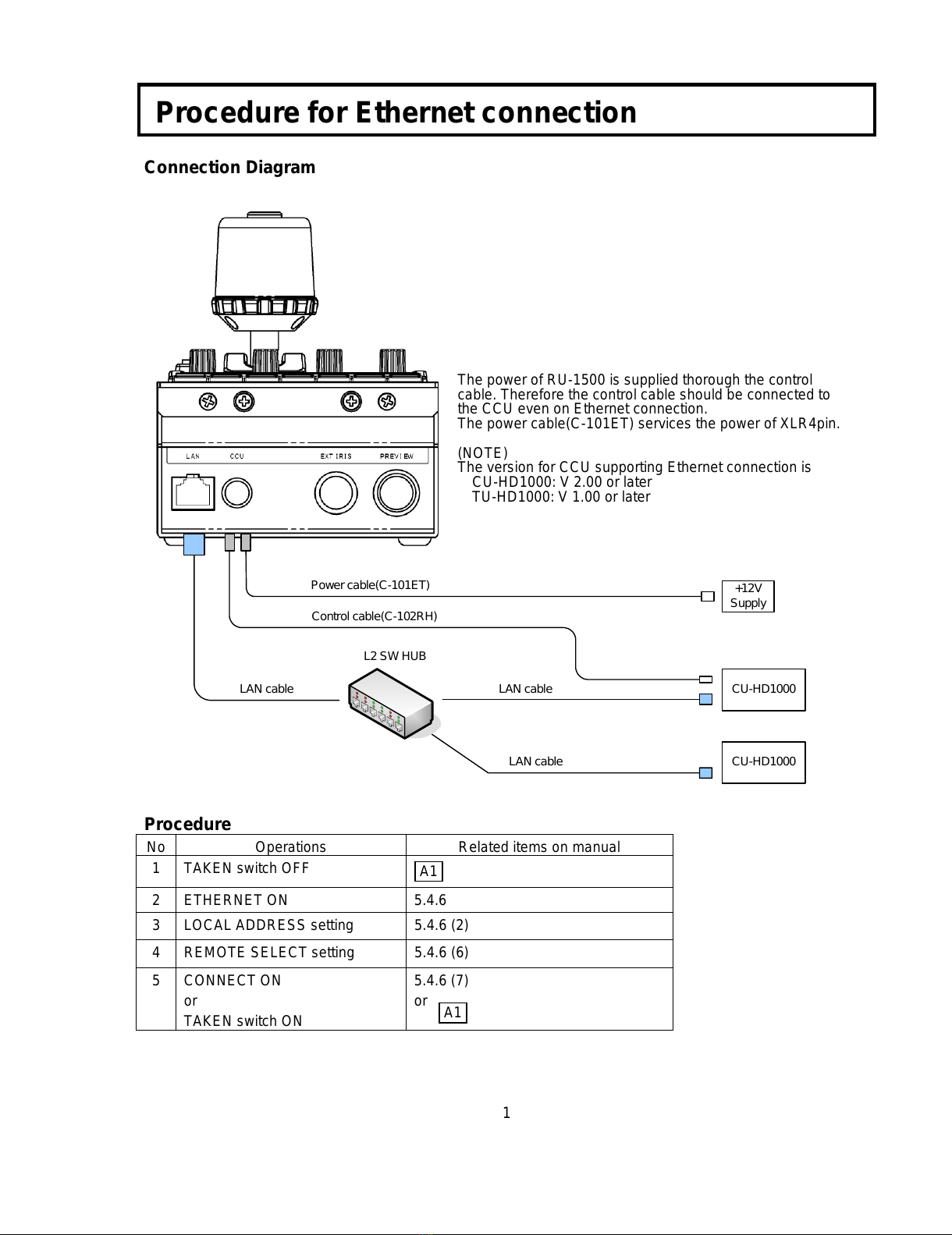

Procedure for Ethernet connection
Connection Diagram
Procedure
No Operations Related items on manual
1 TAKEN switch OFF
2 ETHERNET ON 5.4.6
3 LOCAL ADDRESS setting 5.4.6 (2)
4 REMOTE SELECT setting 5.4.6 (6)
5 CONNECT ON
or
TAKEN switch ON
5.4.6 (7)
or
CU-HD1000
CU-HD1000
+12V
Supply
Control cable(C-102RH)
L2 SW HUB
LAN cable LAN cable
Power cable(C-101ET)
LAN cable
The power of RU-1500 is supplied thorough the control
cable. Therefore the control cable should be connected to
the CCU even on Ethernet connection.
The power cable(C-101ET) services the power of XLR4pin.
(NOTE)
The version for CCU supporting Ethernet connection is
CU-HD1000: V 2.00 or later
TU-HD1000: V 1.00 or later
A1
A1
All manuals and user guides at all-guides.com
2
LCD menu

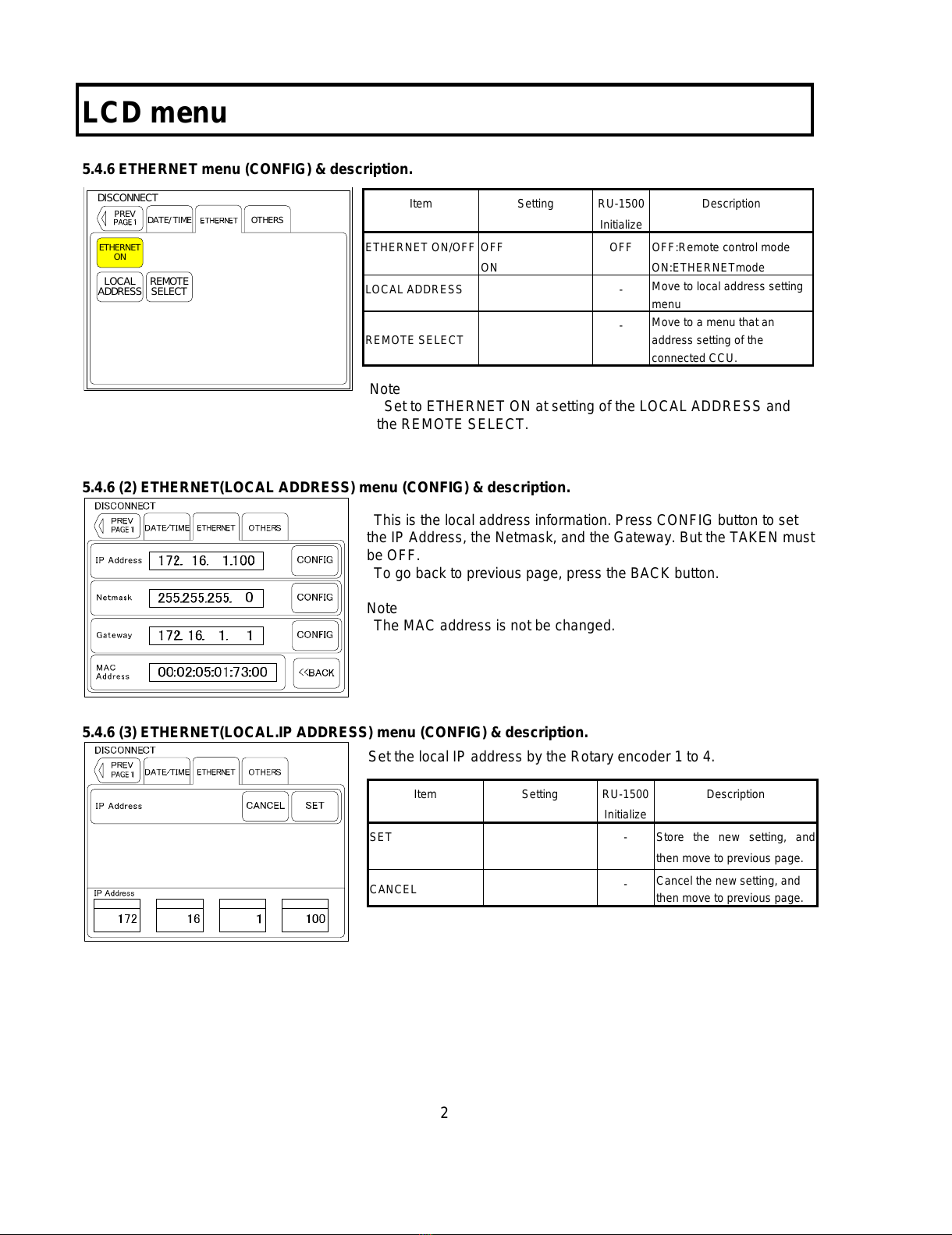

5.4.6 ETHERNET menu (CONFIG) & description.
5.4.6 (2) ETHERNET(LOCAL ADDRESS) menu (CONFIG) & description.
5.4.6 (3) ETHERNET(LOCAL.IP ADDRESS) menu (CONFIG) & description.
Note
Set to ETHERNET ON at setting of the LOCAL ADDRESS and
the REMOTE SELECT.
Item Setting RU-1500
Initialize
Description
ETHERNET ON/OFF OFF
ON
OFF OFF:Remote control mode
ON:ETHERNETmode
LOCAL ADDRESS - Move to local address setting
menu
REMOTE SELECT - Move to a menu that an
address setting of the
connected CCU.
This is the local address information. Press CONFIG button to set
the IP Address, the Netmask, and the Gateway. But the TAKEN must
be OFF.
To go back to previous page, press the BACK button.
Note
The MAC address is not be changed.
DISCONNECT
DATE/TIME
PREV OTHERS
LOCAL
ADDRESS
ETHERNET
ON
REMOTE
SELECT
Item Setting RU-1500
Initialize
Description
SET - Store the new setting, and
then move to previous page.
CANCEL - Cancel the new setting, and
then move to previous page.
Set the local IP address by the Rotary encoder 1 to 4.
All manuals and user guides at all-guides.com
3
LCD menu

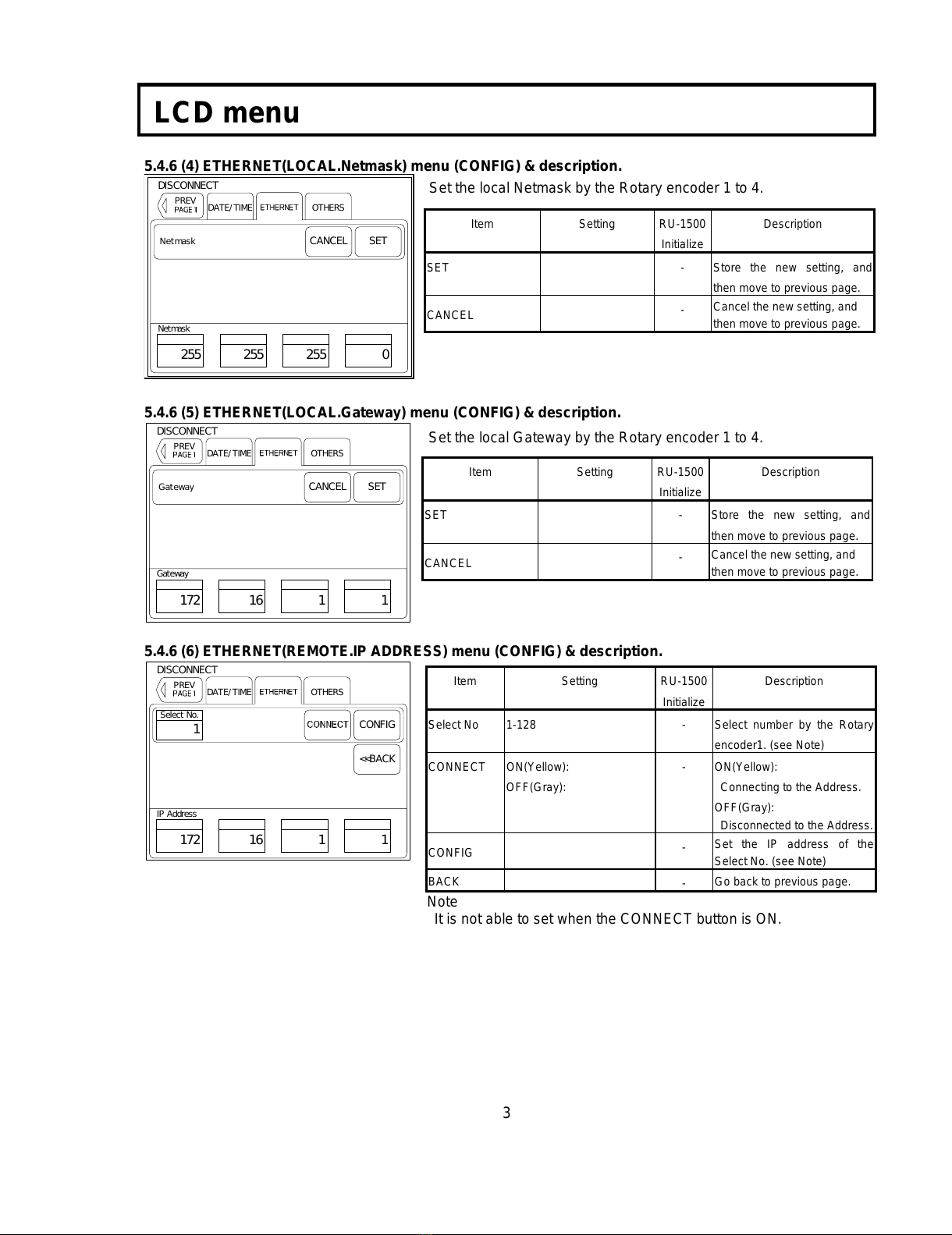

5.4.6 (4) ETHERNET(LOCAL.Netmask) menu (CONFIG) & description.
DISCONNECT
DATE/TIME
PREV OTHERS
Netmask
255 255 255 0
Netmask SETCANCEL
5.4.6 (5) ETHERNET(LOCAL.Gateway) menu (CONFIG) & description.
DISCONNECT
DATE/TIME
PREV OTHERS
Gateway
172 16 1 1
Gateway SETCANCEL
5.4.6 (6) ETHERNET(REMOTE.IP ADDRESS) menu (CONFIG) & description.
DISCONNECT
DATE/TIME
PREV OTHERS
IPAddress
172 16 1 1
CONFIG
SelectNo.
1
<<BACK
Item Setting RU-1500
Initialize
Description
SET - Store the new setting, and
then move to previous page.
CANCEL - Cancel the new setting, and
then move to previous page.
Item Setting RU-1500
Initialize
Description
SET - Store the new setting, and
then move to previous page.
CANCEL - Cancel the new setting, and
then move to previous page.
Item Setting RU-1500
Initialize
Description
Select No 1-128 - Select number by the Rotary
encoder1. (see Note)
CONNECT ON(Yellow):
OFF(Gray):
- ON(Yellow):
Connecting to the Address.
OFF(Gray):
Disconnected to the Address.
CONFIG - Set the IP address of the
Select No. (see Note)
BACK - Go back to previous page.
Note
It is not able to set when the CONNECT button is ON.
Set the local Gateway by the Rotary encoder 1 to 4.
Set the local Netmask by the Rotary encoder 1 to 4.
All manuals and user guides at all-guides.com
4
LCD menu

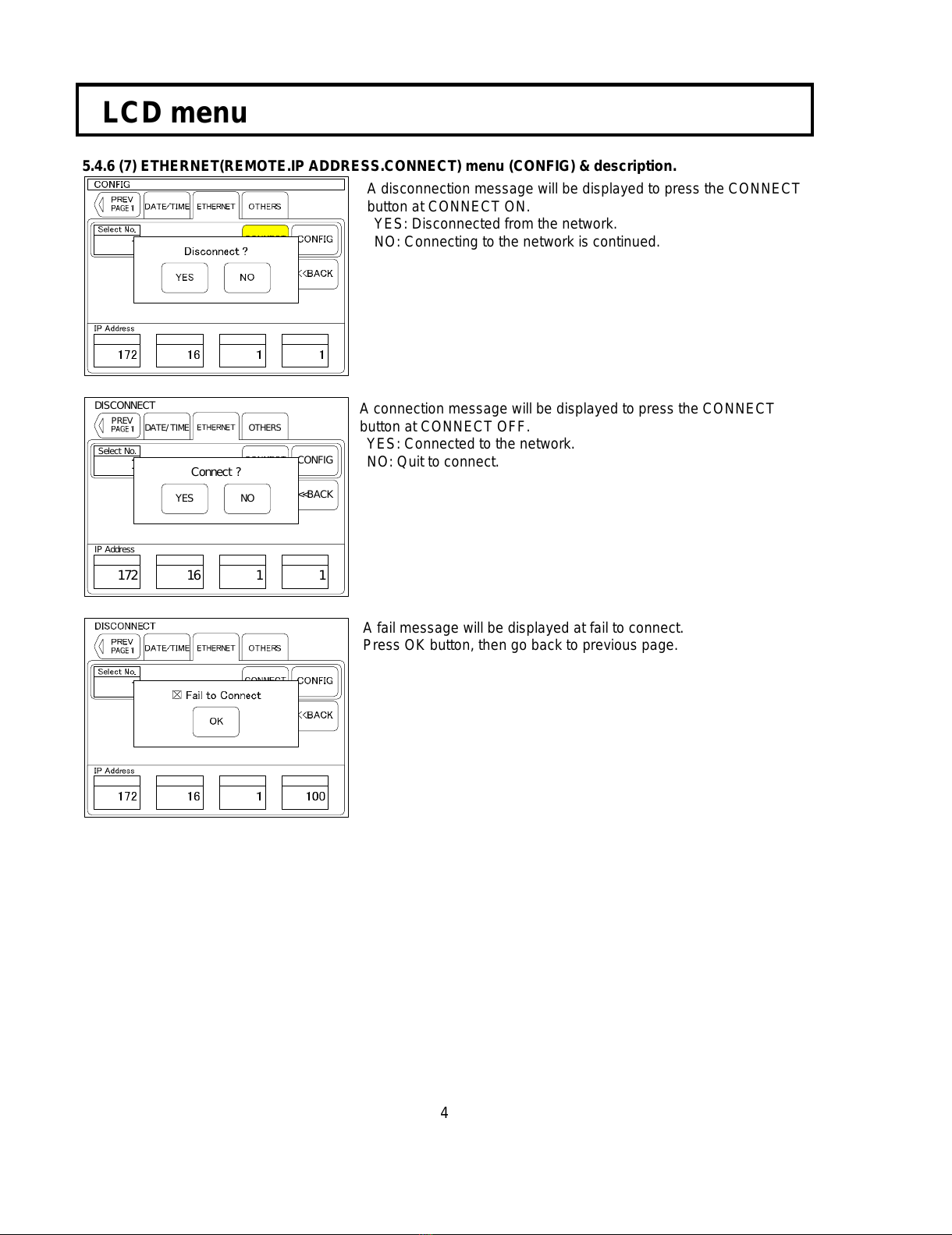

5.4.6 (7) ETHERNET(REMOTE.IP ADDRESS.CONNECT) menu (CONFIG) & description.
DISCONNECT
DATE/TIME
PREV OTHERS
IPAddress
172 16 1 1
CONFIG
SelectNo.
1
<<BACK
Connect?
YES NO
A disconnection message will be displayed to press the CONNECT
button at CONNECT ON.
YES: Disconnected from the network.
NO: Connecting to the network is continued.
A fail message will be displayed at fail to connect.
Press OK button, then go back to previous page.
A connection message will be displayed to press the CONNECT
button at CONNECT OFF.
YES: Connected to the network.
NO: Quit to connect.
All manuals and user guides at all-guides.com
5
LCD menu

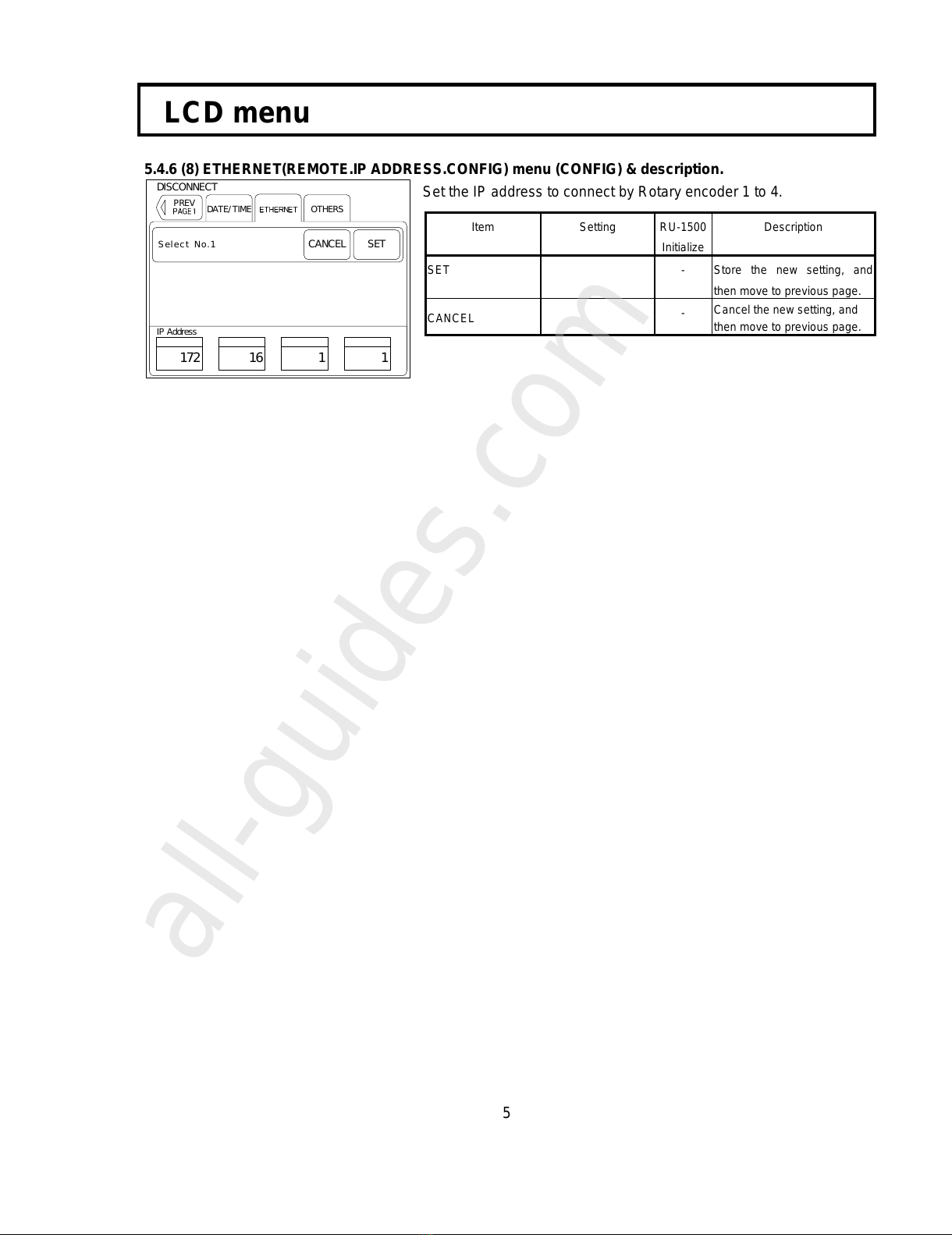

5.4.6 (8) ETHERNET(REMOTE.IP ADDRESS.CONFIG) menu (CONFIG) & description.
DISCONNECT
DATE/TIME
PREV OTHERS
SelectNo.1 SETCANCEL
IPAddress
172 16 1 1
Set the IP address to connect by Rotary encoder 1 to 4.
Item Setting RU-1500
Initialize
Description
SET - Store the new setting, and
then move to previous page.
CANCEL - Cancel the new setting, and
then move to previous page.
