Hitachi SJ-FB Manuel utilisateur

FOR HITACHI INVERTER

SJ-FB (Feed-Back Board)

HITACH

NB616X

Thank you for purchasing the SJ-FB (HITACHI FEED-BACK BOARD). This manual

explains the operation of the feed-back board for use with Hitachi SJ300 series inverters.

Please read this manual thoroughly, along with the SJ300 Inverter Instruction Manual, for

proper installation, setup, and maintenance. Keep this manual for future reference.

INSTRUCTION MANUAL

Get other manuals https://www.bkmanuals.com

SAFETY

To get best performance with SJ-FB (Feedback Board), read this manual and all of the warning sign attached to

the inverter carefully before installation and operation, and follow the instructions exactly. Keep this manual

handy for your quick reference.

Definitions and Symbols

A safety instruction (message) is given with a hazard alert symbol and a signal word;

WARNING or CAUTION. Each signal word has the following meaning throughout this manual.

This symbol means hazardous high voltage. It used to call your attention to

items or operations that could be dangerous to your and/or other persons

operating this equipment.

Read these messages and follow these instructions carefully.

This is the "Safety Alert Symbol. " This symbol is used to call your attention to

items or operations that could be dangerous to your and/or other persons

operating this equipment. Read the messages and follow these instructions

carefully.

WARNING WARNING

Indicates a potentially hazardous situation which, if not avoided, can result in

serious injury or death.

CAUTION CAUTION

Indicates a potentially hazardous situation which, if not avoided, can result in

minor to moderate injury, or serious damage of product.

The matters described under may, if not avoided, lead to serious

results depending on the situation. Important matters are described

in CAUTION ( as well as WARNING ), so be sure to observe them.

NOTE NOTE

Notes indicate an area or subject of special merit, emphasizing either the

product's capabilities or common errors in operation or maintenance.

HAZARDOUS HIGH VOLTAGE

Motor control equipment and electronic controllers are connected to hazardous line voltages. When

servicing drives and electronic controllers, there might be exposed components with cases or

protrusions at or above line potential. Extreme care should be taken to product against shock.

Stand on an insulating pad and make it a habit to use only one hand when checking components.

Always work with another person in case an emergency occurs. Disconnect power before checking

controllers or performing maintenance. Be sure equipment is properly grounded. Wear safety glasses

whenever working on electronic controllers or rotating electrical equipment.

CAUTION

Get other manuals https://www.bkmanuals.com

Revision History Table

No. Revision Contents The Date

of Issue

Operation

Manual No.

1 Initial Release of Manual NB616X Feb.2000 NB616X

Get other manuals https://www.bkmanuals.com

Only qualified personnel shall carry out wiring work.

Otherwise, there is a danger of electric shock and/or fire.

Implement wiring after checking that the power supply is off.

Otherwise, there is a danger of electric shock and/or injury.

Be sure not to touch the inside and terminal of the option board while the inverter is energized.

Otherwise, there is a danger of electric shock and/or injury.

Be sure not to remove the encoder line and feedback board during the operation.

Otherwise, there is a danger of electric shock and/or fire.

After a lapse of more than 10 minutes after turning off the input power supply, perform the maintenance and

inspection.

Otherwise, there is a danger of electric shock

Make sure that only qualified persons will perform maintenance, inspection and part replacement.

(Before starting the work, remove metallic objects from your person. Be sure to use tools protected

with insulation)

Otherwise, there is a danger of electric shock and/or injury.

Never modify the unit.

Otherwise, there is a danger of electric shock and/or injury.

Be sure to implement wiring after installing the body.

Otherwise, there is a danger of electric shock and/or injury.

WARNING

Get other manuals https://www.bkmanuals.com

Do not allow substance such as cutting waste, sputtering of welding, waste of iron, wire and dust etc. to come

into contact with the unit.

There is a fire risk.

Inverter main body and option board must be fixed tightly with the screw of the belonging.

There is a fear of contact defectiveness.

Tighten the screws of the encoder line on the option board so that there is no loose connection.

There is the fear of contact defectiveness.

Confirm that the power supply of the encoder is the same as the one in the option card (DC5V).

Otherwise, there is the danger of injury and/or fire.

Make sure that the direction of the motor is correct.

There is a danger of injury or machine damage.

Make sure there is no abnormal noise and vibration.

There is a danger of injury or machine damage

CAUTION

Get other manuals https://www.bkmanuals.com

CONTENTS

Contents PAGE

Chapter 1 GENERAL DESCRIPTIONS 7

1.1 Inspection upon unpacking 7

1.2 Inquiry and Warranty of the Unit 7

1.2.1 Request upon inquiry 7

1.2.2 Warranty of the unit 7

Chapter 2 OUTLINE OF SJ-FB 8

Chapter 3 INSTALLATION 9

Chapter 4 WIRING AND CONNECTION 10

4.1 Terminal assignment of the Option Board 10

4.2 Function Explanation of the Terminal 11

4.3 Terminal connection diagram 12

Chapter 5 SETTING 14

5.1 Position of the setting switch 14

5.2 Feed-back board initial setting 14

5.3 Items regarding the feed back board of the inverter main body 15

5.4 Setting flowchart of the switch on the board 18

Chapter 6 OPERATION 19

Chapter 7 FUNCTIONS 21

7.1 Orientation function 21

7.1.1 Function outline 21

7.1.2 Data setting 23

7.2 Speed control (ASR) 24

7.3 Position control (APR) (Electronic gear function) 24

7.3.1 Function outline 24

7.3.2 Control mode setting 24

7.3.3 Data setting 25

7.3.4 Pulse train mode selection 28

7.4 Speed control (P/PI) switching function 29

7.5 Compensationofsecondaryresistorfunction30

Chapter 8 PROTECTION FUNCTION 31

8.1 Action selection in case of option error 31

8.2 Cause and countermeasure of the option error 31

8.3 Warning display 31

Chapter 9 SPECIFICATION 32

Get other manuals https://www.bkmanuals.com

Chapter 1 GENERAL DESCRIPTIONS

1.1 Inspection upon packing

Handle with care, not to give impact and vibration in case of unpacking. Please check the contents

of the package for quantity and damage occurred during transportation.

(Packing contents)

1. SJ-FB (Feed back board) : 1

2. Instruction manual  : 1

3. Board bind screws (M3×8mm) : 2

Please contact where you bought the unit as soon as possible when there is any problem.

1.2 Inquiry and Warranty of the Unit

1.2.1 Request upon inquiry

If you have any questions regarding damage of the unit, unknown parts or for general

inquiries please contact your supplier or the local Hitachi Distributor with the following

information.

(1) Inverter Model

(2) Production Number (MFG, NO)

(3) Date of Purchase

(4) Reason for Calling

Damaged part and its condition etc.

Unknown parts and their contents etc.

1.2.2 Warranty of the unit

The warranty period of the unit is shown below.

1 year after normal installation.

However within the warranty period, the warranty will be void if the fault is due to;

(1) Incorrect use as directed in this manual, or attempted repair by unauthorized personnel.

(2) Any damage sustained, other than from transportation (which should be reported

immediately).

(3) Using the unit beyond the limits of the specification.

(4) Act of God (Natural Disasters: Earthquakes, Lightning, etc)

The warranty is for the inverter only, any damage caused to third party equipment by malfunction

of the inverter is not covered by the warranty.

Any examination or repair after the warranty period (one year) is not covered. And within the

warranty period any repair and examination which results in information showing the fault was

caused by any of the items mentioned above,. the repair and examination cost are not covered. If

you have any questions regarding the warranty please contact either your supplier or the local

Hitachi Distributor. Please refer to the back cover for a list of the local Hitachi Distributors.

Get other manuals https://www.bkmanuals.com

Chapter 2 OUTLINE OF SJ-FB

This manual describes the application board SJ-FB for a SJ300 series inverter.

This SJ-FB board, assembled in a SJ300 inverter, detected the rotation speed of a motor with the

encoder and feedback the motor speed to suppress speed fluctuations for highly accurate operation.

This SJ-FB board can also be used for controlling motor stop positions by entering 90 phase

difference pulses, as well as for synchronized operation, orientation function, and external torque

limit input function. Figure 2-1 Function Block Diagram

NOTE: Not vector control (ACR control)

PWM M

Current

control

Torque

limiter

Speed

control

Inside

setting

LAD

Turn

several

detection Position

detection

Zero speed

detection

Speed deviation

excessive signal

Position

control

Orientation

control

SJ-FB

Inverter main body

EAP,EAN

EBP,EBN

EZP,EZN

EP5,EG5

AP,AN

BP,BN

DSE ZS

POK

LAC

PCLR

ORT

SAP,SAN

SBP,SBN

STAT

Get other manuals https://www.bkmanuals.com

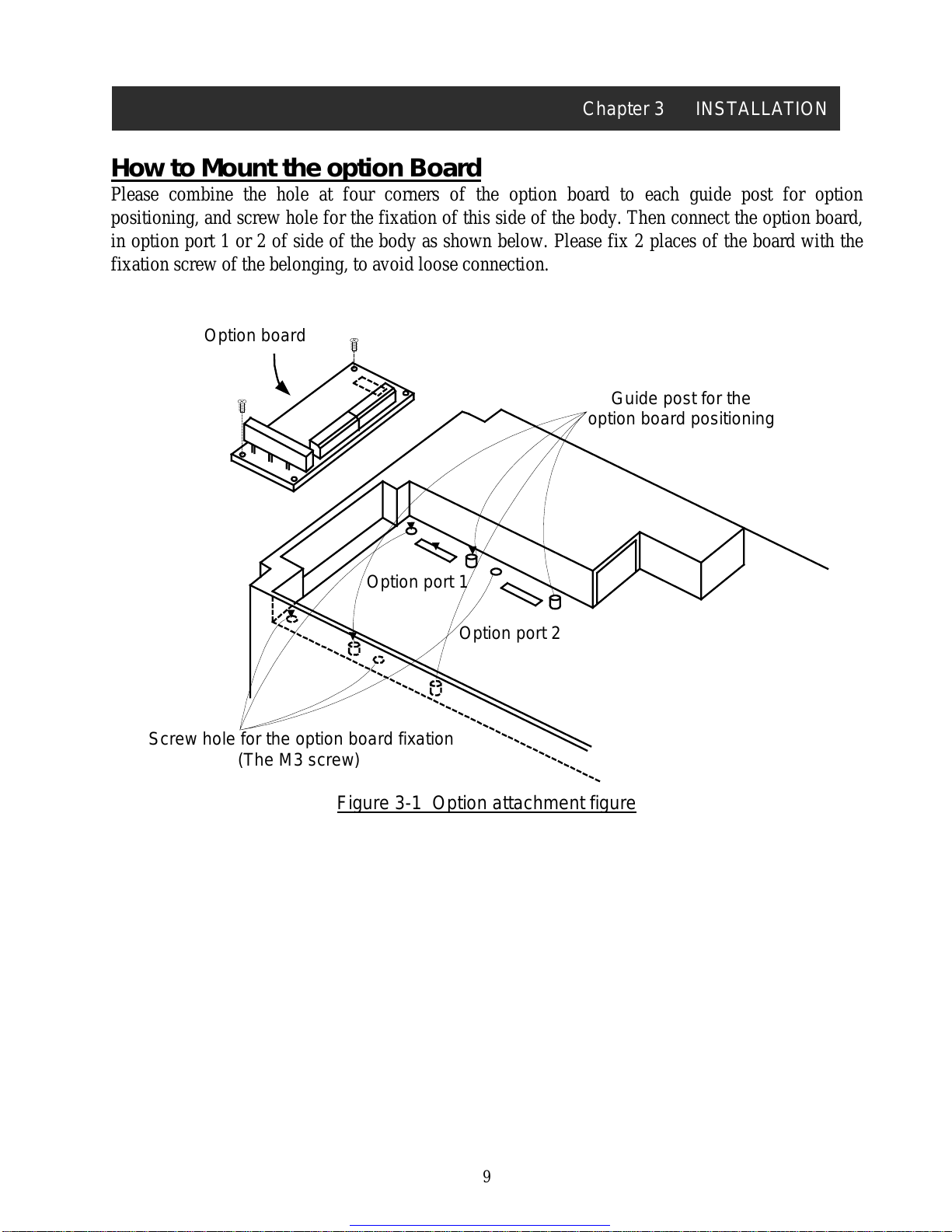

Chapter 3 INSTALLATION

How to Mount the option Board

Please combine the hole at four corners of the option board to each guide post for option

positioning, and screw hole for the fixation of this side of the body. Then connect the option board,

in option port 1 or 2 of side of the body as shown below. Please fix 2 places of the board with the

fixation screw of the belonging, to avoid loose connection.

Figure 3-1 Option attachment figure

Option port 1

Option port 2

Guide post for the

option board positioning

Screw hole for the option board fixation

(The M3 screw)

Option board

Get other manuals https://www.bkmanuals.com

Chapter 4 WIRING AND CONNECTION

4.1 Terminal assignment of the Option Board

Figure 4-1 Terminal assignment

Outlook of SJ-FB

TM1 TM2

Dip switch SWENC Dip switch SWR

Connector for Main body

connection

EP5 EG5 EAP EAN EBP EBN EZP EZN

TM1 terminal assignment

SAP SAN SBP SBN AP AN BP BN

TM2 terminal assignment

Get other manuals https://www.bkmanuals.com
