HIK VISION DS-2DF1-614X/604X Manuel utilisateur

Hikvision Technical Manual

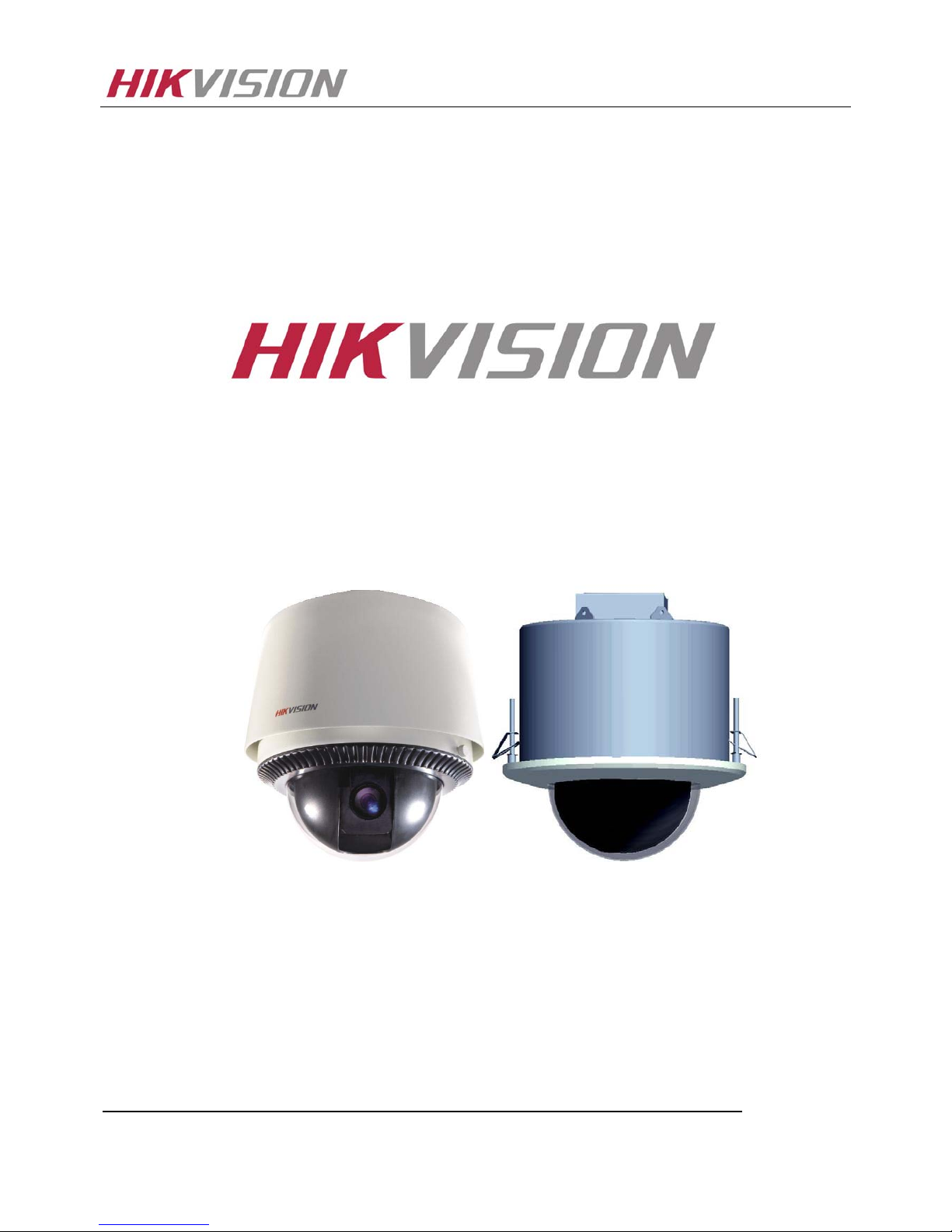

DS-2DF1-614X/604X Network Speed Dome

Technical Manual

Hikvision Technical Manual

Notices

The information in this documentation is subject to change without notice and does not represent any

commitment on behalf of HIKVISION. HIKVISION disclaims any liability whatsoever for incorrect data

that may appear in this documentation. The product(s) described in this documentation are furnished

subject to a license and may only be used in accordance with the terms and conditions of such license.

This documentation is issued in strict confidence and is to be used only for the purposes for

which it is supplied. It may not be reproduced in whole or in part, in any form, or by any means or

be used for any other purpose without prior written consent of HIKVISION and then only on the

condition that this notice is included in any such reproduction. No information as to the contents or

subject matter of this documentation, or any part thereof, or arising directly or indirectly therefrom,

shall be given orally or in writing or shall be communicated in any manner whatsoever to any third party

being an individual, firm, or company or any employee thereof without the prior written consent of

HIKVISION. Use of this product is subject to acceptance of the HIKVISION agreement required to use

this product. HIKVISION reserves the right to make changes to its products as circumstances may

warrant, without notice.

This documentation is provided “as-is,” without warranty of any kind.

Please send any comments regarding the documentation to:

[email protected]

Find out more about HIKVISION at www.hikvision.com

Hikvision Technical Manual

Contents

1. Key Features

2. Specifications

3. Dimension

Hikvision Technical Manual

1.Key Features

zSony EXview CCD

z±0.1° Preset Accuracy

z400°/s Pan Preset Speed and 150°/s Tilt Preset Speed

z0.3-300°/s Manual Pan Speed and 0.5-90°/s Manual Tilt Speed

zPark Action: Start to Call Preset / Patrol / Pattern / Auto Scan / Random Scan /

Frame Scan, after a Defined Time of Inactivity

zParameter Restore: PTZ & Lens Status after Reboot

zPatterns: Up to 4, On-Screen, User-defined Programmable Patterns; Including Pan,

Tilt, Zoom and Preset Functions

zProportional Pan / Tilt: Continually Decreases Pan / Tilt Speeds, in Proportion to

Depth of Zoom

zFreeze Frame between Presets

zProgrammable Zoom Speeds

zVariable Scan Speed: Scan Speed Can Be Programmable between 1 to 40°/sec

zPrivacy Blank: Up to 4 Zones Masked Simultaneously in One Image

zProgrammable Limit Stops for Auto / Random Scan / Frame Scan / Manual Modes

zBuilt-in Menu System for Setup of Programmable Functions

zOn-Screen Compass, Pan ,Tilt and Zoom Display

zAlarm I/O: 2 Channels input and 2 Channels Relay output

zAlarm Actions: 200 Presets, 8 Patrols, 4 Patterns, Auto Scan, Alarm output, SD

Memory Recording and Notification on PC Client, Alarms can be Individually

Programmed for 3 Priority Levels

zResume after Alarm: Allow the Dome Return to Previous State after Alarm

Acknowledgement

zSupport Mouse Drag and Zoom

zFiber Connector Optional

zBuilt-in Surge Protection and Limited Lightning Protection

zWater and Dust Resistance: IP66, for Outdoor Dome

zWorking Temperature -30℃~ 60℃(Outdoor Models) or -10℃~50℃(Indoor

Models)

Hikvision Technical Manual

2.Specifications

DS‐2DF1‐616X

ParameterDS‐2DF1‐606X

ImageSensor1/4inchInterlineTransferCCD

EffectivePixels

PAL:752(H)×582(V)

NTSC:768(H)×494(V)

HorizontalResolution

540(Color)

570(B/W)

SignalSystemNTSC/PAL

Min.Illumination

0.8Lux/F1.4(Color)

0.04Lux/F1.4(B/W)

WhiteBalanceATW/Manual

AGCAuto/Manual

S/NRatioBetterthan50dB

BLCON/OFF

ElectronicShutter

N:1/60~1/10,000s(16steps),

P:1/50~1/10,000s(16steps)

Day&NightICR

DigitalZoomUpto16x

PrivacyBlankUpto4zonesmaskedsimultaneouslyinoneimage

Camera

AutoFocusAuto/Manual

FocalLength3.5‐105mm,30xzoom

ZoomSpeedApprox.4.1sec(OpticalWIDE‐TELE)

AngularofView58degree(WIDEend)to2.2degree(TELEend)

Min.Working

Distance

1000mm

Lens

ApertureRange F1.6‐F4.5

PanRange 360°endless

PanSpeed

Manual:approx.0.3°/s‐160°/sor0.3°/s‐220°/s,0.3°/s‐300°/s,

ProgrammableinMenu

Preset:uptoapprox.400°/s

TiltRange 0°~90°(Autoflip)

Panand

Tilt

TiltSpeed

Manual:approx.0.5°/s‐40°/sor0.5°/s‐60°/s,0.5°/s‐90°/s,Programmable

inMenu

Preset:uptoapprox.150°/s

Hikvision Technical Manual

ProportionalPan/Tilt

ControlYES

NumberofPresets200

AutoModesOFF/Preset/Patrol/Pattern/AutoScan/RandomScan/FrameScan

Patrols1/2/3/4/5/6/7/8

Patterns1/2/3/4

FreezeFrameFreezeFrameduringPreset(JustforDS‐2DF1‐616/606X)

AutoFlipYES

ParameterRestoreGotothespeeddomelaststatusafterreboot

ParkActions

StarttoCallPreset/Patrol/Pattern/AutoScan/RandomScan/Frame

Scan,afteraDefinedTimeofInactivity

PTZPositionDisplayON/OFF

Ethernet10Base‐T/100Base‐TX,RJ45connector(FiberConnectorOption)

ImageResolutionPAL:704×576,NTSC:704×480

FrameRate25fps(704×576),30fps(704×480)

ImageCompressionH.264

AudioCompressionOggVorbis/16kbps

AudioModeOFF/Audioinput/Audiooutput

Protocols

TCP/IP,HTTP,DHCP,DNS,RTP/RTCP,PPPoE(FTP,SMTP,NTP,SNMP

addible)

No.ofSimultaneous

UsersUpto6users

DualStreamsSupportdualstreamssimultaneously

MiniSDMemory

Card

ManualREC/AlarmREC.

CompatibleSDHCStandardCards

User/HostLevel3Levels:Administrator,Cameracontrol,Liveonly

Network

SecurityMeasures

Userauthentication(IDandPW),

Hostauthentication(MACaddress)

CameraControl

Pan/Tilt,Zoom,Focus,Clickcentering,Dragzoom,Iris,Presetpositioncall

andprogram,Automode.

CameraTitleUpto18characters

ClientGUI

ClockDisplayTime:Week:Date,6formatsontheClient

AlarmInput2channelsinputs,priorityisconfigurable

AlarmOutput2channelsrelayoutputs,alarmlinkageisconfigurable

Alarm

AlarmActions

Preset1~200,Patrol1~8,Pattern1~4,SDcardrecording,Terminal

output,NotificationonClient.

MonitorOutput1.0V[p‐p]/75Ω,NTSC(orPAL)composite,BNC

Input/

Output

MicrophoneInput

Mic.In(Applicablemicrophone;Plug‐inpowertype)

2‐2.4V[p‐p],Inputimpedance:1KΩ±10%

Hikvision Technical Manual

AudioOutputAudioout,Linelevel

MenuLanguageEnglish,Chinese

RS‐485ProtocolsHIKVISION,PELCO‐P,PELCO‐D(addible),self‐adaptive

PowerSupply24VAC(12VDCoption)

PowerConsumption30Wmax(HeaterON)

Working

Temperature/

Humidity

.‐30℃~60℃(outdoor)/‐10℃~50℃(indoor)

90%orless(withoutcondensation)

WaterandDust

Resistance

IP66standardcompatible(JustforOutdoordome)

TVS3000Vlimitedlightningprotection

Dimensions6inch,Φ243(mm)×287(mm)

General

Weight(approx.)5kg

Hikvision Technical Manual

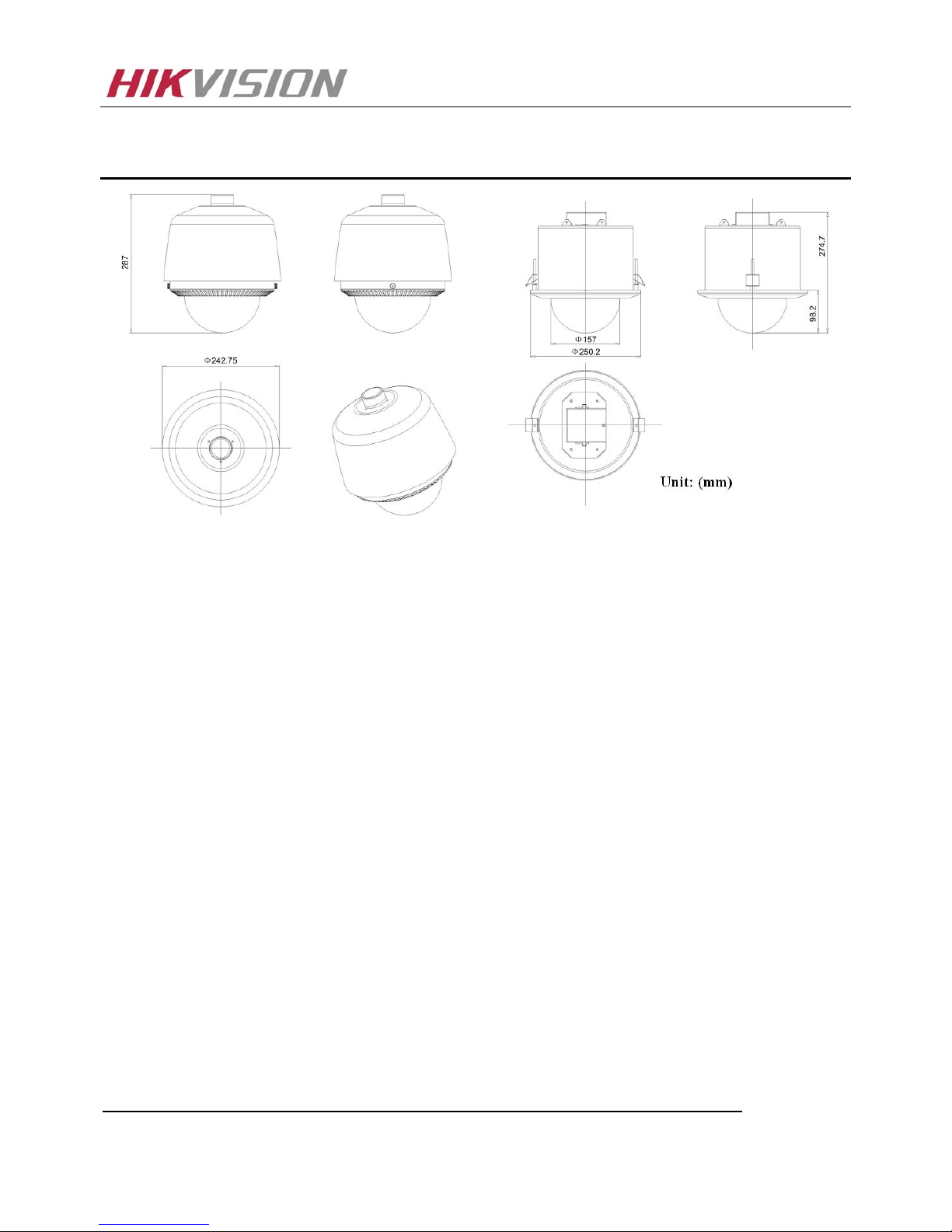

3.Dimension
