Chapter 1 Overview

1.1 Objective

This manual is designed to provide standard engineering guidelines for the construction and

configuration of the All-in-one Traffic Camera.

1.2 Target Reader

This manual is written for implementation and maintenance personnel who will install and

configure the All-in-one Traffic Camera.

1.3 Safety Precautions

Road in construction should be semi-closed to avoid risk. And the construction area should

be surrounded with enough reflective cones as cautions.

Constructors should wear reflective vests on site.

Constructors must fasten safety lines when working at high places, and wear hardhats when

working on scaffold or portal frame.

Do not rise or fall the ladder truck sharply during operation.

Be sure to cut off the power supply before installing devices or connecting wires.

ITS All-in-one Traffic Camera Configuration Manual

Chapter 2 Device Activation

Purpose:

For the first use of the camera, you need to activate the device by setting an admin password. No

operation is allowed before activation. You can activate the device via SADP.

Steps:

1. Download SADP from the official website‘https://www.hikvision.com/en/’.

2. Run the software.

SADP will automatically search all online devices in LAN. The results are displayed in sheet,

with device type, IP address, security status, device serial No. and many other information, as

shown in the figure below.

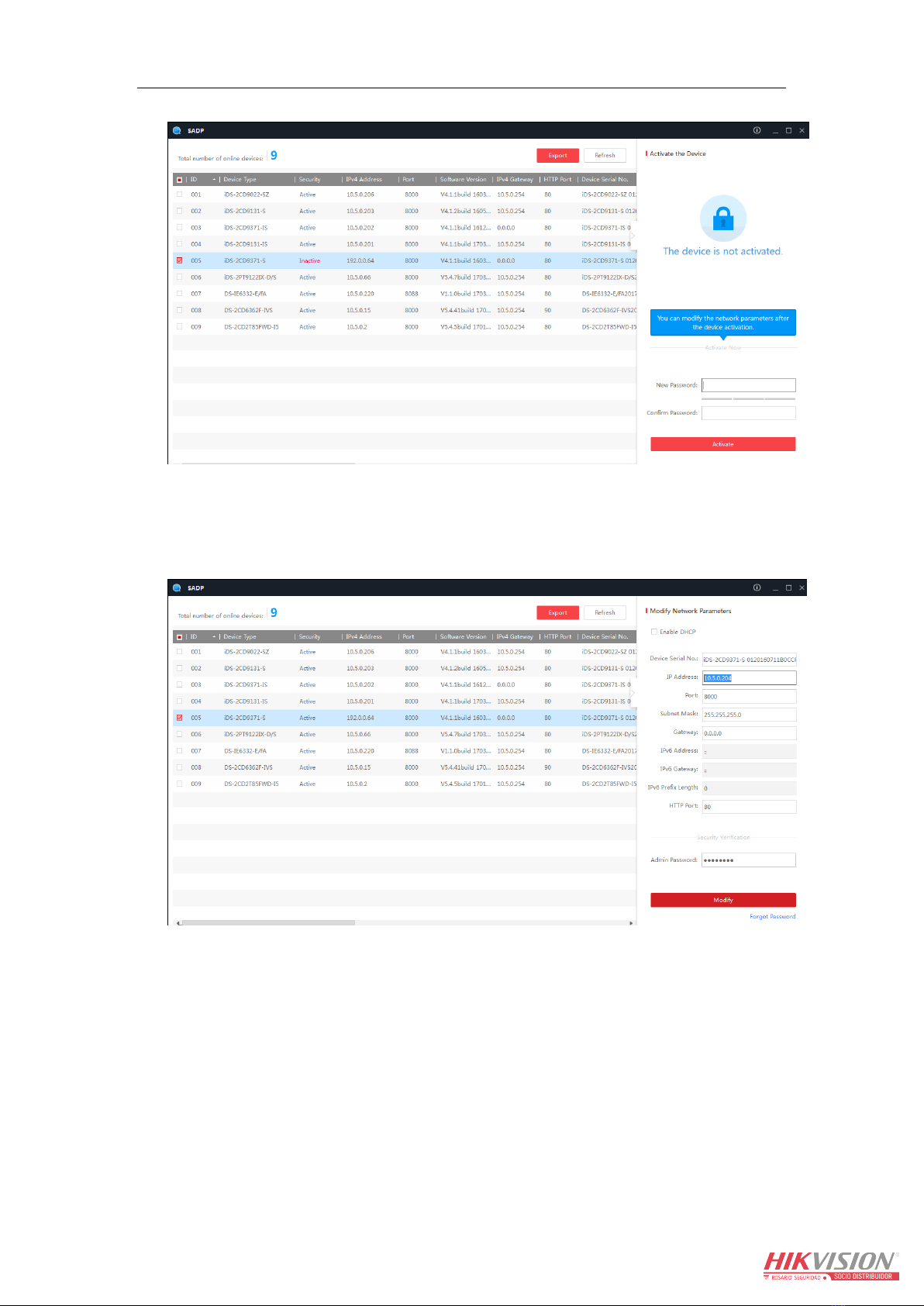

Figure 2-1 SADP Search Interface

3. Check the capture camera to be activated to pop up the Activate the Device window on the

right.

4. Set capture camera password in the popup window.

5. Click Activate to complete activation.

ITS All-in-one Traffic Camera Configuration Manual

Figure 2-2 Activate the Capture Camera

6. Check the activated camera to pop up the Modify Network Parameters window on the right.

7. Enter camera IP address, subnet mask and admin password.

8. Click Modify to finish IP settings.

Figure 2-3 Modify Camera IP Address

9. Modify the computer’s IP address to be in the same network segment as the camera.

ITS All-in-one Traffic Camera Configuration Manual

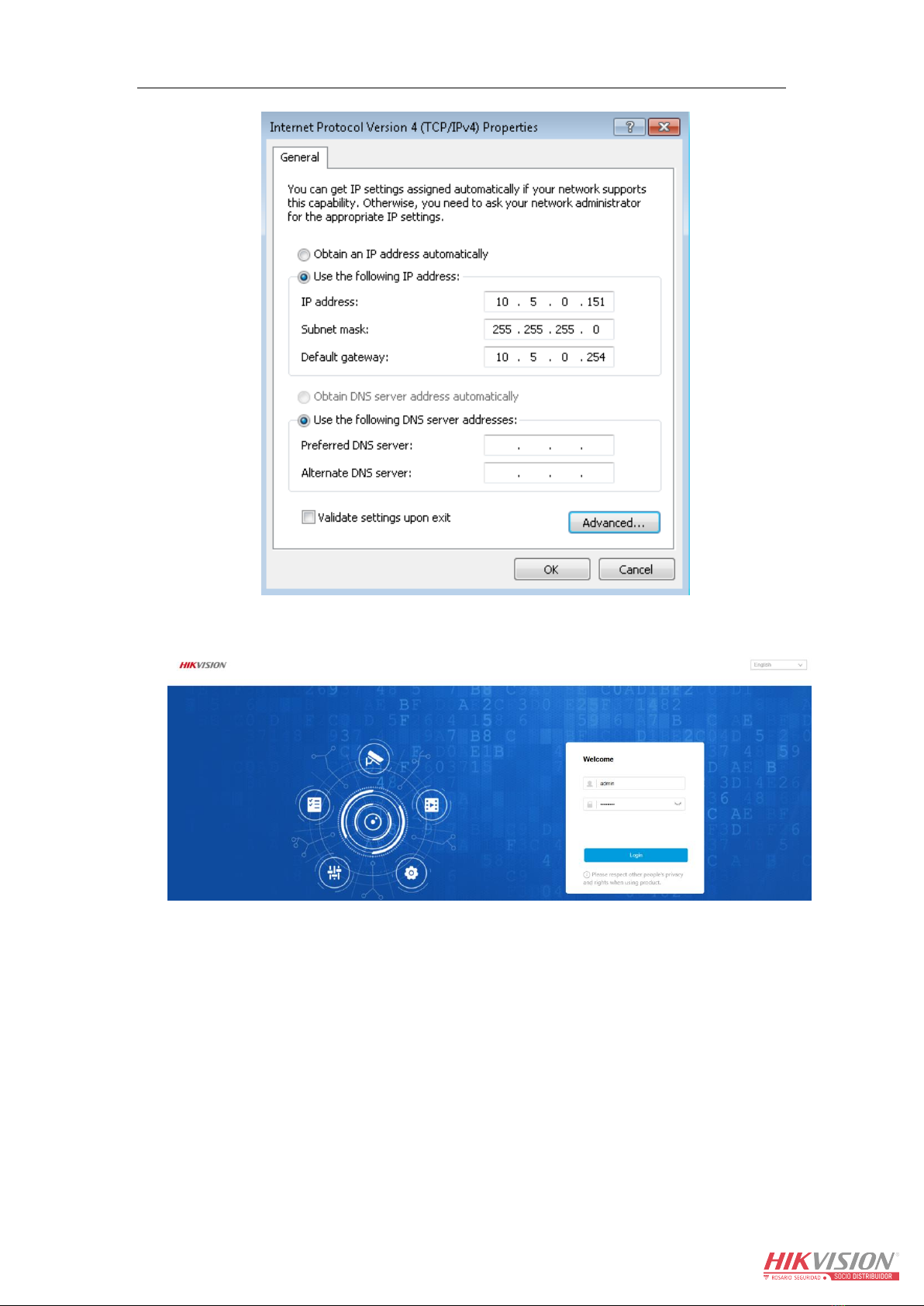

Figure 2-4 Modify Computer IP Address

10. Using Chrome or IE browser to login the camera.

Figure 2-5 Login

ITS All-in-one Traffic Camera Configuration Manual

Chapter 3 Camera Configuration

3.1 Upgrading Program and Restoring Default Settings

.Steps:

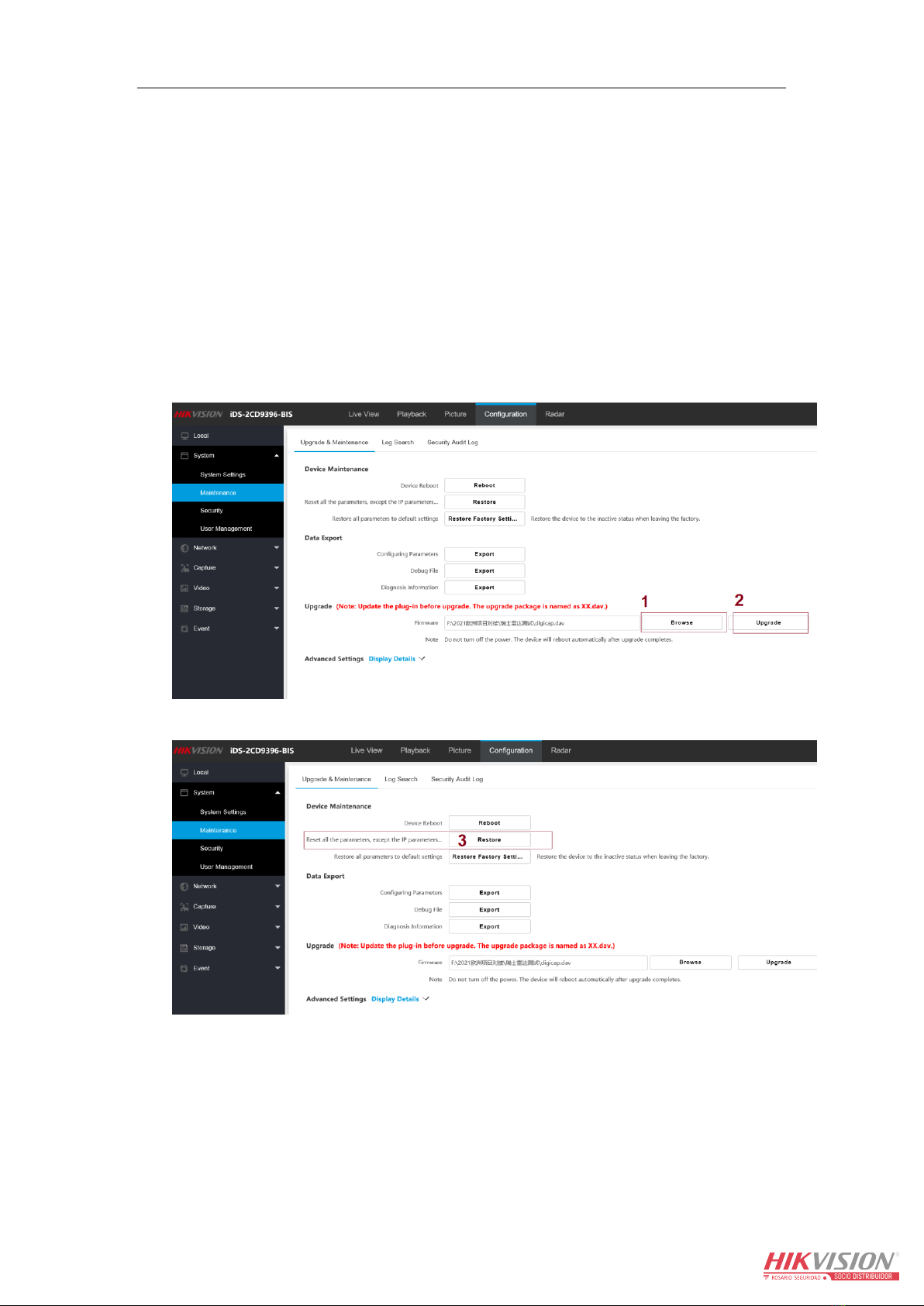

Go to Configuration > Capture Maintenance.

Steps:

1. Choose Firmware.

2. Click Upgrade.

3. Restore the camera.

3.2 Modifying Time Zone

Steps:

1. Go to Configuration > System Setting > Time Settings.

2. Select Time Zone.

ITS All-in-one Traffic Camera Configuration Manual

3. Click Save.

3.3 Set License Plate Recognition Parameters

1. Go to Configuration → Capture → Capture Parameters → License Parameters.

2. Set Country/Region according to the actual needs.

3. Select License Plate Recognition.

–Select Forward when license plates of vehicles from the approaching direction need to be

recognized.

–Select Backward when license plates of vehicles from the leaving direction need to be

recognized.

3.4 Checking Serial port
