HIK VISION NETWORK CAMERA Manuel utilisateur

Network Camera

User Manual

V3.0.0

Hangzhou Hikvision Digital Technology Co., Ltd.

http://www.hikvision.com

2010-04

Thank you for purchasing our product. If there are any questions, or requests, please

do not hesitate to contact the dealer.

This manual applies to Network Camera.

This manual may contain several technical incorrect places or printing errors, and the

content is subject to change without notice. The updates will be added to the new

version of this manual. We will readily improve or update the products or procedures

described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of

the security or signaling aspects of this product. UL has only tested for fire, shock or

casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL

Certification does not cover the performance or reliability of the security or signaling

aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR

CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF

ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

User Manual of Network Camera

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid

danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.

Warnings

Follow these safeguards to

prevent serious injury or death.

Cautions

Follow these precautions to

prevent potential injury or material

damage.

Warnings:

1. In the use of the product, you must strictly comply with the electrical safety regulations of the

nation and region.

2. Source with DC 12V or AC 24V (Whether supporting AC 24V lies on the specific camera model)

according to the IEC60950-1 standard. Please refer to technical specifications for more details.

3. Do not connect several devices to one power adapter as an adapter overload may cause

over-heating and can be a fire hazard. If use the POE as the power supply, please make sure that

the POE Switch have the sufficient power .(Whether supporting PoE power supply lies on the

specific camera model)

4. Please make sure that the plug is firmly inserted into the power socket.

5. When the product is installed on a wall or ceiling, the device should be firmly fixed.

6. If smoke, odor, or noise rise from the device, turn off the power at once and unplug the power

cable, then contact the service center.

7. If the product does not work properly, please contact your dealer or the nearest service center.

Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for

problems caused by unauthorized repair or maintenance.)

User Manual of Network Camera

Notice:

1. Make sure the power supply voltage is correct before using the camera.

2. Do not drop the camera or subject it to physical shock.

3. Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit

of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put

on the lens cap to protect the sensor from dirt.

4. Do not aim the camera at the sun or extra bright places. A blooming or smear may occur

otherwise (which is not a malfunction however), and affecting the endurance of sensor at the

same time.

5. The sensor may be burned out by a laser beam, so when any laser equipment is being used,

make sure that the surface of the sensor will not be exposed to the laser beam.

6. Do not place the camera in extremely hot or cold temperatures (the operating temperature

should be between -10°C ~+60°C, dusty or damp locations, and do not expose it to high

electromagnetic radiation.

7. To avoid heat accumulation, good ventilation is required for a proper operating environment.

8. While shipping, the camera should be packed in its original packing, or packing of the same

texture.

9. Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment should be

replaced regularly according to their average life time. The average time varies because of

differences between operating environment and usage history, so regular checking is

recommended for all users. Please contact with your dealer for more details.

User Manual of Network Camera

Table of Contents

Chapter 1 Network Camera Connection.......................................................................1

Chapter 2 Network Access ...........................................................................................3

2.1 Access over IE Browser.....................................................................................3

2.1.1 Live View ................................................................................................. 4

2.1.2 Parameters Configuration........................................................................7

2.2 Access over Client Software............................................................................19

2.2.1 Client Software Installation.................................................................... 19

2.2.2 Live View ............................................................................................... 21

2.2.3 Sensor Parameters Configuration ..........................................................24

Chapter 3 Access over Internet ..................................................................................28

3.1 Access network camera with static IP .......................................................28

3.2 Access network camera with dynamic IP ..................................................29

Appendix 1 SADP Introduction ................................................................................... 33

Appendix 2 Port Map ................................................................................................. 35

Appendix 3 Pin Definition .......................................................................................... 37

User Manual of Network Camera

Chapter 1 Network Camera Connection

Two methods can be used to connect between network camera and PC, shown as below:

Fig. 1.1 Cross Line Connection

Fig. 1.2 Direct Line Connection

Before visiting network camera over network, user should acquire its IP address first. SADP is a

software tool which can automatically detect Hikvision’s network device in the LAN and give the

device’s information like IP address, mask, port number, device serial number, software version, etc.,

shown as Fig. 1.3.

User Manual of Network Camera

Fig. 1.3

Select the device, and set its IP address and mask at the same network segment with the PC.

For the detailed introduction of SADP, please refer to Appendix 1.

Note: The network camera is set with the factory default IP address of “192.0.0.64”, the port of

“8000”, the super user name of “admin”and the password of “12345”.

User Manual of Network Camera

Chapter 2 Network Access

After hardware installation, user can view live video and configure parameters for the network

camera, including IP address, subnet mask and port number, etc. The following two methods can be

used to access the camera:

1. View live video and configure parameters over IE browser.

2. View live video and configure parameters over client software.

2.1 Access over IE Browser

Fig. 2.1.1 Adjust the Security Level

Before access to the camera over IE

browser, user should adjust the security

level.

Open the IE browser, and

set the

security level to [Low] in [Tools/

InternetOptions/Security/Custom

Level...], and enable or prompt Activex

Control and Plug-in directly as well.

User Manual of Network Camera

2.1.1 Live View

Figure 2.1.2 Tips of ActiveX Control Installation

Fig. 2.1.3 Install the ActiveX Control

Fig. 2.1.4 Login Interface

Step 1: Install Active-X Control and

Plug-in.

Input the IP address of the network

camera and press [Enter], then click

the mention box that pop up.

Step 3:

Input the “Username” (default:

admin), “Password” (default:

12345) and “Port” (default: 8000)

of the camera, and

then click

[Login].

Step 2:

Click [Run] to install the ActiveX

control.

User Manual of Network Camera

Fig. 2.1.5 Live View Page

Icons on Live View Page:

Icon Description

Full-screen display mode

Exit full-screen display mode

Start Preview

Stop Preview

Capture Picture

Start/Stop Record

Digital Zoom

Video Parameters

Digital Zoom:

Click mouse in the desired position of live video image and scroll the mouse to realize zoom in and

zoom out function.

Step 4:

After successful login, user is allowed to view the live video. Refer to Figure 2.1.5.

Autres manuels pour NETWORK CAMERA

Table des matières

Autres manuels HIK VISION Caméra de sécurité

HIK VISION

HIK VISION DS-2CD23 Series Manuel utilisateur

HIK VISION

HIK VISION DS-2CD883F-E series Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2646G2T-IZS Manuel utilisateur

HIK VISION

HIK VISION UD.6L0201B1907A01 Manuel utilisateur

HIK VISION

HIK VISION Network Speed Dome Camera Manuel utilisateur

HIK VISION

HIK VISION DS?2CC5173P?VF Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2412F-I Manuel de l'opérateur

HIK VISION

HIK VISION DS-2AE4223TI-A Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2563G0-IS Manuel utilisateur

HIK VISION

HIK VISION iDS-2CD75C5G0-IZHSY Manuel utilisateur

HIK VISION

HIK VISION TURBO HD D3T Series Manuel utilisateur

HIK VISION

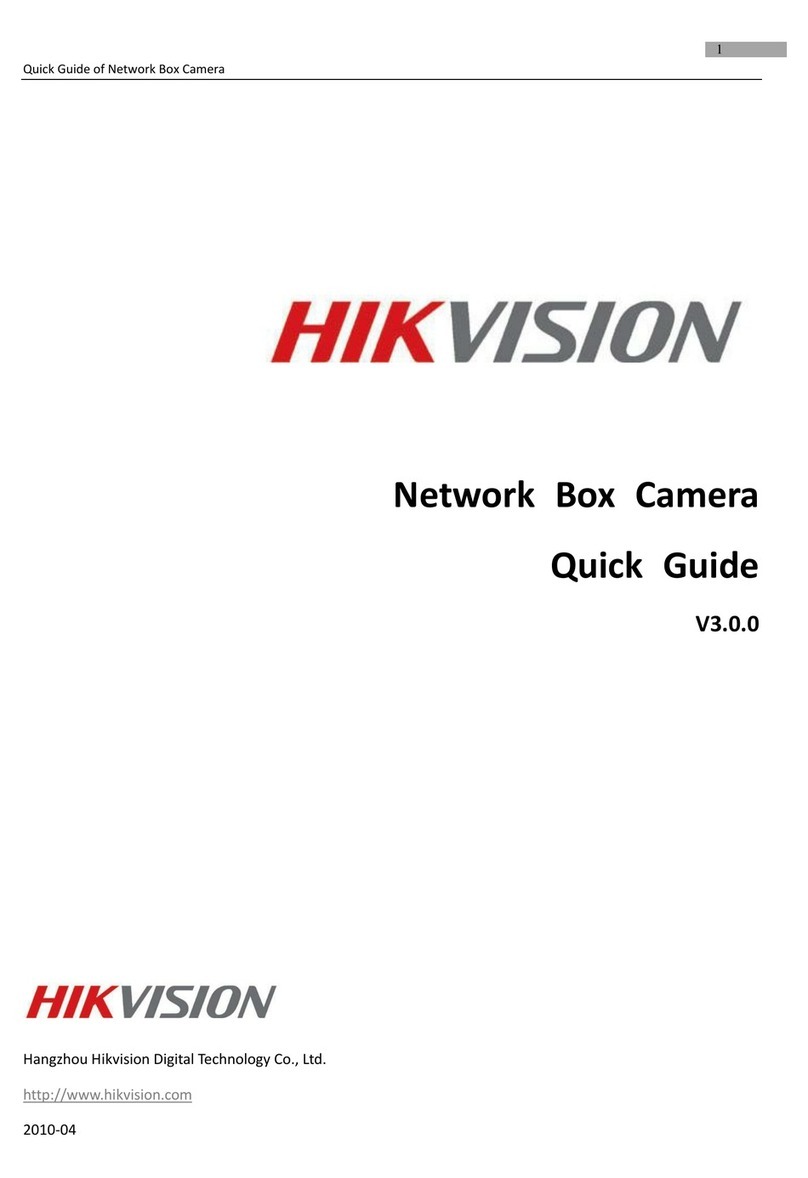

HIK VISION DS-2CD886BF-E Manuel utilisateur
