Technical Manual

DS-2CC178P(N)-A(-C)

Key features

1/3” inch SONY CCD

High Light Compensation

Min. Illumination: 0.1 Lux@F1.2 (Color), 0.01Lux@F1.2 (B/W)

ICR filter auto switch

Digital Noise Reduction (DNR)

OSD menu

Auto iris with DC / video driver

Auto white balance, auto gain control, electronic shutter control and backlight compensation

CS mount lens (provide adapter for C mount lens)

Internal or Power Synchronization

Specification:

Technical Manual

Model

Parameter

DS-2CC178P(N)-A(-C)

540 TVL 1/3’’ CCD HLC ICR Day&Night Box Camera

Camera

Image Sensor 1/3’’ SONY CCD

Signal System PAL / NTSC

Effective Pixels PAL: 752 (H) × 582 (V)

NTSC: 768 (H) × 494 (V)

Min. Illumination

Color : 0.1Lux @(F1.2, AGC ON),

0.0003Lux @ ( F1.2, AGC ON , sensitivity × 256)

B/W: 0.01Lux @ (F1.2, AGC ON),

0.00003Lux @ ( F1.2, AGC ON , sensitivity × 256)

Shutter Time PAL: 1/50s to 1/100,000s

NTSC: 1/60s to 1/100,000s

Lens Mount C / CS mount

Auto Iris DC / Video Drive

Day & Night IR Cut Filter Auto Switch

Horizontal Resolution 540 TVL (Color), 600 TVL (B/W)

Synchronization Internal / Power synchronization

Video Output 1Vp-p Composite Output (75Ω/BNC)

S/N Ratio More than 50dB

Camera ID On / Off (15 letters, adjusted position)

Auto Gain Low / Middle / High / Off

D / N Mode Auto1 / Auto2 / Day / Night

Auto White Balance Auto trace WB1/ Auto trace WB2 / Manual / Auto Control

Private Mask On / Off, Maximum 8 Zones

Motion Detection Mode 1 / Mode 2 / Off

Anti-Flicker On / Off

RS-485 Address / Protocol / Baud Rate

Language English / Chinese

Video Gamma Amendment, Digital Zoom, Digital Noise Reduction, POS/NEG ,Mirror,

Resolution, Sharpness, Y, C, Blemish Detection

General

Operating Conditions -10°C~60°C (14°F - 140°F), Humidity 90% or less (non-condensing)

Power Supply 24VAC / 20VA ±10%, 12VDC / 300Ma ±10%

(-C series support 100-240VAC)

Power Consumption 5W (10W MAX With ICR Working)

Dimension 68 × 57 × 144.8mm (2.68” × 2.24” × 5.70”)

Weight 500g (1.10lbs)

Technical Manual

Available Models

DS-2CC178P-A

DS-2CC178N-A

DS-2CC178P-C

DS-2CC178N-C

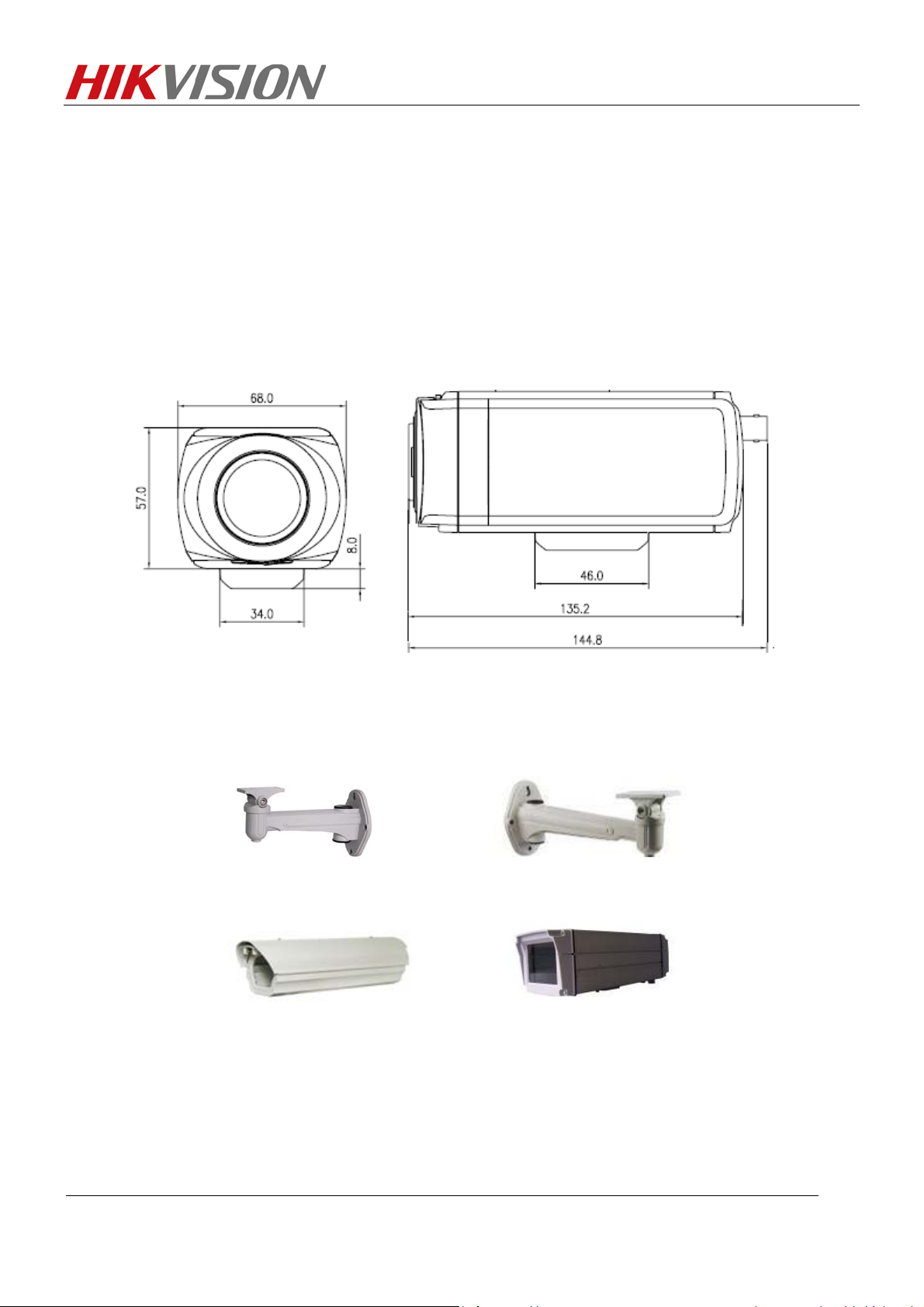

Dimension

Accessories

Indoor wall mount Indoor/Outdoor Wall Mount Bracket

DS-1225ZJ DS-1213ZJ

Indoor/Outdoor camera housing Indoor camera housing

DS-1311HZ (DS-1312HZ, DS-1313HZ) DS-1303HZ
