HIK VISION DS-2AF1-611X Manuel utilisateur

Hikvision Technical Manual

DS-2AF1-611X/601X, DS-2AF1-613X/603X

DS-2AF1-615X/605X, DS-2AF1-617X/607X

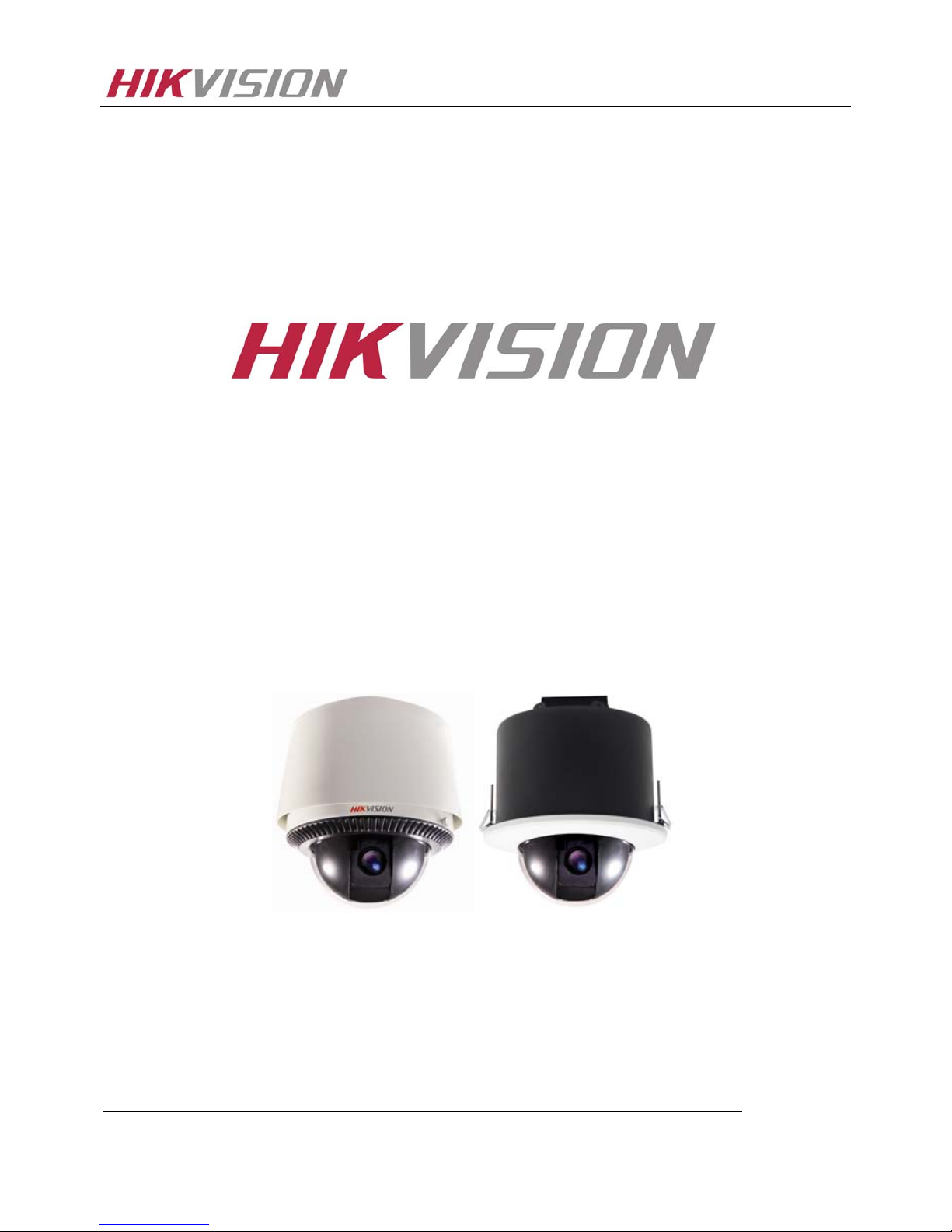

High Speed Dome

Technical Manual

Hikvision Technical Manual

Notices

The information in this documentation is subject to change without notice and does not represent any

commitment on behalf of HIKVISION. HIKVISION disclaims any liability whatsoever for incorrect data

that may appear in this documentation. The product(s) described in this documentation are furnished

subject to a license and may only be used in accordance with the terms and conditions of such license.

This documentation is issued in strict confidence and is to be used only for the purposes for

which it is supplied. It may not be reproduced in whole or in part, in any form, or by any means or

be used for any other purpose without prior written consent of HIKVISION and then only on the

condition that this notice is included in any such reproduction. No information as to the contents or

subject matter of this documentation, or any part thereof, or arising directly or indirectly therefrom,

shall be given orally or in writing or shall be communicated in any manner whatsoever to any third party

being an individual, firm, or company or any employee thereof without the prior written consent of

HIKVISION. Use of this product is subject to acceptance of the HIKVISION agreement required to use

this product. HIKVISION reserves the right to make changes to its products as circumstances may

warrant, without notice.

This documentation is provided “as-is,” without warranty of any kind.

Please send any comments regarding the documentation to:

[email protected]

Find out more about HIKVISION at www.hikvision.com

Hikvision Technical Manual

Contents

1. Key Features

2. Application

3. Specifications

4. Dimension

5. Accessories

Hikvision Technical Manual

1.Key Features

System function:

z1/4’’ SONY high performance CCD

zHigh-precision motor with sensitive response and reliable movement. Precision

bias less than 0.1°.No vibration under any selected speed

zAuto adaptive to HIKVISION, Pelco-P/D protocol in RS-485 control mode

z3D intelligent positioning function. Through software or DVR, it can realize

tracking and enlarging

zOSD menu in multiple languages and operation hint capability

zPower-off protection of setup parameters

zPower-off memory function: restore PTZ & Lens status after reboot

zBuilt-in temperature sensor designed, with display of internal temperature

zLightning protection, surge protection and voltage transient protection

capabilities

zOutdoor dome meets IP66 standard

zRS-485 connection failure diagnosis capability, with failure information, e.g.,

wrong address, baud rate errors, et., displayed on the video screen in text

zManchester code and connection failures diagnosis capability, with failure

information, e.g., wrong address, baud rate errors s displayed on the video

screen in special characters

zScheduled enabling of preset /patrol / pattern / pan scan / tilt scan / random scan

/ frame scan / panorama scan

zPassword protection to prevent unauthorized operation

zCamera title programmable, with display of Chinese/English characters on video

screen

zScanning within programmed zone without need of receiving control command;

display zone title

Camera function:

zAuto iris, auto focus, auto white balance, backlight compensation and

auto/manual day & night switch, and WDR function option

z24 privacy masks programmable, with location and size adjustable; a maximum

of 8 zones can be masked simultaneously on the same video screen(depending

on different camera models)

PTZ function:

z360° endless pan range and -5°-90° tilt range; auto flip capability

zMax. pan preset speed of 400°/s and max. tilt preset speed of 200°/s

zManual pan speed of 0.3°~160°/220°/300°/s and manual tilt speed of

0.3°~60°/75°/90°/s

Hikvision Technical Manual

z256 presets programmable; preset image freezing capability

z8 patrols, each patrol up to 32 presets

z4 patterns, with the total recording time not less than 10 min

zProportional zoom function, with rotation speed adjusted automatically according

to zoom multiples

zPark action: auto callup of preset / patrol / pattern / pan scan / tilt scan / random

scan / frame scan / panorama scan, after a defined time of inactivity

z7 alarm inputs (priority configurable) and 2 alarm outputs, providing alarm

response actions of relay out/preset /patrol / pattern / pan scan / tilt scan /

random scan / frame scan / panorama scan

Hikvision Technical Manual

2.Application



It can be widely used in wide range environments which required high-speed

monitoring, e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza,

park, scenic zone, street, station, venue, and etc.

Hikvision Technical Manual

3.Specifications



Model

DS‐2AF1‐611X

DS‐2AF1‐601X

DS‐2AF1‐613X

DS‐2AF1‐603X

DS‐2AF1‐615X

DS‐2AF1‐605X

DS‐2AF1‐617X

DS‐2AF1‐607X

ImageSensor1/4inchSONYEXVIEWCCD

EffectivePixel

PAL:752(H)×582(V)

NTSC:768(H)×494(V)

HorizontalResolution480TVL

480TVL(Color)

520TVL(B/W)

SignalSystemPAL/NTSC

Min.Illumination1.0Lux/F1.4

0.7Lux/F1.4(Color)

0.01Lux/F1.4(B/W)

1.0Lux/F1.4(Color)

0.01Lux/F1.4(B/W)

1.4Lux/F1.4(Color)

0.01Lux/F1.4(B/W)

WhiteBalanceAuto/Manual/ATW/Indoor/Outdoor

AGCAuto/Manual

S/NRatioMorethan50dB

BLC/WDRBLC(On/Off)

ElectronicShutter

PAL:1/50~1/10,000s

NTSC:1/60~1/10,000s

PAL:1/3~1/10,000s

NTSC:1/4~1/10,000s

Day&NightElectronicICR

DigitalZoom12x

PrivacyMask 24privacymasksprogrammable;amaximumof8zonescanbemaskedsimultaneously

onthesamevideoscreen

Camera

FocusModelAuto/Semiautomatic/Manual

FocalLength4.1‐73.8mm,18X3.5‐91mm,26X3.4‐122.4mm,36X

ZoomSpeedApprox.2.1s(OpticalWide‐Tele)Approx.4.0s(OpticalWide‐Tele)

AngleofView48‐2.8degree(Wide‐Tele)

48‐1.6degree(Wide‐Tel

e)

57.8‐1.7degree(Wide‐T

ele)

Min.WorkingDistance10‐800mm(Wide‐Tele)10‐1500mm(Wide‐Tele)

Lens

ApertureRangeF1.4‐F3.0F1.4‐F3.8F1.6‐F4.5

PanRange360°endless

PanSpeedPanManualSpeed:0.3°~160°/220°/300°/s,

PanPresetSpeed:400°/s

TiltRange‐5°~90°(AutoFlip)

TiltSpeedTiltManualSpeed:0.3°~60°/75°/90°/s,

TiltPresetSpeed:200°/s

Panand

Tilt

ProportionalZoomSupport

Hikvision Technical Manual

NumberofPreset256

Patrol 8patrols,eachpatrolupto32presets

Pattern 4patterns,withthetotalrecordingtimenotlessthan10min

Power‐offMemorySupport

ParkActionPreset/Patrol/Pattern/Panscan/Tiltscan/Randomscan/Framescan/Panoramascan

PTZPositionDisplayOn/Off

FreezeFrame—Support

PasswordProtectionSupport

ZoneScanning/Display Support

CameraTitle Support

CompassSupport,thenorthcanbeset

ScheduledTaskPreset/Patrol/Pattern/Panscan/Tiltscan/Randomscan/Framescan/Panoramascan

RS‐485connection

failurediagnosis

Support

Manchestercodeand

connectionfailures

diagnosis

Support

AlarmInput7inputs,priorityconfigurable

AlarmOutput2relayoutputs,alarmresponseactionsoption

Alarm

AlarmAction

Preset/Patrol/Pattern/Panscan/Tiltscan/Randomscan/Framescan/Panoramascan/Relay

output

Input/

Output

MonitorOutput1.0V[p‐p]/75Ω,NTSC(orPAL)composite,BNC

MenuLanguageEnglish,Chinese

RS‐485ProtocolsHIKVISION,Pelco‐P,Pelco‐D(addible),self‐adaptive

PowerSupply24VAC(12VDCoption)

PowerConsumption15Wmax(30Wmaxwithheater,outdoordome)

WorkingTemperature/

Humidity

‐30℃~65℃(outdoor)/‐10℃~50℃(indoor)

90%orless

ProtectionLevel

IP66standard(outdoordome)

TVS3000Vlightningprotection,surgeprotectionandvoltagetransientprotection

MountingVariousmountingmodesoption

Dimension Φ243(mm)×287(mm)

Weight(approx.)5kg

General

MountOption

WallMount:DS‐1611ZJ(White);CornerMount:DS‐1632ZJ(White);

Indoorpendantmount:DS‐1651ZJ(White);CeilingMount:DS‐1642ZJ(White)



Hikvision Technical Manual

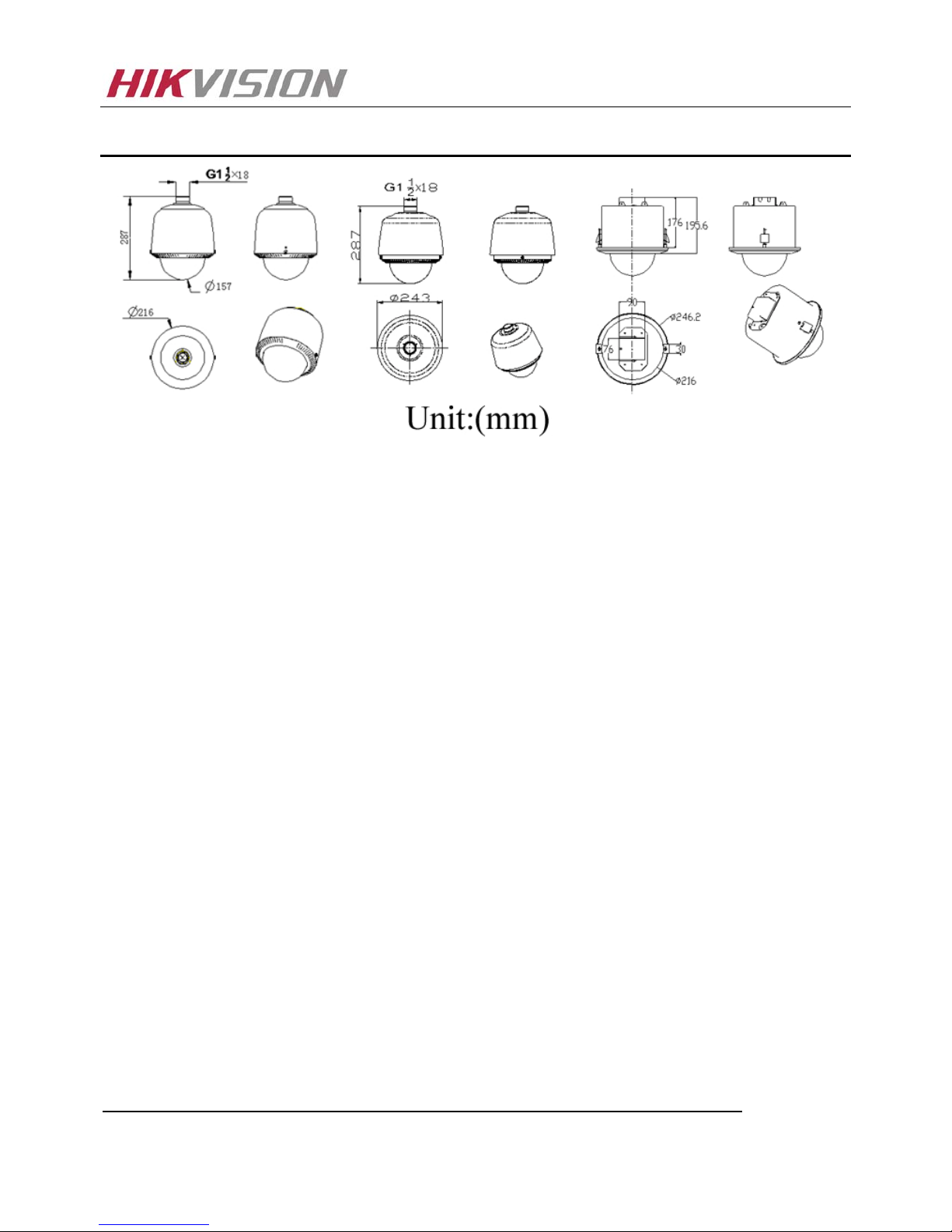

4.Dimension

Hikvision Technical Manual

5.Accessories

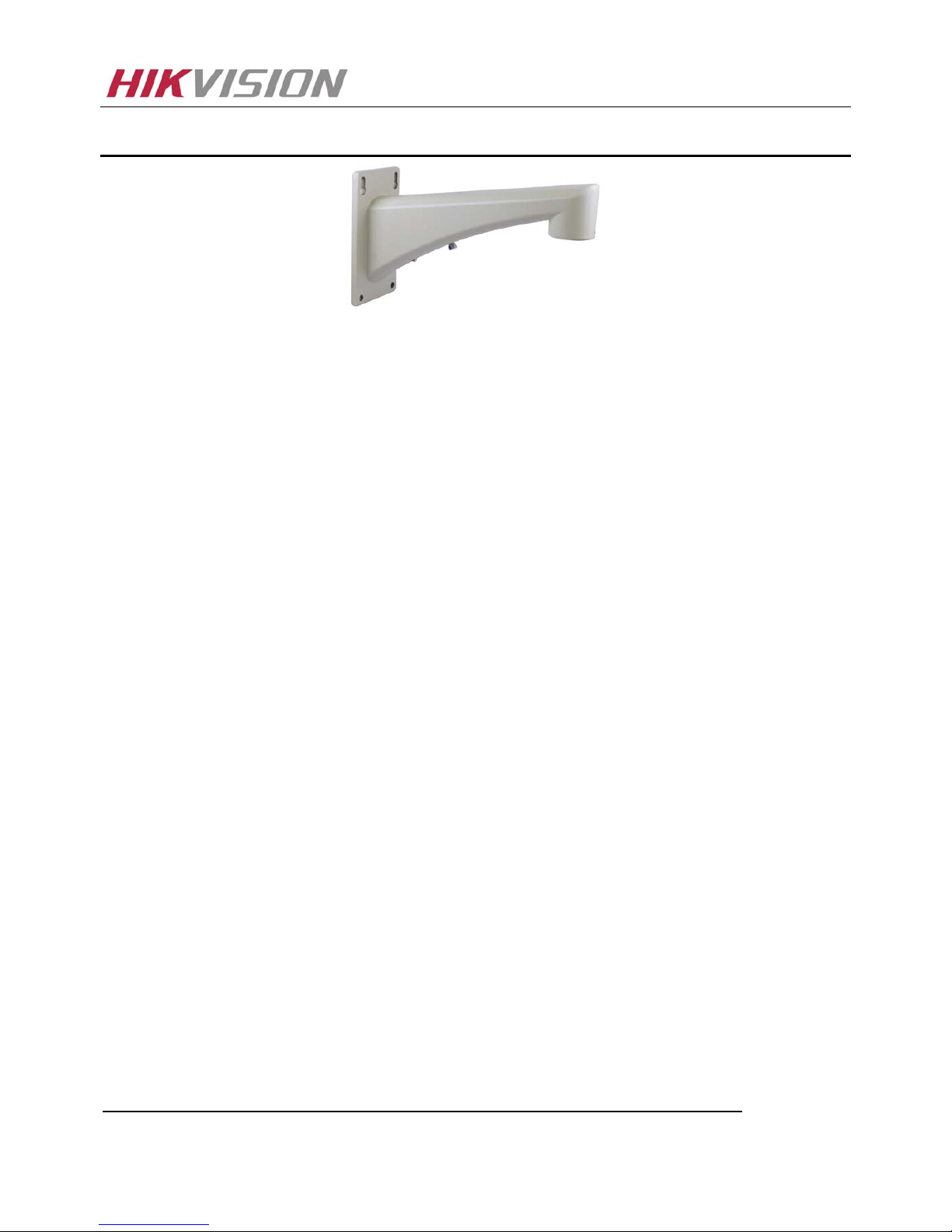

DS-1611ZJ Long-arm Wall Mount (White)
