HIK VISION DS-2CD802PF Manuel utilisateur

User Manual of Network Camera

Version 1.0

Thank you for purchasing our product. If there is any question or request, please

do not feel hesitated to contact us.

This manual may contain several technically incorrect places or printing errors,

and the content is subject to change without notice. The updates will be added into

the new version of this manual. We will readily improve or update the products or

procedures described in the manual.

- 3 -

Security Awareness

This manual contains several guidelines for all customers’ demand. Please read it

carefully before operating to ensure that you can use this product correctly and

safely，and to avoid the danger or material damage which may cause otherwise.

Please preserve it well for future reference.

The precaution measure is divided into “Warnings” and “Cautions” as below:

Warnings: Serious injury or death may cause if any of the warnings is neglected.

Cautions: Injury or equipment damage may cause if any of the cautions is

neglected.

Warnings Follow these safeguards to

prevent serious injury or death.

Cautions Follow these precautions to

prevent potential injury or material

damage.

Warnings：

1. Input voltage should meet both the SELV(Safety Extra Low Voltage) and the

Limited Power Source with DC 12V according to the IEC60950－1 standard.

2. If the product does not work properly, please contact your dealer or the nearest

service center. Never attempt to disassemble the camera yourself. Users are

responsible for any problem caused by modifying or repairing without

authorization.

3. The operating environment shall be away from rain or moisture to lower the

danger of fire or shock hazard.

4. The camera should be installed by qualified technicians, and comply with local

laws and regulations.

5. Precautions for short circuit are required for installing.

6. Instructions for installation on walls: Please make sure that the camera can endure

at least 50 Newton (N)’s pulling downward.

- 4 -

Cautions：

1. Make sure the power supply voltage is correct before using the camera.

2. Do not drop the camera or subject it to physical shock.

3. If cleaning is necessary, please use a dryer to blow the dust away from the lens

and filter. Please use dry and soft cloth for outside panels cleaning. For persistent

smudges, use soft cloth with a bit of cleaning agent, wipe it gently and dry it after

all the above operations.

Volatile solvents like ethanol, benzene and dilution agent are all forbidden,

or they may damage the surface of the panels otherwise.

4. Do not aim the camera at the sun or extra bright places. A blooming or smear may

occur otherwise (which is not a malfunction however), and affecting the

endurance of CCD at the same time.

5. The CCD may be burned out by a laser beam, so when any laser equipment is on

using, make sure that the surface of CCD will not be exposed to the laser beam.

6. Do not place the camera in extremely hot, cold(the operating temperature shall be

－10℃～＋60 ), dusty or da℃mp locations, and do not expose it to high

electromagnetism radiation.

7. To avoid heat accumulation, good ventilation is required for operating

environment.

8. Keep the camera away from liquid while on using.

9. While on a delivery, the camera shall be packed in its original packing, or packing

of the same texture.

10. Regular part replacement: a few parts (e.g. electrolytic capacitor) of the

equipment shall be replaced regularly according to their average enduring time.

The average time varies because of differences between operating environment

and using history, so regular checking is recommended for all the users. Please

contact with your dealer for more details.

INDEX

CHAPTER 1 INTRODUCTION...............................................................................................................2

1.1 FUNCTIONS AND FEATURES .................................................................................................................2

1.2 APPLICATIONS .....................................................................................................................................3

CHAPTER 2 INSTALLATION.................................................................................................................4

2.1 NOTICE................................................................................................................................................4

2.2 PANELS DESCRIPTION..........................................................................................................................4

2.2.1 SIDE ELEVATION OF THE CAMERA ....................................................................................................4

2.2.2 Rear Panel Description-----------------------------------------------------------------------------------5

2.3 HARDWARE INSTALLATION..................................................................................................................6

2.3.1 Topological Graph of Network---------------------------------------------------------------------------6

2.3.2 Alarm Output Connection --------------------------------------------------------------------------------7

2.3.3 Pin Definition ----------------------------------------------------------------------------------------------8

2.4 INSTALLATION OF CLIENT SOFTWARE 4.0 ............................................................................................8

CHAPTER 3 PARAMETERS CONFIGURATION..............................................................................13

3.1 SET PARAMETERS THROUGH IE .........................................................................................................13

3.2 PARAMETER CONFIGURATION THROUGH CLIENT SOFTWARE.............................................................15

CHAPTER 4 WAN ACCESS...................................................................................................................22

4.1 DIAL UP WITH PPPOE.......................................................................................................................22

4.2 WA N ACCESS....................................................................................................................................22

Q&A ..........................................................................................................................................................24

APPENDIX TECHNOLOGY SPECIFICATION ............................................................................25

Chapter 1 Introduction

Network camera is a kind of embedded digital surveillance product that combines

both the features of traditional analog camera and net DVS (Digital Video Server). Due

to the embedded Linux operation system and the latest Davinci hardware platform of

TI, the system operates with high scheduling efficiency. Furthermore, the firmware is

burned in the flash, which makes the product small, reliable and highly stable.

1.1 Functions and Features

Functions

Video Encoding Techniques：Introduced H.264 video encoding standard which

provides high compression ratio and flexible processing.

Network Function：Support the complete TCP/IP protocols, video/alarm/audio data

and IE browsing.

Heartbeat Function: The server can acquire real time operating performance of the

network camera through the heartbeat function.

PTZ Control：Support various kinds of decoder protocols and PTZ types.

Alarm：The product includes 1 channel of alarm signal input and 1 channel of alarm

on/off output, and supports motion detection, video missing, mask alarm and

external alarm input.

Voice Talking ：Support bidirectional voice talking and unidirectional voice

broadcasting.

User Management: Support multilevel right management. The administrator can

create up to 15 separate users with different right levels, which highly improves the

system security.

Compression Functions

The camera supports 1 channel video signal and 25fps real time H.264 stand alone

hardware compression, which supports both variable bit rate and variable frame rate;

besides, you can self-define both the video quality and its compressed bit rate.

Support resolutions from 4CIF（PAL：704*576，NTSC：704*480）, DCIF (PAL：

528*384，NTSC：528*320), 2CIF（PAL：704*288，NTSC：704*240）, CIF（PAL：

352*288，NTSC：352*240）to QCIF（PAL：176*144，NTSC：176*120）.

Support OSD and date & time settings.

Support watermark techniques.

Remote Control

The product offers a 10M/100M self-adaptive Ethernet interface.

Support PPPoE and DHCP protocols.

You can set the parameters, browse real time videos or check the camera

performance through software or IE, and get external alarming or save the

compressed bit rate through network.

Support remote upgrades and maintenance.

RS-485 supports unidirectional transparent channel function so that clients on

remote PC can control the serial devices.

1.2 Applications

This camera is ideal for remote control network applications. E.g.:

¾Network surveillance for ATM, bank counters, supermarkets and factories.

¾Remote surveillance for nursing homes, kindergartens and schools.

¾AI access control systems.

¾AI building/district management systems.

¾Self-service systems of power plants.

¾Outdoor monitoring systems for bridges, tunnels and crossroad traffic.

¾Pipelining and warehouse monitoring.

¾24-hour monitoring for road traffic.

¾Remote monitoring of forest and water resources.

Chapter 2 Installation

2.1 Notice

1. Please check if all the items on the package list have been included with your

camera.

2. Read the following contents carefully before the installation.

3. Make sure that all the related equipment is power-off during the installation.

4. Check the power supply to prevent any damage caused by un-matching

problems.

5. This product is not for any environment of high humidity or high temperature.

Conditions of rain, airlessness or frequent shaking are also prohibited.

6. If the product does not operate properly, please contact your dealer or the

nearest service center. Never attempt to disassemble the camera yourself. Users

are responsible for any problem caused by modification or repairing without

authorization.

【Notice】Power supply, lens and SD card are optional.

【Notice】The lens should be CS mount and its mass should be less than 1kg, and

the prominent part behind the mount surface should be less than 5mm.

【Notice】Please use a C mount adaptor for C mount lens.

2.2 Panels Description

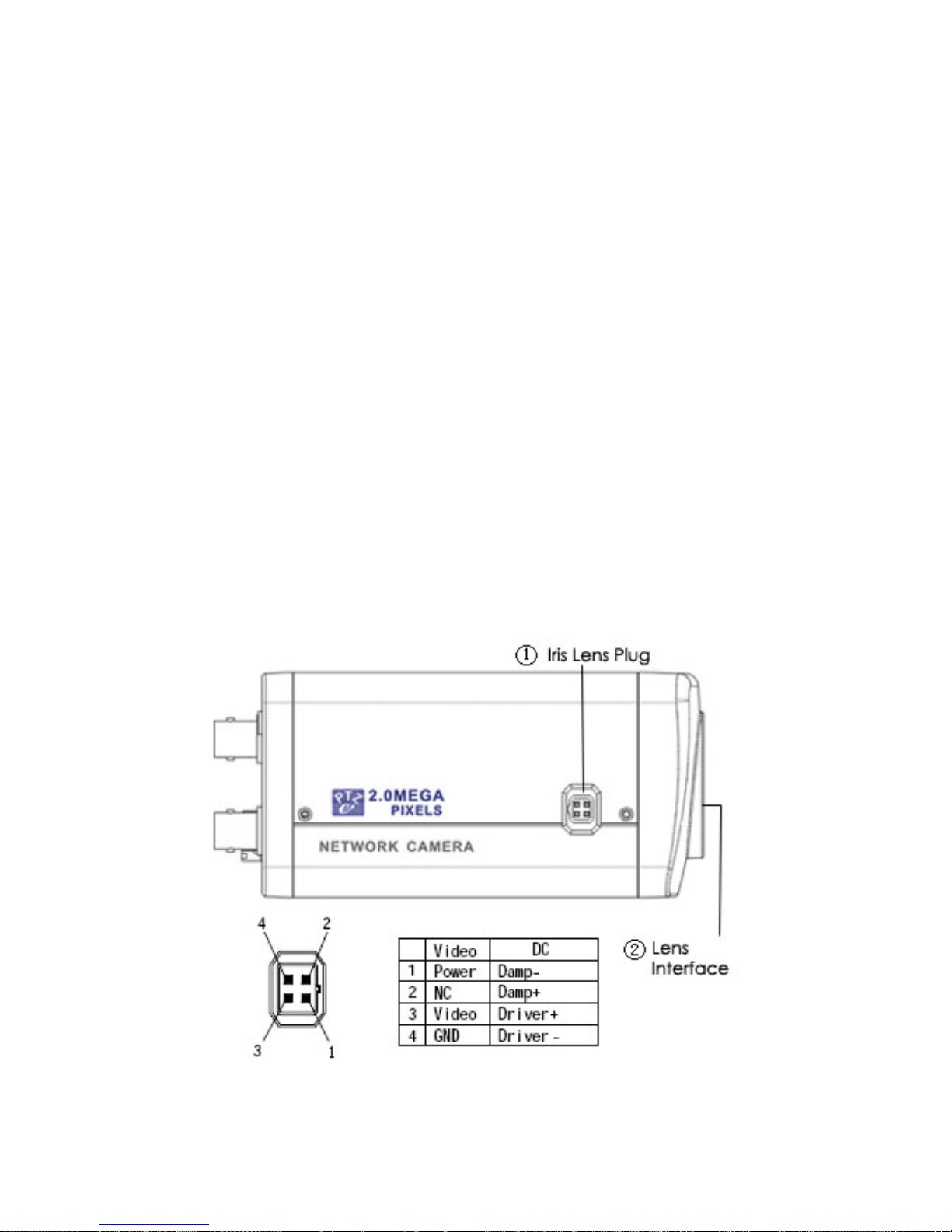

2.2.1 Side Elevation of the Camera

Fig 2.2.1 Side Elevation of the Camera

【Notice】The and marks in the camera stand for electronic PTZ

and 2000,000 pixels resolution.

2.2.2 Rear Panel Description

Fig. 2.2.2 Rear Panel

Rear panel interfaces descriptions (from left to right and top to bottom):

1. Standard BNC for Ethernet (LAN) RJ45 (10M/100M self-adaptive).

2. 1 channel voice talk input (AUDIO IN),3.5mm audio interface, 2.0～2.4Vp-p, 1kΩ.

3. 1 channel voice talk output (AUDIO OUT), 3.5mm audio interface, electric line

level, 600Ω.

4. Power indicator lamp (POWER).

5. Power supply (DC12V). Please refer to the appendix for detailed specification, and

always remember to use a matched regulator.

6. 1 channel alarm output (1A 1B). Please refer to Section 2.3.2 for pin definition.

(The external series-wound power shall be under 12V DC/ 30mA.)

7. 1 channel alarm input (IN G) with 0-12V DC signal.

8. RS-485 bus interface (T+ T-).

9. BLC: Automatically adjust the exposure for back light compensation while on

function.

AI: Switch the mode to AI for auto iris mode.

Auto Electronic Shutter（AES）: Switch the mode to AES if auto iris mode is not

needed.

10. Auto iris switch（VD DD）: Switch the mode to VD for video drive iris lens while

DD for DC drive iris lens.

11. SD card slot (SD).

12. Standard BNC for 1 channel video output (VIDEO OUT).

【Notice】The 9th,10th and 12th functions are not incorporated in DS-2CD832F and

DS-2CD852F cameras.

2.3 Hardware Installation

2.3.1 Topological Graph of Network

Fig.2.3.1 Topological Graph of Network

Physical Interface Connection

LAN Interface Connect to network devices, such as switch , HUB, etc.

Please refer to Appendix B for pin Definition.

Audio Input

（AUDIO IN）

Connect to audio input devices such as active tone (2.0～

2.4Vp-p, 1kΩ)

Audio Output

（AUDIO OUT）Connect to sounders like loudhailer.

Power Supply

（DC12V）Please refer to the appendix for specified types. Please use

a matched regulator.

Alarm Output

（1A 1B）

1 channel alarm out. Please refer to Section 2.3.2 for

connecting instructions. (external series-wound power

shall be under 12V DC / 30mA)

Alarm Input（IN

G）1 channel alarm in.

RS-485 Interface

（T+ T-）Connect to RS-485 devices like PTZ.

SD card slot Insert an SD card for local storage.

Video Output

（VIDEO OUT）Standard BNC, connect to monitor.

2.3.2 Alarm Output Connection

Description of Alarm Output Connection

The alarm output is a on/off output that requires external power supply on

connection. The external power supply shall be 12V DC/30mA, or use AC with

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HIK VISION Caméra de sécurité

HIK VISION

HIK VISION DS-2CD7D47G0-XS(2.8mm) Manuel utilisateur

HIK VISION

HIK VISION ECI-T24F Series Manuel utilisateur

HIK VISION

HIK VISION PanoVu PT Series Manuel utilisateur

HIK VISION

HIK VISION Mini Dome Camera Series Manuel utilisateur

HIK VISION

HIK VISION IDS-TCM403-AI/0832 Mode d’emploi

HIK VISION

HIK VISION DS-2TX3742-35P/Q Manuel utilisateur

HIK VISION

HIK VISION DS-2CV2021G2-IDW Manuel utilisateur

HIK VISION

HIK VISION DS-2DF1-713B Manuel utilisateur

HIK VISION

HIK VISION DS-2DE7A412MCG-EB Manuel utilisateur

HIK VISION

HIK VISION Ezviz ez360 Series Manuel utilisateur

HIK VISION

HIK VISION DS-2TD2137-7P Manuel utilisateur

HIK VISION

HIK VISION DS-2DE2A404IW-DE3/W S6 Manuel utilisateur

HIK VISION

HIK VISION H264 Manuel utilisateur

HIK VISION

HIK VISION DS-2DE3304W-DE Manuel utilisateur

HIK VISION

HIK VISION TURBO HD DS-2CE56D5T-VFIR Manuel utilisateur

HIK VISION

HIK VISION EPI-4215I-DE Manuel utilisateur

HIK VISION

HIK VISION TURBO HD DS-2CS58C2T-S/F Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2D21G0/M-D/NF Manuel utilisateur

HIK VISION

HIK VISION HWP-T4225I-D Manuel utilisateur

HIK VISION

HIK VISION DS-2CE16F7T-IT3 Manuel utilisateur

HIK VISION

HIK VISION DS-2DF5220S-DE4/Ww Manuel utilisateur

HIK VISION

HIK VISION EPI-4215-DE3 Manuel utilisateur

HIK VISION

HIK VISION DS-2TD4668-35A4/W Manuel utilisateur

HIK VISION

HIK VISION DS-2DE5225IW-AE Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
