HighPoint RDrive 6628AW Manuel utilisateur

1

rDrive 6628AW

Thunderbolt™ 3 8-Bay Hardware RAID Storage

Quick Installation Guide

V1.0.0

2

Applicable Products

rDrive 6628AW-32T

rDrive 6628AW-48T

rDrive 6628AW-64T

rDrive 6628AW-80T

rDrive 6628AW-96T

Kit Content

rDrive 6628AW RAID Storage Enclosure

Thunderbolt™ 3 40Gb/s Cable

UL Power Cord

Quick Installation Guide

3

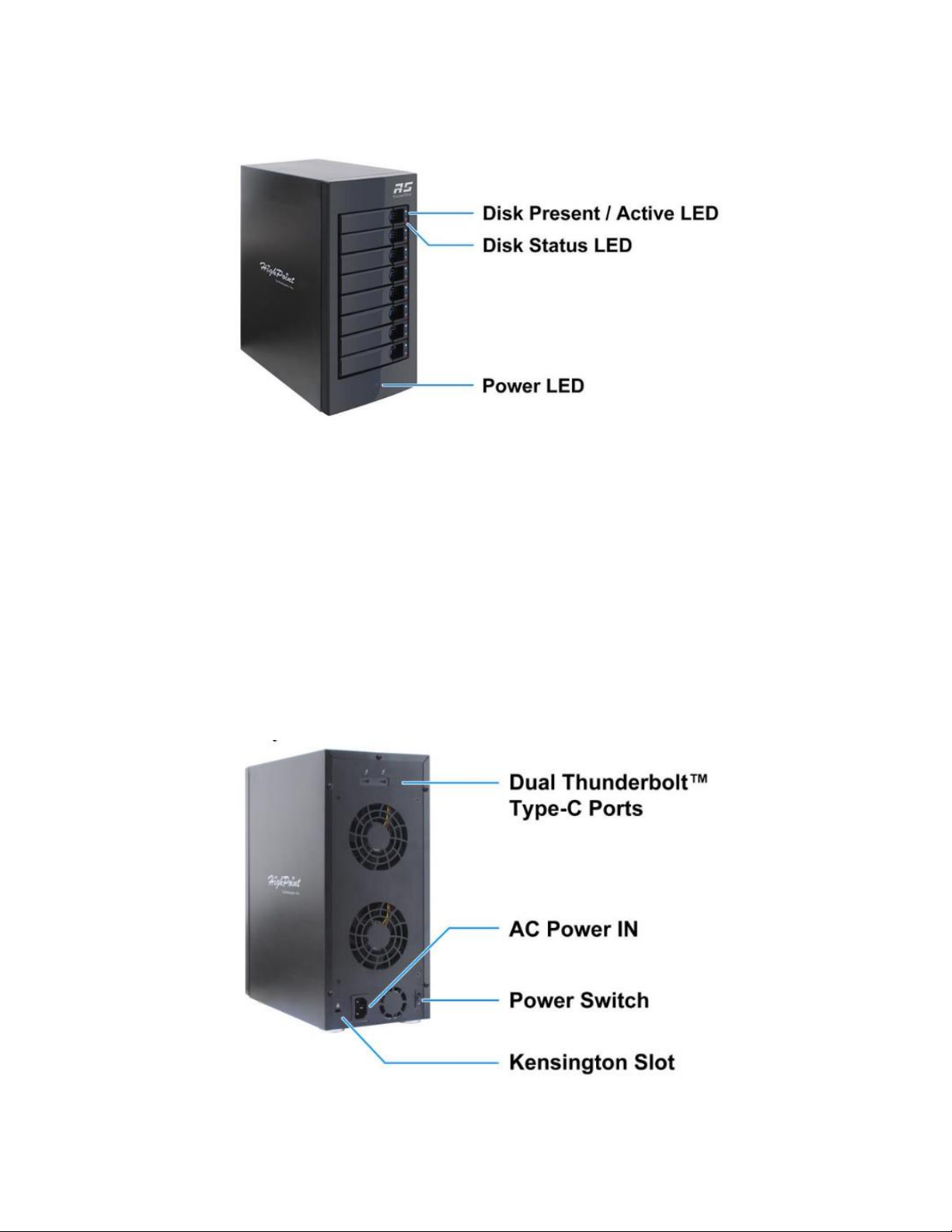

Panel Layout-Front View

LED Indicators

Disk Present: Solid blue

Disk Active LED: Flashing blue

Disk Failure LED: Solid red

Disk rebuilding/identifying LED: Flashing red

Power LED: Solid blue

Panel Layout-Rear View

4

System Requirements

Windows system with a ThunderboltTM 3 (USB type-C) port or AIC

card

Windows 8 and later

Enclosure Setup

1. Connect the rDrive 6628AW to the host system with the

Thunderbolt™ 3 cable

2. Connect the rDrive 6628AW to power and turn on the power

switch

5

Software Downloads

1. Download files from http://www.highpoint-

tech.com/USA_new/series-rd6628aw-overview.htm

2. Open the rDrive_Manager folder and select HighPoint rDrive

Manager and follow the onscreen instructions

3. Open the driver folder and extract its contents

4. Go to Device Manager, and under Other Devices, click on RAID

controller

5. Click Update Driver Software

6. Select Browse my computer for driver software

7. Locate the extracted driver folder

8. Then select either the x32 or x64 folder depending on whether

your system is 32 or 64 bits

9. Click OK and then next and follow the onscreen instructions

10. Restart the computer

11. Your RAID array should be mounted as rDrive-01 on the desktop

6

Customer Support

If you encounter any problems with the rDrive 6628AW or have any

questions regarding this or any other HighPoint Technologies, Inc.

product, feel free to contact our Customer Support Department

Web Support:

http://www.highpoint-tech.com/websupport

HighPoint Technologies, Inc. Website:

http://www.highpoint-tech.com

© Copyright 2018 HighPoint Technologies, Inc. All rights reserved.
