HighPoint SSD6202 Manuel utilisateur

SSD6202

2x M.2 Port to PCIe 3.0 x8 NVMe RAID Controller

Quick Installation Guide

V1.01

System Requirements

PC Requirements

System with a free PCIe 4.0/3.0 x16 or PCIe 4.0/3.0 x8 slot

Windows

Linux

VMware

For more information, please visit the SSD6200 Series Product Page:

https://highpoint-tech.com/USA_new/series-ssd6200-overview.html

SSD6202 Kit Content

SSD6202 Controller Card

Low-Profile bracket

Quick Installation Guide

SSD6202 Hardware

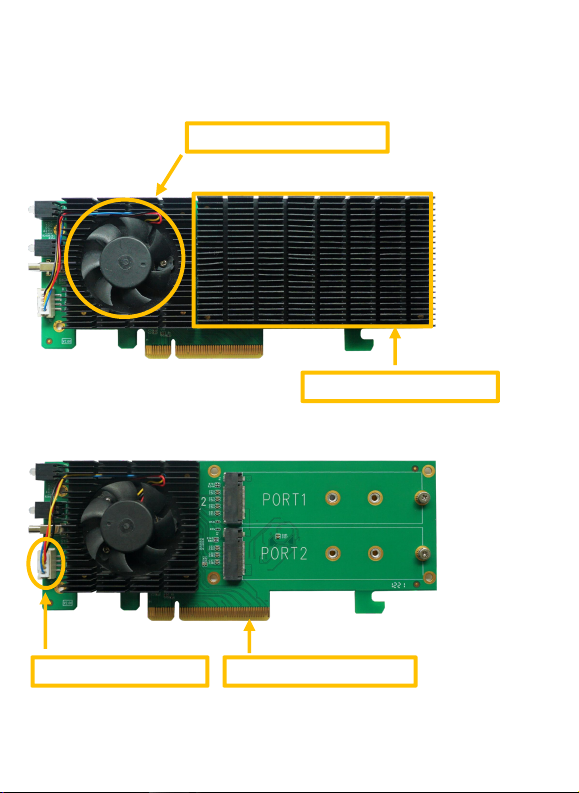

Front View

Heat sink for M.2 SSD’s

Fan for NVMe chipset

Fan power connector

PCIe 3.0 x8 Host Interface

RAID Switch

LED Support

SSD6202 Hardware Installation

Step 1. On the rear of the SSD6202, remove the four screws that secure

the unit’s heat sink to the PCB.

After removing the screws, carefully remove the heat sink from

the SSD6202.

Step 2. These 2 screws are used to install the NVMe SSD’s.

Step 3. Please remove the screws on the right side of the SSD6202.

Gently insert the SSD into the slot.

Step 4. Refasten the screw to secure the SSD.

Note: Make sure the SSD’s are carefully, but securely installed into

each M.2 port. Loose connections can cause a variety of stability

and performance issues, and may ultimately result in data loss.

Step 5. Repeat Steps 3 & 4 to install the remaining SSD.

The following example shows two M.2 NVMe SSD’s installed

into Port 1 & 2:

Step 6. Align and install the heatsink; on the rear of the SSD6202,

refasten the 4 screws that were removed in step 1.

Note

：

Make sure the aluminum cover is properly aligned with the

controller board (PCB), and that it makes full contact with the

thermal pad, before refastening it to the SS6202. If the cover is

improperly installed, thermal pad will be unable to sufficiently

cool the NVMe SSD’s and controller componentry, which may

result in damage to the SSD’s or controller hardware,

performance loss, unstable I/O, and the loss of data.

Note: The SSD6202 can create RAID arrays via RAID Switch settings.

(You can also create RAID arrays using the UEFI, CLI & WebGUI

tools).

RAID Switch: four options are available; when the system starts, the

SSD6202 will automatically create the specified array using the hosted

NVMe SSD’s.

None

JBOD

RAID 1

RAID 0

Note: Using the RAID Switch to configure an array will destroy any

data stored on the NVMe SSD’s. Make sure to backup any important

data before using this feature.

RAID Switch

Note: There are four LED support in SSD6202

RAID LED: when the SSD6202 has no RAID, the RAID LED is

off. If there is a normal RAID in the SSD6202, the RAID LED is

green. If the RAID is fail (RAID Status is Disable or Critical), the

RAID LED is red.

PCIe LED: the PCIe LED turns off when there's no PCIe Link. If

the bandwidth is PCIe x8, the PCIe LED is green. If the

bandwidth is not PCIe x8 (PCIe x4 or x2), the PCIe LED is red.

SSD LED: when the SSD6202 has no disks, the SSD LED is off.

If the disks is active, the SSD LED is green. If any disks fail, the

SSD LED is red.

RAID LED

PCIe LED

PORT1 SSD LED

PORT2 SSD LED

Resources

We recommend visiting the SSD6200 Series Product Page for the latest

software and installation guides.

Software Download:

https://highpoint-tech.com/USA_new/series-ssd6200-overview.html

Customer Support

If you encounter any problems while utilizing the SSD6202, or have

any questions about this or any other HighPoint Technologies, Inc.

product, feel free to contact our Customer Support Department.

Web Support:

https://www.highpoint-tech.com/websupport/main.php

HighPoint Technologies, Inc. websites:

https://www.highpoint-tech.com
