Heatmiser TM4-TS Manuel utilisateur
1Model: TM4 Model: TM4-TS
2Time Clock Series 2Model: TM4-TS

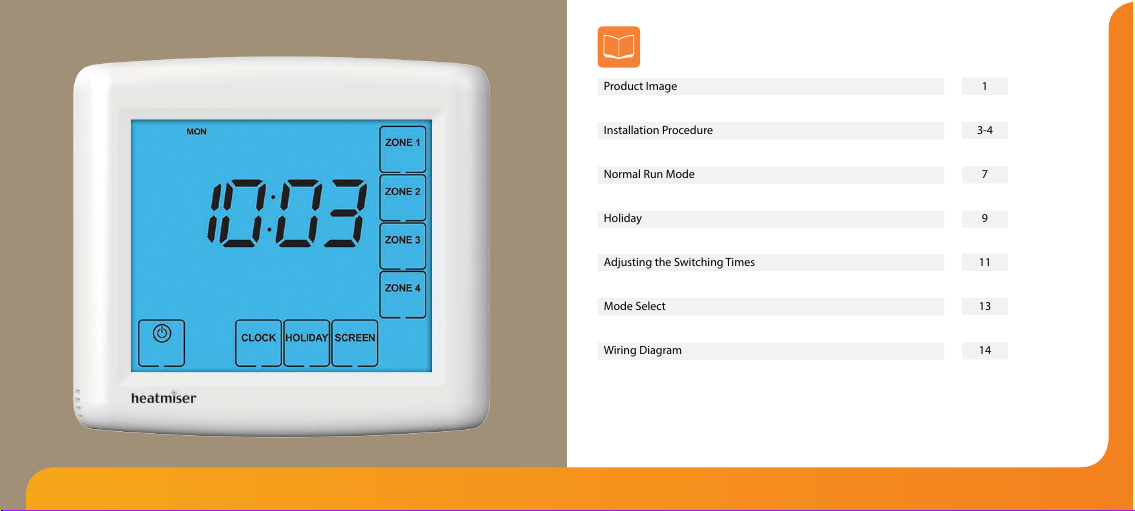

Table of Contents
1
2
3-4
5-6
7
8
9
10
11
12
13
13
14
Product Image
Table of Contents
Installation Procedure
LCD Display
Normal Run Mode
Setting the Clock
Holiday
Selecting 5/2 Day or 7 Day Programming
Adjusting the Switching Times
Copy Function
Mode Select
Boost Facility
Wiring Diagram
Model: TM4-TS
Time Clock Series
1
43 Time Clock Series Model: TM4
1 2
3 4
Installation Procedure
This time clock is designed to be ush mounted and requires a back box of 35mm
(minimum depth) to be sunk into the wall prior to installation.
Step 1
Carefully separate the front half of the time clock from the back plate by placing a
small at head terminal driver into the slots on the bottom face of the time clock.
Step 2
Disconnect the ribbon cable and place the time clock front somewhere safe.
Terminate the time clock as shown in the diagrams on page 14 of this booklet.
Step 3
Screw the time clock back plate securely into the back box.
Step 4
Reconnect the ribbon cable and clip the front of the time clock on to the
back plate.
Do
Mount the time clock at eye level.
Read the instructions fully so you get the best from our product.
Don’t
Do not install near to a direct heat source as this will aect functionality.
Do not push hard on the LCD screen as this may cause irreparable damage.
1 2
1. Day Indicator - Displays the day.
2. Copy - Enables copying of switching times from one zone to another.
3. On Until/O Until - Displays the current operational status of the timed output.
4. Timer Status - Displays the current status of the timed output.
5. Up/Down Keys - Increase or decrease values shown on left digit group.
6. Up/Down Keys - Increase or decrease values shown on right digit group.
7. Select Zone - Prompts a zone selection.
8. Boost Left/Holiday Left - Displays the remaining duration of a timed boost
or holiday setting.
9. Power: Press once to turn o display. Cancel: Used to exit setup/program
operations.
10. Setup/Programming Keys - Used to navigate setup options.
11. O/Constant/Auto - Displays selected zones’ programming mode.
12. Zone/Time Selection Keys - Used with Zone/Times conguration.
LCD Display
7
4
5
6
8
10
12
9
3
11
65 Time Clock Series Model: TM4
87 Time Clock Series Model: TM4
Normal Run Mode
In normal run mode, the time clock will display the current time. It can also be set to
show the status for a particular zone. To display the status of a zone, press
Zone 1 – Zone 4. This screen will be displayed until you press DONE and return to
the main menu.
To set the clock, follow these steps:
•Press the Clock key .................................................................................................................
•Use the Left Up/Down keys to set the hour .......................................................
•Use the Right Up/Down arrow keys to set the minute ....................................
•Press the Day key to set the day ........................................................................................
•Press DONE to conrm and exit .........................................................................................
Setting the Clock
Adjust Hours
Adjust Minutes
Minutes
Adjust Day
Current Day
Hours
Normal Run Mode Zone Selected
109 Time Clock Series Model: TM4
All four timed outputs will be disabled during a holiday period.
At the end of your holiday, the time clock will revert back to the programmed setting.
•Press HOLIDAY ..............................................................................................
•Enter the desired duration in days ........................................................
•Press DONE to conrm and exit .............................................................
To cancel a Holiday setting, reduce the holiday time to 00 days.
Holiday
Holiday Days
Note: A holiday period does not start until 00:00 the next day. For example, if you set a holiday
period on Friday for 2 days, Saturday will be counted as the rst day and the time clock will
revert back to the programmed schedule at 00:00 on Monday.
Selecting 5/2 Day or 7 Day Programming
Each zone can be programmed to work in 5/2 (Weekday/Weekend) or 7 Day mode.
•Press ZONE 1 ...................................................................................................................
•Press Day ..........................................................................................................................
•Use the Up/Down arrow keys to set the programming mode ...........
00 = 5/2 Day mode, 01 = 7 Day mode
•Press DONE to conrm and exit ...............................................................................
In 5/2 Day mode the time clock will display
Mon > Fri prompting you to program the
switching times for the weekend.
In 7 Day mode, the time clock
will display Mon.
1211 Time Clock Series Model: TM4
Adjusting the Switching Times
Each zone has 4 On/O times. To program the switching time, follow these steps:
•Select the zone you wish to program, for example Zone 1 ................................
•Press EDIT ..............................................................................................................................
If the zone is operating in 5/2 day mode, you will see Mon, Tue, Wed, Thu, Fri
on the display. If it is operating in 7 day mode, you will see Mon.
•Press the Day key to select the day to program .....................................................
•Use the Up/Down arrow keys to set the on time .........................................
•Press the OFF key to program the o time ...............................................................
•Use the Up/Down arrow keys to set the o time .........................................
•Repeat for Time 2, 3 and 4 ......................................................................
•Press DONE to conrm and exit ...................................................................................
Copy Function
The Time clock has a copy function, enabling you to copy switching times from one
zone to another. To use the Copy function, follow these steps:
•Select the zone to copy from and press EDIT .
•Press the Copy key .
•Select each zone you want to copy to
•Press DONE to conrm and exit ...............................................................................
Copy Key
1413 Time Clock Series Model: TM4
Boost Facility
Each zone has a boost facility allowing you to turn any of the zones on for a number
of hours. This is ideal for when you need to extend the time period but do not wish
to reprogram the time clock settings. To use the Boost facility, follow these steps:
•Select the zone ....................................................................................
•Press Boost ...............................................................................................................................
•Use the Up/Down arrow keys to enter the boost period (in hours) .........
•Press DONE to conrm and exit .......................................................................................
The remaining Boost time will be displayed on-screen.
To cancel the boost early, repeat the steps above reducing the boost time to 00.
Mode Select
Each zone can operate in 3 modes: Auto: The zone will work to the programmed switching
times. O: The zone will switch o completely. Constant: The zone will stay on indenitely.
To set the mode for the zone, follow these steps:
•Select the zone you wish to program ..................................
•Press Mode until the desired mode is displayed ................................................
•Press DONE to conrm and exit ................................................................................
Wiring Diagram - TM4-TS
NL
TM4-TS
CH1
CH2CH3CH4
230VAC
Neutral
Live
Switch Live CH1
Switch Live CH2
Switch Live CH3
Switch Live CH4
15 Time Clock Series
Twitter: heatmiseruk
Facebook: facebook.com/thermostats
Want More Information?
Call our support team on: +44 (0)1254 669090
Or view technical specications directly on our website:
www.heatmiser.com
PDF FAQ
Heating Professionals:
Request a copy of our product
installation guide containing
detailed technical specications
for our complete product range:
www.heatmiser.com/guide
