Health O Meter PRO PLUS 2450KL Manuel utilisateur

PRO PLUSTM PORTABLE WHEELCHAIR SCALE

MODEL 2450KL

BALANCE PORTATIVE PRO PLUSTM

POUR FAUTEUIL ROULANT

MODELE 2450KL

BALANZA PORTABLE PRO PLUSTM PARA

SILLA DE RUEDAS

MODELO 2450KL

OPERATION MANUAL

MODE D'EMPLOI

MANUAL DE OPERACIÓN

PRO PLUSTM PORTABLE WHEELCHAIR SCALE

MODEL 2450KL

Thank you for your purchase of this product.

Please read this manual carefully and keep it handy for ready reference.

Merci d'avoir acheté ce produit.

Veuillez lire attentivement ce manuel et le garder à portée de main pour pouvoir le consulter à

tout moment

Gracias por la adquisición de este producto.

Lea por favor este manual cuidadosamente y manténgalo a su alcance para una pronta

referencia.

ENGLISH............................................................................................ 1

FRANÇAIS ......................................................................................... 23

ESPAÑOL .......................................................................................... 45

TABLE OF CONTENTS

CAUTION AND WARNING....................................................................................................2

SPECIFICATIONS.................................................................................................................2

SET UP..................................................................................................................................3

OPERATION INSTRUCTIONS..............................................................................................6

MAINTENANCE.....................................................................................................................17

TROUBLESHOOTING...........................................................................................................18

CALIBRATION PATH ............................................................................................................19

EXPLODED VIEW OF SCALE ..............................................................................................19

PARTS LIST ..........................................................................................................................21

WARRANTY ..........................................................................................................................22

CAUTION AND WARNING

To prevent injury and damage to your scale, please follow these instructions very carefully.

• For accurate weighing the scale must be placed on a flat and a stable surface, locking screw

is locked properly and the scale bottom is not touching the floor.

• For accurate weighing, verify proper operation according to the procedure described in this

manual before each use.

• Do not use in the presence of flammable materials.

• Operating at other voltages and frequencies than specified could damage the equipment.

• If the “LOW BAT” indicator activates, for accurate weighing, replace the batteries or connect

the scale to an AC power source as soon as possible.

SPECIFICATIONS

GENERAL

Health o meter’s Pro PlusTM Portable Wheelchair Scale Model 2450KL uses highly sophisticated

microprocessor technology. Each precision instrument is designed to provide accurate, reliable

and repeatable weight measurements and features that make the weighing process simple, fast

and convenient.

The scale is set up to use motion-sensing weighing technology, to determine the actual weight

of a moving patient. The scale may be changed to measure live weight; see page 13 for

instructions on changing the scale setting.

The weight can be display in pounds (decimals, fractions of a lb or lb/oz) or in kilograms. The

scale features low self-weight, width-adjustment mechanism to fit wheelchair various dimensions

and a display assembly stand.

The unit can be operated using its AC adapter or by 6-D cell batteries (not included).

SCALE SPECIFICATIONS

Capacity and Resolution 600 Lb x 0.2 Lb / ¼ lb / 4 oz (270 Kg x 0.1 Kg)

Power Requirements Adapter 120VAC - 6VDC - 60Hz or 6 x D size batteries

Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)

Storage temperatures: 30°F to 125°F (0°C to 50°C)

Humidity: 85%

Physical Dimensions Adjustable Platform

Length: 31¾” (80 cm)

Width: 23½” to 31¾”

(60 cm to 80 cm)

Weight: 23.6 Lb (10.7 Kg)

SET UP

Parts List:

(1) Scale Assembly (1) AC Adapter

(1) Display Assembly (1) Load Cell Cable

(4) Plastic Feet Assemblies

Tools required: Phillips head screwdriver.

Remove each assembly from the carton and unwrap packing material carefully to prevent

scratching the unit’s parts.

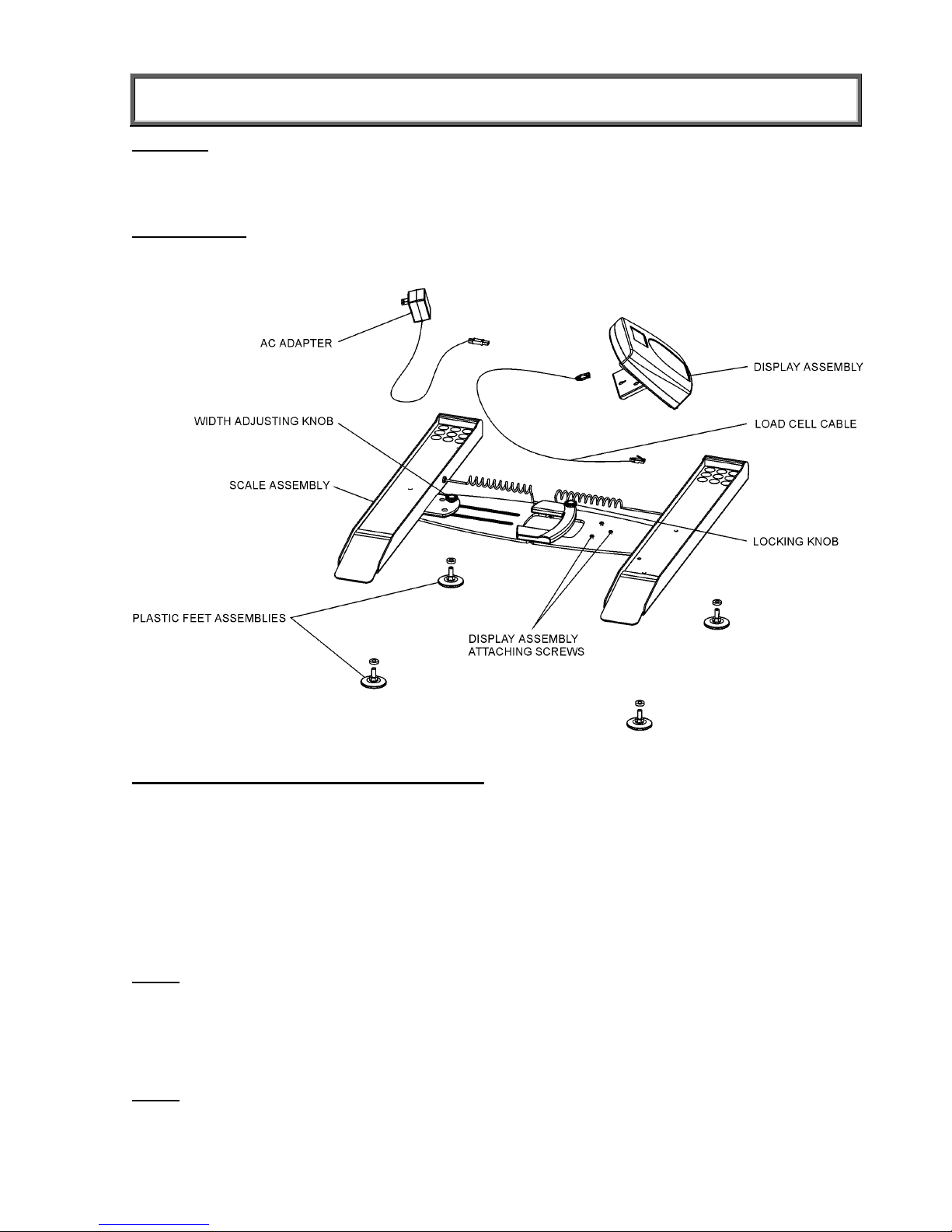

Figure 1. Assembly After Shipment

Scale - Opening and Assembly Instructions

1. Begin with the scale in the folded upright position resting on its ramps, as in Figure 2a.

2. Lightly slide up the display assembly in the direction of the handle and remove it from the

scale.

3. Open the stand at the back of the display assembly and place the display assembly on a

flat, stable table or on the floor.

4. Open the scale and place it upside down on a level floor.

5. Screw in the four plastic feet assemblies; do not tighten. Turn the scale assembly right

side up on its feet.

6. Tighten the locking knob located on the carrying handle

NOTE:For accurate weighing, the locking knob must be completely tightened.

7. Make sure that all scale parts are leveled at least ½” from the floor (pay special attention to

the two folding hinges in the center). If necessary, raise the scale by opening all four

plastic feet.

8. Bring the wheelchair close to the scale ramps. Unscrew the width adjusting knob and

adjust the scale width by moving the left ramp.

NOTE:Often front and rear wheels on wheelchairs are not perfectly aligned. Make sure that

both front and rear wheels mount the ramps.

SET UP

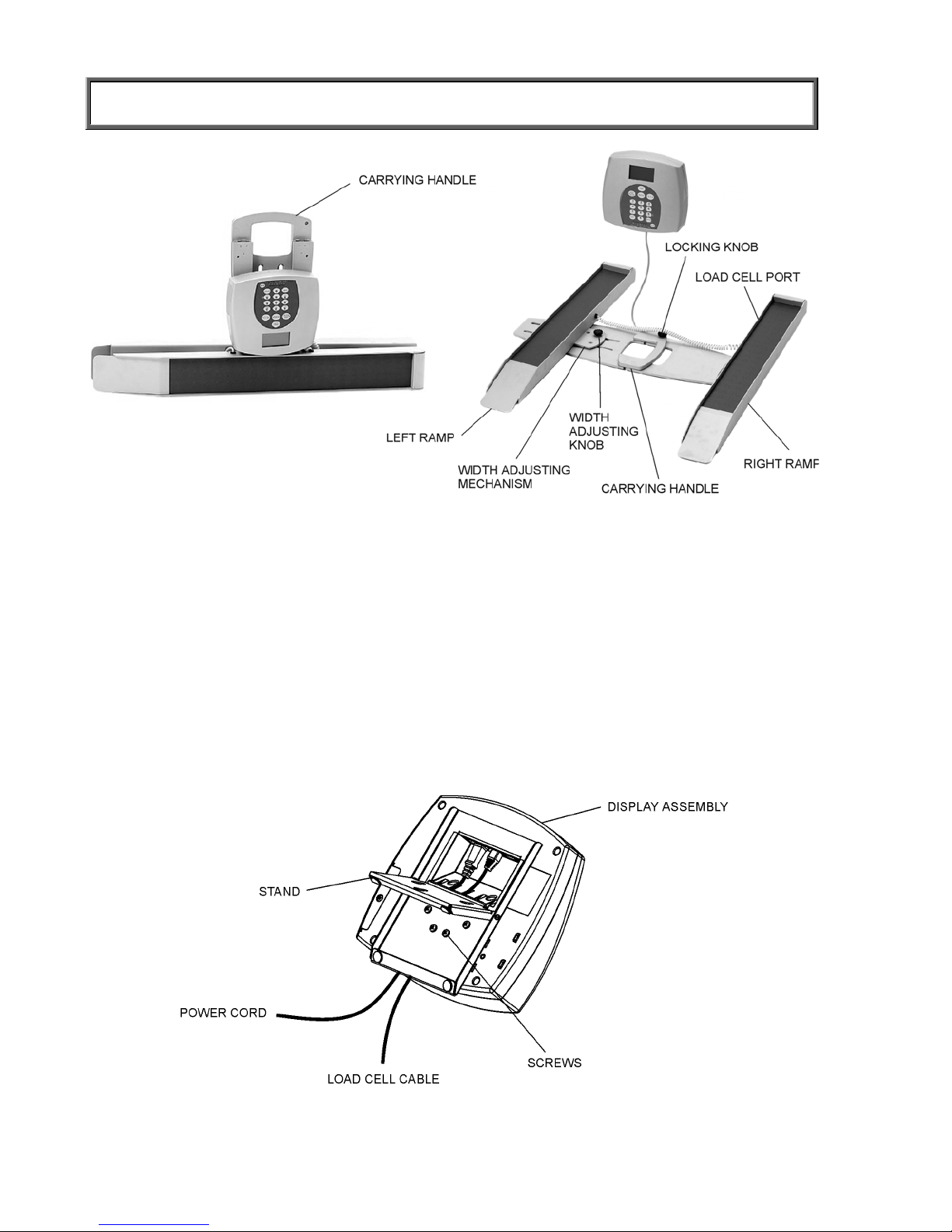

Figure 2a Figure 2b

9. Tighten the width adjusting knob in order to lock the width adjusting mechanism.

10. Remove the stand at the rear of the display assembly by unscrewing 4 screws, in order to

connect load cell cable and power cord to the display assembly (see Figure 3).

11. Connect the load cell cable connector to the load cell port on the rear of the display

assembly and insert and secure the cable into the center channel in the display.

12. Connect power cord to the power port in the display assembly and insert and secure the

cable into the 2nd channel from the left in the display.

13. Install the stand on the rear of the display assembly and secure with four screws.

14. Connect the load cell cable connector to the load cell port on the inner side of the right

ramp.

15. Screw/unscrew the plastic feet to level the scale.

16. After the first assembly, for scale folding and moving purposes, leave the four plastic feet,

power cord and load cell cable connected to the display assembly for the next use.

Figure 3.

SET UP

Preparing the Scale for Use

1. Remove protective plastic film from keypad and display.

2. Place batteries in the battery holder (see “Replacing Batteries”).

3. Plug the scale’s AC adapter into the power source.

4. Press the ON/OFF button to turn the scale on. The display will show “Health o Meter

Pro-Plus” and then ”000Lb00oz”.(a)

5. Place a weight [not to exceed 600 Lb (270 Kg)] on the scale. The display should read

“WEIGHING“ until the weight calculation is complete and the weight is displayed.

6. Press the KG/LB button to select the weight mode (Lb/Kg).(b) *

7. Press the REWEIGH button; the scale should perform the weighting process again.

8. Remove the weight from the scale, the scale will return to zero and the display will read

“ZERO” on the left upper side of the screen along with ”000Lb00oz”.

9. Disconnect the scale’s AC adapter from the power source. The scale will shut off. Press

On/Off and the scale will switch to battery power.

NOTE: If the set up procedure failed, refer to the troubleshooting instructions. If the problem is

not corrected, refer to qualified service personnel.

(a) To adjust the display backlight and/or contrast, please refer to page 13.

(b) To change the display mode in pounds to fractions or decimals, please refer to page 8.

Replacing Batteries

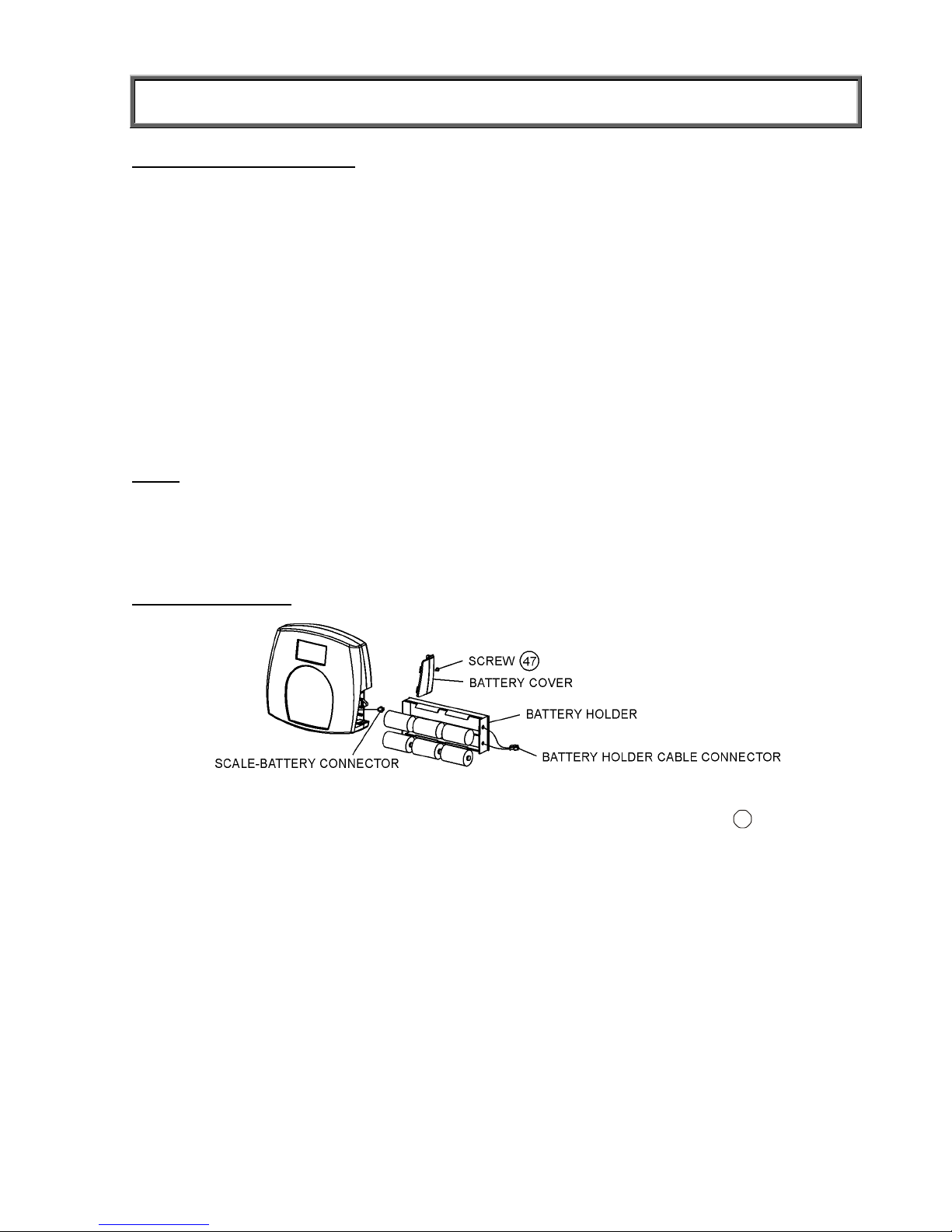

Figure 4. Replacing Batteries

(refer to the Parts List on page 21 for details on parts followed by

)

1. Unplug the scale.

2. Remove the battery cover from the display assembly.

3. Disconnect battery holder cable connector from the scale-battery connector.

4. Carefully remove the battery holder by sliding it out the display assembly.

5. Replace the batteries with new ones.**

6. Carefully position the battery holder into the display assembly.

7. Plug the battery holder cable connector to the scale-battery connector.

8. Attach the battery cover to the display assembly and install the screw.

* To change the scale default units to kilograms, or to deactivate the LB/KG button,

please contact Technical Support at 1 800 638-3722 or +1 708 598-9100.

** We recommend the use of EVEREADY Energizer®e2TM batteries.

OPERATION INSTRUCTIONS

1. Press the ON/OFF button to turn the scale on.

2. Wait until ”000Lb00oz” and “ZERO” on the left side of the display will appear.

3. Bring the wheelchair close to the scale ramps. Unscrew the width adjusting knob and

adjust the scale width by moving the left ramp.

NOTE:Often front and rear wheels on wheelchairs are not perfectly aligned. Make sure that

both front and rear wheels mount the ramps.

4. Tighten the width adjusting knob in order to lock the width adjusting mechanism.

5. Make sure that all scale parts are leveled at least ½” from the floor (pay special attention

for two folding hinges in the center). If necessary, raise the scale by opening all four plastic

feet.

6. If the wheelchair weight is known, enter the TARE value according to instructions in the

“Menu”, para 02. If the wheelchair weight is unknown, place the wheelchair only on the

platform; press REWEIGH. Enter the Automatic TARE by pressing the TARE button.

Display will read ”000Lb00oz”.

7. Move the wheelchair and patient over the ramps until the front wheelchair wheels are

stopped by the ramp guardrails. The display should read “WEIGHING“ until the weight of

the patient is displayed.

8. We recommend reweighing after the patient is sitting still on the wheelchair on the platform

by pressing the REWEIGH button.

9. Remove the wheelchair and patient from the scale by moving straight back off the ramp.

NOTE:The scale will always default to the settings and units last used.

OPERATION INSTRUCTIONS

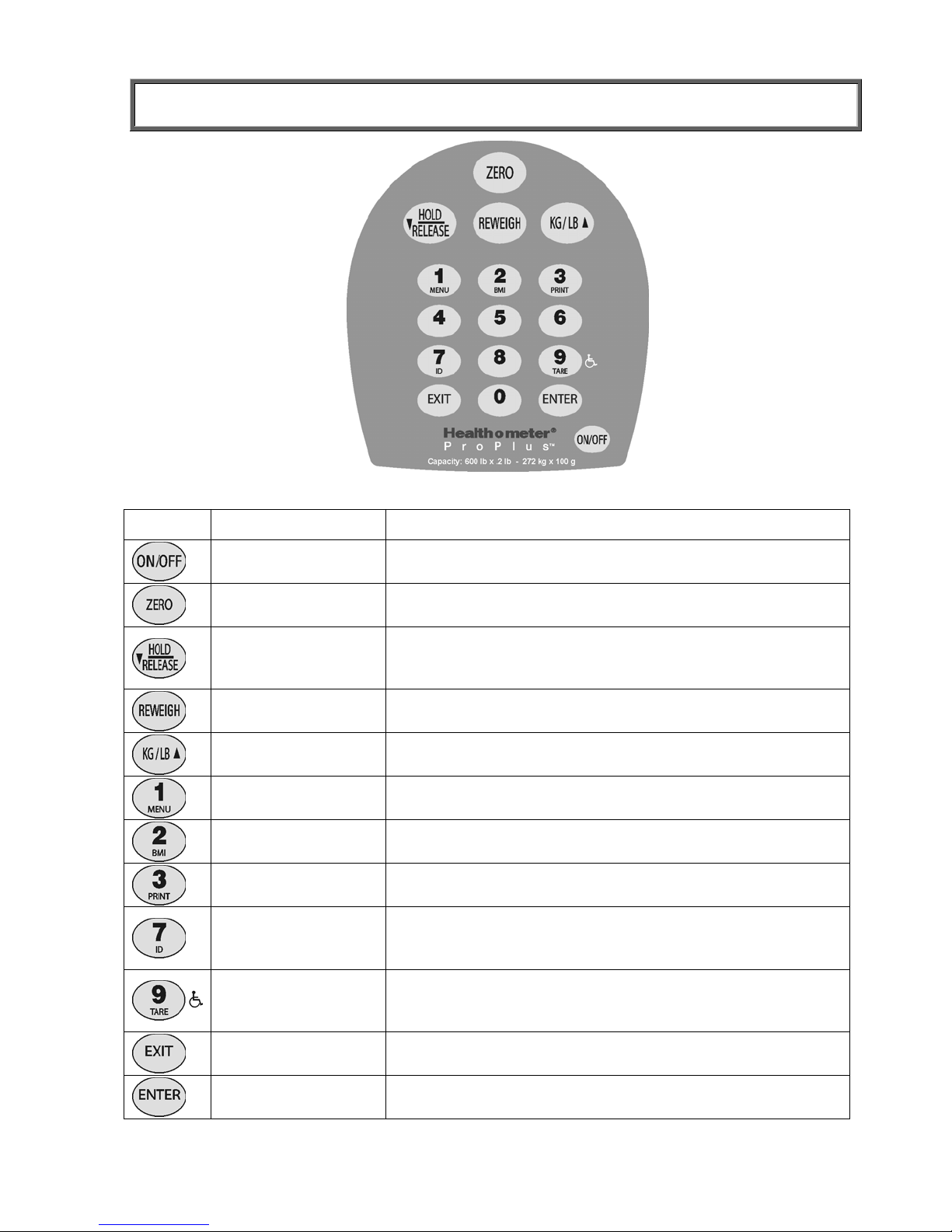

Figure 5. Keypad

ITEM DESCRIPTION FUNCTION

POWER Turns scale ON and OFF.

ZERO Zeros the scale prior to weighing.

HOLD/RELEASE

Holds the value of the weighed object on the display until

the button is pressed again to clear the value. Also used to

scroll down in the menu.

REWEIGH Allows repeated weighing of the patient without stepping

off the scale.

KG/LB button Toggles between kilograms or pounds. Also used to scroll

up in the menu.

MENU Enters the menu of the scale.

BMI Prompts entry of data to calculate the patient’s Body Mass

Index (BMI).

PRINT Prints patient’s data (if printer is connected to the scale).

Prompts entry of patient’s identification number (ID). This

ID will be stored with all the weighing made until is cleared

or a different ID is stored.

TARE

Prompts entry of TARE value that will be deducted from

the weight on the platform. Also releases tare weight

(returns display to zero).

EXIT Reverts back one step when in the menu and data entry

modes.

ENTER Used to enter commands and values into the scale.

OPERATION INSTRUCTIONS

In the menu screen the user can set preferences and/or instruct the scale how to handle stored

data. The menu can be navigated using the up and down keys (cd) or by entering the

associated menu position number with the keypad. The menu has a “roll-over” way of working:

when the user scrolls to the bottom of the menu and presses the down button, it will return to the

top of the menu.

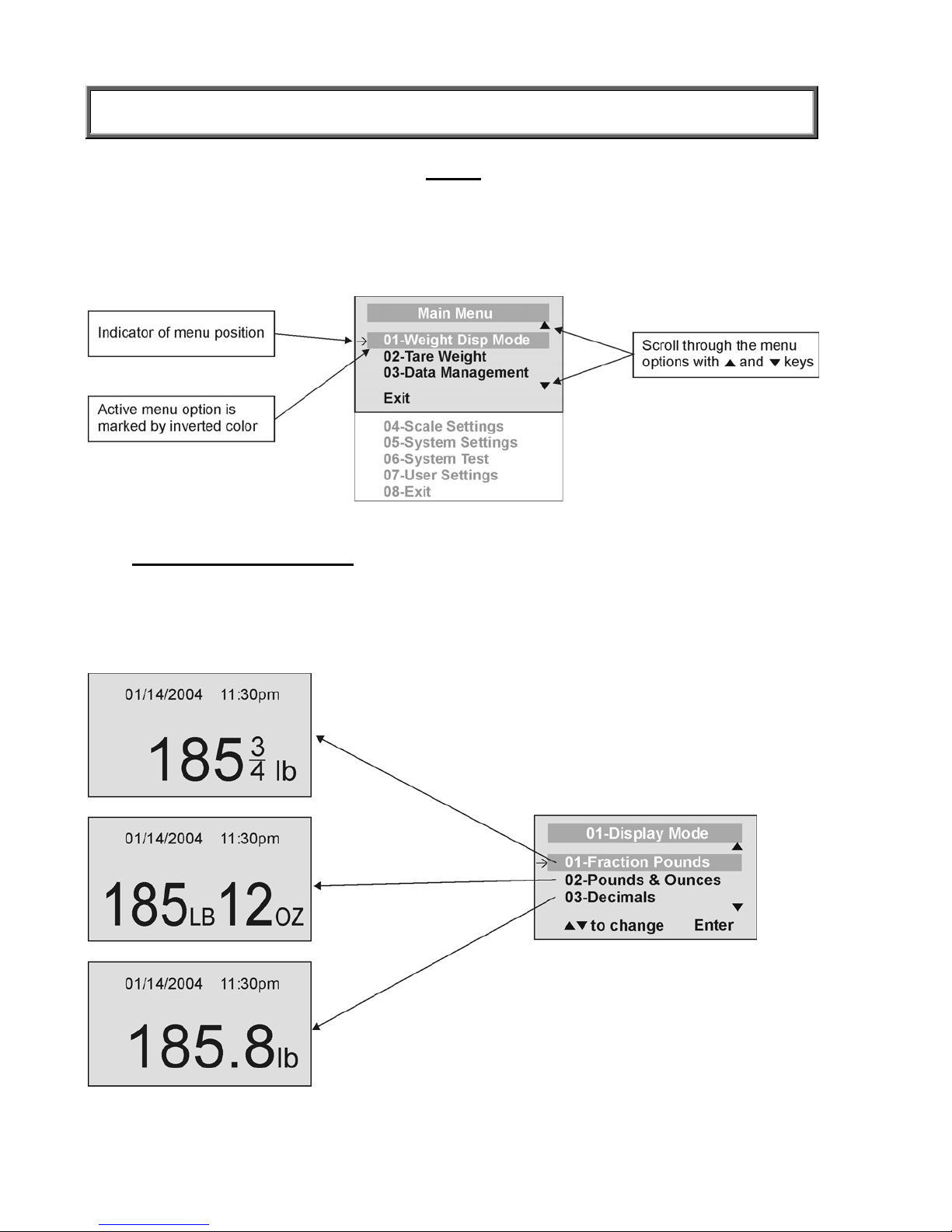

Figure 6. Main Menu

01 WEIGHT DISPLAY MODE

(only applies to pound values, NOT the metric values)

The user can set the screen display value in either fraction of pound (¼, ½ or ¾ lb), in pounds

and ounces (resolution of 4 ounces) or in decimals (resolution of 0.2 lb). When kg is selected as

the units of use, these settings have no effect. The mode that is selected is used through all the

screens.

Figure 7. Weight Display Mode

OPERATION INSTRUCTIONS

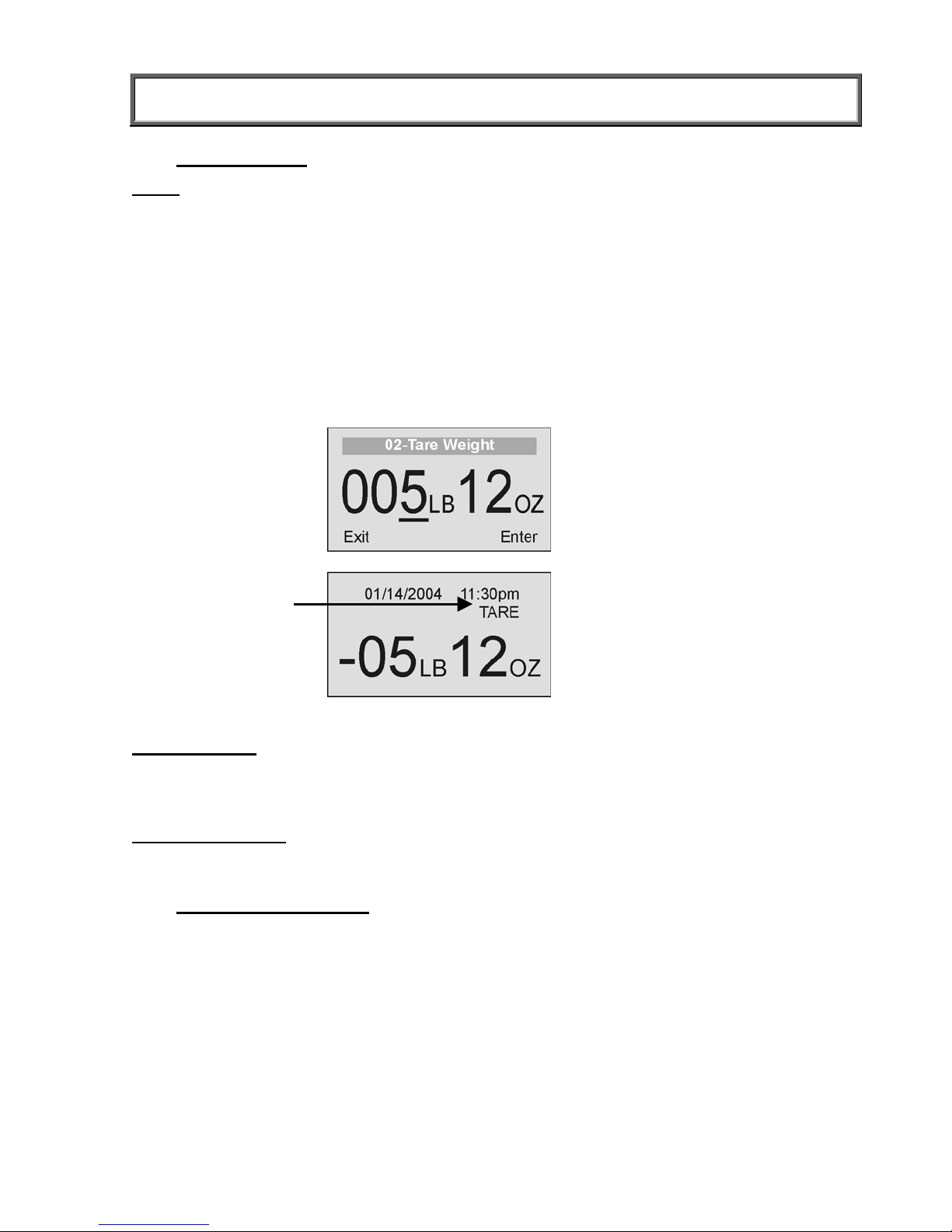

02 TARE WEIGHT

NOTE:Due to the scale’s sensitivity, we recommend using the REWEIGH function prior to

setting the TARE weight, in order to eliminate any operator interference with the item to

be tared out.

There are two ways to manually enter a tare weight (such as the weight of a wheelchair, shoes,

etc): press MENU (1) and select option 02-Tare Weight or press TARE (9). If there is no weight

on the scale platform (value displayed is zero and there is no tare) and the user presses the

TARE button (9), the Tare Weight window appears and prompts the user to enter the TARE

value and to press ENTER. NOTE: The tare weight must be entered using the following

increments: 4oz, 0.2lb, ¼lb. The value entered will display in minus (-). After the TARE has been

entered, the scale goes back to normal operation. This TARE value is stored in memory until

changed or cleared.

Important: The TARE weight cannot exceed 125 lb.

TARE display

indicates the weight

that has been tared

out

The number that is to be changed will

flash and will move from the left to the

right after the appropriate number was

entered or by using the ckey (left)

and the dkey (right).

Figure 8. Tare Weight

Automatic Tare

The user can set a tare weight by pressing the TARE button (9) while there is a weight on the

scale platform. The display will come to zero and TARE will be displayed to indicate there is a

tare value in the memory (as displayed in Figure 8 above).

Removing the Tare

Additional pressing of the TARE button will delete the tare value from memory, TARE will

disappear from the display and the scale will resume normal operation.

03 DATA MANAGEMENT

The scale manages patient data including patient ID, weight, height, tare and BMI. The value is

stored in memory or transferred to PC. This function is performed by opening a new data file.

OPENING A NEW DATA FILE:

1. Press the ID button (7).

2. Using the keypad, type in the identification number.

3. Press ENTER.

This scale will also calculate Body Mass Index (BMI).

CALCULATING BMI:

1. Place the patient on the scale platform.

2. Press the BMI button (2).

Table des matières

Autres manuels Health O Meter Échelle

Health O Meter

Health O Meter HAP200 Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 2000KL Manuel utilisateur

Health O Meter

Health O Meter 499KL Manuel utilisateur

Health O Meter

Health O Meter Professional Digital Scale Wireless USB... Manuel utilisateur

Health O Meter

Health O Meter 800KL Manuel utilisateur

Health O Meter

Health O Meter Healthometer BFM950 Manuel utilisateur

Health O Meter

Health O Meter 880KL Manuel utilisateur

Health O Meter

Health O Meter 753KL Manuel utilisateur

Health O Meter

Health O Meter 500KL Manuel utilisateur

Health O Meter

Health O Meter HDM561 Manuel utilisateur

Health O Meter

Health O Meter HDM575 Manuel utilisateur

Health O Meter

Health O Meter Professional 498KL Manuel utilisateur

Health O Meter

Health O Meter RV-522KL Manuel utilisateur

Health O Meter

Health O Meter 2500CKL Manuel utilisateur

Health O Meter

Health O Meter 2210KL Instructions d'installation

Health O Meter

Health O Meter 2210KL-AM Manuel utilisateur

Health O Meter

Health O Meter 522KL Manuel utilisateur

Health O Meter

Health O Meter HDM165-53 Manuel utilisateur

Health O Meter

Health O Meter 500KLWA Manuel utilisateur

Health O Meter

Health O Meter HNY200 Manuel utilisateur

Health O Meter

Health O Meter Pro Plus 2101KL Manuel utilisateur

Health O Meter

Health O Meter 402KL Guide de référence rapide

Health O Meter

Health O Meter 501KL Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 2101 SERIES Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
