PRO PLUS®ELECTRONIC SCALES

MODELS 2101KL, 2500KL, & 2600KL

KL2101

HANDRAIL SCALE

KL2500 KL2600

WHEELCHAIR SCALE

FOLDING WHEELCHAIR SCALE

PLEASE REGISTER YOUR PRODUCT FOR WARRANTY AT

WWW.HOMSCALES.COM

Patent No.D508,655

OPERATION MANUAL

www.homscales.com

PROPLUS®ELECTRONIC SCALES

MODELS 2101KL, 2500KL AND 2600KL

Thank youfor your purchase of this product. Please read this manual carefully and

keep it handy for ready reference.

ENGLISH ............................................................................................................. 1

FRANÇAIS........................................................................................................... 34

ESPAÑOL............................................................................................................ 63

TABLE OF CONTENTS

CAUTION AND WARNING....................................................................................................2

SPECIFICATIONS.................................................................................................................2

SET UP..................................................................................................................................3-4

OPERATION INSTRUCTIONS..............................................................................................5-16

MAINTENANCE.....................................................................................................................17

TROUBLESHOOTING...........................................................................................................18

CALIBRATION PATH............................................................................................................19

EXPLODED VIEW OF DISPLAY MODULE...........................................................................20

DISPLAY MODULE PARTS LIST..........................................................................................20

2101KL EXPLODED VIEW …………………………………………………………………… ..... 21

2101KL PARTS LIST………………………………………………………………………… ........22

2500KL EXPLODED VIEW ………………………………………………………………………..23

2500KL PARTS LIST……………………………………………………………………………….24

2600KL EXPLODED VIEW …………………………………………………………………… .....25

2600KL PARTS LIST…………………………………………………………………………….....26

COMMUNICATION PROTOCOL……………………………………………………………… ....31

WARRANTY..........................................................................................................................32

CAUTION AND WARNING

To prevent injury and damage to your scale, please follow these instructions very carefully.

• Do not transport the scale while the platform is loaded.

• For accurate weighing the scale must be placed on a flat, stable surface.

• For accurate weighing, verify proper operation according to the procedure described in this

manual before each use.

• Do not use in the presence of flammable materials.

• Operating at other voltages and frequencies than specified could damage the equipment.

• If the “LOW BAT” indicator activates, for accurate weighing, replace the batteries or connect

the scale to an AC power source as soon as possible.

• It is intended that this equipment be used with assistance of a health care worker.

SPECIFICATIONS

GENERAL

Health o meter’s Pro Plus®Electronic Scales Models 2101KL, 2500KL and 2600KL use highly

sophisticated microprocessor technology. Each precision instrument is designed to provide

accurate, reliable and repeatable weight measurements and features that make the weighing

process simple, fast and convenient.

The scale is set up to use motion-sensing weighing technology, to determine the actual weight

of a moving patient. The scale may be changed to measure live weight; see page 12 for

instructions on changing the scale setting.

The weight can be display in pounds (decimals, fractions of a lb or lb/oz) or in kilograms. The

scale features a wrap-around handrail for patient comfort and safety and a 180 degree

swivel/pivot head for reading from either side of the scale. Also included on the platform scales

(2101KL, 2500KL & 2600KL) are two wheels for easy mobility.

The unit can be operated using its AC adapter or by 6-D cell batteries (not included).

SCALE SPECIFICATIONS

Capacity and Resolution

2101KL, 2500KL & 2600KL 1,000 Lb x 0.2 Lb / ¼ lb / 4 oz (454 Kg x 0.1 Kg)

Power Requirements Adaptor model ADPT31*(USA-CSA only) 120 VAC-9VDC

60Hz (NOT INCLUDED) or 6 D cell batteries. Adaptor model

ADPT30*(IEC)120-240 VAC-9VDC 50-60Hz (NOT

INCLUDED)

Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)

Storage temperatures: 30°F to 125°F (0°C to 50°C)

Humidity: 85%

SCALE SPECIFICATIONS (continued)

Physical Dimensions

Model 2101KL Platform size

Length: 22” (56 cm)

Width: 26 (66 cm)

Height: 2¼” (5.7cm)

Product size and weight

Length: 30” (76 cm)

Width: 27¾” (70.5 cm)

Height: 492/5” (125 cm)

Weight: 72Lb (32.5Kg)

Physical Dimensions

Model 2500KL Platform size

Length: 291/3” (74.4 cm)

Width: 281/3” (72 cm)

Height: 2¼” (5.7 cm)

Product size and weight

Length: 36¼” (92 cm)

Width: 40¼” (102 cm)

Height: 492/5” (125 cm)

Weight: 79Lb (36Kg)

Physical Dimensions

Model 2600KL Platform size

Length: 352/5” (90 cm)

Width: 321/3” (82.6 cm)

Height: 2¼” (5.7cm)

Product size and weight

Length: 423/4” (108.5 cm)

Width: 462/5” (118 cm)

Height: 492/5” (125 cm)

Weight: 110 Lb (50 Kg)

Use only Healthometer Professional power supply, model ADPT31

SET UP

This scale is shipped with the Menu Lock function enabled. The Menu Lock function disables

certain buttons on the scale’s keypad, thus preventing unauthorized users from making changes

to your scale settings This Lock can be bypassed temporarily to allow you to customize your

scale’s functionality. Please refer to page 6 for instructions on how to bypass the Menu Lock.

1. Remove protective plastic film from keypad and display.

2. Place batteries in the battery holder (see “Replacing Batteries”).

3. Plug the scale’s AC adapter into the power source.

4. Make sure there is no object on the weighing platform

5. Press the ON/OFF button to turn the scale on. The display will show “Health o Meter

Pro Plus” and then ”000Lb00oz”.(a)

6. Place a weight [not to exceed the capacity] on the scale. The display should read

“WEIGHING“ until the weight calculation is complete and the weight is displayed.

7. Press the KG/LB button to select the weight mode (Lb/Kg).(b) *

8. Press the REWEIGH button; the scale should perform the weighing process again.

9. Remove the weight from the scale, the scale will return to zero and the display will read

“ZERO” on the left upper side of the screen along with ”000Lb00oz”.

10. Disconnect the scale’s AC adapter from the power source. The scale will shut off. Press

On/Off and the scale will switch to battery power.

NOTE: If the set up procedure failed, refer to the troubleshooting instructions. If the problem is

not corrected, refer to qualified service personnel.

(a) To adjust the display backlight and/or contrast, please refer to page 12.

(b) To change the display mode in pounds to fractions or decimals, please refer to page 6.

Replacing Batteries

Figure 1. Replacing Batteries

(refer to the Parts List on page 20 for details on parts followed by

)

1. Unplug the scale.

2. Remove the battery cover from the display assembly.

3. Disconnect battery holder cable connector from the scale-battery connector.

4. Carefully remove the battery holder by sliding it out the display assembly.

5. Replace the batteries with new ones.**

6. Carefully position the battery holder into the display assembly.

7. Connect the battery holder cable connector to the scale-battery connector.

8. Attach the battery cover to the display assembly and install the screw.

** We recommend the use of EVEREADY Energizer®e2TM batteries.

OPERATION INSTRUCTIONS

1. Make sure there is no object on the weighing platform

2. Press the ON/OFF button to turn the scale on.

3. Wait until ”000Lb00oz” and “ZERO” on the left side of the display appear.

4. Ask the patient to step on the scale. The display should read “WEIGHING“ until the weight

of the person is displayed.

5. If you wish to reweigh without asking the patient to step off and to step on the scale again,

press the REWEIGH button.

6. Ask the patient to step off the scale.

NOTE:The scale will always default to the settings and units last used.

WARNING: If the scale will not be used for some time, remove batteries to avoid a safety hazard.

Figure 2. Keypad

Health o Meter

Pro-Plus

ITEM DESCRIPTION FUNCTION

POWER Turns scale ON and OFF.

ZERO Zeros the scale prior to weighing.

HOLD/RELEASE Holds the value of the weighed object on the display until the

button is pressed again to clear the value. Also used to scroll

down in the menu.

REWEIGH Allows repeated weighing of the patient without stepping off

the scale.

KG/LB

Toggles between kilograms or pounds. Also used to scroll up

in the menu. To activate or deactivate the KG or LB only

(Lockout) mode you must press and hold the KG/LB

button for 13 seconds. See NOTE Below.

MENU Press and hold for 5 seconds to enter the menu of the scale.

BMI Prompts entry of data to calculate the patient’s Body Mass

Index (BMI).

PRINT Prints patient’s data (if printer is connected to the scale).

ID Prompts entry of patient’s identification number (ID). This ID

will be stored with all the weighing made until it is cleared or

a different ID is stored.

TARE Prompts entry of TARE value that will be deducted from the

weight on the platform. Also releases tare weight (returns

display to zero).

EXIT Reverts back one step when in the menu and data entry

modes.

ENTER Used to enter commands and values into the scale.

NOTE: The Lockout mode prevents the scale from changing between KG and LB until it

is deactivated

In the menu screen the user can set preferences and/or instruct the scale how to handle stored

data. The menu can be navigated using the up and down keys (cd) or by entering the

associated menu position number with the keypad. The menu has a “roll-over” way of working:

when the user scrolls to the bottom of the menu and presses the down button, it will return to the

top of the menu.

NOTE: The default mode of the scale is set so the menu option is locked out. If the menu

button is pushed before activating the menu option, “MenuLock” will show on the display. To

temporarily reactivate the use of the MENU key, press and hold the MENU key for 5 seconds.

During the menu access delay, the menu will display “MenuLock”. After 5 seconds, the menu

will show on the display and you may begin navigating through the menu.

Figure 3. Main Menu

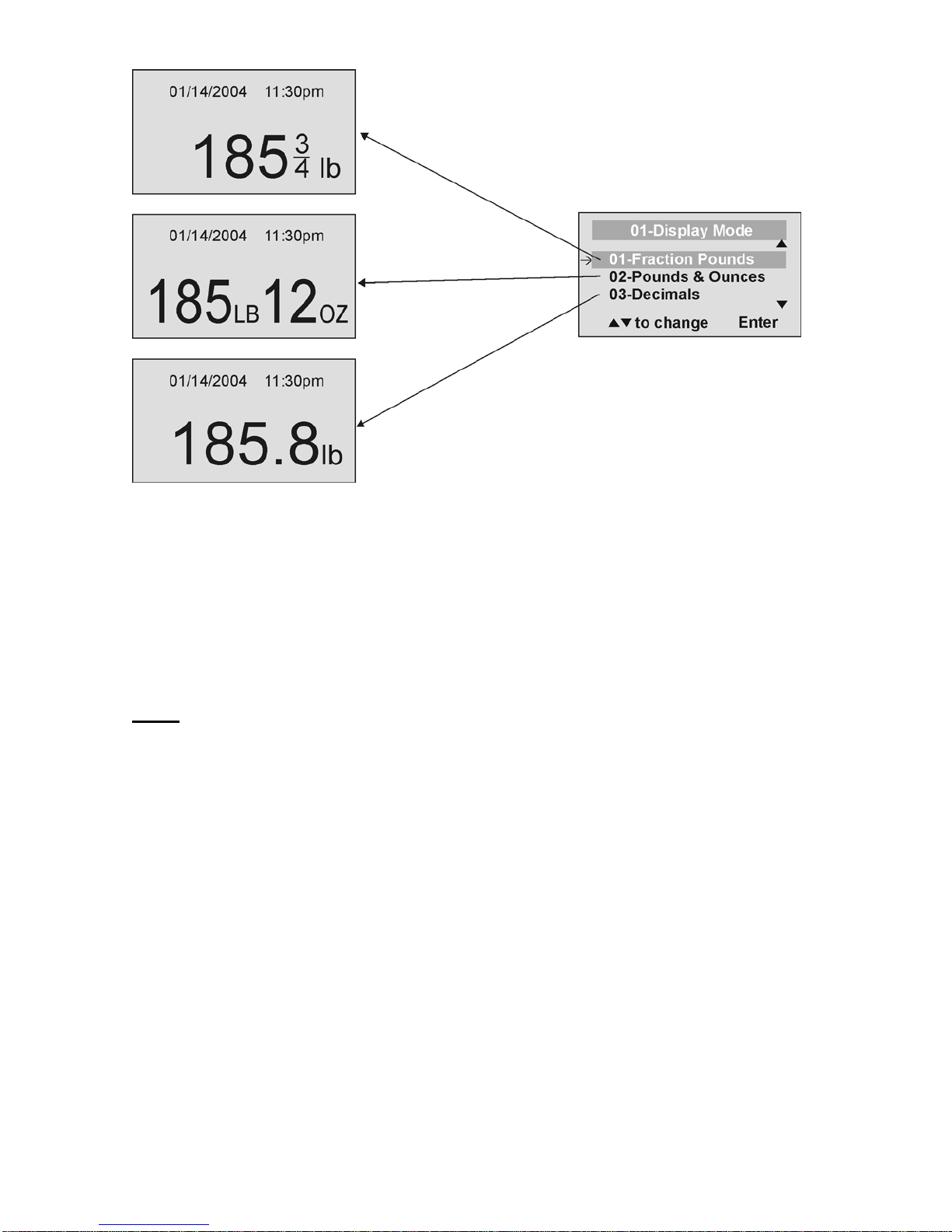

01 WEIGHT DISPLAY MODE

(only applies to pound values, NOT the metric values)

Before making changes to this scale setting, please refer to “Menu” instructions above to

temporarily activate the Menu key.

The user can set the screen display value in either fraction of pound (¼, ½ or ¾ lb), in pounds

and ounces (resolution of 4 ounces) or in decimals (resolution of 0.2 lb). When kg is selected as

the units of use, these settings have no effect. The mode that is selected is used through all the

screens.

▲▼ to change Enter

Figure 4. Weight Display Mode

02 Tare Weight

Before making changes to this scale setting, please refer to page 6 “Menu” to temporarily

activate the Menu key.

NOTE:Due to the scale’s sensitivity, we recommend using the REWEIGH function prior to

setting the TARE weight, in order to eliminate any operator interference with the item to

be tared out.

There are two ways to manually enter a tare weight (such as the weight of a wheelchair, shoes,

etc): press MENU (1), hold for 5seconds and select option 02-Tare Weight or press TARE (9).

If there is no weight on the scale platform (value displayed is zero and there is no tare) and the

user presses the TARE button (9), the Tare Weight window appears and prompts the user to

enter the TARE value and to press ENTER. NOTE: The tare weight must be entered using the

following increments: 4oz, 0.2lb, ¼ lb. The value entered will display in minus (-). After the TARE

has been entered, the scale goes back to normal operation. This TARE value is stored in

memory until changed or cleared. If the tare weight is not entered in 30 seconds the scale will

revert back to normal operation, and the Menu Lock will be activated.

Important: The TARE weight cannot exceed 250lb

TARE display

indicates the weight

that has been tared

out (Figure 5 shows the

display after removal of

the tared weight from

the scale’s platform)

The number that is to be changed will

flash and will move from the left to the

right after the appropriate number was

entered or by using the ckey (left)

and the dkey (right).

Figure 5. Tare Weight

Automatic Tare

The user can set a tare weight by pressing the TARE button (9) while there is a weight

on the scale platform. The display will come to zero and the word “TARE” will be

displayed to indicate there is a tare value in the memory (as displayed in Figure 5

above).

Removing the Tare

Additional pressing of the TARE button will delete the tare value from memory, TARE will

disappear from the display and the scale will resume normal operation.

03 DATA MANAGEMENT

Before making changes to this scale setting, please refer to page 6 “Menu” to temporarily

activate the Menu key.

The scale manages patient data including patient ID, weight, height, tare and BMI. The value is

stored in memory or transferred to PC. This function is performed by opening a new data file.

OPENING A NEW DATA FILE:

1. Press the ID button (7).

2. Using the keypad, type in the identification number.

3. Press ENTER.

This scale will also calculate Body Mass Index (BMI).

CALCULATING BMI:

1. Place the patient on the scale platform.

2. Press the BMI button (2).

3. The scale will prompt you to enter the patient’s height. Use the keypad to enter the height in

1/4" (1=1/4, 2=1/2, 3=3/4) or 1 cm increments (use inches for weight in lb, cm for kg). Press

ENTER.

4. Display will read the patient’s BMI.

Note:The scale will not calculate a BMI for a patient 24 pounds (12 kg) or less. If a height is not

entered within 30 seconds of pressing the BMI key, the scale will return to normal operation

The scale offers you two options to manage your information: to transfer/download the values or

to store them. The first option automatically downloads (transfers) the value to your PC. The

Autres manuels pour Pro Plus 2101KL

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Health O Meter Échelle

Health O Meter

Health O Meter 2500KL Manuel utilisateur

Health O Meter

Health O Meter 2210KL Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 1100KL Instructions d'installation

Health O Meter

Health O Meter Pro Plus 2101KL Guide d'installation

Health O Meter

Health O Meter 600KL-BT Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 2000KL Manuel utilisateur

Health O Meter

Health O Meter Professional 499KG Manuel utilisateur

Health O Meter

Health O Meter BFM883 Manuel utilisateur

Health O Meter

Health O Meter 349KLX Instructions d'installation

Health O Meter

Health O Meter HDM560 Manuel utilisateur

Health O Meter

Health O Meter 522KG Manuel utilisateur

Health O Meter

Health O Meter Digital Scale Manuel utilisateur

Health O Meter

Health O Meter 594KL Manuel utilisateur

Health O Meter

Health O Meter HDM165-53 Manuel utilisateur

Health O Meter

Health O Meter 2210KL Manuel utilisateur

Health O Meter

Health O Meter 499KL Manuel utilisateur

Health O Meter

Health O Meter 597KL Manuel utilisateur

Health O Meter

Health O Meter 822KL Manuel utilisateur

Health O Meter

Health O Meter 753KL Manuel utilisateur

Health O Meter

Health O Meter BABYSLINGSCALE Manuel utilisateur

Health O Meter

Health O Meter HDM770 Manuel utilisateur

Health O Meter

Health O Meter 600KL Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 1100KL Manuel utilisateur

Health O Meter

Health O Meter RV-522KL Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
