03/20 Model 1011MS/1011HPSMS Page 1 of 4

1455 Kleppe Lane Sparks, NV 89431-6467 (775) 359-4712 Fax (775) 359-7424

E-mail: [email protected]  website: www.hawsco.com

No. 0002076519 (12)

Model 1011MS/1011HPSMS

Drinking Fountain

INSTALLATION, OPERATION

MAINTENANCE INSTRUCTIONS

LIMITED WARRANTY

HAWS warrants that this specific product is guaranteed against defective material

or poor workmanship for a period of one year from date of shipment. HAWS

liability under this warranty shall be discharged by furnishing without charge F.O.B.

HAWS Factory any goods, or part thereof, which shall appear to the Company

upon inspection to be of defective material or not of first class workmanship,

provided that claim is made in writing to Haws within a reasonable period after

receipt of the product. Where claims for defects are made, the defective part or

parts shall be delivered to the Company, prepaid, for inspection. HAWS will not be

liable for the cost of repairs, alterations or replacements, or for any expense

connected therewith made by the owner or his agents, except upon written

authority from HAWS, Sparks, Nevada. HAWS will not be liable for any damages

caused by defective materials or poor workmanship, except for replacements, as

provided above. Buyer agrees that HAWS shall not be liable for general, special,

or consequential damages claimed to arise under the contract of sale. The

drinking fountain manufactured by HAWS is warranted to function if installation

and maintenance instructions provided are adhered to. The units also must be

used for the purpose for which they were intended.

NO OTHER WARRANTIES EXPRESSED OR IMPLIED ARE AUTHORIZED,

PROVIDED OR GIVEN BY HAWS.

NOTE TO INSTALLER: Please leave this information with the Maintenance Department.

SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS

MODEL PLEASE CALL:

TECHNICAL SUPPORT: 1-800-766-5612

FOR CUSTOMER SERVICE: 1-888-640-4297

03/20 Model 1011MS/1011HPSMS Page 2 of 4

RECOMMENDED TOOLS: Hack saw, pipe joint sealant, screwdriver, level, 12" adjustable

wrench, 10" pipe wrench, 5/32” hex key wrench, 9/16”, 1/2", 7/16” socket wrench or open

end wrench.

LOCATION OF UNIT: When installing Model 1011HPSMS/1011MS Drinking Fountain is a

wheelchair accessible drinking water facility. The height dimensions shown, meet current

ADA requirements. When installing this unit, local, state or federal codes should be adhered

to. If height other than shown is required, then dimensions must be adjusted accordingly.

SUPPLY LINE: The minimum recommended line size is 1/2“IPS with 30-90 psi (2-6 ATM)

flowing pressure. Where sediment or mineral content is a problem, an inlet filter is

recommended.

PLUMBING CONNECTIONS: Inlet is 3/8” O.D. push-in type fitting. Waste outlet is 1-1/4”

O.D. tube.

MAINTENANCE: Periodically clean the strainer. Refer to 5874 Series Valve Manual for

more information.

TROUBLESHOOTING

PROBLEM

REPAIR CHECKLIST

Insufficient bubbler flow.

1a.

Check that inlet screwdriver stop valve (not

supplied) is wide open.

Verify minimum 30 psi flowing supply

pressure.

Clean strainer. See 5874 Series Valve

Manual.

Adjust valve to increase flow. Use front adjust

screw or see 5874 Series Valve manual.

GENERAL NOTES:

1. For all plastic push-in type fitting connections, only connect NSF-61 copper

or plastic tubing. Stainless steel or glass tubing is not recommended. The

following assembly instructions must be followed to ensure a watertight

connection:

a. Cut tubing square and clean.

b. Mark from end of tube the length of insertion (See table below).

c. Push tube into the fitting until it bottoms out.

d. To remove, depress collet and pull tubing out.

Tube Sizes

O.D.

Tolerance

Insertion Depth

1/4”

±.005”

11/16”

3/8”

±.005”

3/4”

1/2”

±.005”

7/8”

For more information about Haws products, see our website: www.hawsco.com

HAWS® and other trademarks usedin these materials are the exclusive property of Haws Corporation.

PARTS BREAKDOWN

APPROVED

DRAWN

PART NUMBER

SCALE: SHEET OF

REVISION

DRAWING TYPE: SIZE: A

BYECN NO.

PAGE

DATE

ECN:

REVISED PER

CHKD

HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.

MODEL(S)

1455 KLEPPE LANE

SPARKS, NEVADA 89431

(775) 359-4712 FAX (775) 359-7424

E-MAIL: [email protected]

WEBSITE: WWW.HAWSCO.COM

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS

MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.

WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.

08/02/99

0002076519

1011MS/1011HPSMS

1:8

04/02/20

3 OF 4

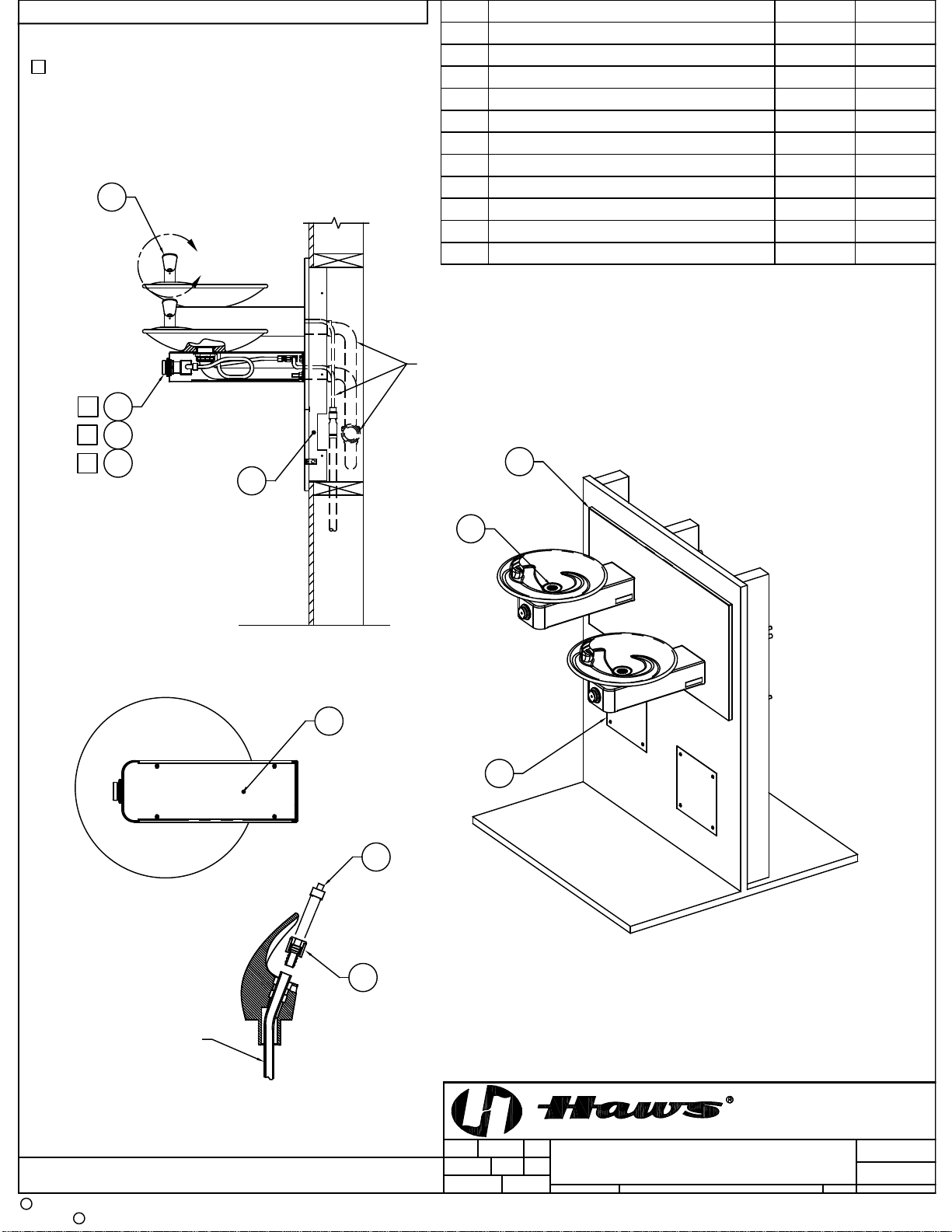

PARTS BREAKDOWN

5527

2020

(NOT SUPPLIED)

NOTES:

1 5874PBF (ITEM 2) INCLUDES VRK5874 CARTRIDGE

ASSEMBLY (ITEM 3) AND PBA6 FLANGED PUSH

BUTTON (ITEM 4).

BUBBLER HEAD, PCP1

1011HPS

DESCRIPTION

ITEM 1011

5705

5874PBFBUTTON, PUSH, PCP, FLANGED W/ VALVE2

VRK58743

PBA64

00040120005

MTGFR.DF26

64637

66088

PBM10009

000285023010

000208225311

5705

VALVE REPAIR KIT

BUTTON, PUSH, 5874, FLANGED

PANEL, BACK, F/ SATIN SWIRL OR HI-POL SS

FRAME, MOUNTING

STRAINER, WASTE ASSEMBLY, SCP OR PCP

PANEL, ACCESS, SS SATIN OR HI-POL

PLATE, BOTTOM, F/1000

INSERT, LAMINAR FLOW, 5705

DRIVER, NOZZLE, .25 HEX

0004012023

5874PBF

VRK5874

PBA6

6463PCP

6608HPS

PBM1000

0002850230

0002082253

* DENOTES OPTIONAL PART.

(TUBING CONNECTS TO

INSERT ASSY)

DETAIL A

(ROTATED 90° INTO VIEW)

MTGFR.DF2

OPTIONAL

** REQUIRED - SOLD SEPARATELY.

IMPORTANT: MOUNTING

FRAME MUST BE INSTALLED

SO THAT FRAME FLANGE

BUTTS AGAINST FINISHED

FRAME

FLANGE

WALL

FACE

3/8" O.D. TUBING &

SCREWDRIVER STOPS (NOT SUPPLIED)

WASTE BEND

BACK

PANEL

(NOT SUPPLIED)

27"

686mm

32"

812mm

LINE

FLOOR FACE

WALL

MOUNTING FRAME

(SUPPLIED)

WASTE BENDS

REQUIRED -

18-5/8"

473mm

76mm

708mm

27-7/8" 32-7/8"

835mm

(NOT SUPPLIED)

1-1/4" IPS TRAPS

FOUNTAIN

WASTE

FOUNTAIN

WASTE

1-1/4" O.D.

SUPPLY

FOUNTAIN

28-11/16"

729mm 33-11/16"

FOUNTAIN

SUPPLY

856mm

MTGFR.DF2

WALL FACE.

SCREW

NUT, RETAINER

5 TO CHANGE FOUNTAIN MTG. SCREW LOCATIONS: FIRST REMOVE

SCREWS AND THEN SQUEEZE CLIPS ON NUT RETAINER TO POP

OUT. SNAP INTO NEW POSITIONS FROM BACKSIDE AND RE-

ASSEMBLE SCREWS.

6 IMPORTANT: A L.H. LOW (OPTIONAL) CONFIGURATION WILL REQUIRE

A DIFFERENT BACK PANEL AND THE WASTE AND SUPPLY

DIMENSIONS SHOWN (*) MUST BE REVERSED.

7 REFER TO 5874 SERIES OPERATION AND MAINTENANCE MANUAL

FOR PUSH BUTTON AND VALVE INSTALLATION/MAINTENANCE

INSTRUCTIONS.

1 HOLD ROUGH-IN DIMENSIONS ±1/8" (3.2mm).

2 WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL

CODES SHOULD BE ADHERED TO FOR DIMENSIONS

(LOCATIONS), WASTE AND SUPPLY REQUIREMENTS OTHER

THAN SHOWN.

3 INSTALLER MUST PROVIDE TRAP FOR PROPER

INSTALLATION.

4. HOLE COMBINATION SHOWN BELOW IS FOR USE WITH LOW

FOUNTAIN ON THE RIGHT AND HIGH FOUNTAIN ON THE LEFT.

USE OPPOSITE HOLES FOR HIGH ON RIGHT AND LOW ON LEFT.

BOWL MOUNTING PATTERN DETAIL

ELBOW ONTO BOWL. AFTER

BUTTON TO INSTALL WASTE

REMOVE VALVE FROM PUSH

WASTE ELBOW IS INSTALLED,

REINSTALL VALVE & ADJUST

FLOW

ROUGH-IN

606mm

23-7/8"

ROUGH-IN

16"

406mm

654mm

25-3/4"

32"

813mm

31-1/8"

791mm

ROUGH-IN

BACK

PANEL

ACCESS

34 5/32"

864mm

991mm

39 5/32"

(SUPPLIED)

425mm

16-3/4"

LINE

FLOOR

Ø14-1/8"

359mm

406mm

16"

16mm

5/8"

(SUPPLIED)

SUPPLY

NOTES:

APPROVED:

DRAWN:

PART NUMBER

SCALE: SHEET OF

REVISION

DRAWING TYPE: SIZE: A

BY:ECN NO.

PAGE

DATE:

ECN:

REVISED PER

CHK'D.:

MODEL(S)

1455 KLEPPE LANE

SPARKS, NEVADA 89431

(775) 359-4712 FAX (775) 359-7424

E-MAIL: [email protected]

WEBSITE: WWW.HAWSCO.COM

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS

MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.

08/02/99

0002076519.D

1011MS/1011HPSMS

1:16

04/02/20

4 OF 4

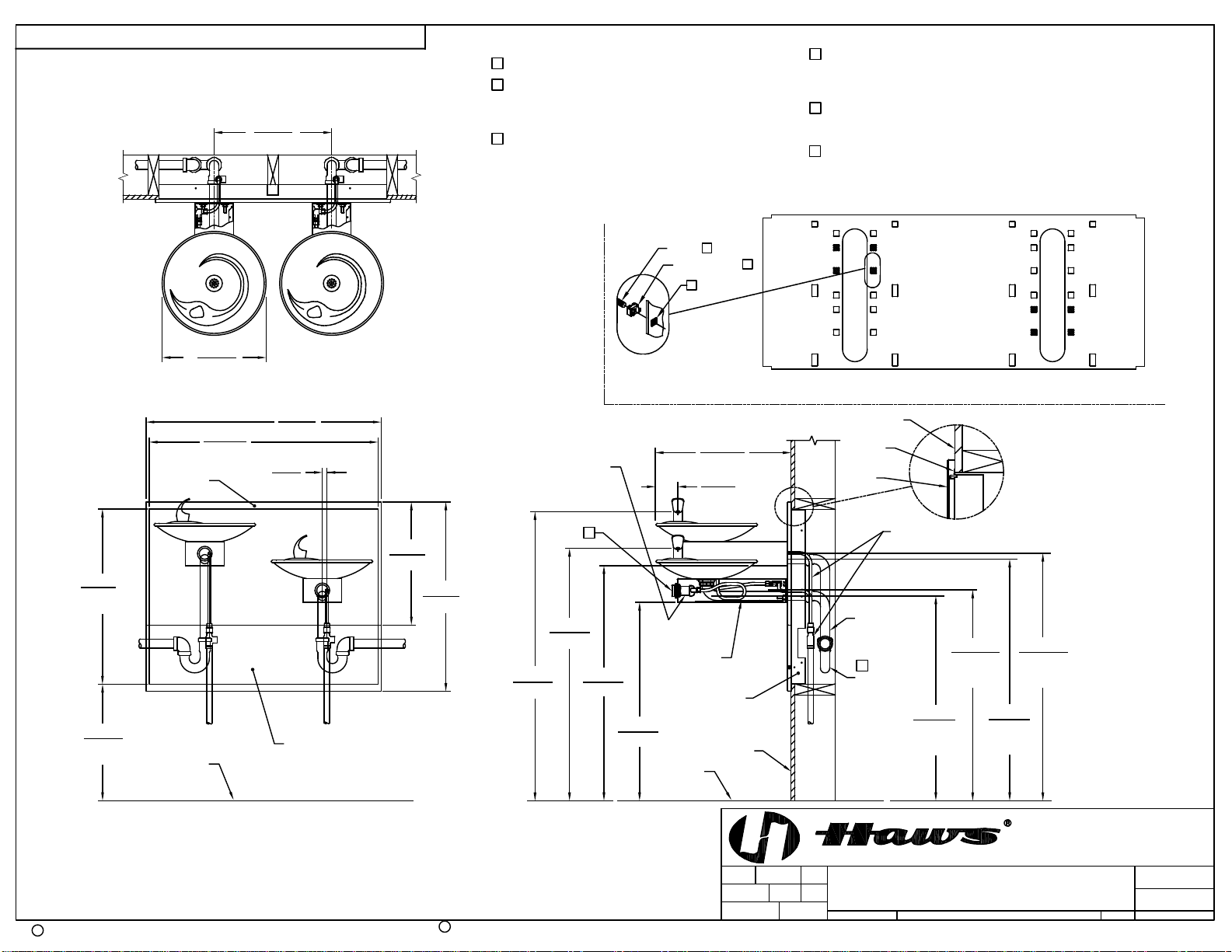

INSTALLATION

5527

2020

SOLD SEPARATELY
