INSTRUCTION MANUAL

HI96735C

Hardness ISM

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent

of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.

Thank you for choosing a Hanna Instruments product.

Please read this instruction manual carefully before using the instrument.

This manual will provide you with the necessary information for correct use of

the instrument, as well as a precise idea of its versatility.

If you need additional technical information, do not hesitate to e‑mail us at

[email protected] or view our worldwide contact list at www.hannainst.com.

Dear

Customer,

TABLE OF CONTENTS

PRELIMINARY EXAMINATION ............................................................................................

GENERAL DESCRIPTION ....................................................................................................

ABBREVIATIONS ..............................................................................................................

SPECIFICATIONS ..............................................................................................................

PRECISION AND ACCURACY ..............................................................................................

PRINCIPLE OF OPERATION ...............................................................................................

FUNCTIONAL DESCRIPTION ...............................................................................................

ERRORS AND WARNINGS .................................................................................................

GENERAL TIPS FOR AN ACCURATE MEASUREMENT .............................................................

STARTUP ........................................................................................................................

MEASUREMENT PROCEDURE ............................................................................................

VALIDATION PROCEDURE .................................................................................................

CALIBRATION PROCEDURE ...............................................................................................

GLP ................................................................................................................................

BATTERY MANAGEMENT ...................................................................................................

BATTERY REPLACEMENT ...................................................................................................

ACCESSORIES ..................................................................................................................

Please examine this product carefully. Make sure that the instrument is not damaged. If any damage

occurred during shipment, please contact your local Hanna Instruments Office.

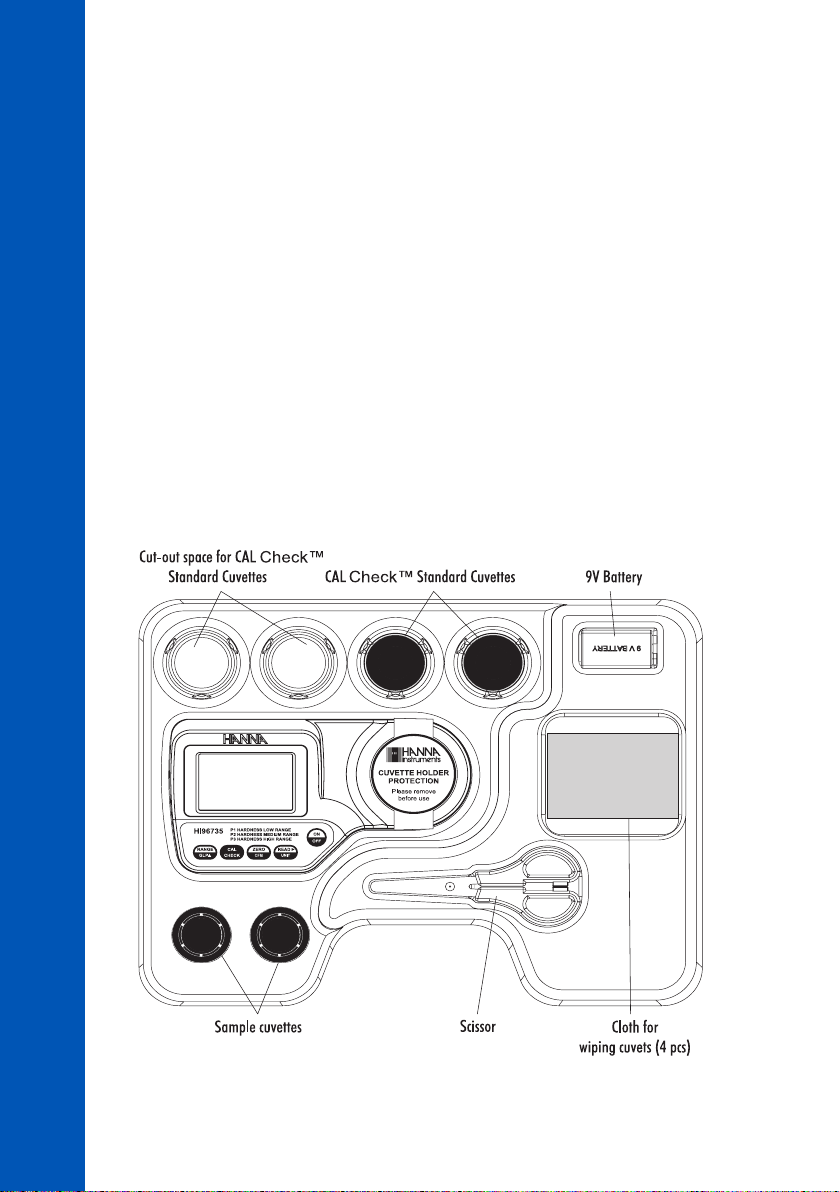

Each HI96735 Ion Selective Meter is supplied complete with:

• Sample Cuvettes and Caps (2 pcs.)

• CAL Check™ standard cuvettes

• 9V Battery

• Scissors

• Cloth for wiping cuvettes

• Instrument quality certificate

• Instruction Manual and Quick Reference Guide

• Rigid carrying case

Internal design of carrying case can be different!

Note: Save all packing material until you are sure that the instrument works correctly. Any

defective item must be returned in its original packing.

PRELIMINARY EXAMINATION

The HI96735 is an auto diagnostic portable microprocessor meter that benefits from

Hanna Instruments’ years of experience as a manufacturer of analytical instruments. It has the

advanced optical system based on a special Light Emitting Diode (LED) and a narrow band

interference filter that allows most accurate and repeatable readings. All instruments are factory

calibrated and the electronic and optical design minimizes the need of frequent calibration.

With the powerful CAL CheckTM validation function, you are able to validate good performance

of your instrument at any time. The validation procedure is extremely user friendly. Just use the

exclusive Hanna Instruments ready‑made, NIST traceable standards to verify the performance of

the instrument and recalibrate if necessary.

All instruments are splash proof and the LED and filter units are protected from dust or dirt by a

transparent cup. This makes the instruments fulfill field applications. Display messages aid the user

in routine operation. The meter has an auto shut off feature that will turn off the instrument after

10 minutes of non use in measurement mode or after 1 hour if left in calibration mode.

The meter uses an exclusive positive‑locking system to ensure that the cuvette is in the same

position every time it is placed into the measurement cell. It is designed to fit a cuvette with a

larger neck making it easier to add both sample and reagents. The cuvette is made from special

optical glass to obtain best results.

The HI96735 meter measures the hardness content in water samples in the 0 to 750 mg/L (ppm)

range. The method is an adaptation of the EPA recommended method 130.1.

The reagent is in powder form, supplied in packets and in liquid form, supplied in bottles and in

dropper bottles. The amount of reagent is precisely dosed to ensure the maximum repeatability.

GENERAL DESCRIPTION

degree Celsius

degree Fahrenheit

milligrams per liter. mg/L is equivalent to ppm (parts per million)

milliliter

millivolt

US Environmental Protection Agency

°C:

°F:

mg/L:

mL:

mV:

EPA:

ABBREVIATIONS

SPECIFICATIONS

Range

LR 0 to 250 mg/L

MR 200 to 500 mg/L

HR 400 to 750 mg/L

Resolution 1 mg/L from 0 to 100 mg/L

5 mg/L from 100 to 750 mg/L

Accuracy

@25 °C (77 °F)

LR ±5mg/L ±4% of reading

MR ±7 mg/L ±3% of reading

HR ±10 mg/L ±2% of reading

Light Source Light Emitting Diode

Light Detector Silicon Photocell with narrow band interference filter @466 nm

Method

Adaptation of the EPA recommended method 130.1. The reaction

between calcium, magnezium and the reagents causes a red‑violet

tint in the sample.

Environment 0 to 50 °C (32 to 122 °F);

max 95% RH non‑condensing

Battery Type 9V (1 pc.)

Auto‑Shut off

After 10’ of non‑use in measurement mode;

after 1 hour of non‑use in calibration mode;

with last reading reminder

Dimensions 192 x 104 x 69 mm (7.6 x 4.1 x 2.7”)

Weight 320 g (11.3 oz.)

REQUIRED REAGENTS

Code Description Quantity/test

HI93735IND‑0 Indicator Reagent 0.5 mL

HI93735A‑XR (X=L, M, H) Liquid Reagent 9.0 mL

HI93735B‑0 Liquid Reagent 2 drops

HI93735C‑0 Powder Reagent 1 packet

In a laboratory using a standard solution of the parameter and a representative lot of reagent (for

each parameter) the following standard deviations were obtained:

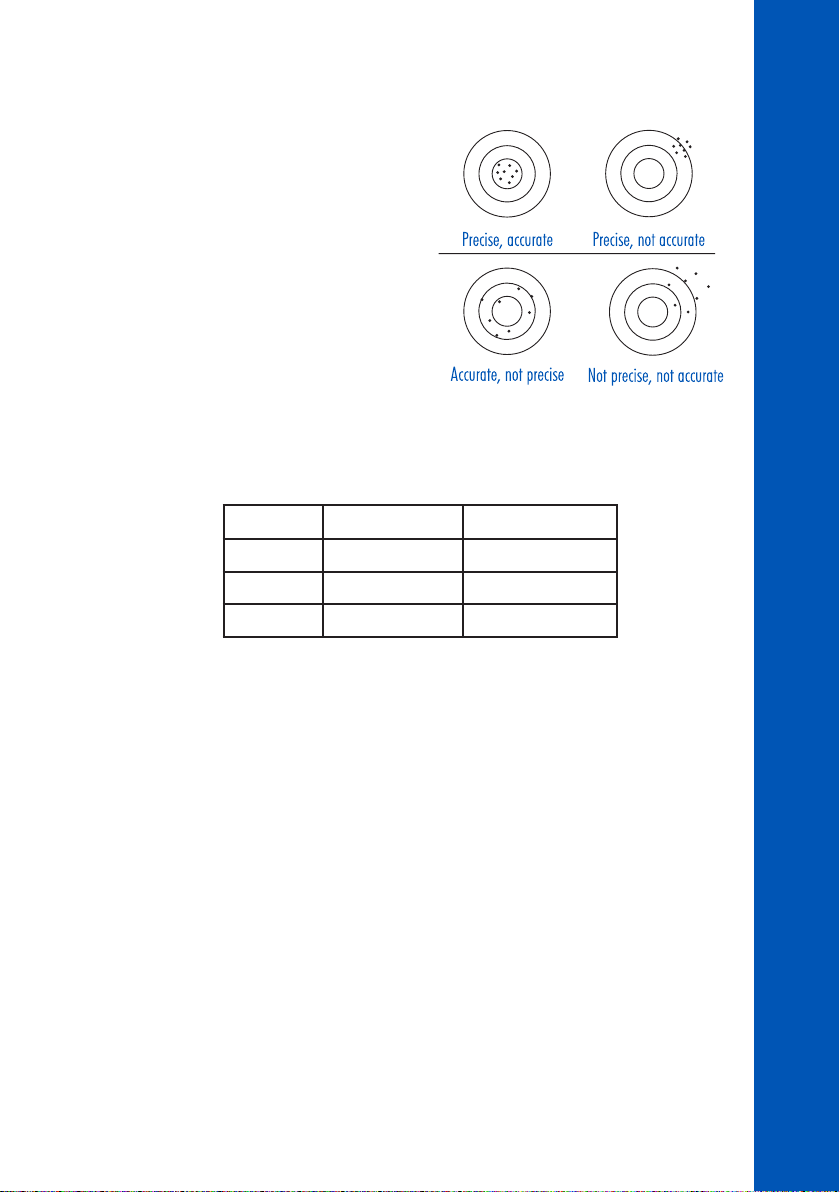

Precision is how closely repeated measurements

agree with each other. Precision is usually expressed

as standard deviation (SD).

Accuracy is defined as the nearness of a test result

to the true value.

Although good precision suggests good accuracy,

precise results can be inaccurate. The figure explains

these definitions.

PRECISION AND ACCURACY

Parameter Standard Solution Standard Deviation

Hardness LR 150 mg/L 10 mg/L

Hardness MR 350 mg/L 15 mg/L

Hardness HR 520 mg/L 20 mg/L

Absorption of Light is a typical phenomenon of interaction between electromagnetic radiation and

matter. When a light beam crosses a substance, some of the radiation may be absorbed by atoms,

molecules or crystal lattices.

If pure absorption occurs, the fraction of light absorbed depends both on the optical path length

through the matter and on the physical‑chemical characteristics of the substance according to the

Lambert‑Beer Law:

‑log I/Io= ελc d

A = ελc d

Where:

‑log I/Io = Absorbance (A)

Io = intensity of incident light beam

I = intensity of light beam after absorption

ε

λ= molar extinction coefficient at wavelength λ

c = molar concentration of the substance

d = optical path through the substance

Therefore, the concentration “c” can be calculated from the absorbance of the substance as the

other factors are known.

Photometric chemical analysis is based on the possibility to develop an absorbing compound from a

specific chemical reaction between sample and reagents. Given that the absorption of a compound

strictly depends on the wavelength of the incident light beam, a narrow spectral bandwidth should

be selected as well as a proper central wavelength to optimize measurements.

PRINCIPLE OF OPERATION

The optical system of Hanna Instruments’ HI96735 colorimeter is based on special subminiature

LED and narrow‑band interference filters to guarantee both high performance and reliable results.

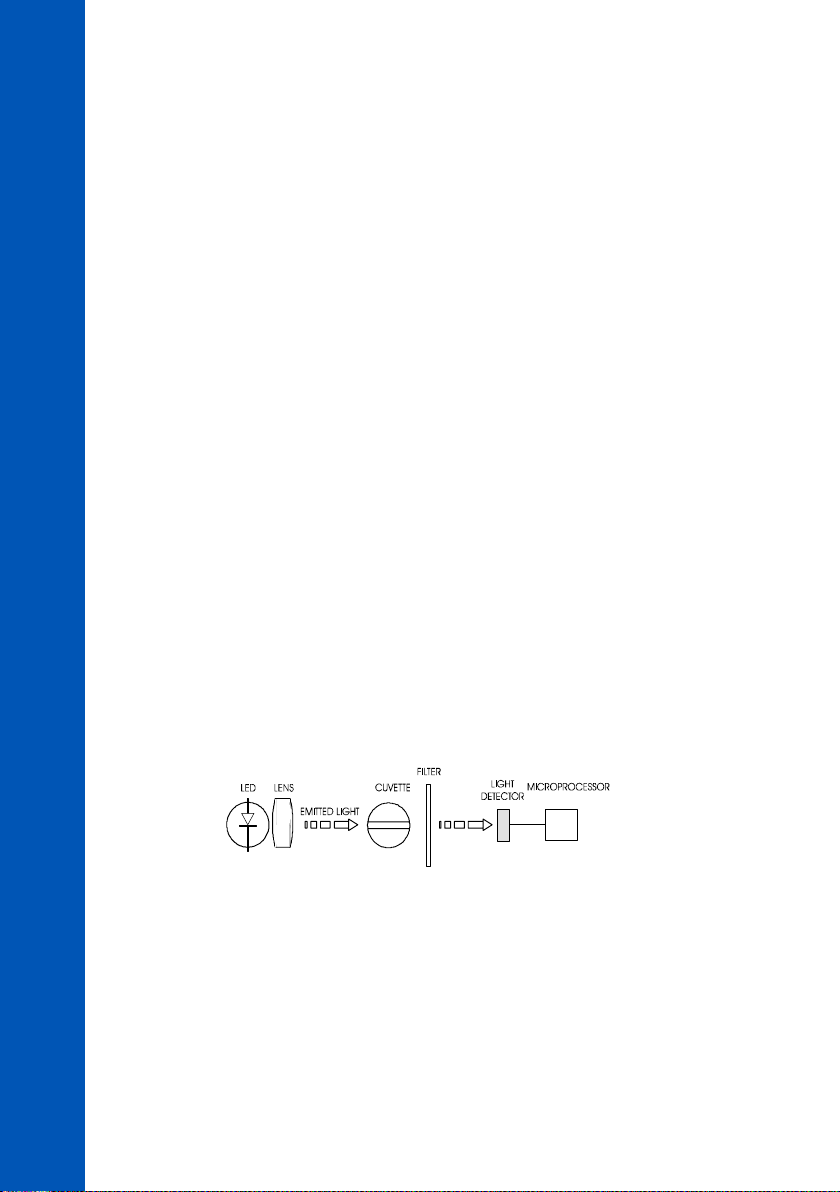

HI96735 block diagram (optical layout)

A microprocessor controlled special LED emits radiation which is first optically conditioned and

beamed to the sample contained in the cuvette. The optical path is fixed by the diameter of the

cuvette. Then the light is spectrally filtered to a narrow spectral bandwidth, to obtain a light beam

of intensity Ioor I.

The photoelectric cell collects the radiation Ithat is not absorbed by the sample and converts it

into an electric current, producing a potential in the mV range.

The microprocessor uses this potential to convert the incoming value into the desired measuring

unit and to display it on the LCD.

The measurement process is carried out in two phases: first the meter is zeroed and then the actual

measurement is performed.

The cuvette has a very important role because it is an optical element and thus requires particular

attention. It is important that both, the measurement and the calibration (zeroing) cuvettes, are

optically identical to provide the same measurement conditions. Whenever possible use the same

cuvette for both. It is necessary that the surface of the cuvette is clean and not scratched. This to avoid

measurement interference due to unwanted reflection and absorption of light. It is recommended

not to touch the cuvette walls with hands.

Furthermore, in order to maintain the same conditions during the zeroing and the measuring phases,

it is necessary to close the cuvette to prevent any contamination.

PRINCIPLE OF OPERATION

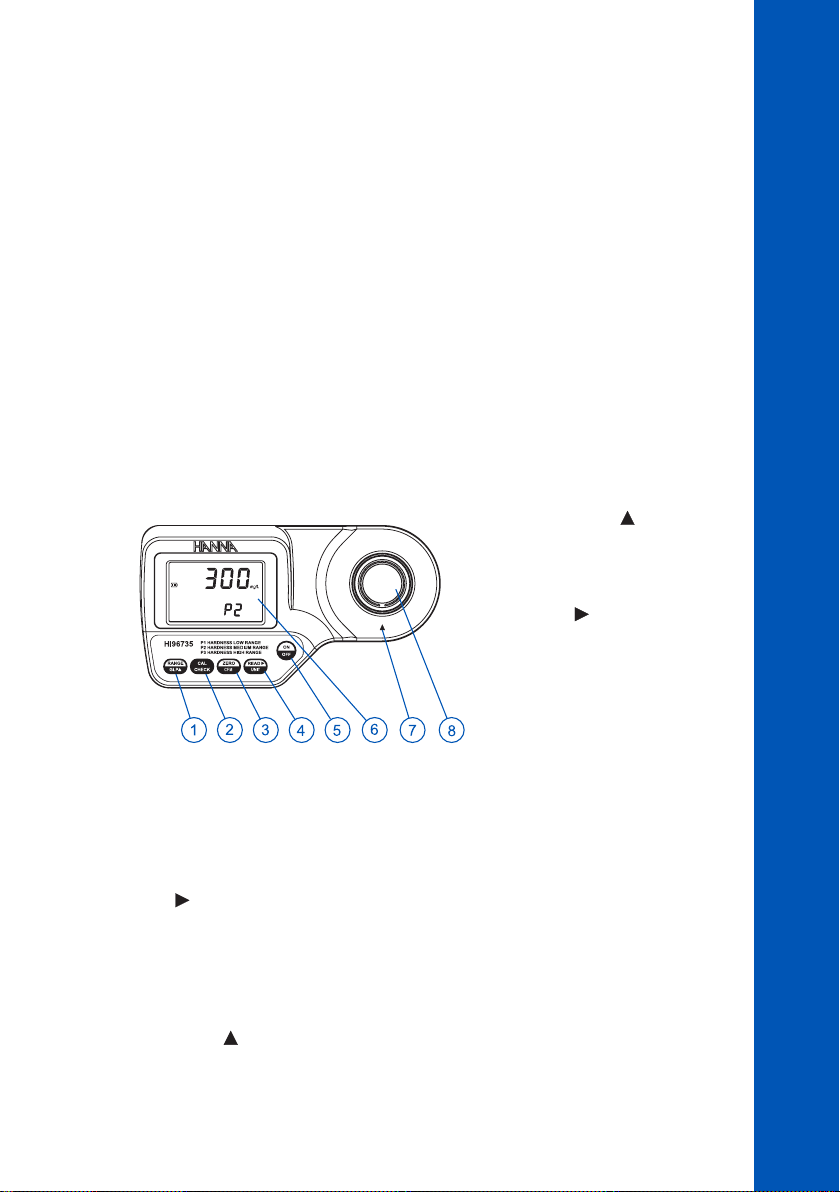

INSTRUMENT DESCRIPTION

1) RANGE/GLP key

2) CAL CHECK key

3) ZERO/CFM key

4) READ /UNIT key

5) ON/OFF key

6) Liquid Crystal Display (LCD)

7) Cuvette alignment indicator

8) Cuvette holder

FUNCTIONAL DESCRIPTION

KEYPAD DESCRIPTION

• ON/OFF: to turn the meter on and off.

• ZERO/CFM: this is a bi‑functional key. Just press to zero the meter prior to measurement, or

confirm edited values. In calibration mode press to confirm factory calibration restore.

• READ /UNIT: this is a multi‑functional key. In measurement mode, press to make a

measurement, or press and hold for three seconds to change the measurement unit. In GLP

mode press to view the next screen.

• CAL CHECK: this is a bi‑functional key. Just press to perform the validation of the meter, or

press and hold for three seconds to enter calibration mode.

• RANGE/GLP : this is a multi‑functional key. In measurement mode, press to change the

parameter. Press and hold to enter GLP mode. In calibration mode press to edit the date and time.

OPERATING MODES

• Measurement mode: default operation mode, enables both validation and measurement.

• Calibration mode: may be entered by keeping CAL CHECK pressed for three seconds (the

“CAL” tag appears), it enables calibration of the instrument.

• GLP mode: may be entered by pressing RANGE/GLP (“GLP” appears), it enables consulting

of user calibration date or restore factory calibration.

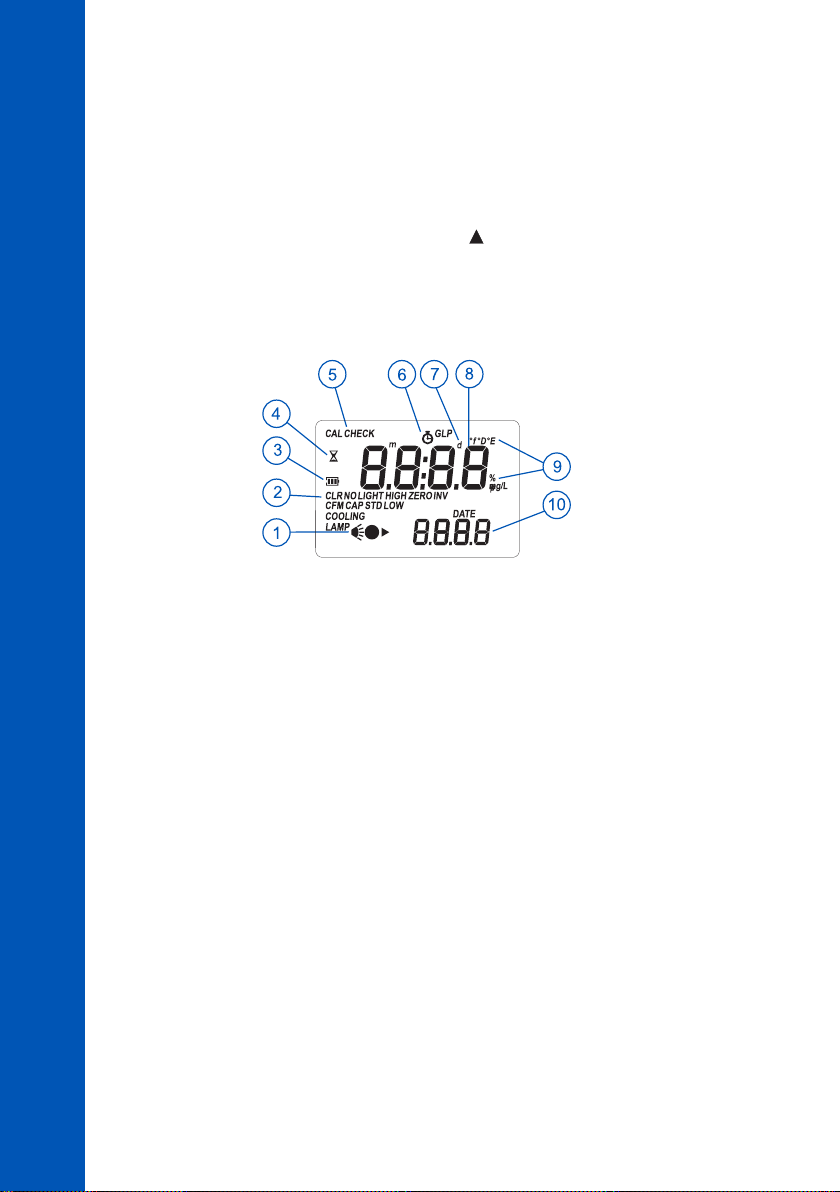

DISPLAY ELEMENTS DESCRIPTION

1) The measuring scheme (lamp, cuvette, detector), appears during different phases of zero or

reading measurement

2) Error messages and warnings

3) The battery icon shows the charging level of the battery

4) The hourglass appears when an internal checking is in progress

5) Status messages

6) The chronometer appears when the reaction timer is running

7) The month, day and date icons appear when a date is displayed

8) Four digit main display

9) Measuring units

10) Four digit secondary display

FUNCTIONAL DESCRIPTION

Table des matières

Autres manuels Hanna Instruments Instrument de mesure

Hanna Instruments

Hanna Instruments HI 91410 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 99141 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 983303 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 93722 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 2212 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 8734 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 98127 Manuel utilisateur

Hanna Instruments

Hanna Instruments pHep+ HI 98108 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 254 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI99164 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI98198 OPDO Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 98171 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 250 Manuel utilisateur

Hanna Instruments

Hanna Instruments Gro Line HI9814 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 991001 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 93704 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 99181 Manuel utilisateur

Hanna Instruments

Hanna Instruments C 99 series Manuel utilisateur

Hanna Instruments

Hanna Instruments HI705 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 719 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 38023 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 99171 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 2221 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI706 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
