Instruction Manual

C 99 & C 200

Series

Multiparameter Bench

Photometers

Manufacturers since 1978 These Instruments are in

Compliance with the CE Directives

Dear Customer,

Thank you for choosing a Hanna product. Please read this instruction

manual carefully before using the meter. This manual will provide you

with the necessary information for the correct use of the instrument. If

you need additional technical information, do not hesitate to e-mail

us at [email protected]. These instruments are in compliance

with directives.

TABLE OF CONTENTSTABLE OF CONTENTS

TABLE OF CONTENTS

PRELIMINARY EXAMINATION ............. 3

GENERAL DESCRIPTION ..................... 3

SPECIFICATIONS .............................. 4

PRINCIPLE OF OPERATION ................ 4

FUNCTIONAL DESCRIPTION ............... 6

GUIDE TO DISPLAY CODES ................. 7

TIPS FOR AN ACCURATE MEASURE-

MENT ........................................... 10

PARAMETERS REFERENCE TABLES ... 12

OPERATIONAL GUIDE ...................... 19

ABBREVIATIONS.................................20

ALUMINUM ................................... 21

AMMONIA HIGH RANGE .................. 23

AMMONIA MEDIUM RANGE ............. 25

AMMONIA LOW RANGE ................... 27

BROMINE ..................................... 29

FREE CHLORINE ............................ 31

FREE CHLORINE HIGH RANGE.......... 34

TOTAL CHLORINE ........................... 37

TOTAL CHLORINE HIGH RANGE ......... 40

CHLORINE DIOXIDE ........................ 43

CHROMIUM VI HIGH RANGE ............ 46

CHROMIUM VI LOW RANGE ............. 48

COLOR OF WATER .......................... 50

COPPER HIGH RANGE ..................... 52

COPPER LOW RANGE ...................... 54

CYANIDE ....................................... 56

CYANURIC ACID ............................. 59

FLUORIDE ..................................... 61

CALCIUM HARDNESS ...................... 64

MAGNESIUM HARDNESS ................ 67

TOTAL HARDNESS HIGH RANGE ........ 70

TOTAL HARDNESS MEDIUM RANGE .. 73

TOTAL HARDNESS LOW RANGE ......... 76

HYDRAZINE ................................... 79

IODINE ......................................... 82

IRON HIGH RANGE ......................... 84

IRON LOW RANGE .......................... 86

MANGANESE HIGH RANGE .............. 89

MANGANESE LOW RANGE ............... 91

MOLYBDENUM .............................. 94

NICKEL HIGH RANGE ...................... 97

NICKEL LOW RANGE ....................... 99

NITRATE ...................................... 102

NITRITE HIGH RANGE .................... 104

NITRITE LOW RANGE ..................... 106

OXYGEN DEMAND, CHEMICAL HR .. 108

OXYGEN DEMAND, CHEMICAL MR .. 111

OXYGEN DEMAND, CHEMICAL LR ... 114

OXYGEN, DISSOLVED .................... 117

pH ............................................. 120

PHOSPHATE HIGH RANGE ............. 122

PHOSPHATE LOW RANGE .............. 124

PHOSPHORUS ............................ 126

SILICA ........................................ 128

SILVER ....................................... 131

ZINC ........................................... 134

INTERFACE WITH PC ..................... 137

STANDARD METHODS ................... 139

BATTERY REPLACEMENT ................ 140

ACCESSORIES ............................. 141

WARRANTY ................................. 143

CE DECLARATION OF CONFORMITY..144

HANNA LITERATURE.........................145

USER NOTES...................................146

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the

PRELIMINARY EXAMINATIONPRELIMINARY EXAMINATION

PRELIMINARY EXAMINATION

Remove the instrument from the packing material and examine it

carefully to make sure that no damage has occurred during ship-

ment. If there is any damage, notify your Dealer.

Each Meter is supplied complete with:

• Two Sample Cuvets and Caps*

• One Transport Cap

• Two 9 V Batteries

• 12 VDC Transformer (HI 710005 or HI 710006)

Note: Save all packing material until you are sure that the instru-

ment functions correctly. Any defective item must be returned

in its original packing with the supplied accessories.

* C99 & C200, C206, C207, C209, C210 and C213 are supplied with 3 cuvets and caps

GENERAL DESCRIPTIONGENERAL DESCRIPTION

GENERAL DESCRIPTION

C 99 & C 200 Series is a line of 15 different bench, microprocessor-

based photometers that measure up to 46 parameters in water and

wastewater. These multipurpose meters are manufactured to measure

the most important parameters of the application they have been

especially designed for:

C 99 Laboratories, with COD C 200 Laboratories

C 203 Aquaculture C 205 Boilers & Cooling Towers

C 206 Environmental Testing C 207 Industrial Wastewater

C 208 Water Conditioning C 209 Education

C 210 Pulp & Paper Mills C 211 Chemical Manufacturers

C 212 Power Plant Utilities C 213 Municipal Wastewater

C 215 Nutrient Analyses C 216 Swimming Pool Applic.

C 218 Environmental Applic.

All meters use an exclusive positive-locking system to ensure that the cuvet

is in the same position every time it is placed into the measurement cell.

The reagents are in liquid or powder form and are supplied in bottles

or in packets. The amount of reagent is precisely dosed to ensure the

maximum repeatability.

Display codes aid the user in routine operations.

The meters have an auto-shut off feature, turning the unit off after

10 minutes of non-use.

The C 99 & C 200 Series can be connected to a personal computer via

the HI 920010 three wire RS 232 cable. The HI 92000 Hanna

Windows®Compatible Software aids the user to manage all test

data.

PRINCIPLE OF OPERATIONPRINCIPLE OF OPERATION

PRINCIPLE OF OPERATION

Absorption of Light is a typical phenomenon of interaction between

Electromagnetic Radiation and Matter. When a light beam crosses a

substance, some of the radiation may be absorbed by atoms,

molecules or crystal lattices.

If pure absorption occurs, the fraction of light absorbed depends both

on the optical path length through the matter and on the physico-

chemical characteristics of substance according to the Lambert-Beer

Law:

-log I/Io= ελc d

A = ελc d

Where:

-log I/Io=Absorbance (A)

Io=intensity of incident light beam

I=intensity of light beam after absorption

ελ=molar extinction coefficient at wavelength λ

c =molar concentration of the substance

d =optical path through the substance

Therefore, the concentration "c" can be calculated from the absorbance

of the substance as the other factors are known.

Photometric chemical analysis is based on the possibility to develop an

absorbing compound from a specific chemical reaction between sample

and reagents.

Light Life Life of the instrument

Light Detector Silicon Photocell

Environment 0 to 50°C (32 to 122°F);

max 95% RH non-condensing

Power Supply 2 x 9 V batteries / 12 to 20 VDC through

voltage adapter

Auto-Shut off After 10' of non-use

Dimensions 230 x 165 x 70 mm (9.0 x 6.5 x 2.8")

Weight 640 g (22.6 oz.)

For specifications related to each single parameter (e.g. range,

accuracy, etc.), refer to the related measurement section.

SPECIFICATIONSSPECIFICATIONS

SPECIFICATIONS

The optical system of Hanna's C 99 & C 200 multiparameter

photometers is based on special subminiature tungsten lamps and

narrow-band interference filters to guarantee both high performance

and reliable results.

Four measuring channels (at four different wavelengths) allow a wide

range of tests.

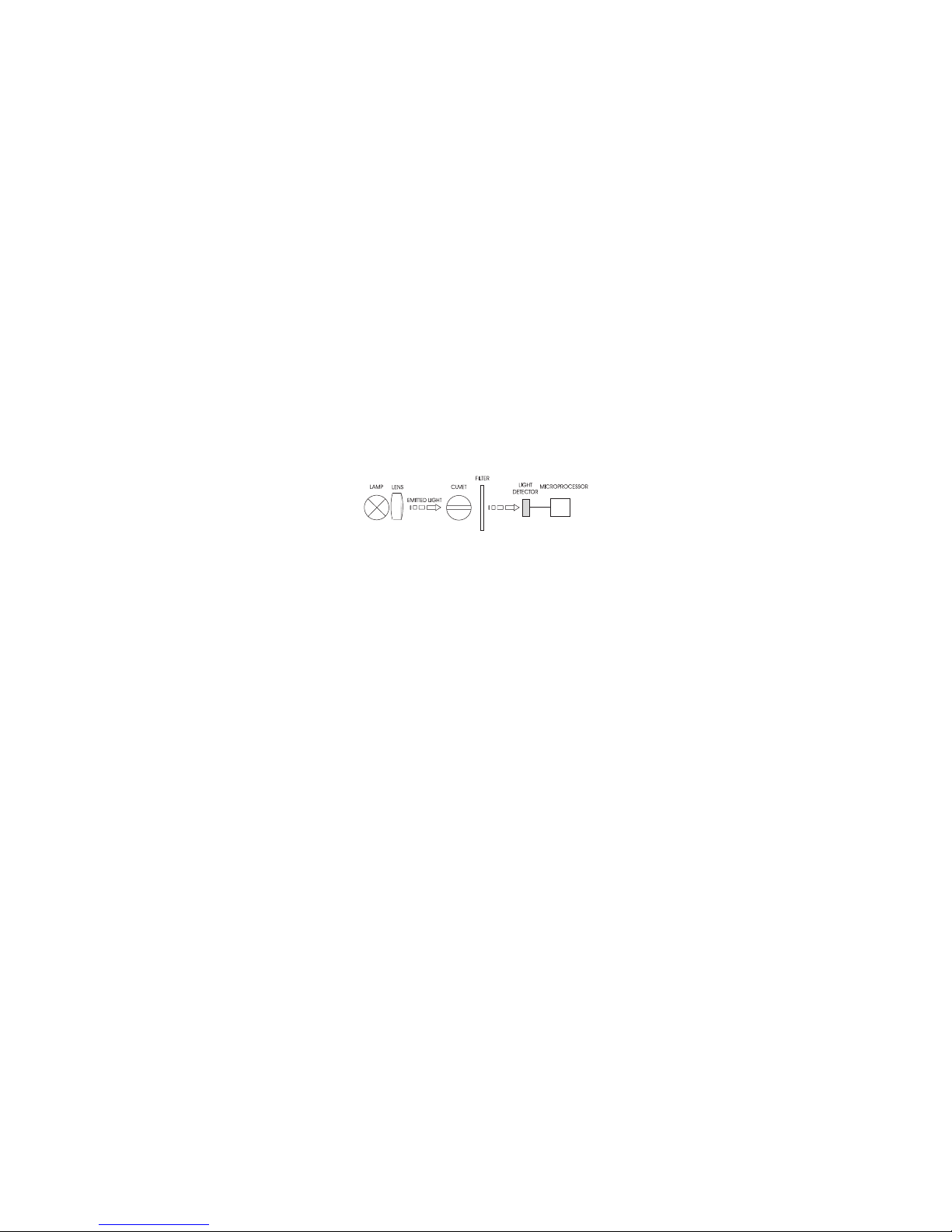

C 200 Block diagram (optical layout)

A microprocessor controlled special tungsten lamp emits radiation

which is first optically conditioned and beamed to the sample

contained in the cuvet. The optical path is fixed by the diameter of

the cuvet. Then the light is spectrally filtered to a narrow spectral

bandwidth, to obtain a light beam of intensity Ioor I.

The photoelectric cell collects the radiation Ithat is not absorbed by

the sample and converts it into an electric current, producing a

potential in the mV range.

The microprocessor uses this potential to convert the incoming value

into the desired measuring unit and to display it on the LCD.

The measurement process is carried out in two phases: first the meter

is zeroed and then the actual measurement is performed.

The cuvet has a very important role because it is an optical element

and thus requires particular attention. It is important that both the

measurement and the calibration (zeroing) cuvets are optically iden-

tical to provide the same measurement conditions. Whenever possible

use the same cuvet for both.

It is also necessary that the surface of the cuvet is clean and not

scratched. This is to avoid measurement interference due to unwanted

reflection and absorption of light. It is recommended not to touch the

cuvet walls with hands.

Furthermore, in order to maintain the same conditions during the

zeroing and the measuring phases, it is necessary to close the cuvet

to prevent any contamination.

Given that the absorption of a compound strictly depends on the

wavelength of the incident light beam, a narrow spectral bandwidth

should be selected as well as a proper central wavelength to optimize

measurements.

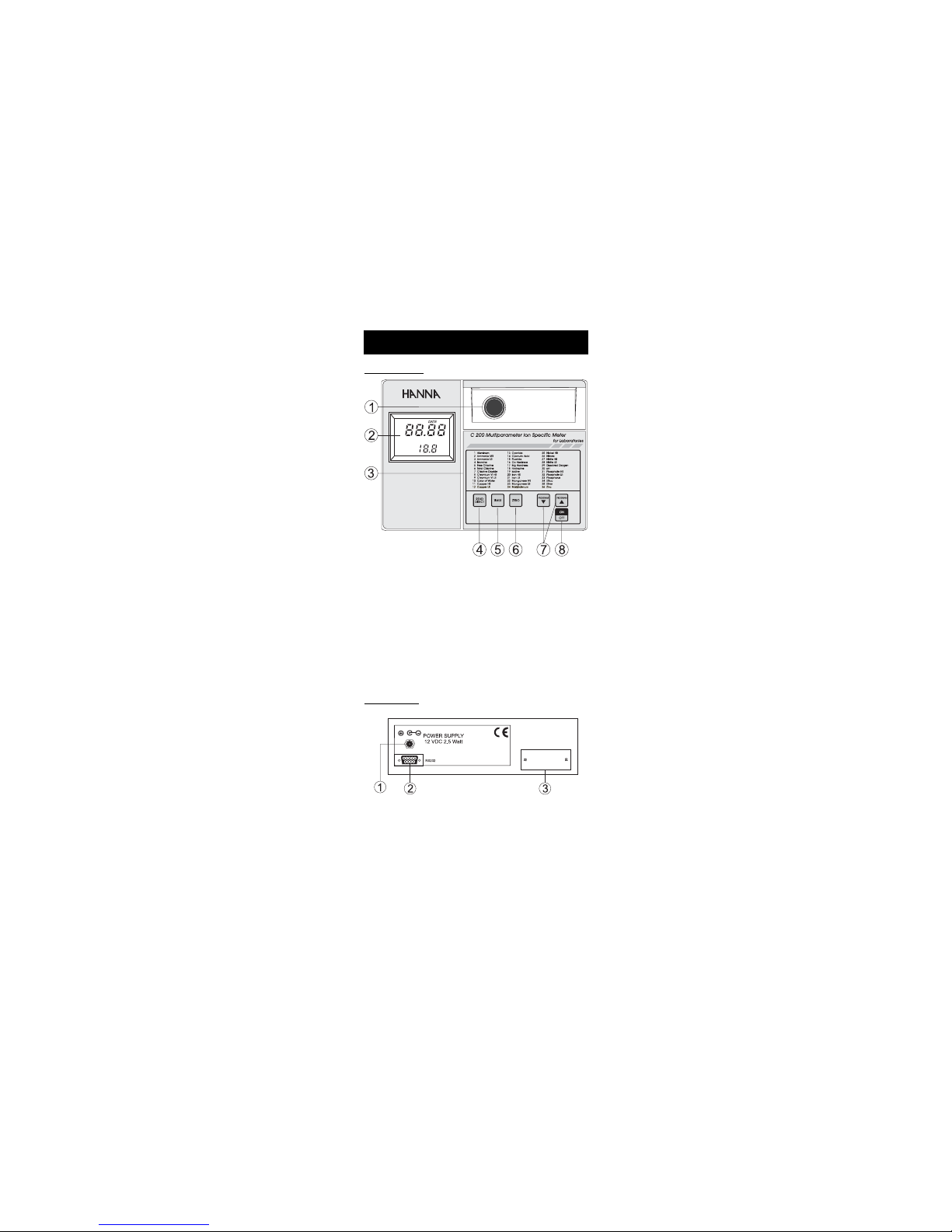

FRONT PANEL

1) Cuvet Holder

2) Dual Level Liquid Crystal Display

3) Programs List

4) READ DIRECT, to perform measurement immediately

5) TIMER, to perform measurements after a preprogrammed

countdown

6) ZERO, to zero the meter prior to measurement

7) Program Wand V, to select the desired parameter

8) ON/OFF, to turn the meter on and off

REAR PANEL

1) Power Supply 12 VDC 2.5 Watt

2) RS 232 Socket

3) Batteries Compartment

FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION

FUNCTIONAL DESCRIPTION

GUIDE TO DISPLAY CODESGUIDE TO DISPLAY CODES

GUIDE TO DISPLAY CODES

Note: The secondary LCD below shows a generic "P– –", whereas the

meter will indicate the exact program number (e.g. in C 200,

"P1" for Aluminum).

Sampling in progress. This flashing

prompt appears each time the meter is

performing a measurement.

The microprocessor is adjusting the light

level, indicated by a scrolling "SIP".

This indicates that the meter is in a zeroed

state and measurement can be performed.

The blinking "LOBAT" indicates that the

battery voltage is getting low and the

batteries need to be replaced.

The light level is accepted. The instrument

is ready to perform a zero reading. This

flashing prompt will only appear when a

secondzeroreadingneedsto beperformed.

Follow the measurement procedure de-

scribed in the related chapter.

The instrument is performing an internal

check-up.

This indicates that the meter is in a ready

state and zeroing can be performed.

This indicates that the batteries are dead

and must be replaced.

This indicates that the meter has lost its

configuration. Contact your dealer or the

nearest Hanna Customer Service Center.

ERROR MESSAGESERROR MESSAGES

ERROR MESSAGES

a) on zero reading:a) on zero reading:

a) on zero reading:

The instrument cannot adjust the light

level.Pleasecheckthatthesampledoesnot

contain any debris.

There is not enough light to perform a

measurement. Please check the prepara-

tion of the zero cuvet.

This indicates that the zeroing procedure

failed due to a low signal-to-noise ratio. In

this case press ZERO again.

There is too much light to perform a

measurement. Please check the prepara-

tion of the zero cuvet.

The lamp is not working properly. Contact

your dealer or the nearest Hanna Customer

Service Center.

The lamp is not working properly. Contact

your dealer or the nearest Hanna Customer

Service Center.

Light over range. The cuvet is not inserted

correctly and an eccess ambient light is

reaching the detector. If the cuvet is

properly inserted,thencontact your dealer

or the nearest Hanna Customer Service

Center.

A zero reading was not taken. Follow the

instructiondescribed in the measurement

procedures for zeroing the meter.

Under range. A blinking "0.00" indicates

thatthe sample absorbs lesslight than the

zero reference. Check the procedure and

make sure that you use the same cuvet for

reference (zero) and measurement.

1) A flashing value of the maximum

concentration indicates an over range

condition.Theconcentrationofthesample

is beyond the programmed range: dilute

the sample and rerun the test.

2) A flashing value lower than the

maximum concentration indicates a low

signal-to-noiseratiocondition.In thiscase

accuracy of the result is not guaranteed.

Repeat the reading procedure.

The sample and zero cuvet are inverted.

b) on sample reading:b) on sample reading:

b) on sample reading:

There is too much light for the sample

measurement. Please check if the right

sample cuvet is inserted.

TIPS FOR AN ACCURATE MEASUREMENTTIPS FOR AN ACCURATE MEASUREMENT

TIPS FOR AN ACCURATE MEASUREMENT

The instructions listed below should be carefully followed during

testing to ensure best accuracy.

• Color or suspended matter in large amounts may cause interfer-

ence, therefore, these should be removed by treatment with active

carbon and by prior filtration.

• For a correct filling of the cuvet: the

liquid in the cuvet forms a convexity

on the top; the bottom of this convex-

ity must be at the same level of the

10 mL mark.

• In order to measure exactly e.g. 0.5 mL of sample or reagent

with the 1 mL syringe, push the plunger completely into the

syringe and insert the tip into the solution. Pull the plunger up

to above the 0.0 mL mark. Take out the syringe and clean the

outside of the syringe tip. Then, adjust the plunger to the 0.0 mL

mark (the lower edge of the seal must be exactly on the 0.0 mL

mark). Be sure that no drops are hanging on the tip of the

syringe, if so eliminate them. Then, keeping the syringe in vertical

position above the cuvet, push the plunger down until the lower

edge of the seal is exactly on the 0.5 mL mark. Now the exact

amount of 0.5 mL has been added to the cuvet, even if the tip

still contains some reagent or sample.

10 mL

• Proper use of the dropper: to get good

reproducible results, tap the dropper on the

table for several times and wipe the outside

of the dropper tip with a cloth. Always keep

the dropper bottle in a vertical position

while dosing the reagent.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hanna Instruments Instrument de mesure

Hanna Instruments

Hanna Instruments HI 758 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 99121 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 93717 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 98143 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 6052 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI97734 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 98713 Manuel utilisateur

Hanna Instruments

Hanna Instruments Chromium VI Manuel utilisateur

Hanna Instruments

Hanna Instruments LP 2000-11 Manuel utilisateur

Hanna Instruments

Hanna Instruments GroLine HI9814 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI96719C Manuel utilisateur

Hanna Instruments

Hanna Instruments HI97721 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 84185 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI769828 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI96705C Manuel utilisateur

Hanna Instruments

Hanna Instruments HI759 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI96752 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 8730 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI84534-01 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI98162 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 120 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI97723 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 96813 Manuel utilisateur

Hanna Instruments

Hanna Instruments HI 991301 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
