What The World Comes Home To TM

Electric Dryer

User Manual- Model #

HLF11P

IMPORTANT SAFETY INSTRUCTIONS

Warning – To reduce the risk of fire, electric shock, or injury

to persons when using your appliance, follow basic

precautions, including the following:

1. Read all instructions before using the appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other

flammable or explosive substances, as they give off vapors that

could ignite or explode.

3. Do not allow children to play on or in the appliance. Close supervision of chil-

dren is necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove the door to

the drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to water and/or

to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any

servicing unless specifically recommended in the user-maintenance instructions

or in published user-repair instructions that you understand and have skills to

carry out.

9. Do not use fabric softeners or products to eliminate static unless

recommended by the manufacturer of the fabric softener or product.

10. Do not use heat to dry articles containing foam rubber or similarly

textured rubber-like materials.

11. Clean lint screen before or after each load.

12. Keep area around the exhaust opening and adjacent surrounding

areas free from the accumulation of lint, dust and dirt.

13. The interior of the appliance and the exhaust duct should be cleaned periodical-

ly by qualified service personnel.

14. Do not place items exposed to cooking oils in your dryer. Items

contaminated with cooking oils may contribute to a chemical

reaction that could cause a load to catch fire.

15. If material has been used with any flammable liquids or solids it should not be

used in the dryer until all traces of the flammable liquids and its fumes have

been removed.

English

16. This dryer must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions

in the installation section.

17. Proper grounding must be ensured to reduce the risk of electric shock and fire.

Check with a qualified electrician or service personnel if you are in doubt as to

whether the dryer is properly grounded.

18. Use the dryer only for its intended purpose, drying clothes.

19. Always disconnect dryer from electrical supply before attempting any service.

Disconnect power cord by grasping the plug, not the cord.

20. Replace worn power cords and/or loose plugs.

21. To reduce the risk of electric shock or fire, do not use extension cords or

adapters to connect dryer to electrical power source.

SAVE THESE INSTRUCTIONS

For Future Use

English

DANGER

Risk of child entrapment. Before throwing away your old

appliance, remove the door so that children may

not easily become trapped inside.

Thank you for purchasing our Haier

product. This easy-to-use manual will

guide you in getting the best use of

your dryer.

Remember to record the model and

serial number. They are on a label in

back of the dryer.

Model number

Serial number

Date of purchase

(Staple your receipt to your manual.) You will need it to

obtain warranty service.

Table Of Contents

PAGE

Safety Instructions............................................................................1

OPERATING INSTRUCTIONS ............................................................4

Understanding the Control Panel ............................................................4

Preparations before Drying ....................................................................6

Load Clothes Into Dryer ..........................................................................7

Auto Dry Cycle ......................................................................................7

Timed Dry Cycle ..................................................................................10

Rack Dry Cycle ....................................................................................11

Other Features ....................................................................................11

Normal Operating Sounds....................................................................12

Tips ....................................................................................................12

Care and Cleaning Guide ............................................................13

Troubleshooting..............................................................................14

INSTALLATION INSTRUCTIONS ....................................................15

Tools and Materials Required ................................................................15

Electrical Requirements ........................................................................15

Unpacking Your Dryer..........................................................................15

Exhaust System Connections ......................................................16

Requirements and Instructions ..............................................................16

Materials ............................................................................................17

Location of Your Dryer..........................................................................19

Installation in Mobile Home ..................................................................20

Electrical Connections ....................................................................21

Requirements and Instructions ..............................................................21

3-Wire Cord Connections ....................................................................22

4-Wire Cord Connections ....................................................................23

Warranty ........................................................................................25

English

OPERATING INSTRUCTIONS

Understanding the Control Panel

Power On/Off Button: (1)

• Press the button once to operate the dryer. Press the button once again to turn the

dryer “OFF”.

Start/Pause Button: (2)

• Press this button once to start the dry process. Press this button once again to

pause during the dry cycle.

Wrinkle Care Button: (3)

• Used to select wrinkle-proof function. Automatically sets as off after powering on.

This function is used together with delay start function.

Cycle Signal Button: (4)

• Used to select buzzing volume or to turn off the buzzer.

Timed/Cycles Button: (5)

• “Timed/Cycles” button will let you select your desired dry mode. Auto Dry: auto-

matically set “Dryness Level,” “Temp,” ”Cycle Signal,” “Wrinkle Care” buttons sta-

tus according to clothes loaded. Timed Dry: You can set status of “Temp,” “Cycle

Signal” and “Wrinkle Care” buttons and dry time with “More Time” and “Less

Time” buttons by yourself. Rack Dry: the program used to dry articles like

sports shoes.

English

More Time & Less Time Button: (6)

• Set time from 0 to 180 minute when Timed Dry or Rack Dry selected.

Cycle Buttons: (7)

• “Cycle” button will let you select your desired dry cycles. For your convenience,

there are seven fabric care dry cycles programmed in this mode: Customized,

Normal, Heavy, Cotton, Delicate, Casual and Bulky Items.

Delay Start Button: (8)

• This convenient feature lets you delay the start of the dry cycle between 3 to 24

hours. Press the “Delay Start” to choose the number of hours you want to delay the

start of the cycle.

• If “Delay Start” is not selected, the digital display indicates remaining time of

selected program.

• If setting “Delay Start” is in standby status, the digital display indicates 3 hr, which

will increase by 1 hr with each pressing (until 24 and return to 3) of the button. If it

is pressed for 1.5 seconds, the display indicated value will increase continuously.

Temp Button: (9)

• Used to set drying temperature, There are 4 available drying temperatures: High,

Medium, Low, and Air only (no heat).

Dryness Level Button: (10)

• Used to set drying time of auto-programs.

Status lights: (11)

• Status lights give notification of which part of the cycle the machine is in.

Digital Display: (12)

• Indicates remaining time (min) during cycle operation. Indicates remaining delay

time (hr) during delay.

Note: If door opened during cycle running, indicator displays a code “E2”

and an alarm will sound.

Customized The drying program is defined by the user and stored.

Normal Normal drying

Heavy Heavy clothes drying like jeans

Cotton Special drying for cotton clothes

Delicate Drying small quantity clothes and delicates

Casual Drying casual everyday clothes

Bulky Items Drying bulky clothing

English

Function Light Indicator:

• The function “display light” indicates selected feature is “ON” or the cycle is about

to begin.

• During the dry cycle, “flashing light” indicates current running program.

• Rapidly flashing light indicates that the dryer is not operating properly.

Preparations Before Drying

• Group the clothes of the same kind (cotton, synthetics, woolen) to dry.

• Dark and light colored clothes should be separately dried. Fabrics prone to falling

lint should be turned inside out before putting into the dryer.

• Make sure buttons and ornaments on the clothes are high temperature resistant

and won’t damage drum surface. Before loading, the clothes should have their

zippers zipped up, buttons and hooks done up and belts tied so as to avoid

entanglement or other obstacles.

• If possible, turn out the clothes pockets for uniform drying.

• Check if clothes remain soiled. If yes, wash it again, otherwise the soils after dry-

ing may stain permanently.

• Small articles should be collected in a mesh bag before loading and drying, so as

to avoid entanglement and ensure easy removal.

• Make sure power socket is reliably grounded. The grounding terminal should not

be connected to gas or tap water pipelines.

• Make sure exhaust duct has been connected with extension pipe.

• Make sure lint filter is clean and then assemble it properly. If lint filter is not in

place, tumbling items could enter the exhaust system and cause damage to the

dryer.

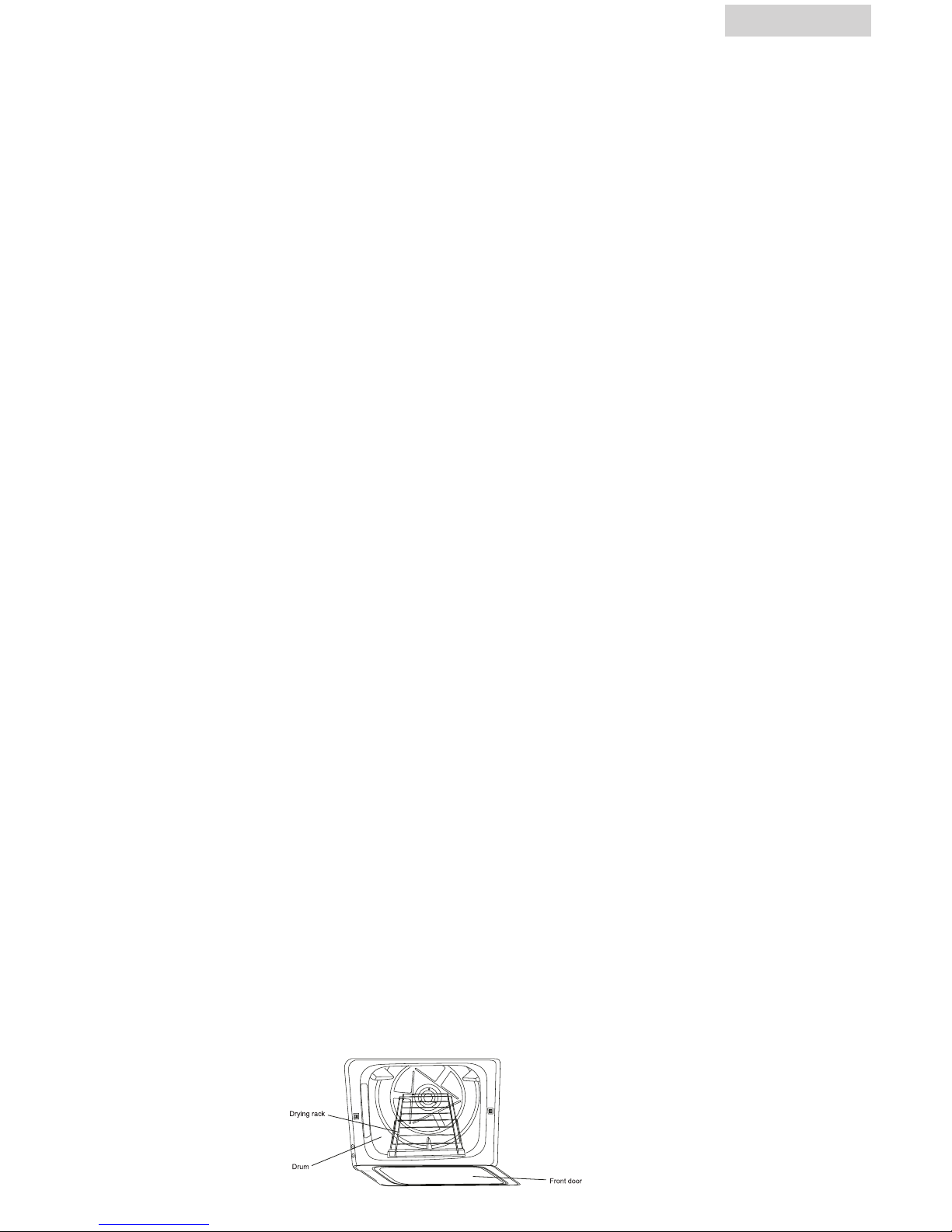

Note: It applies to Auto Dry cycle and Timed Dry cycle. For Rack Dry

cycle, remove the lint filter and assemble the drying rack. Raise the

front end and lock it into the lint filter slot. The assemble is as

shown in the following figure:

English

Load Clothes into Dryer

Auto Dry Cycle and Timed Dry Cycle

• The appropriate load is 1/3 to 1/2 of the drum volume. Avoid to overload the

dryer, as space is needed to allow clothes to tumble for uniform and wrinkle

proof drying.

• When drying big articles, only 2-3 pieces should be loaded at a time and supple-

mented with medium and small articles.

• Avoid excessive drying of clothes to prevent wrinkles, shrinkage, roughness, elec-

trostatic charge accumulation and lint.

• Avoid high temperature drying on delicate and synthetic clothes.

Rack Dry cycle:

WARNING: In Rack Drying mode, remember the drum is still rotating. If drying

rack is not in place, rotating inner tub could collide with drying rack and causes

damage to the dryer and drying rack.

• This program is designed specially for articles like sports shoes. During drying

please make sure the items stay on the rack with no risk of entanglement while the

drum is rotating.

Auto Dry Cycle

1. Press “Power On/Off” button to power on

• Turn on the power, the computer board beeps once and the dryer transfers from

off status to the stand by status (Normal program).

• If no “Start/Pause” button is pressed in 5 min after powering on, it automatically

cuts off power and returns to off status.

• It returns to off status immediately upon end of a cycle; Whatever status the com-

puter board is (start, pause, alarm, etc.), pressing “Power On/Off” button will

stop all operations and it enters off status.

English

• Various button initial status for “Normal program.”

2. Press “Cycles” button to select a suitable full automatic cycle

• The Normal program will be automatically selected after powering the unit “ON”.

If other full automatic program is desired, press “Cycle” button until

corresponding indicator turns on.

• To select your desired settings the “Customized” function should be chosen.

• It can memorize programs defined by user and display the previous program

upon next application of this function.

Use details are as follows:

After powering on, press “Cycles” until “Customized” status, then set

“Timed/Cycles” to Timed Dry or Rack Dry, and set status of other buttons. Press

“Start/Pause” button or after half a minute, the program defined by user will be

stored and will be directly displayed upon next use.

Note: Pressing “Dryness Level” button will be inactive during use of

“Customized” function.

Cycle Signal Softer

Wrinkle Care Off

Cycles Normal

Digital Display Indicate current program remaining time

Temp High

Dryness Level More Dry

Timed/Cycles Auto Program

English

3. Press “Dryness Level” button to select a suitable drying time

• After powering on, the clothes dryer automatically sets dryness at “More Dry.” If

other drying time is desired, press “Dryness Level” button to select a shorter time.

4. Press “Temp” button to set a suitable drying temperature

• After switching on, the dryer sets corresponding temperature adapting to different

program selected. If other drying temperature is required, press “Temp” button to

enable such a selection.

5. Press “Cycle Signal” button, you will be reminded up upon end of a cycle.

• After switching on, the dryer automatically sets a buzzer at “Softer,” while the

user may choose from three prompt sound conditions “Louder,” “Softer” and

“Off.”

6. Press “Delay Start” button to select a suitable delay drying program

• When “Delay Start” is enabled, your selected program indicator turns off while

“Delay Start” indicator and remaining delay time indication turn on. During

delay period, pressing “Delay Start” button can indicate delay status.

• To change operating program or cancel delay, you should power off the dryer

and re-select.

7. Press “Wrinkle Care” button to select wrinkle-proof drying mode

• Wrinkle Care automatically sets “Off” upon powering on. Press “Wrinkle Care”

button, it sets wrinkle care drying mode.

Note: “Wrinkle Care” function is provided to match “Delay Start” pro-

gram. When a “Delay Start” drying cycle ends, clothes remained

in hot drum is prone to creasing. “Wrinkle Care” function operates

in tumbling clothes by intermittently rotating drum to avoid clothes

wrinkling.

8. Press “Start/Pause” button

• If starting the machine, first close the front door and then press this button.

• If pause is needed during machine operating, press this button. Pressing again

will resume operation.

Autres manuels pour HLF11P

Table des matières

Autres manuels Haier Séchoir

Haier

Haier QFT15ESSNWW Instructions originales

Haier

Haier HD90-A636 Manuel utilisateur

Haier

Haier HLP140E - 2.6 cu. Ft. Portable Vented Electric... Manuel utilisateur

Haier

Haier HDM3.5-1 Manuel utilisateur

Haier

Haier HDY-C70 WH HA AA Manuel utilisateur

Haier

Haier GDZ22-1 Manuel utilisateur

Haier

Haier HD80-A3939E-S Manuel utilisateur

Haier

Haier HDHP80A1 Manuel utilisateur

Haier

Haier HDY6-1 Manuel utilisateur

Haier

Haier BWD1600W Manuel utilisateur

Haier

Haier HD80-01 WH HA AA Manuel utilisateur

Haier

Haier Ginesis HLF103Q Manuel utilisateur

Haier

Haier HDY60 Manuel utilisateur

Haier

Haier HDY-D60 Manuel utilisateur

Haier

Haier HLTD600AEW Manuel utilisateur

Haier

Haier GE UltraFresh GFD55ESSN Comment utiliser

Haier

Haier HDY-M40 Manuel utilisateur

Haier

Haier GDZ5.0-61WH HA AA Manuel utilisateur

Haier

Haier HLTD500AGW Manuel utilisateur

Haier

Haier Ginesis HLF103Q Manuel utilisateur

Haier

Haier HD90-A636-F Manuel utilisateur

Haier

Haier HDM3.5-1 Manuel utilisateur

Haier

Haier HLP141E Manuel utilisateur

Haier

Haier Ginesis HLF103Q Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
