H3C SR8800-F Manuel utilisateur

H3C SR8800-F Router Series

Installation Guide

New H3C Technologies Co., Ltd.

http://www.h3c.com

Document version: 5W104-20221206

No part of this manual may be reproduced or transmitted in any form or by any means without prior written

consent of New H3C Technologies Co., Ltd.

Trademarks

Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this

document are the property of their respective owners.

Notice

The information in this document is subject to change without notice. All contents in this document, including

statements, information, and recommendations, are believed to be accurate, but they are presented without

warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions

contained herein.

Environmental protection

This product has been designed to comply with the environmental protection requirements. The storage, use,

and disposal of this product must meet the applicable national laws and regulations.

Preface

The H3C SR8800-F Router Series Installation Guide describes how to install the H3C SR8800-F

routers.

This preface includes the following topics about the documentation:

•

Audience.

•

Conventions.

•

Documentation feedback.

Audience

This documentation is intended for:

•

Network planners.

•

Field technical support and servicing engineers.

•

Network administrators working with the SR8800-F router series.

Conventions

The following information describes the conventions used in the documentation.

Command conventions

Convention

Description

Boldface Bold text represents commands and keywords that you enter literally as shown.

Italic Italic text represents arguments that you replace with actual values.

[ ] Square brackets enclose syntax choices (keywords or arguments) that are optional.

{ x | y | ... }

Braces enclose a set of required syntax choices separated by vertical bars, from which

you select one.

[ x | y | ... ]

Square brackets enclose a set of optional syntax choices separated by vertical bars,

from which you select one or none.

{ x | y | ... } *

Asterisk marked braces enclose a set of required syntax choices separated by vertical

bars, from which you select a minimum of one.

[ x | y | ... ] *

Asterisk marked square brackets enclose optional syntaxchoices separated byvertical

bars, from which you select one choice, multiple choices, or none.

&<1-n> The argument or keyword and argument combination before the ampersand (&) sign

can be entered 1 to n times.

# A line that starts with a pound (#) sign is comments.

GUI conventions

Convention

Description

Boldface Window names, button names, field names, and menu items are in Boldface. For

example, the New User window opens; click OK.

> Multi-level menus are separated by angle brackets. For example, File > Create >

Folder.

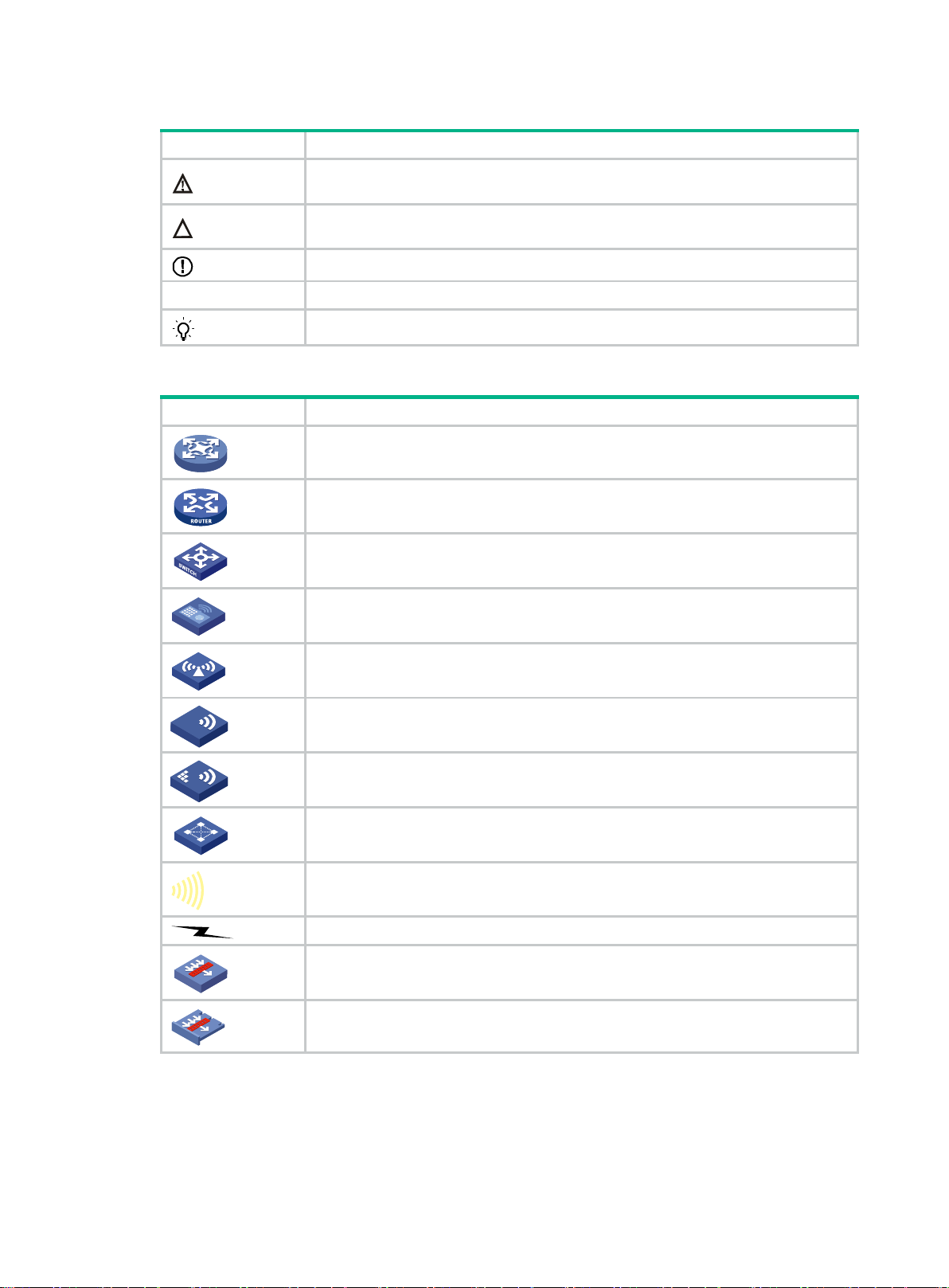

Symbols

Convention

Description

WARNING! An alert that calls attention to important information that if not understood or followed

can result in personal injury.

CAUTION:

An alert that calls attention to important information that if not understood or followed

can result in data loss, data corruption, or damage to hardware or software.

IMPORTANT:

An alert that calls attention to essential information.

NOTE:

An alert that contains additional or supplementary information.

TIP:

An alert that provides helpful information.

Network topology icons

Convention

Description

Represents a generic network device, such as a router, switch, or firewall.

Represents a routing-capable device, such as a router or Layer 3 switch.

Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that

supports Layer 2 forwarding and other Layer 2 features.

Represents an access controller, a unified wired-WLAN module, or the access

controller engine on a unified wired-WLAN switch.

Represents an access point.

Represents a wireless terminator unit.

Represents a wireless terminator.

Represents a mesh access point.

Represents omnidirectional signals.

Represents directional signals.

Represents a security product, such as a firewall, UTM, multiservice security

gateway, or load balancing device.

Represents a security module, such as a firewall, load balancing, NetStream, SSL

VPN, IPS, or ACG module.

Examples provided in this document

Examples in this document might use devices that differ from your device in hardware model,

configuration, or software version. It is normal that the port numbers, sample output, screenshots,

and other information in the examples differ from what you have on your device.

Documentation feedback

You can e-mail your comments about product documentation to info@h3c.com.

We appreciate your comments.

Contents

Preparing for installation················································································1

Safety recommendations ···································································································································1

General safety recommendations··············································································································1

Electricity safety·········································································································································1

Moving safety·············································································································································1

ESD prevention··········································································································································1

Laser safety················································································································································2

Examining the installation site····························································································································2

Weight support···········································································································································2

Temperature···············································································································································2

Humidity·····················································································································································2

Operating altitude·······································································································································3

Cleanliness·················································································································································3

EMI·····························································································································································3

Grounding ··················································································································································4

Power·························································································································································4

Cooling·······················································································································································4

Space·························································································································································5

Tools and equipment··········································································································································6

Preparing for installation

This chapter describes preparations for installing an SR8800-F router.

Safety recommendations

To avoid possible bodily injury and equipment damage, read the safety recommendations carefully

before installation. Note that the recommendations do not cover every possible hazardous condition.

General safety recommendations

•

Keep the chassis clean and dust-free.

•

Do not place the router on a moist area, and avoid liquid flowing into the router.

•

Make sure the ground is dry and flat and anti-slip measures are in place.

•

Keep the chassis and installation tools away from walk areas.

•

Do not wear loose clothing, jewelry (for example, necklace), or any other things that could get

caught in the chassis when you install and maintain the router.

Electricity safety

•

Clear the work area of possible hazards, such as ungrounded power extension cables, missing

safety grounds, and wet floors.

•

Locate the emergency power-off switch in the room before installation. Shut the power off at

once in case accident occurs.

•

Remove all external cables, including power cords, before moving the chassis.

•

Do not work alone when the router has power.

•

Always verify that the power has been disconnected.

Moving safety

WARNING

•

Hold the chassis handles firmly to move the router.

•

Do not hold the handle of a fan tray or power supply,

air vents, or the handle on the real panel to

move the router. Doing so might cause equipment damage or even bodily injury.

The router is heavy and large. When you move the router, follow these guidelines:

•

Remove all the external cables, including the power cords, before moving the router.

•

Use a minimum of two people to move the router, and use a mechanical lift if necessary.

•

Lift and put down the router slowly.

ESD prevention

To prevent the electric component from being damaged by the electrostatic discharge (ESD), follow

these guidelines:

•

Ground the router correctly. For how to ground your router, see "Grounding the router."

•

Always wear an ESD wrist strap and make sure it is correctly grounded when installing FRUs.

For how to use an ESD wrist strap, see "Attaching an ESD wrist strap."

•

Hold a PCB by its edges. Do not touch any electronic components or printed circuit.

•

Put cards in ESD bags for future use.

Laser safety

WARNING

•

The router is a Class 1 laser product.

•

Disconnected optical fibers or transceiver modules might emit invisible laser light. Do not stare

into beams or view directly with optical instruments when the router is operating.

Examining the installation site

The router must be used indoors. To ensure correct operation of the router and to prolong its service

life, the installation site must meet the requirements in this section.

Weight support

Make sure the floor can support the total weight of the rack, chassis, cards, and power supplies, and

all other components. Additionally, the floor loading plan must cover system expansion, such as

adding more cards.

Temperature

CAUTION:

If condensation appears on the

router when you move it to a high-

temperature environment, dry the

router before powering it on to avoid short circuits.

To ensure the correct operation of the router, make sure the room temperature is in the range of 0°C

to 45°C (32°F to 113°F).

Humidity

Maintain appropriate humidity in your equipment room, as described in Table 1.

•

Lasting high relative humidity can cause poor insulation, electricity leakage, mechanical

property change of materials, and metal corrosion.

•

Lasting low relative humidity can cause washer contraction and ESD and cause problems

including loose mounting screws and circuit failure.

Table 1 Humidity requirements

Humidity Range

Operating humidity 10% RH to 95% RH, noncondensing

Storage humidity 5% RH to 95% RH, noncondensing

Operating altitude

Table 2 Operating altitude requirements

Item Specifications

Operating altitude ≤4000 m (13123.36 ft) (available altitude)

≤3000 m (9842.52 ft) (certified altitude)

Cleanliness

Dust buildup on the chassis might result in electrostatic adsorption, which causes poor contact of

metal components and contact points. In the worst case, electrostatic adsorption can cause

communication failure.

Table 3 Dust concentration limits in the equipment room

Substance Particle diameter Concentration limit

Dust particles ≥ 0.5 µm ≤ 1.8 × 107particles/m3

Corrosive gases can accelerate corrosion and aging of components. Make sure the corrosive gases

in the equipment room do not exceed the concentration limits as shown in Table 4.

Table 4 Corrosive gas concentration limits in the equipment room

Gas Average concentration (mg/m3) Maximum concentration (mg/m3)

SO20.3 1.0

H2S 0.1 0.5

Cl20.1 0.3

HCI 0.1 0.5

HF 0.01 0.03

NH31.0 3.0

O30.05 0.1

NOX0.5 1.0

EMI

All electromagnetic interference (EMI) sources, from outside or inside of the router and application

system, adversely affect the router in the following ways:

•

Capacitance coupling.

•

Inductance coupling.

•

Electromagnetic wave radiation.

•

Common impedance (including the grounding system) coupling.

To prevent EMI, use the following guidelines:

•

If AC power is used, use a single-phase three-wire power receptacle with protection earth (PE)

to filter interference from the power grid.

•

Keep the router far away from radio transmitting stations, radar stations, and high-frequency

devices to make sure the EMI levels do not exceed the compliant range.

•

Use electromagnetic shielding, for example, shielded interface cables, when necessary.

Grounding

For the operating reliability of your router, follow these guidelines:

•

Use a good grounding system to protect your router against lightning shocks, interferences, and

ESD.

•

Make sure the resistance between the chassis and the ground is less than 1 ohm.

For more information about grounding the routers, see "Grounding the router."

Power

Perform the following tasks to meet the power requirements:

1. Calculate the system power consumption

The system power consumption varies by card type, density, and fan tray power consumption.

For more information about system power consumption calculation, see "Module power

consumption and total power consumption."

2. Select power supplies and determine the number of power supplies.

The total maximum output power of all power supplies must be higher than the system power

consumption. For more information about available power supplies, see "Power supplies."

3. Verify that the power system at the installation site meets the requirements of the power

supplies, including the input method and rated input voltage.

Cooling

The airflow designs for all SR8800-F router models are the same.

For heat dissipation, make sure the following requirements are met:

•

A minimum clearance of 10 cm (3.94 in) is reserved at the inlet air vents and outlet air vents.

•

The rack for the router has a good cooling system.

•

The installation site has a good cooling system.

Autres manuels pour SR8800-F

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels H3C Routeur réseau

H3C

H3C S3100-52P Manuel utilisateur

H3C

H3C SR6600-X Manuel utilisateur

H3C

H3C MSR810 Manuel d'utilisation et d'entretien

H3C

H3C S5500-HI Switch Series Manuel utilisateur

H3C

H3C S5500-HI Switch Series Manuel utilisateur

H3C

H3C SR6600 Series Guide d'installation

H3C

H3C WA6126 Manuel utilisateur

H3C

H3C H3C MSR 20 Manuel utilisateur

H3C

H3C MSR5620 Manuel utilisateur

H3C

H3C MSR 2600 Series Manuel utilisateur

H3C

H3C S12500R-2L Manuel utilisateur

H3C

H3C SR6600 SPE-FWM Manuel d'installation

H3C

H3C S12508CR Manuel d'utilisation et d'entretien

H3C

H3C RA10 Manuel d'utilisation et d'entretien

H3C

H3C S5560-EI series Manuel utilisateur

H3C

H3C MSR 20 Series Manuel utilisateur

H3C

H3C SR6600 SPE-FWM Manuel utilisateur

H3C

H3C MSR810 Manuel utilisateur

H3C

H3C CR16000-F Manuel utilisateur

H3C

H3C S3100-52P Manuel utilisateur

H3C

H3C H3C S3600 Series Manuel utilisateur

H3C

H3C H3C S5100-SI Manuel utilisateur

H3C

H3C S12500R Series Guide rapide

H3C

H3C S7502 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
