H3C S5800-60C-PWR Manuel utilisateur

1-1

S5800-60C-PWR Ethernet Switch Hot Swappable Power

Module Ordering Guide

1 Power Module Overview

Adopting advanced power module design, the H3C S5800-60C-PWR Ethernet switch features the

following:

zAdopting hot swappable power module design, each switch providing two hot swappable power

module slots, as shown in Figure 1-1.

zSupporting different models of hot swappable power modules. For details, see Table 1-1.

zSupporting combination of different hot swappable power modules. Users can select them as

needed. For details, see Table 2-1.

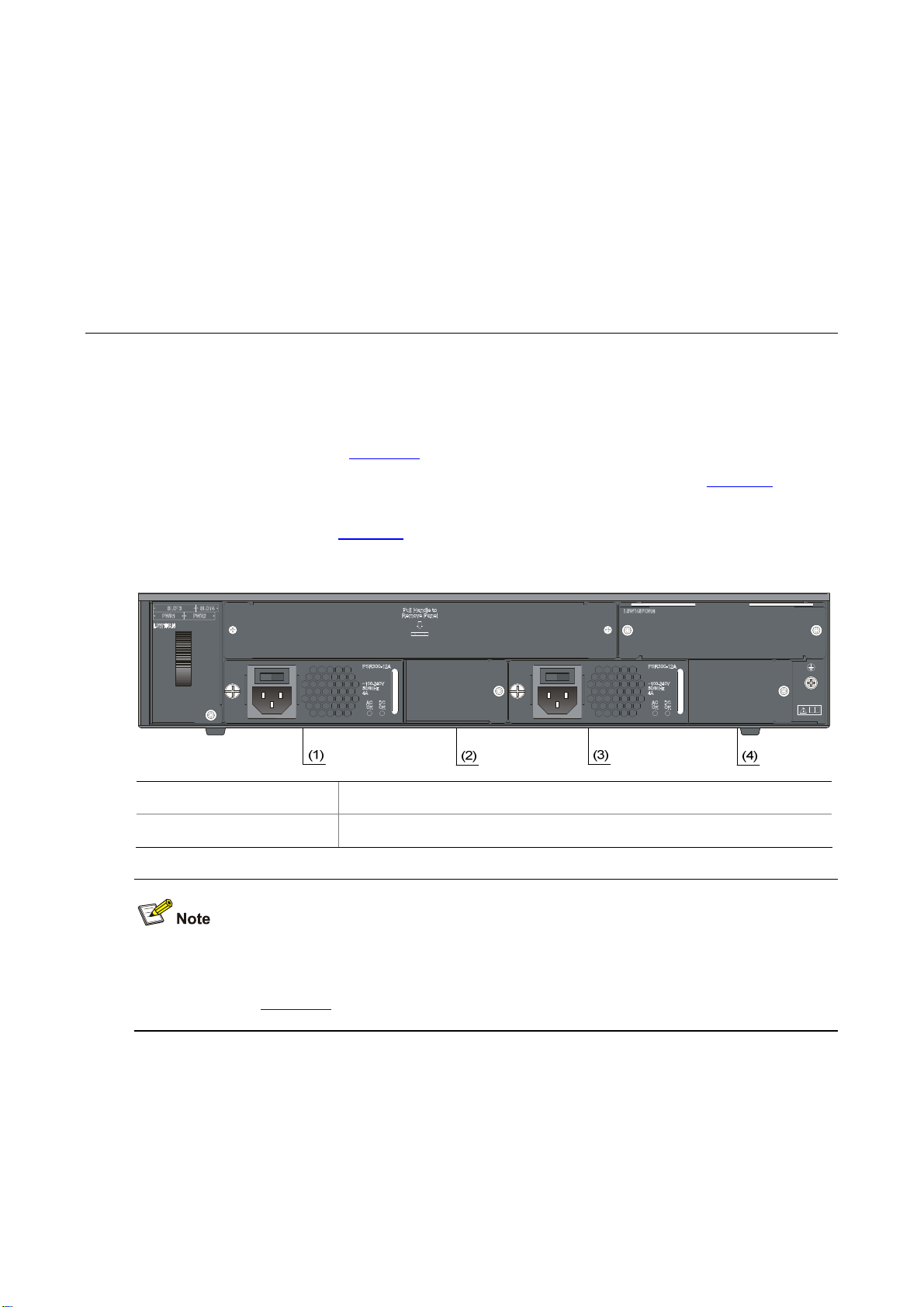

Figure 1-1 Location of power modules on an S5800-60C-PWR switch (rear panel)

(1) Hot swappable power

module 1 (2) Filler module (Remove the module when hot swappable power module 1

is a 750 W power module.)

(3) Hot swappable power

module 2 (4) Filler module (Remove the module when hot swappable power module 2

is a 750 W power module.)

The S5800-60C-PWR provides two power module slots on its rear panel. Hot swappable power

module slot 1 is empty when the switch is shipped, and hot swappable power module slot 2 is installed

with a filler panel. Figure 1-1 illustrates a switch with two PSR300-12A AC power modules.

1-2

Table 1-1 Power module models supported by the S5800-60C-PWR

Model Power supply mode

PSR300-12A AC input (Rated voltage range: 100 VAC to 240 VAC; 50 Hz or 60 Hz)

PSR300-12D1

–48 VDC equipment-room power supply (Rated voltage range: –48 VDC to –60

VDC)

RPS 1000 DC power supply (Rated voltage range: –52 VDC to –55 VDC)

PSR750-A AC input (Rated voltage range: 100 VAC to 240 VAC; 50 Hz or 60 Hz)

PSR750-D RPS 1000 DC power supply (Rated voltage range: –52 VDC to –55 VDC)

2-1

2 Guide to Purchase

Table 2-1 Hot swappable power module configuration of the S5800-60C-PWR

Model (Slot 1) Model (Slot 2) 30 W PoE 15.4 W PoE Remarks

PSR300-12A — Not supported Not supported —

PSR300-12D1 — Not supported Not supported —

PSR300-12A PSR300-12A Not supported Not supported Power module

backup

PSR300-12D1 PSR300-12D1 Not supported Not supported Power module

backup

PSR300-12A PSR300-12D1 Not supported Not supported Power module

backup

PSR750-A — 12-port middle power

PoE (30 W)

24-port standard PoE

(15.4 W)

Maximum PoE

power: 425 W

PSR750-D — 48-port middle power

PoE (30 W)

48-port standard PoE

(15.4 W)

Maximum PoE

power: 1500 W

PSR750-A PSR750-A 24-port middle power

PoE (30 W)

48-port standard PoE

(15.4 W)

Maximum PoE

power: 740 W

PSR750-D PSR750-D 48-port middle power

PoE (30 W)

48-port standard PoE

(15.4 W)

Maximum PoE

power: 1500 W

zDo not plug a PSR750-A and PSR750-D on one S5800-60C-PWR switch.

zDo not plug a 300 W power module (PSR300-12A or PSR300-12D1) and a 750 W power module

(PSR750-A or PSR750-D) on one S5800-60C-PWR switch.

zPurchasing a power module according to whether PoE is needed and the power of powered

devices (PDs), thus ensuring normal PoE power supply. Refer to the corresponding power module

manual or H3C S5800 Series Ethernet Switches Installation Manual for the introduction and

installation of hot swappable power modules.
