Grundig GCA-B2323T Manuel utilisateur

GCA-B2323T.8.2.27.10.2010

Owner´s Manual

Cameras & Domes

GCA-B2323T 1/3" Outdoor Varifocal Camera with IR LED

VSS Nederland

Video Systems

VSS Nederland B.V. - Telfordstraat 11m - 8013 RL Zwolle - Tel.: +31 38 42 89 420 - Fax: +31 38 42 89 429 - E-mail: [email protected]

Content:

1. Important Safety Instructions 1

2. Package Contents 2

3. Installation 3

1. Parts Name 3

2. Connections 4

3. Mounting the camera 4

4. Zoom & Focus Adjustment 5

5. IR-LED Brightness Dip Switch 6

4. OSD Menu 6

1. OSD Controls 6

2. Main menu 7

3. Camera Setup 8

4. Intelligence 15

5. Privacy Zone 16

6. Other Set 17

7. Communication 18

8. System Info 18

9. Language 18

1. Important Safety Instructions

Be sure to use only the standard adapter that is specified in the specification sheet.

Using any other adapter could cause fire, electrical shock, or damage to the product.

Incorrectly connecting the power supply or replacing battery may cause explosion, fire,

electric shock, or damage to the product. Do not connect multiple cameras to a single

adapter. Exceeding the capacity may cause abnormal heat generation or fire.

Do not place conductive objects (e.g. screwdrivers, coins or any metal items) or

containers filled with water on top of the camera. Doing so may cause personal injury

due to fire, electric shock, or falling objects.

1English

If any unusual smells or smoke come from the unit, stop using the product. In such case,

immediately disconnect the power source and contact the service center. Continued use

in such a condition may cause fire or electric shock.

If this product fails to operate normally, contact the nearest service center. Never

disassemble or modify this product in any way. (GRUNDIG is not liable for problems

caused by unauthorized modifications or attempted repair.)

To prevent fire or electric shock, do not expose the inside of this device to rain or

moisture.

2. Package Contents

These parts are included:

3. Installation

Do not install in a location subject to high temperature (over 50°C), low temperature

(below -10°C), or high humidity. Doing so may cause fire or electric shock. Keep out of

direct sunlight and heat radiation sources. It may cause fire. Avoid aiming the camera

directly towards extremely bright objects such as sun, as this may damage the CCD

image sensor.

Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or

electric shock. Install it in a place with good ventilation.

When installing the camera, fasten it securely and firmly. A falling camera may cause

personal injury.

If you want to relocate the already installed product, be sure to turn off the power and

then move or reinstall it.

2English

3.1. Parts Name

1. Sun-Shield Bolt

2. Sun-Shield

3. Front Case

4. Rear Case

5. Service Monitor Port Cap

6. Bracket

7. Video/Power Cable

3English

3.2. Connections

- Power connection: Requires DC 12V or AC 24V input depending on camera model.

- All camera models are supplied with service monitor output on the camera module. A

service monitor and control cable is included in the package.

Note:

To set up OSD menu externally, service monitor and control cable is required.

3.3. Mounting the camera

- Install the Mounting Bracket at the desired location. Using screws supplied fix the

bracket to the wall.

- Adjust the camera according to your requirements with the supplied wrench (see

picture).

4English

3.4. Zoom & Focus Adjustment

1. Unscrew Front Case from the Rear Case.

2. Loosen Zoom & Focus screws and make necessary adjustments as shown.

- Field of View: Telephoto (T) to Wide (W)

- Focus: Near (N) to Infinity (oo)

3. Replace the Front Case back on to the Rear Case.

4. Cover the camera with the Sun-Shield and fix it with the Sun-Shield bolt.

5English

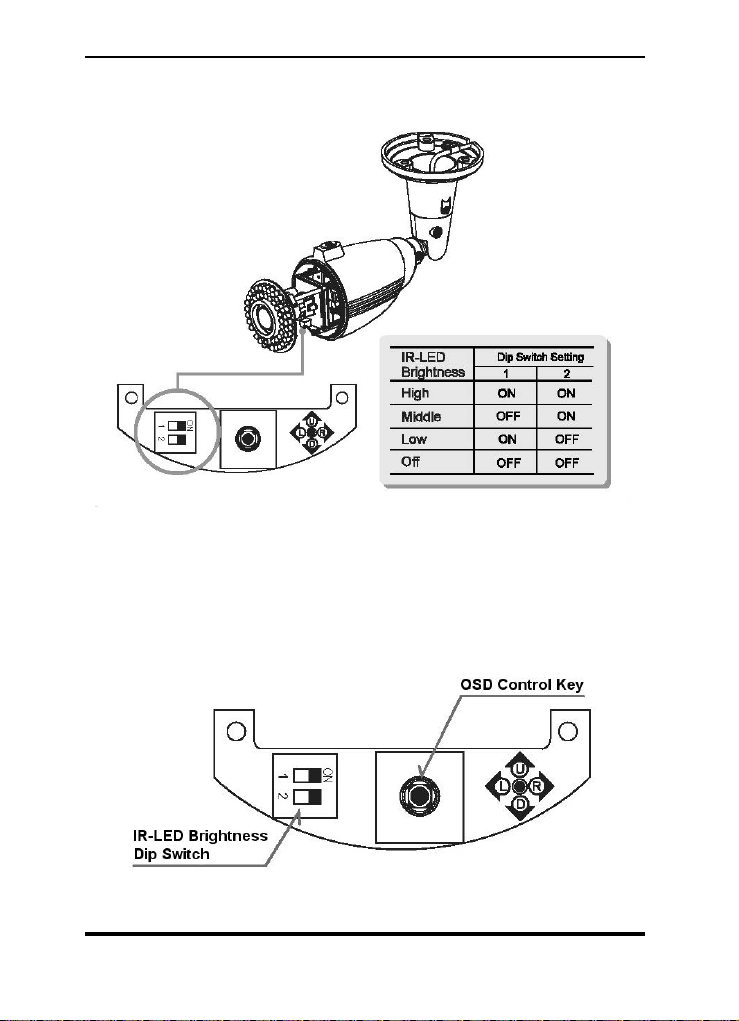

3.5. IR-LED Brightness Dip Switch

4. OSD Menu

4.1. OSD Controls

4.1.1. OSD Control Keys

- SETUP key: Accesses to the menu mode or confirms the setting.

- UP (/\) / DOWN (\/): Chooses the desired menu.

- LEFT (<) / RIGHT (>): Sets up the value of the selected menu.

6English

4.1.2. OSD Icons

Exits the menu setting. Before you exit

make sure you SAVE your settings, or

select QUIT to cancel.

Returns to the previous menu.

Returns to the main menu.

Use this to SAVE your settings of MASK

AREA, PRIVACY ZONE and more. Once

you saved your settings, they will remain

even if you select QUIT in the menu.

Use this to delete your settings of MASK

AREA, PRIVACY ZONE and more. Once

you saved your settings, they will not be

restored even if you select QUIT in the

menu.

4.2. Main menu

1. Press the SETUP key and hold it for a while to access the menu mode.

2. Select the desired feature by using UP/DOWN keys (/\ \/) on the control.

CAMERA SET: Here you can configure

camera related functions and data.

INTELLIGENCE: You can configure the

settings of motion detection, tracking and

more.

PRIVACY ZONE: You can configure the

privacy related settings.

OTHER SET: You can configure for factory

defaults, and more.

7English

COMMUNICATION: Configures the settings regarding the RS-485 communication.

SYSTEM INFO: Displays the system information including the camera version and

communication settings.

LANGUAGE: Select a preferred language from those listed.

4.3. Camera Setup

CAMERA ID [OFF, ON] :

It is used to switch on/off the camera id. If

camera id is switched ON you can access

the CAMERA ID menu to programm the

camera text.

IRIS [ALC, ELC] :

The IRIS menu is used if you want to adjust

the intensity of light incoming into the

camera.

MOTION [S.SLOW, SLOW, NORM, FAST, F.FAST] :

This menu is used to adjust the strength of the AGC level for a control of the camera

motion. You can select from S.SLOW, SLOW, NORM, FAST and F.FAST for the AGC

level. If you monitor fast moving objects in a low contrast scene, select F.FAST while

select S.SLOW for hardly moving objects in the same lighting condition.

Note:

- This is only available if the SENS-UP menu is set to AUTO.

- If the DAY/NIGHT menu of CAMERA SET is set to AUTO, the MOTION menu will be

deactivated.

DNR [OFF, LOW, MID, HIGH, USER (1~16)] :

You can configure the DNR (Digital Noise Reduction) related settings. It reduces the

noise on the screen. This is especially useful for a severely distorted screen. You can

set the level if you set DNR to USER.

SHUTTER [OFF, AUTO 1/120~1/10K, 1/120~1/10K] :

You can select one of 7 options from 1/120 to 1/10K for the fixed high speed electronic

shutter, which is mostly used for imaging a fast moving object. The auto high speed

electronic shutter operates as the fixed high speed shutter in a high contrast scene but

automatically focuses the target if the iris opens fully in a low contrast scene like in ELC

mode. When it gets bright again, the mode will switch to the fixed high speed electronic

shutter mode. However, the auto high speed shutter operates properly only in a camera

featuring a DC or VIDEO lens.

8English
