Grundig GUFSAT02SD Manuel utilisateur

GUFSAT02SD

SD digital box

Instruction Manual

IMPORTANT: Please read all instructions

carefully before use and keep for future reference.

GUFSAT02SD IB-Rev3-140709.indd 1 14/07/2009 08:58:53

Welcome

Thank you for choosing this Grundig digital box.

Not only can it receive over 140 subscription free channels, but you can also get

radio channels.

It’s really simple to use; it’s all done using the clear, easy to understand on screen menus which are

operated from the remote control. It even has a reminder function so that you won’t miss your favourite

programmes.

For a one off payment, you can buy a digital

box, satellite dish and installation giving you

over 140 channels covering the best of TV

and more.

A digital box lets you access digital channels

that are broadcast in the UK. It uses a digital

signal, received through your satellite dish

and lets you watch it through your existing

television.

GUFSAT02SD IB-Rev3-140709.indd 2 14/07/2009 08:58:53

SWAP

BACK

EXIT

TEXT SUB AD

LIST

VOL

iGUIDE

2 abc1 3 def

5 jkl4 ghi 6 mno

8 tuv

7 pqrs 9 wxyz

[

. ,

& @ _

AUDIO

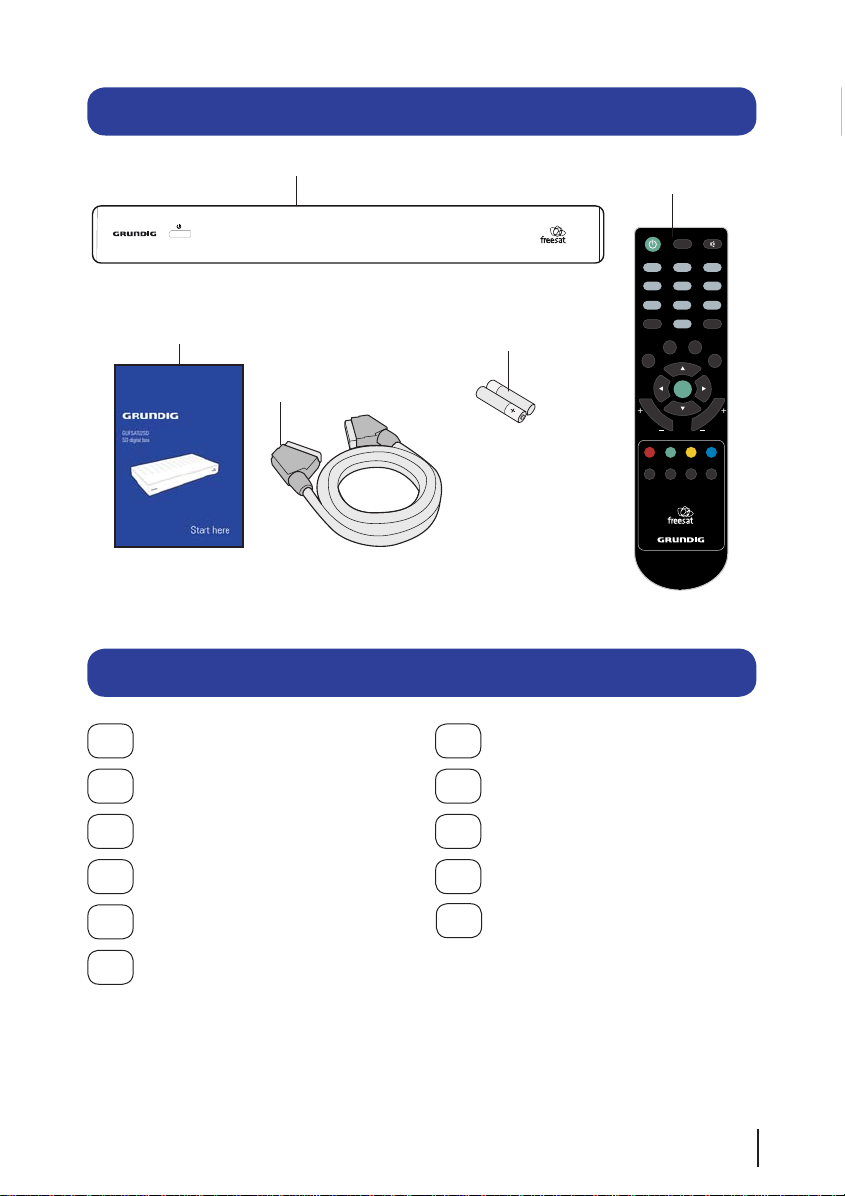

Contents

Your new digital box

2 x AAA batteries

SCART cable

Quick start guide

Remote control

What’s in the box?

Your digital box................... 3

Your remote control............ 4

Connecting up.....................5

Get started..........................6

Daily use.............................7

The menu system............... 9

Using the reminder............12

Non-freesat services.........13

Help and advice.................14

Safety................................17

Electrical safety.................18

GUFSAT02SD IB-Rev3-140709.indd 3 14/07/2009 08:58:54

AC230V~50Hz

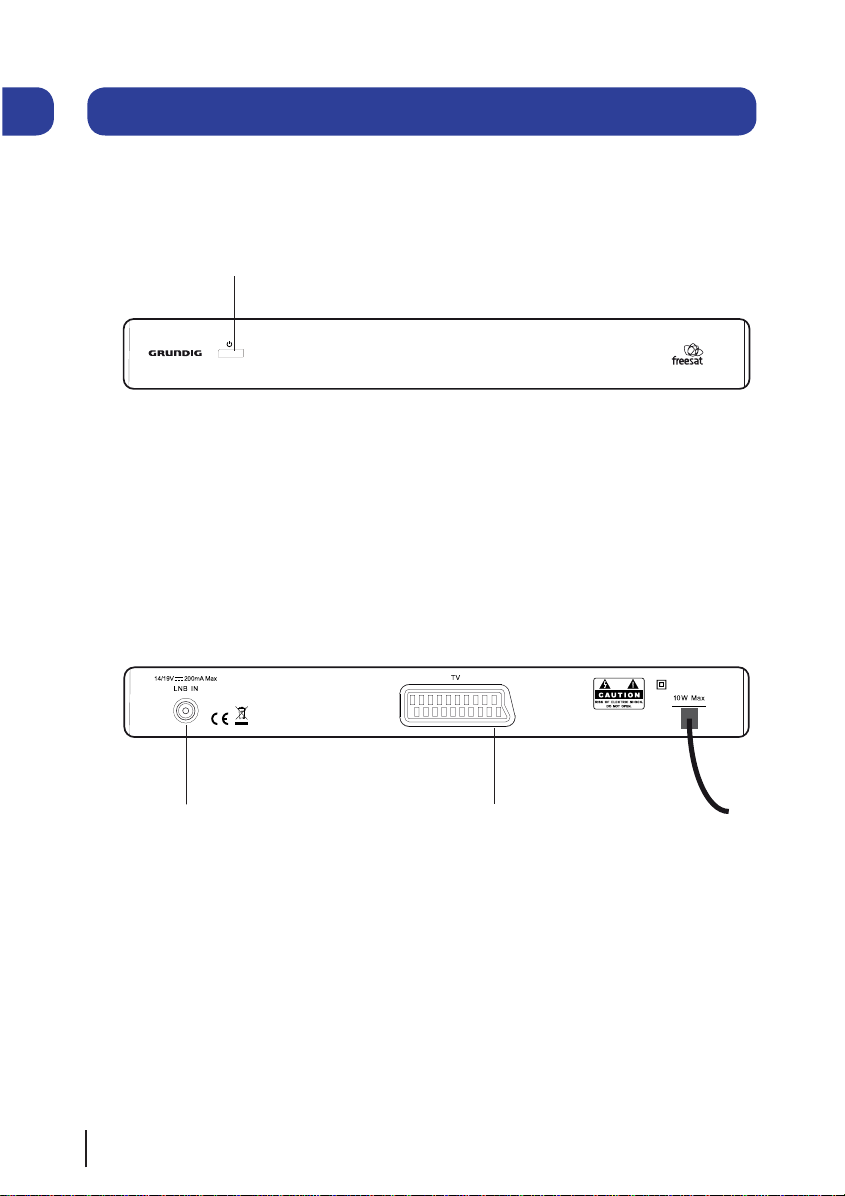

Your digital box

Front view

Rear view

STANDBY Power On/Standby.

LNB IN Signal In from

LNB on satellite

TV Standard definition

SCART output (For

connection to a non HD TV

or recording device)

GUFSAT02SD IB-Rev3-140709.indd 4 14/07/2009 08:58:55

Your remote control

SWAP

BACK

EXIT

TEXT SUB AD

LIST

VOL

iGUIDE

2 abc1 3 def

5 jkl4 ghi 6 mno

8 tuv

7 pqrs 9 wxyz

[

. ,

& @ _

AUDIO

STANDBY Power On/Standby. MUTE Turns the volume On

and Off.

NUMBER PAD Enter values and

select the channel number

directly by entering it’s number.

AUDIO Opens the audio selection

menu.

INFO Display the Info bar.

NAVIGATION Navigate up/down/

left/right in menus/on screen

displays.

OK Confirm selection in menu/on

screen displays.

EXIT Closes menu. BACK Takes you back to the

previous menu.

CH +/- Channel up and down.

COLOUR BUTTONS For interactive

use and navigating menus.

CH LIST Opens the channel list

menu.

SUB Turns the subtitles On and

Off.

AD Turns audio description on or

off. Also opens the audio menu

when the info banner is displayed.

GUIDE Opens the genre list and

the programme list.

TEXT Displays digital text when

available.

VOL +/- Volume up and down.

SWAP Return to the previous

selected channel.

MENU Opens the main menu.

GUFSAT02SD IB-Rev3-140709.indd 5 14/07/2009 08:58:55

03 Connecting up

AC230V~50Hz TV

SCART CableRG6 co-axial Cable with

an ‘F’ type connector

Getting connected

Connecting to the TV

Connect a RG6 co-axial cable fitted with an ‘F’ type connector from your satellite dish to the ‘LNB IN’

socket on the back panel of your digital box.

Connect the SCART cable that came with your digital box between the TV socket on the back panel of

your digital box and the SCART socket on your TV.

GUFSAT02SD IB-Rev3-140709.indd 6 14/07/2009 08:58:55

Getting started 04

Put batteries in the remote control

Open the battery cover of the remote control and

put two size AAA batteries so that the ‘+’ and ‘-’

marks on the batteries match the ‘+’ and ‘-’ marks

inside the remote control. Replace the battery cover.

Plug in and switch on

Insert the digital box mains plug into a mains

socket. The standby light on the front will come

on.

Switch your TV on, and then press the standby

button on your digital box remote control.

The easy install screen

The first time installation screen will appear on

screen.

If the signal strength is above 50% press the

[OK] button on your remote control to continue

the setup.

Follow the instructions on screen to complete

the setup.

Make sure that your digital box has been installed correctly before

continuing the installation.

92%

If signal strength is less than 50% please check the dish

position and cable connections.

Press to Continue

Network ID Tr anspor t ID

Signal Strength

GUFSAT02SD IB-Rev3-140709.indd 7 14/07/2009 08:58:55

Daily use

Introducing the channel lists

There are three channel lists available to you;

The ‘Channel list’ shows all the available

channels that you can receive.

Show TV List Show F a v List Edit F a v List Lock Channel

W a tch

T u esday 17 Mar 20:15

Exit Menu

101 BBC 1 East (E)

102 BBC 2 England

103 ITV1 Anglia S

104 Channel 4

105 Five

106 BBC THREE

107 BBC FOUR

108 BBC HD

TV Listings

110 BBC ALBA

113 ITV2

114 ITV2+1

Delete

The ‘Genre list’ filters all the available TV and

radio stations into specific genres.

View Genre

Friday 13 Mar 17:35

Exit Menu

Genre List

Radio

Shopping

Gaming & Dating

Music

Children

Special Interest

News & Sport

Movies

Lifestyle

Entertainment

All Channels

Regional

You can use the arrow buttons to select a

genre and the [OK] button to show the selected

channels in the programme list.

The ‘Programme list’ shows the

scheduled programmes for the selected genre.

P a ge Down P a ge Up +24 Hrs-24 Hrs

W a tch

Friday 13 Mar 17:10

17:00 - 18:00 The W e akest Link. Anne Robinson presents the

quick-fire gener a l knowledge quiz in which contestants must decide at

the end of each round which of their number should be eliminated. [S]

Exit Menu

101 BBC 1 East (E)

102 BBC 2 England

103 ITV1 Anglia S

104 Channel 4

105 Five

106 BBC THREE

107 BBC FOUR

108 BBC HD

17:00 Fri 13/03 19:00

Flog It! Egg Heads Priceless

This is BBC THREE

This is BBC FOUR

The W e akest Li BBC News Look East

Britian’s Best Di Anglia T o night ITV Evening Ne

The P a ul O’Gr a d The Simpsons Hollyoaks

Five News Neighbours Home and Away Monkey

In the Nig In the Nig Doctors After Y o u

SUB

You can use the arrow buttons to select a

different channel and use the coloured buttons

to move to a new page of channels.

Press [OK] to watch the selected programme.

Changing the channel

You can select the channel you want to watch

by using the [CH+] and [CH-] buttons on the

remote control. Alternatively use the number

buttons to key in the channel number.

When you change the channel the information

screen will be displayed for a few seconds. This

shows the details of the programme currently

showing and the next programme for the

selected channel.

Select

14:00 - 15:00

103 ITV1 Anglia S Now 14:25

Dickinson’s Real Deal

Next CH+ / CH-

GUFSAT02SD IB-Rev3-140709.indd 8 14/07/2009 08:58:55

If you press the [INFO] button while the

information screen is displayed, the extended

information screen will shown. This provides a

programme summary.

If you press the [AD] button while the

information screen is displayed, the audio menu

will be shown.

Select Audio Exit Menu

S P A

POR

RUS

Audio

FRE

GER

I T A

ENG AD

ENG Stereo

ARA

Change Audio

Use the arrow buttons to select an audio

language, then press the [OK] button. Audio

description languages have ‘AD’ after their

description.

Changing the volume

You can change the volume by using the [VOL+]

and [VOL-] buttons on the remote control. You

can turn off the volume by pressing the [MUTE]

button. To turn it back on press the [MUTE]

button again.

Daily use

Audio description

Audio description is an additional

narration that describes all significant visual

information such as body language, facial

expression, scenery, costumes - anything that

is important to the plot of the story, event or

image.

Press the [AD] button to turn audio

description on (if available). Press the [AD]

button again to turn the audio

description off.

Subtitles

Press the [SUB] button to display subtitles (if

available). Press the [SUB] button again to turn

them off.

GUFSAT02SD IB-Rev3-140709.indd 9 14/07/2009 08:58:56

The right arrow button lets you delete a channel

from the TV list.

The [RED] button opens/returns to the full TV

listing menu and shows you the full channel line

up available.

The [GREEN] button will show you all your

channels in your favourite list.

The [YELLOW] button lets you edit your favourite

channel list so that you can add and delete

channels that you use most often.

The [BLUE] button lets you lock channels so

that they can’t be viewed. This can be useful

if you want to restrict children from watching

unsuitable channel content.

Show TV List Show F a v List Edit F a v List Lock Channel

W a tch

T u esday 17 Mar 20:15

Exit Menu

101 BBC 1 East (E)

102 BBC 2 England

103 ITV1 Anglia S

104 Channel 4

105 Five

106 BBC THREE

107 BBC FOUR

108 BBC HD

TV Listings

110 BBC ALBA

113 ITV2

114 ITV2+1

Delete

Enter lock Code

* _ _ _

DON’T FORGET! To lock and unlock a

channel you will need to enter the code

0000.

The [SWAP] button shows any Free to Air

channels that you have manually tuned.

DON’T FORGET! You must enable ‘Show

Manual Channels’ in the settings menu

before you can view Free to Air channels.

The menu system

The main menu

To open the main menu screen press the [MENU]

button on the remote control.

To select a menu, press the relevant number

button to open it. For example press [1] on the

remote control to open ‘TV Listings’.

To close any of the menu screens, press the

[EXIT] button.

TV listings menu

The TV listings menu shows you all of your

available channels. This list is updated

automatically each time you open the menu, so

there is no need to re-tune your digital box when

new channels become available.

Show TV List Show F a v List Edit F a v List Lock Channel

W a tch

T u esday 17 Mar 20:15

Exit Menu

101 BBC 1 East (E)

102 BBC 2 England

103 ITV1 Anglia S

104 Channel 4

105 Five

106 BBC THREE

107 BBC FOUR

108 BBC HD

TV Listings

110 BBC ALBA

113 ITV2

114 ITV2+1

Delete

TV Listings

Settings

Language

Information

Exit Main Menu

Main Menu

GUFSAT02SD IB-Rev3-140709.indd 10 14/07/2009 08:58:56

Table des matières

Autres manuels Grundig Récepteur

Grundig

Grundig Satellit 700 Manuel utilisateur

Grundig

Grundig STC 316 Manuel utilisateur

Grundig

Grundig Globe Traveler G3 Manuel utilisateur

Grundig

Grundig DTR 1520 Manuel utilisateur

Grundig

Grundig STR 2300 FR Manuel utilisateur

Grundig

Grundig DTR 5464 HD Manuel utilisateur

Grundig

Grundig DCR 1744 CO Manuel utilisateur

Grundig

Grundig DTR 1782 VC Manuel utilisateur

Grundig

Grundig DTR 2544 Manuel utilisateur

Grundig

Grundig STR 7100 Manuel utilisateur

Grundig

Grundig Satellit 650 Manuel utilisateur

Grundig

Grundig STR 600 AP Manuel utilisateur

Grundig

Grundig Yacht Boy P 2000 Manuel utilisateur

Grundig

Grundig M 100-CF Manuel utilisateur

Grundig

Grundig DTR 1760 MICRO Manuel utilisateur

Grundig

Grundig DTR 1522 Manuel utilisateur

Grundig

Grundig OCEAN BOY 350 Manuel utilisateur

Grundig

Grundig STR 6000 Manuel utilisateur

Grundig

Grundig DSR 5450 HD Manuel utilisateur

Grundig

Grundig STR 100 microSAT Manuel utilisateur

Grundig

Grundig STR 100 DX microSAT Manuel utilisateur

Grundig

Grundig STR 1300 Manuel utilisateur

Grundig

Grundig HIGH FIDELITY R 2000 Manuel utilisateur

Grundig

Grundig DSR 6454 HD/CD Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
