Grundig DSR 1750 MICRO Manuel utilisateur

DIGITAL

SATELLITE

RECEIVER

DSR 1750 MICRO

CONTENTS____________________________________________

4-5 General information

4 Packing contents

4 Receiving digital satellite channels

5 Special features of your Digital Satellite Receiver

6 Set-up and safety

7-8 Overview

7 The Digital Satellite Receiver

7 The infrared receiver

8 The remote control

9-10 Connection/preparation

9 Connecting the antenna

9 Connecting the television

10 Connecting the infrared receiver

10 Connecting the power supply unit

10 Inserting batteries into the remote control

11-17 Basic settings

11 The menu

12 Initial setup

13 Setting stations, Option 1

14-15 Setting stations, Option 2

16-17 Editing channel lists

18-20 Basic functions

18 Switching on and off

18 Mode selection

18 Selecting presets directly

18 Selecting stations from lists

19 Adjusting the volume

19 Muting the sound

19 Displaying time

19 Switching from the current station to the previous one

19 Displaying time

19 Using options

20 Electronic TV guide

21 Teletext mode

21 Teletext

21 Additional functions

22-26 Settings

22-23 Video settings

23-24 Language settings

25 Menu settings

26 Miscellaneous settings

27 Timer functions

ENGLISH

CONTENTS____________________________________________

28 Additional functions

28 Security functions

29-33 Special settings

29-31 Searching for new stations

31 Specifying the order of stations in the channel list

32 Resetting the digital receiver to its original state

32 Updating the digital receiver software

33 Changing remote control levels

34-37 Upgrading the television

34 Connecting a GRUNDIG television with the Digi 200 G2 chassis

35 Installing on the GRUNDIG television set

36-37 Operating the GRUNDIG television remote control

38-40 Information

38 Displaying station reception properties

38 Displaying device information

39 Technical data

39 Environmental note

40 Troubleshooting

Packing contents

1Digital Satellite Receiver DSR 1750 MICRO

2Tele Pilot 766 S remote control

32 batteries for the remote control (2 x 1.5 V, AA type batteries)

4SCART extension cable

5Power supply unit

6Infrared receiver

7Operating manual

Receiving digital satellite channels

In order to use your new DSR 1750 MICRO digital receiver

you need a digital-compatible satellite antenna, which must be

installed and aligned to the desired satellites (for example Astra and

EutelSat/Hotbird).

Unlike broadcasts of analogue satellite channels, not every digital

TV or radio station is assigned to one transmission frequency, but

several TV and/or radio stations are broadcast by one transponder.

To help you with the choice and settings for satellite channels, a

selection of TV and radio stations have already been prepro-

grammed for this device. You can start a channel search to ensure

that any new satellite channels are available on your device.

You can find out how this works and what you need to observe on

page 29 of this operating manual.

Of course, you can easily program new satellite channels. You can

find the latest transponder information on the teletext pages of

various broadcasters, in a current satellite TV magazine or on the

Internet.

GENERAL INFORMATION__________________

ENGLISH

Special features of your Digital Satellite Receiver

The DSR 1750 MICRO digital receiver can receive and process all

unencrypted digital channels.

This digital receiver has a built-in digital receiver unit for satellite

channels. The receiver unit converts the signals from digital satellite

channels to provide outstanding audio and picture quality.

To ensure your new digital receiver always uses the latest program

data and operating software, it is first necessary to conduct an

update.

Using the Astra 19.2° East satellite, you can update the device

software of the satellite receiver.

You can find out how this works and what you need to observe on

page 32 of this operating manual.

The TV guide informs you of any schedule changes at short notice,

and also provides an overview of all the channels’ schedules for the

next few hours.

Detailed information on individual television programmes is

available at the touch of a button.

This digital receiver has a highly comprehensive, user-friendly menu

system.

The menu is displayed on the television screen, and the functions of

the remote control buttons are explained.

This receiver is fitted with the Digi 200 chassis for upgrading

GRUNDIG televisions.

The user guide for the receiver can be integrated into the television

user guide by following a brief installation procedure. The receiver

can be controlled with the television remote control once it is

installed. The remote control, infrared receiver and power supply

for the receiver will then no longer be necessary.

GENERAL INFORMATION__________________

SET-UP AND SAFETY___________________________

To ensure that this high-quality and user-friendly digital receiver

provides you with many years of entertainment, please observe the

following instructions:

This digital receiver set is designed to receive video and audio

signals. Any other use is expressly prohibited.

When setting up the device, make sure the mains plug is easily

accessible.

If the digital receiver is subject to a sudden change in temperature,

for example when brought in from the cold to a warm room, leave

it to stand for at least two hours before you connect it to the mains

supply.

Do not expose the digital receiver to moisture of any kind.

The digital receiver is designed for use in dry rooms. If you do use

it outdoors, make sure it is protected from moisture such as rain or

splashing water.

Thunderstorms are a danger to all electrical devices. Even if the

digital receiver is switched off, it can be damaged by a lightning

strike to the mains or the antenna.

Always disconnect the mains and antenna plugs during a storm.

Never open the digital receiver casing under any circumstances.

Warranty claims are excluded for damage resulting from improper

handling.

Note:

Do not connect any other equipment while the device is switched

on.

Switch off the other equipment as well before connecting it.

Do not plug in the power supply of your device until you have

connected the external equipment and the antenna.

Make sure the power supply is freely accessible.

ENGLISH

The Digital Satellite Receiver

ʐʐ

Antenna socket for the satellite antenna.

IR remote Connection socket for infrared receiver

12 VDC, 18 W max. Connection socket for the enclosed power supply

unit.

EURO AV Scart connector (output) for connection to TV.

The infrared receiver

The infrared receiver receives the infrared signals for the remote

control and forwards the commands by wire to the receiver. Position

the infrared receiver so that it can receive the remote control

commands.

When you switch on from standby, the receiver switches to the last

selected station (Last Station Memory).

•(red) The digital receiver is in standby mode.

•(green) The digital receiver is switched on.

OVERVIEW____________________________________________

The remote control

ǼSwitches the digital receiver to standby, and from

standby to the channel last selected.

PIP This button has no function.

EDisplays the picture format and the sound informa-

tions.

?Displays programme information.

1 … 0 Select stations.

dSwitches the sound to mute and back on again.

iOpens and closes the main menu.

ZSwitches back one menu level.

P+ P- Switches up or down the channels.

ǸǷ Adjust the volume.

OK Calls up the list of channels or favourites.

TXT Switches from TV mode to teletext mode, mix mode

and back to TV mode.

TV-G Opens and closes the electronic TV guide.

Switches to TV mode.

MHP

This button has no function.

A/B

Switches between the last two selected stations;

Switches from the station list to the favourites.

RADIO Switches to radio mode.

ȄDisplays the time.

ǷǷSwitches the sound from stereo to mono;

z FCalls up options (not available for all stations).

DR, TV Switches to operating a second GRUNDIG

DVD digital receiver, GRUNDIG television or

GRUNDIG DVD player.

Keep the appropriate button (»DR«, »TV«, »DVD«)

pressed down, then press the required button.

Note:

The functions available depend on the model of the

device you are using.

Simply try it out.

Tele Pilot 765 S

AVR DVD

TXT

PIP

A/B

MHP

TV-G

Radio

ENGLISH

Connecting the antenna

1Connect the antenna cable of the satellite antenna to the »ʐʐ«

socket on the digital receiver (screw connector, F connector).

Connecting the television

1Plug the digital receiver into the corresponding scart socket on

the television (use enclosed scart extension if required).

CONNECTION/PREPARATION __________

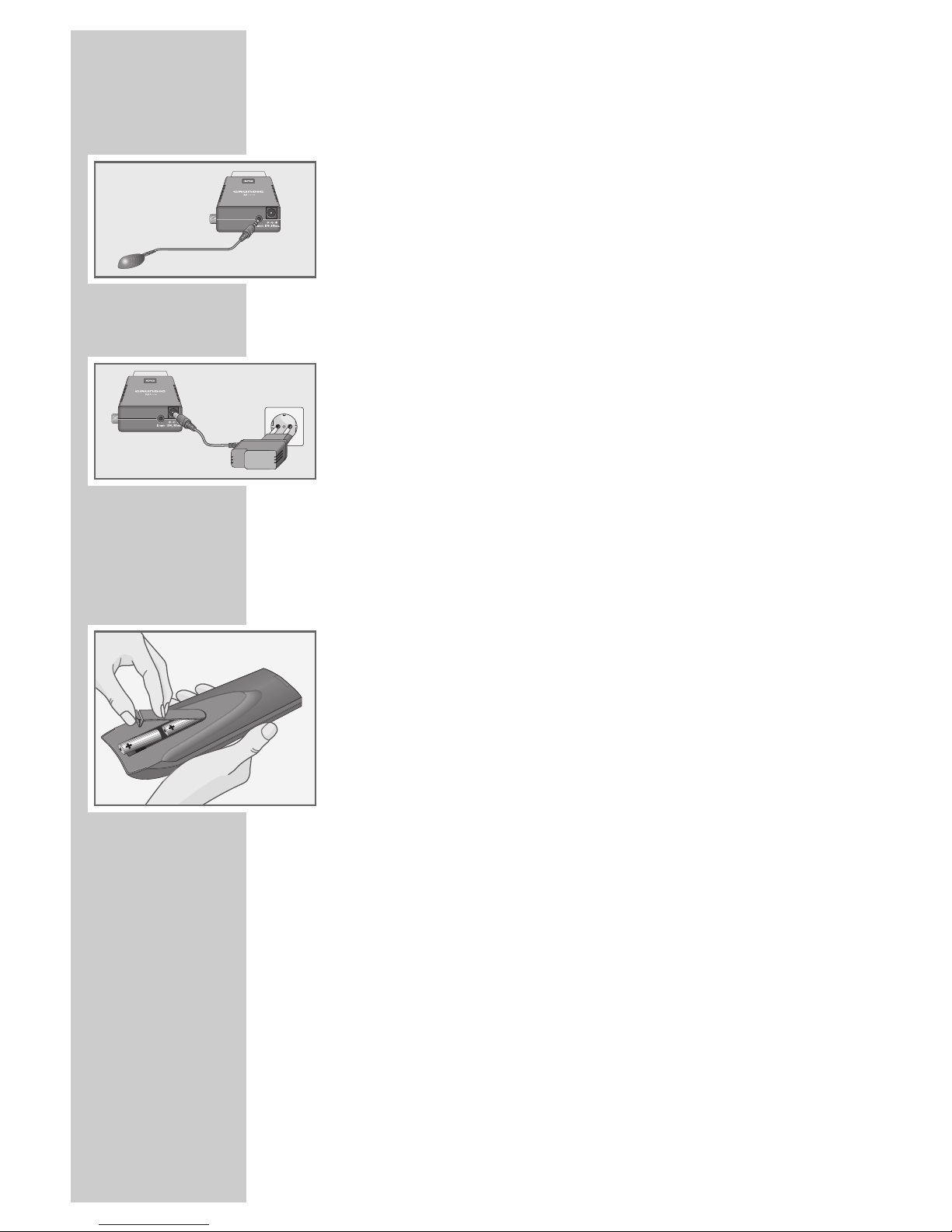

Connecting the infrared receiver

1Plug the infrared receiver into the »IR remote« socket.

Connecting the power supply unit

1Insert the plug of the enclosed power supply unit into the

»12 VDC« socket of the digital receiver.

2Insert the power supply unit into the wall socket.

Notes:

Do not insert the power supply unit of your device into the sock-

et until you have connected the television and the antenna.

The only way to fully disconnect the digital receiver from the

mains supply is to pull out the power supply.

Inserting batteries into the remote control

1Open the battery compartment by removing the lid.

2Insert the batteries (AA, 2 x 1.5 V).

Make sure the polarity is correct (as shown on the base of the

battery compartment).

3Close the battery compartment.

Note:

If the digital receiver no longer reacts properly to remote control

commands, the batteries may be flat. Always remove used bat-

teries.

The manufacturer accepts no liability for damage caused by

leaking batteries.

Environmental note

Batteries, including those which contain no heavy metal, should

not be disposed of with household waste. Please dispose of

used batteries in an environmentally sound manner and in

accordance with the legal regulations that apply in your area.

CONNECTION/PREPARATION __________

Table des matières

Autres manuels Grundig Récepteur

Grundig

Grundig STR 8150 Manuel utilisateur

Grundig

Grundig STR-622 TWIN Manuel utilisateur

Grundig

Grundig STR 600 AP Manuel utilisateur

Grundig

Grundig DCR 1784 CO Manuel utilisateur

Grundig

Grundig GUFSAT01SD Manuel utilisateur

Grundig

Grundig DRS 100 CL Manuel utilisateur

Grundig

Grundig OCEAN BOY 350 Manuel utilisateur

Grundig

Grundig SER 251 Manuel utilisateur

Grundig

Grundig R 23 DPL Manuel utilisateur

Grundig

Grundig STR 622 TWIN Manuel utilisateur

Grundig

Grundig STR 611 Manuel utilisateur

Grundig

Grundig XENARO AVR 4300 DD Manuel utilisateur

Grundig

Grundig YACHT BOY 400 Manuel utilisateur

Grundig

Grundig STR 400 AP Manuel utilisateur

Grundig

Grundig DTR 5464 HD Manuel utilisateur

Grundig

Grundig DSR 5450 HD Manuel utilisateur

Grundig

Grundig STR 100 DX microSAT Manuel utilisateur

Grundig

Grundig DTR 1560-2 MICRO Manuel utilisateur

Grundig

Grundig GUFSAT02SD Manuel utilisateur

Grundig

Grundig DSR 1510 Manuel utilisateur

Grundig

Grundig STR 7122 TWIN Manuel utilisateur

Grundig

Grundig WR 5408 PLL Manuel utilisateur

Grundig

Grundig DTR 1524 Manuel utilisateur

Grundig

Grundig SER 300 Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
