Grundfos CIM 3 Series Manuel utilisateur

CIM 300 BACnet module

Installation and operating instructions

GRUNDFOS INSTRUCTIONS

Table of contents

Grundfos CIM/CIU 300

English (GB)

Installation and operating instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Deutsch (DE)

Montage- und Betriebsanleitung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Dansk (DK)

Monterings- og driftsinstruktion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Español (ES)

Instrucciones de instalación y funcionamiento . . . . . . . . . . . . . . . . . . . . . . . . . 25

Suomi (FI)

Asennus- ja käyttöohjeet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Français (FR)

Notice d'installation et de fonctionnement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Italiano (IT)

Istruzioni di installazione e funzionamento . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Português (PT)

Instruções de instalação e funcionamento . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Русский (RU)

Руководство по монтажу и эксплуатации . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

中文 (CN)

安装和使用说明书 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

日本語 (JP)

取扱説明書 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

English (GB)

English (GB) Installation and operating instructions

Original installation and operating instructions.

CONTENTS

Page

1. Symbols used in this document

2. Applications

The CIM 3XX BACnet module

(CIM = Communication Interface Module), which is a

BACnet master, enables data transmission between

a BACnet MS/TP (Master-Slave/Token Passing)

network and a Grundfos product.

The CIM 3XX is fitted in the product to be

communicated with, or in a CIU 3XX unit

(CIU = Communication Interface Unit).

Retrofitting of the CIM 3XX is described in the

installation and operating instructions of the

Grundfos product.

Further information

For further information about the configuration and

functionality of the CIM 3XX, see the specific functional

profile on the CD-ROM supplied with the product.

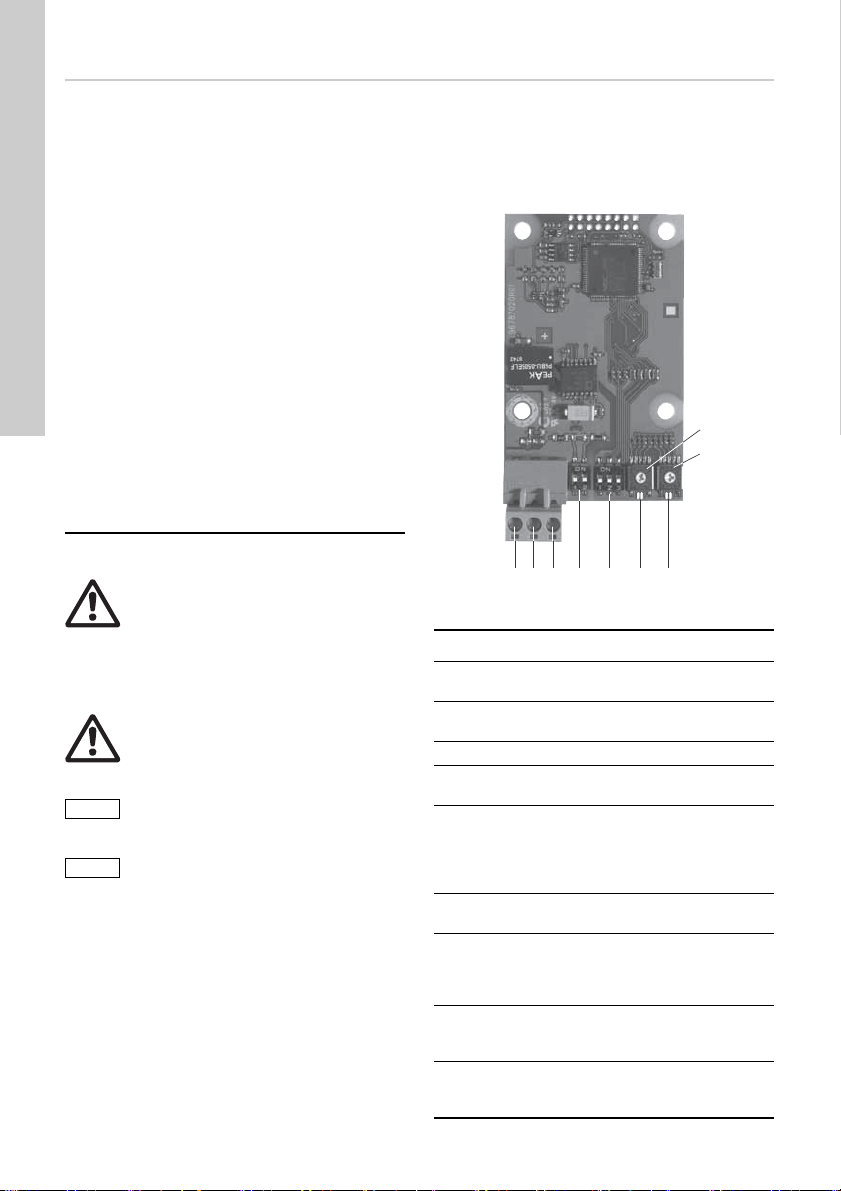

2.1 CIM 3XX BACnet module

Fig. 1 CIM 3XX BACnet module

1. Symbols used in this document 4

2. Applications 4

2.1 CIM 3XX BACnet module 4

3. Installation 5

3.1 Connecting the BACnet module 5

3.2 Termination resistor 5

3.3 Setting the BACnet MAC address 6

3.4 Setting the Device Object instance number 6

3.5 Setting the BACnet transmission speed 6

4. LEDs 7

5. Fault finding 8

6. Technical data 1

7. Service 1

7.1 Service documentation 1

8. Disposal 1

Warning

Prior to installation, read these installation

and operating instructions. Installation and

operation must comply with local

regulations and accepted codes of good

practice.

Warning

If these safety instructions are not

observed, it may result in personal injury!

Caution

If these safety instructions are not

observed, it may result in malfunction or

damage to the equipment!

Note

Notes or instructions that make the job

easier and ensure safe operation.

TM04 1697 0908

Pos. Designation Description

1Plus BACnet terminal Plus

(positive data signal)

2 Minus BACnet terminal Minus

(negative data signal)

3 Ground BACnet terminal Ground

4 SW1/SW2 On/off switches for

termination resistor

5SW3/SW4/

SW5

SW3 for setting the Device

Object instance number.

SW4 and SW5 for setting

the BACnet transmission

speed.

6LED1 Red/green status LED for

BACnet communication

7LED2

Red/green status LED for

internal communication

between the CIM 3XX and

the Grundfos product

8SW6 Hex switch for setting the

BACnet MAC address

(four most significant bits)

9SW7 Hex switch for setting the

BACnet MAC address

(four least significant bits)

1 2 34 5 6 7

English (GB)

3. Installation

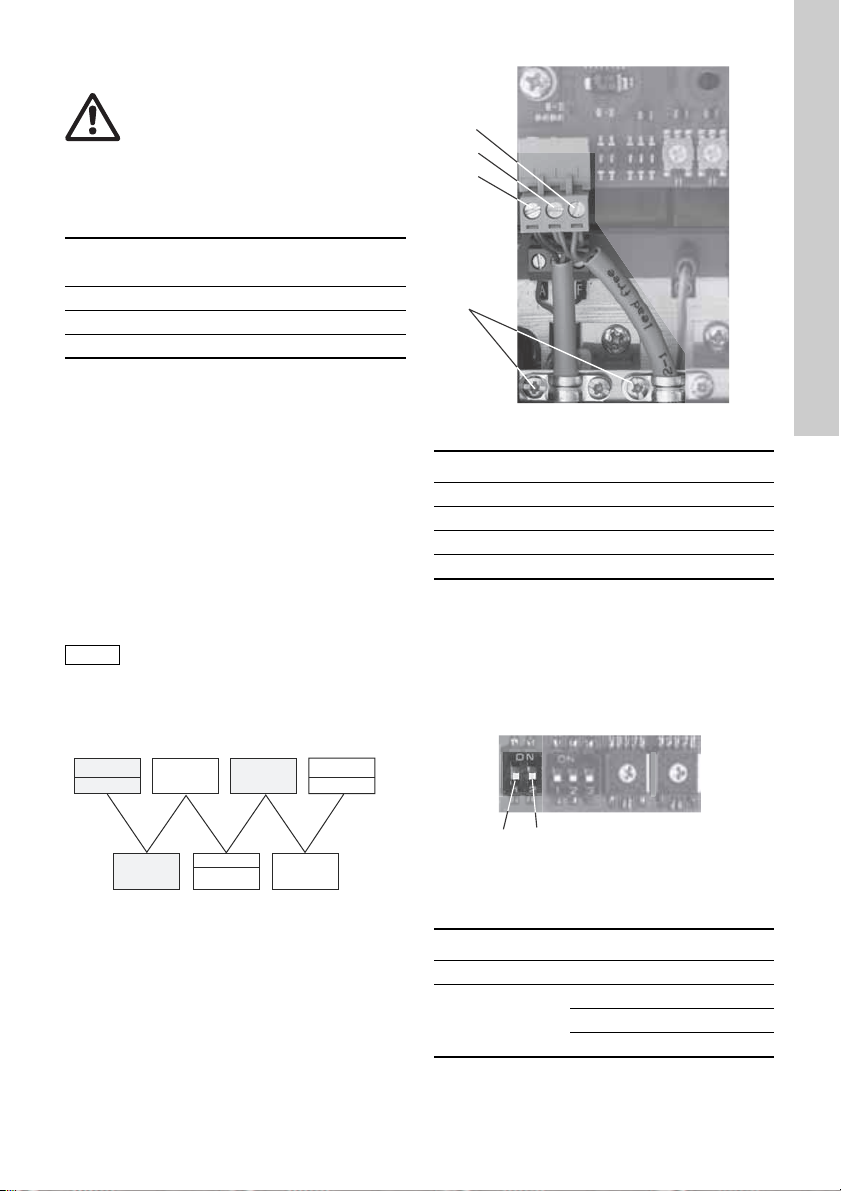

3.1 Connecting the BACnet module

A screened, twisted-pair cable must be used.

Recommended connection

Fitting the cable

Procedure:

See fig. 3.

1. Connect the red conductor(s) to terminal Plus

(pos. 1).

2. Connect the green conductor(s) to terminal

Minus (pos. 2).

3. Connect the grey conductor(s) to terminal

Ground (pos. 3).

4. Secure the cable with the earth clamp (pos. 4).

Earthing of the cable screen (optional) can be

obtained by connecting the screen to the earth

clamp.

Maximum cable length, see section 3.2 Termination

resistor.

Fig. 2 Example of BACnet MS/TP segment

Several BACnet masters may be connected to the

same BACnet MS/TP segment.

Fig. 3 Example of BACnet connection

3.2 Termination resistor

The termination resistor is fitted on the CIM 3XX

BACnet module and has a value of 120 .

The CIM 3XX has a DIP switch with two switches

(SW1 and SW2) for cutting the termination resistor in

and out. Figure 4 shows the DIP switches in cut-out

state.

Fig. 4 Cutting the termination resistor in and

out

DIP switch settings

Warning

The CIM 3XX must only be connected to

SELV or SELV-E circuits.

BACnet terminal Colour

code Data signal

Plus Red Positive

Minus Green Negative

Ground Grey Ground

Note

According to the ANSI/ASHRAE BACnet

standard, the cable screen must only be

earthed at one end of the segment to

ensure correct operation and to prevent

earth fault currents.

TM04 4274 1009

LT = Line Termination

BR = Bias Resistor

Master Master

Master

Slave Slave

TM04 5059 2509

Pos. Description

1 BACnet terminal Plus

2 BACnet terminal Minus

3 BACnet terminal Ground

4 Earth clamp

TM04 1701 0908

Status SW1 SW2

Cut-in ON ON

Cut-out

OFF OFF

ON OFF

OFF ON

SW1 SW2

English (GB)

Cable length

The maximum recommended cable length within

a BACnet MS/TP segment is 1200 metres (4000 ft)

with 0.82 mm2 (AWG 18) cable.

The connection between the BACnet modules must

be made by use of a screened, twisted-pair cable

with a characteristic impedance between 100 and

130 .

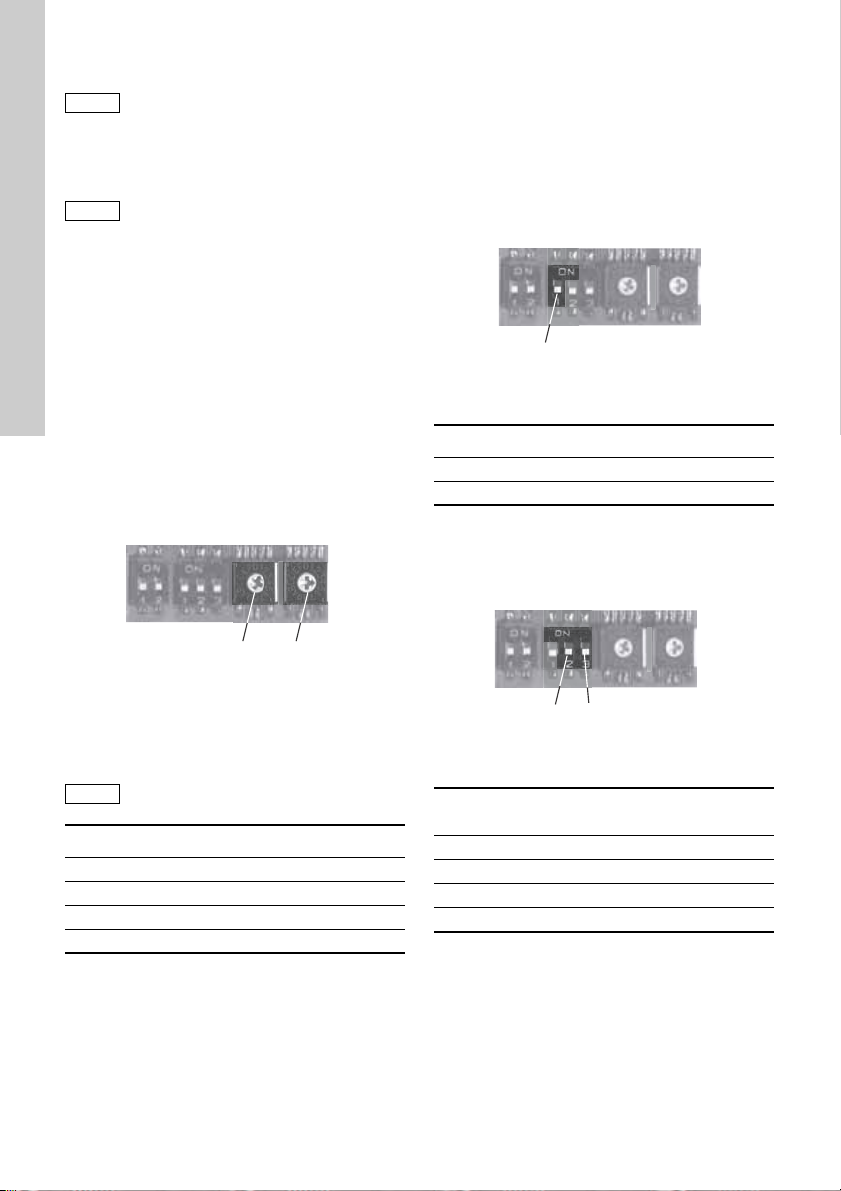

3.3 Setting the BACnet MAC address

The CIM 3XX BACnet module has two hexadecimal

rotary switches for setting the BACnet MAC address.

The two switches are used for setting the four most

significant bits (SW6) and the four least significant

bits (SW7), respectively. See fig. 5.

Fig. 5 BACnet MAC address

The table below shows examples of BACnet MAC

address settings.

For a complete overview of BACnet MAC addresses,

see the table on page 81.

3.4 Setting the Device Object instance

number

By default, the CIM 3XX BACnet module uses a

predefined Device Object instance number, which is

227XXX (XXX is the BACnet MAC address).

To use the complete Device Object instance number

range, set SW3 to ON, and set the new Device

Object instance number via a BACnet object in the

software. See fig. 6 and the specific functional

profile.

Fig. 6 Device Object instance number

DIP switch settings

3.5 Setting the BACnet transmission speed

The transmission speed must be set correctly before

the CIM 3XX BACnet module is ready to

communicate with the BACnet network. See fig. 7.

Fig. 7 BACnet transmission speed

DIP switch settings

Note

To ensure a stable and reliable

communication, it is important that only the

termination resistor of the first and last unit

in the BACnet MS/TP segment is cut in.

See fig. 2.

Note

BACnet MS/TP segments must be

provided with at least one set, and no

more than two sets of network bias

resistors. See fig. 2.

The network bias resistors are not

available on the CIM 3XX BACnet module.

TM04 1706 0908

Note

The BACnet MAC address must be set

decimally between 0 and 127.

BACnet MAC address SW6 SW7

808

20 1 4

31 1 F

127 7 F

SW6 SW7

TM04 1709 0908

Device Object instance number SW3

Default (227000 + MAC address) OFF

User-defined (set via BACnet object) ON

TM04 1710 0908

Transmission speed

[bits/s] SW4 SW5

9600 OFF OFF

19200 OFF ON

38400 ON OFF

76800 ON ON

SW3

SW4 SW5

English (GB)

4. LEDs

The CIM 3XX BACnet module has two LEDs.

See fig. 1.

• Red/green status LED (LED1) for BACnet

communication

• Red/green status LED (LED2) for internal

communication between the CIM 3XX and

the Grundfos product.

LED1

LED2

Status Description

Off. No BACnet communication.

Flashing green. BACnet communication active.

Flashing red. Fault in the BACnet

communication.

Permanently

red. Fault in the CIM 3XX BACnet

configuration.

Status Description

Off. The CIM 3XX has been switched

off.

Flashing red. No internal communication

between the CIM 3XX and

the Grundfos product.

Permanently

red. The CIM 3XX does not support

the Grundfos product connected.

Permanently

green.

Internal communication between

the CIM 3XX and the Grundfos

product is OK.

Note

During start-up, it may take up to

5 seconds to update the LED2 status.

English (GB)

5. Fault finding

Faults in a CIM 3XX BACnet module can be detected by observing the status of the two communication LEDs.

See the table below.

CIM 3XX fitted in a Grundfos product

Fault (LED status) Possible cause Remedy

1. Both LEDs (LED1 and LED2)

remain off when the power

supply is connected.

a) The CIM 3XX is fitted

incorrectly in the Grundfos

product.

Check that the CIM 3XX is fitted /

connected correctly.

b) The CIM 3XX is defective. Replace the CIM 3XX.

2. The LED for internal

communication (LED2)

is flashing red.

a) No internal communication

between the CIM 3XX and the

Grundfos product.

Check that the CIM 3XX is fitted

correctly in the Grundfos product.

3. The LED for internal

communication (LED2)

is permanently red.

a) The CIM 3XX does not support

the Grundfos product

connected.

Contact the nearest Grundfos

company.

4. The BACnet LED (LED1)

is permanently red. a) Fault in the CIM 3XX BACnet

configuration. • Check that the BACnet MAC

address (switches SW6 and

SW7) has a valid value [0-127].

See section 3.3 Setting the

BACnet MAC address.

• Check the Device Object

instance number (switch SW3).

See section 3.4 Setting the

Device Object instance number.

5. The BACnet LED (LED1)

is flashing red. a) Fault in the BACnet

communication (fault in cyclic

redundancy check).

• Check the transmission speed

(switches SW4 and SW5).

See section 3.5 Setting the

BACnet transmission speed.

• Check the cable connection

between the CIM 3XX and

the BACnet network.

• Check the termination resistor

settings (switches SW1 and

SW2).

See section 3.2 Termination

resistor.

English (GB)

CIM 3XX fitted in the CIU 3XX

Fault (LED status) Possible cause Remedy

1. Both LEDs (LED1 and LED2)

remain off when the power

supply is connected.

a) The CIU 3XX is defective. Replace the CIU 3XX.

2. The LED for internal

communication (LED2)

is flashing red.

a) No internal communication

between the CIU 3XX and the

Grundfos product.

• Check the cable connection

between the CIU 3XX and

the Grundfos product.

• Check that the individual

conductors have been fitted

correctly.

• Check the power supply to the

Grundfos product.

3. The LED for internal

communication (LED2)

is permanently red.

a) The CIU 3XX does not support

the Grundfos product

connected.

Contact the nearest Grundfos

company.

4. The BACnet LED (LED1)

is permanently red. a) Fault in the CIM 3XX BACnet

configuration. • Check that the BACnet MAC

address (switches SW6 and

SW7) has a valid value [0-127].

See section 3.3 Setting the

BACnet MAC address.

• Check the Device Object

instance number (switch SW3).

See section 3.4 Setting the

Device Object instance number.

5. The BACnet LED (LED1)

is flashing red. a) Fault in the BACnet

communication (fault in cyclic

redundancy check).

• Check the transmission speed

(switches SW4 and SW5).

See section 3.5 Setting the

BACnet transmission speed.

• Check the cable connection

between the CIM 3XX and

the BACnet network.

• Check the termination resistor

settings (switches SW1 and

SW2).

See section 3.2 Termination

resistor.

English (GB)

6. Technical data

7. Service

7.1 Service documentation

Service documentation is available on

www.grundfos.com > International website >

WebCAPS > Service.

If you have any questions, please contact the

nearest Grundfos company or service workshop.

8. Disposal

This product or parts of it must be disposed of in an

environmentally sound way:

1. Use the public or private waste collection service.

2. If this is not possible, contact the nearest

Grundfos company or service workshop.

The crossed-out wheelie bin symbol on

a product means that it must be

disposed of separately from household

waste. When a product marked with this

symbol reaches its end of life, take it to a

collection point designated by the local

waste disposal authorities. The separate collection

and recycling of such products will help protect the

environment and human health.

Transceiver RS-485

Cable Screened, twisted-pair

Min. 0.25 mm2

Min. 23 AWG

Maximum cable length

(0.82 mm2 / AWG 18) 1200 m

4000 ft

Transmission speed 9600-76800 bits/s

Maximum number of

BACnet units per segment 32

Protocol BACnet MS/TP

Supply voltage 5 VDC ± 5 %,

Imax. 200 mA

Storage temperature -25 °C to +70 °C

-13 °F to +158 °F

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Grundfos Unité de contrôle

Grundfos

Grundfos CIM 500 Manuel utilisateur

Grundfos

Grundfos CIM 100 Manuel utilisateur

Grundfos

Grundfos UPZC-1 Manuel utilisateur

Grundfos

Grundfos MP 204 Manuel utilisateur

Grundfos

Grundfos UP-ZV Manuel utilisateur

Grundfos

Grundfos CIM 500 Manuel utilisateur

Grundfos

Grundfos MP 204 Manuel utilisateur

Grundfos

Grundfos CIM 290-MA LPWAN GiC Manuel utilisateur

Grundfos

Grundfos CIM 150 Manuel utilisateur

Grundfos

Grundfos CU 321 Manuel utilisateur

Grundfos

Grundfos LC 23 Series Mode d'emploi

Grundfos

Grundfos CU 401 Manuel utilisateur

Grundfos

Grundfos CIM 1 Series Manuel utilisateur

Grundfos

Grundfos CMB-SP Booster PM2 Manuel utilisateur

Grundfos

Grundfos CIM 200 Manuel utilisateur

Grundfos

Grundfos RSL Manuel utilisateur

Grundfos

Grundfos PM 1 Manuel utilisateur

Grundfos

Grundfos IO 242 Manuel utilisateur

Grundfos

Grundfos IO 401 Manuel utilisateur

Grundfos

Grundfos CIM 1 LON Series Manuel utilisateur

Grundfos

Grundfos MC 40/60 Manuel utilisateur

Grundfos

Grundfos G 401 Manuel utilisateur

Grundfos

Grundfos SA-SPM Manuel utilisateur

Grundfos

Grundfos MP 204 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
