Gram OIP 5436 B Manuel utilisateur

EN Instruction manual

Type

OIP 5436 B

DEAR CUSTOMER,

The oven is exceptionally easy to use and extremely ecient. After reading the instruction

manual, operating the oven will be easy.

Before being packaged and leaving the manufacturer, the oven was thoroughly checked with

regard to safety and functionality.

Before using the appliance, please read the instruction manual carefully.

By following these instructions carefully you will be able to avoid any problems in using the

appliance.

It is important to keep the instruction manual and store it in a safe place so that it can be

consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible

accidents.

Caution!

Do not use the oven until you have read this instruction manual.

The oven is intended for household use only.

The manufacturer reserves the right to introduce changes which do not aect the

operation of the appliance.

TABLE OF CONTENTS

Safety instructions ............................................................................................................. 4

Description of the appliance ............................................................................................. 8

Installation......................................................................................................................... 10

Operation........................................................................................................................... 12

Baking in the oven – practical hints ............................................................................... 22

Test dishes.........................................................................................................................25

Cleaning and maintenance.............................................................................................. 27

Technical data................................................................................................................... 33

SAFETY INSTRUCTIONS

Warning: The appliance and its accessible parts become hot

during use. Care should be taken to avoid touching heating

elements. Children less than 8 years of age shall be kept

away unless continuously supervised.

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge, if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the ha-

zards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by chil-

dren without supervision.

During use the appliance becomes hot. Care should be taken

to avoid touching heating elements inside the oven.

Accessible parts may become hot during use. Young children

should be kept away.

Warning: Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the oven door glass since they can scratch

the surface, which may result in shattering of the glass.

Warning: Ensure that the appliance is switched o󰀨 before re-

placing the lamp to avoid the possibillity of electric shock.

Use only original temperature probe supplied with the ap-

pliance

You should not use steam cleaning devices to clean the

appliance.

SAFETY INSTRUCTIONS

● Ensure that small items of household equipment, including connection leads, do

not touch the hot oven as the insulation material of this equipment is usually not

resistant to high temperatures.

● Do not leave the oven unattended when frying. Oils and fats may catch re due

to overheating or boiling over.

● Do not put pans weighing over 15 kg on the opened door of the oven.

● Do not use harsh cleaning agents or sharp metal objects to clean the door as they

can scratch the surface, which could then result in the glass cracking.

● Do not use the oven in the event of a technical fault. Any faults must be xed by

an appropriately qualied and authorised person.

● In the event of any incident caused by a technical fault, disconnect the power and

report the fault to the service centre to be repaired.

● The rules and provisions contained in this instruction manual should be strictly

observed. Do not allow anybody who is not familiar with the contents of this instruc-

tion manual to operate the oven.

● The appliance has been designed only for cooking. Any other use (for example

for heating) does not comply with its operating prole and may cause danger.

Do not open the oven door unnecessarily

often.

 Only use the oven when cooking larger

dishes.

Meat of up to 1 kg can be prepared more

economically in a pan on the cooker hob.

Make use of residual heat from the

oven.

If the cooking time is greater than 40 minutes

switch o󰀨 the oven 10 minutes before the

end time.

Important! When using the timer, set

appropriately shorter cooking times

according to the dish being prepared.

Make sure the oven door is prop-

erly closed.

Heat can leak through spillages on the door

seals. Clean up any spillages immediately.

Do not install the oven in the direct

vicinity of refrigerators/freezers.

Otherwise energy consumption increases

unnecessarily.

HOW TO SAVE ENERGY

During transportation, protec-

tive packaging was used to

protect the appliance against

any damage. After unpack-

ing, please dispose of all

elements of packaging in a

way that will not cause dam-

age to the environment.

All materials used for packaging the appli-

ance are environmentally friendly; they are

100% recyclable and are marked with the

appropriate symbol.

Caution! During unpacking, the packag-

ing materials (polythene bags, polystyrene

pieces, etc.) should be kept out of reach of

children.

UNPACKING DISPOSAL OF THE APPLIANCE

Old appliances should not sim-

ply be disposed of with normal

household waste, but should

be delivered to a collection and

recycling centre for electric and

electronic equipment. A symbol

shown on the product, the in-

struction manual or the packaging shows that

it is suitable for recycling.

Materials used inside the appliance are

recyclable and are labelled with information

concerning this. By recycling materials or

other parts from used devices you are making

a signicant contribution to the protection of

our environment.

Information on appropriate disposal centres

for used devices can be provided by your

local authority.

DESCRIPTION OF THE APPLIANCE

132

1Temperature control knob

2Oven function selection knob

3Electronic programmer

SPECIFICATIONS OF THE APPLIANCE

Oven ttings:

Baking tray

Grill grate

(drying rack)

Roasting tray

Side racks

Installing the oven

The kitchen area should be dry and aired

and equipped with e󰀩cient ventillation.

When installing the oven, easy access to

all control elements should be ensured.

This is a Y–type design built–in oven,

which means that its back wall and one

side wall can be placed next to a high

piece of furniture or a wall. Coating or

veneer used on tted furniture must be

applied with a heat–resistant adhesive

(100°C). This prevents surface deforma-

tion or detachment of the coating.

Hoods should be installed according to

the manufacturer’s instructions.

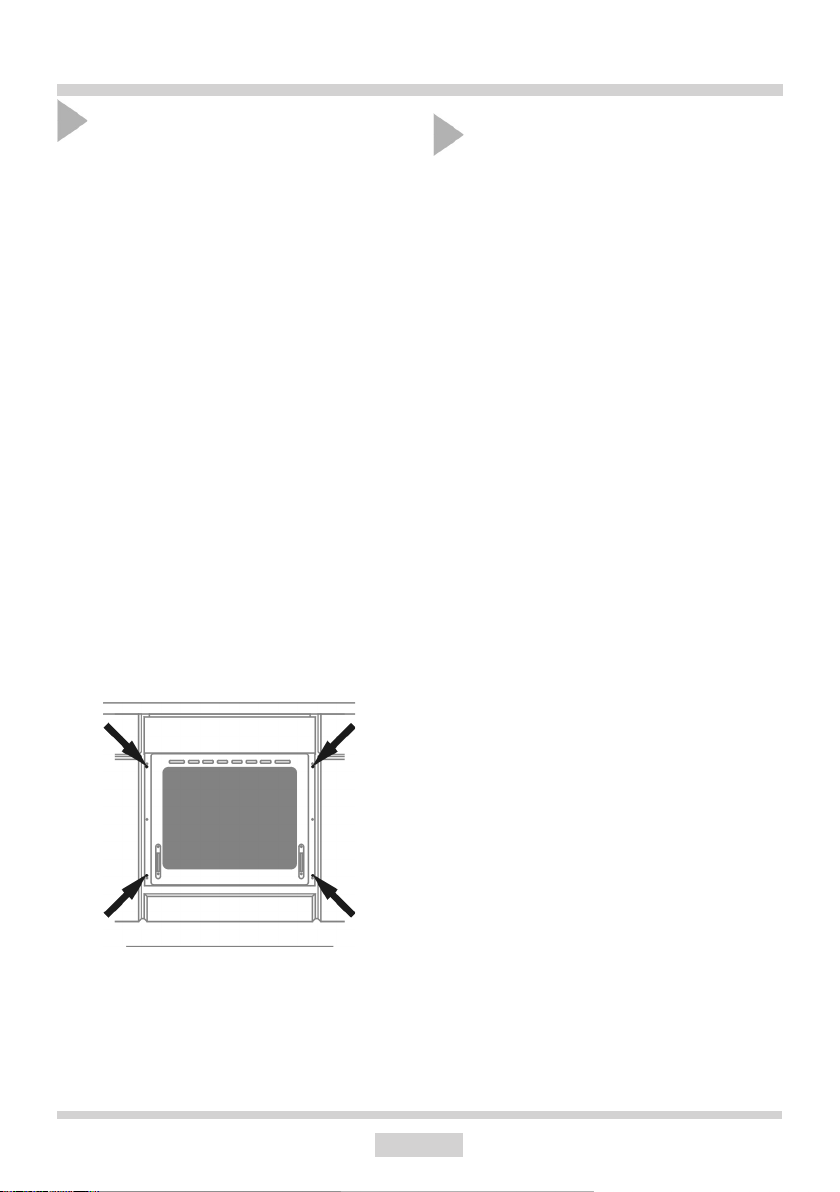

Make an opening with the dimensions

given in the diagram for the oven to be

tted.

Make sure the mains plug is disconnected

and then connect the oven to the mains

supply.

 Insert the oven completely into the open-

ing without allowing the four screws in the

places shown in the diagram to fall out.

INSTALLATION

The oven is manufactured to work with

a one-phase alternating current (230V

1N~50 Hz) and is equipped with a 3 x 1,5

mm2connection lead of 1.5 m length with

a plug including a protection contact.

A connection socket for electricity supply

should be equipped with a protection pin

and may not be located above the oven.

After the oven is positioned, it is neces-

sary to make the connection socket ac-

cessible to the user.

Before connecting the oven to the socket,

check if:

- the fuse and electricity supply are able to

withstand the oven load,

- the electricity supply is equipped with an

e󰀩cacious ground system which meets

the requirements of current standards

and provisions,

- the plug is within easy reach.

Electrical connection

Important!

If the xed power supply cable is damaged,

it should be replaced at the manufacturer

or at an authorized servicing outlet, or by a

qualied person to avoid danger.
