Graco CarGo 8485 Manuel utilisateur

Car Seat/Booster Seat

Owner’s Manual

Model 8485

READ THIS MANUAL.

Do not install or use this car seat until you read and

understand the instructions in this manual.

FAILURE TO PROPERLY USE THIS

CAR SEAT INCREASES THE RISK OF

SERIOUS INJURY OR DEATH IN A

SUDDEN STOP OR CRASH.

1.0 Warnings to Parents and Other Users . . . . . .3

2.0 Registration Information . . . . . . . . . . . . . . . . .4

2.1 Register Your Car Seat . . . . . . . . . . . . . . . .4

2.2 Recall Information . . . . . . . . . . . . . . . . . . . .4

2.3 If You Need Help . . . . . . . . . . . . . . . . . . . .4

3.0 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6

4.0 Important Information . . . . . . . . . . . . . . . . .7-10

4.1 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . .7

4.2 Height and Weight Limitations . . . . . . . . . . .9

4.2.1 WITH Built-In Harness System . . . . .10

4.2.2 WITHOUT Built-In Harness System .10

5.0 Car Seat Location . . . . . . . . . . . . . . . . . .11-16

5.1 Vehicle Seat Requirements . . . . . . . . . . . .11

5.2 Vehicle Seat Belt Requirements . . . . . . . .12

5.2.1 UNSAFE Vehicle Belt Systems . . . . .12

5.2.2 SAFE Vehicle Belt Systems . . . . . . .14

6.0 Using Car Seat With Built-In Harness . . .17-24

6.1 Positioning the Harness Straps . . . . . . . . .17

6.2 Securing the Car Seat in Your Vehicle . . . .21

6.3 Securing Your Child in the Car Seat . . . . .23

7.0 Using Car Seat Without Built-In Harness . . .25-27

7.1 Harness Removal . . . . . . . . . . . . . . . . . . .26

7.2 Securing Child and Booster

Seat in Vehicle . . . . . . . . . . . . . . . . . . . . .26

8.0 Additional Information . . . . . . . . . . . . . . .28-29

8.1 Using the Tether . . . . . . . . . . . . . . . . . . . .28

8.2 Airplane Use . . . . . . . . . . . . . . . . . . . . . . .29

8.3 Cupholder . . . . . . . . . . . . . . . . . . . . . . . . .29

9.0 Care and Maintenance . . . . . . . . . . . . . . .30-31

10.0 Replacement Parts . . . . . . . . . . . . . . . . . .32-33

Table of Contents

Failure to properly use this car seat increases the risk of

serious injury or death in a sharp turn, sudden stop or

crash. Your child’s safety depends on you installing and

using this car seat correctly.

Even if using this car seat seems easy to figure out on

your own, it is very important to READ THE OWNER’S

MANUAL and the vehicle owner’s manual.

Your child’s safety depends on:

1. Choosing the correct mode of use for the car

seat depending on your child’s size.

2. Inserting the harness straps (if needed) in the

proper slots for your child.

3. Selecting a suitable location for the car seat in

your vehicle.

4. Properly routing the vehicle seat belt.

5. Properly securing the car seat in the vehicle

using a seat belt designed to restrain the car seat

and your child. Many seat belts are NOT safe to

use with this car seat, even though they can easily

be threaded through or around the car seat!

6. Properly securing your child in the car seat.

1.0 Warnings to Parents and

Other Users

Model Number:

Serial Number:

Purchase Date:

2.0 Registration Information

2.1 Register Your Car Seat

2.3 If You Need Help

Please fill in the above information. The model and

serial numbers can be found on a label underneath

your car seat. Fill out the prepaid registration postcard

attached to the seat cover and mail it today.

Child restraints could be recalled for safety reasons.

You must register this restraint to be reached in a

recall. Send your name, address and model/serial

numbers to:

Graco Children’s Products Inc.

P.O. Box 100

Elverson, PA, 19520-9974

or call 1-888-224-6549

Please contact our Customer Service Department with

any questions you may have concerning parts, use, or

maintenance. When you contact us, please have your

product’s model and serial numbers ready so that we

may help you efficiently. These numbers can be found

on a sticker on the underside of your car seat.

1-888-224-6549 or www.gracobaby.com

• Call the U.S. Government’s Auto Safety Hotline

at 1-800-424-9393 (202-366-0123 in D.C. area)

• www.nhtsa.dot.gov

• Graco: 1-888-224-6549 or www.gracobaby.com

2.2 Recall Information

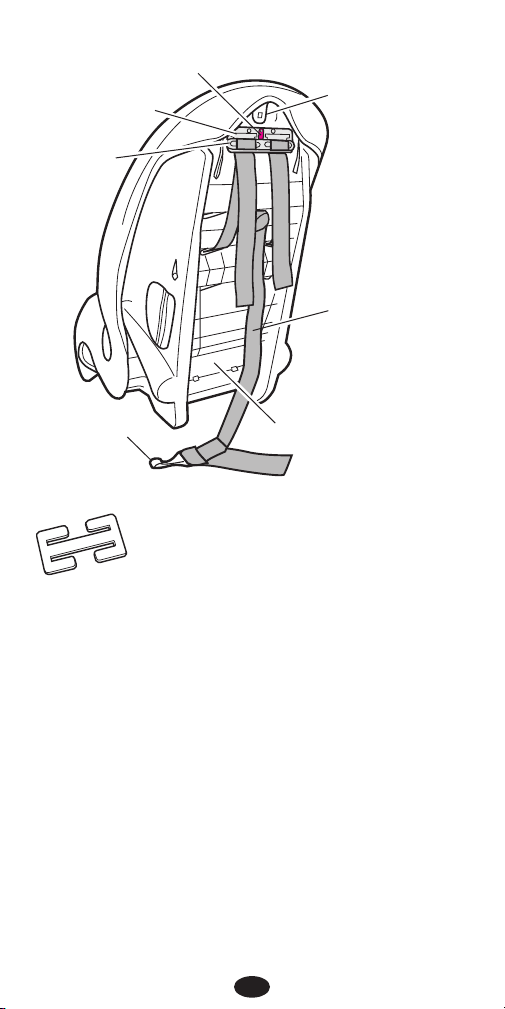

Harness slot

Harness clip

Harness strap

Harness

adjustment strap Crotch strap

Harness

buckle

Harness

adjuster

3.0 Features

Cupholder (certain models)

Shoulder belt

positioner

**Vehicles are now (or can be) equipped with tether

anchor points behind some seats. A tether anchors

the top of the car seat to the body of the vehicle.

When used properly with the vehicle seat belt,

a tether helps reduce injury in a sudden stop

or crash.

Locking clip

storage*

Harness

plate

Tether strap**

Owner’s manual

storage compartment

Expiration date

Adjuster

bar

Tether clip —

Adjuster

bar lock

*The locking clip is stored on the back of

the car seat. You will need to use it with

certain types of vehicle seat belts.

•DO NOT INSTALL OR USE THIS CAR SEAT

UNTIL YOU READ AND UNDERSTAND THE

INSTRUCTIONS IN THIS MANUAL AND IN YOUR

VEHICLE OWNER’S MANUAL. DO NOT let others

install or use the car seat unless they understand

how to use it.

•FAILURE TO PROPERLY USE THIS CAR SEAT

INCREASES THE RISK OF SERIOUS INJURY OR

DEATH IN A SHARP TURN, SUDDEN STOP OR

CRASH. Your child can be injured in a vehicle even

if you are not in a crash. Sudden braking and sharp

turns can injure your child if the car seat is not

properly installed or if your child is not properly

secured in the car seat.

• According to accident statistics, CHILDREN ARE

SAFER WHEN PROPERLY RESTRAINED IN

REAR VEHICLE SEATING POSITIONS, RATHER

THAN FRONT SEATING POSITIONS. For a vehicle

with a front passenger air bag, refer to your vehicle

owner’s manual as well as these instructions for car

seat installation.

•NEVER LEAVE YOUR CHILD UNATTENDED.

•NEVER LEAVE A CAR SEAT UNSECURED IN

YOUR VEHICLE. An unsecured car seat can be

thrown around and may injure occupants in a sharp

turn, sudden stop or crash. Remove it or make sure

that it is securely belted in the vehicle.

•REPLACE THE CAR SEAT AFTER AN ACCIDENT

OF ANY KIND. An accident can cause damage to

the car seat that you cannot see.

4.0 Important Information

4.1 Warnings

•STOP USING CAR SEAT AND THROW IT AWAY

after the date molded into the back of the car seat.

•DO NOT MODIFY YOUR CAR SEAT or use any

accessories or parts supplied by other manufacturers.

•NEVER USE CAR SEAT IF IT HAS DAMAGED OR

MISSING PARTS. DO NOT use a cut, frayed or

damaged car seat harness or vehicle seat belt.

•THE CAR SEAT CAN BECOME VERY HOT IF

LEFT IN THE SUN. Contact with these parts can

burn your child’s skin. Always touch the surface of

any metal or plastic parts before putting your child

the car seat.

•THIS CHILD RESTRAINT CONFORMS to all

applicable Federal Motor Vehicle Safety Standards

and is certified for use in motor vehicles. It is

certified for use in Aircraft ONLY when used with

the built-in harness. When used as a booster

without the harness, this restraint is NOT certified

for use in aircraft.

•NEVER GIVE THIS CAR SEAT to someone else

without also giving them this manual.

•NEVER USE A SECOND-HAND CAR SEAT or a

car seat whose history you do not know.

FAILURE TO USE CAR SEAT IN A MANNER

APPROPRIATE FOR YOUR CHILD’S SIZE MAY

INCREASE THE RISK OF SERIOUS INJURY OR

DEATH. Instructions for the use of this car seat

and your vehicle’s seat belt differ greatly depending

on the size of your child. Be sure you are using the car

seat in the correct mode and with the correct features

for your child.

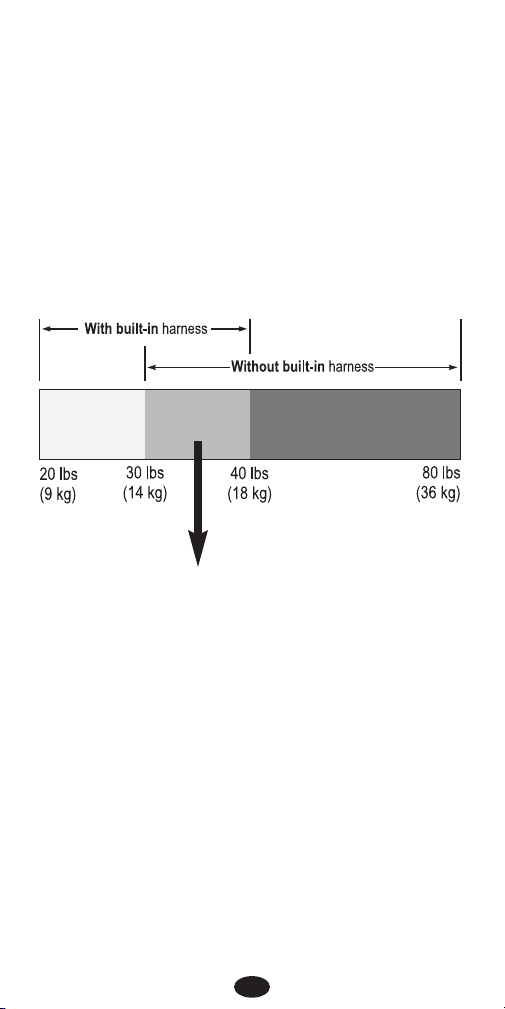

4.2 Height and Weight Limits

4.2.1 WITH Built in Harness

Your child MUST meet all requirements:

• WEIGHT: 20 to 40 lbs. (9 to 18 kg)

• HEIGHT: 27 to 43 inches (69 to 109 cm)

• At least one year old and can sit upright unassisted

• Shoulders are BELOW top harness slots. If

shoulders are above top harness slots, child is

too large for built-in harness.

4.2.2 WITHOUT Built in Harness

Your child MUST meet all requirements:

• WEIGHT: 30 to 80 lbs. (14 to 36 kg)

• HEIGHT: 35 to 54 inches (89 to 138 cm)

• Child’s ears are BELOW top of booster seat. If tops

of ears are above top of seat, child is too large for

booster seat.

If child is between 30 and 40 lbs. and shoulders

are below the upper harness slots, we highly

recommend use of the built-in harness for as long

as it is suitable and comfortable (up to 40 lbs.) .
