READ THIS MANUAL
KEEP INSTRUCTIONS FOR FUTURE USE.
Do not install or use this infant restraint until you
read and understand the instructions in this manual.
FAILURE TO PROPERLY USE THIS INFANT RESTRAINT
INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN
A SUDDEN STOP OR CRASH.
© 2002 Graco 446-4-02
Infant Restraint/Carrier
Owner’s Manual
4460402
2
1.0 Registration Information . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
1.1 Register Your Infant Restraint . . . . . . . . . . . . . . . . . . . . . .4
1.2 Recall Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1.3 If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.0 Features and Components . . . . . . . . . . . . . . . . . . . . . . . .6-13
2.1 3-Point Harness Model . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.2 5-Point Harness Model . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.3 Removing andAttaching Base . . . . . . . . . . . . . . . . . . . . .11
2.4 Adjusting Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.5 Attaching Canopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.6 Head Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
2.7 Cold Weather Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.0 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . .14-18
3.1 Warnings for Use as Infant Restraint . . . . . . . . . . . . . . . .14
3.2 Warning for Use With a Stroller . . . . . . . . . . . . . . . . . . . .16
3.3 Additional Warnings for Use as Carrier . . . . . . . . . . . . . .17
3.4 Height and Weight Limits . . . . . . . . . . . . . . . . . . . . . . . .18
4.0 Infant Restraint Location . . . . . . . . . . . . . . . . . . . . . . . .19-24
4.1 Vehicle Seat Requirements . . . . . . . . . . . . . . . . . . . . . . .19
4.2 Vehicle Seat Belt Requirements . . . . . . . . . . . . . . . . . . .20
4.2.1 UNSAFE Vehicle Belt Systems . . . . . . . . . . . . . . . .21
4.2.2 SAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . . .22
4.3 LATCH locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
3
5.0 Using Infant Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25-38
5.1 Positioning Harness Straps . . . . . . . . . . . . . . . . . . . . . . .25
5.1.1 3-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .26
5.1.2 5-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .27
5.2 Securing Child in Infant Restraint . . . . . . . . . . . . . . . . . .29
5.2.1 3-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .30
5.2.2 5-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .31
5.3 Installing Infant Restraint/Base Using Vehicle Belt . . . . . .32
5.4 Using LATCH to Install Base . . . . . . . . . . . . . . . . . . . . . .35
5.5 Reclining Infant Restraint/Base . . . . . . . . . . . . . . . . . . . .36
6.0 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . .39-41
6.1 Airplane Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
6.2 Storing LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
6.3 Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . .41
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42-43
4
Model Number:
Serial Number:
Purchase Date:
1.1 Register Your Infant Restraint
Please fill in the above information. The model and serial numbers
can be found on a label underneath your infant restraint. Fill out the
prepaid registration postcard attached to the seat cover and mail
it today.
Child restraints could be recalled for safety reasons. You must
register this restraint to be reached in a recall. Send your name,
address and model/serial numbers to:
Graco Children’s Products Inc.
P.O. Box 100
Elverson, PA, 19520-9974
or call 1-888-224-6549
• Call the U.S. Government’sAuto Safety Hotline
at 1-800-424-9393 (202-366-0123 in D.C. area)
• www.nhtsa.dot.gov
• Graco: 1-888-224-6549 or www.gracobaby.com
1.2 Recall Information
1.0 Registration Information
5
1.3 If You Need Help
In the U.S.A. or Canada, please contact our Customer Service
Department with any questions you may have concerning parts, use,
or maintenance. When you contact us, please have your product’s
model and serial numbers ready so that we may help you
efficiently. These numbers can be found on a sticker on the
underside of your infant restraint.
USA: 1-888-224-6549 or www.gracobaby.com
Canada: 1-800-667-8184 Montreal: 514-344-3533
Vehicle belt/LATCH* path
6

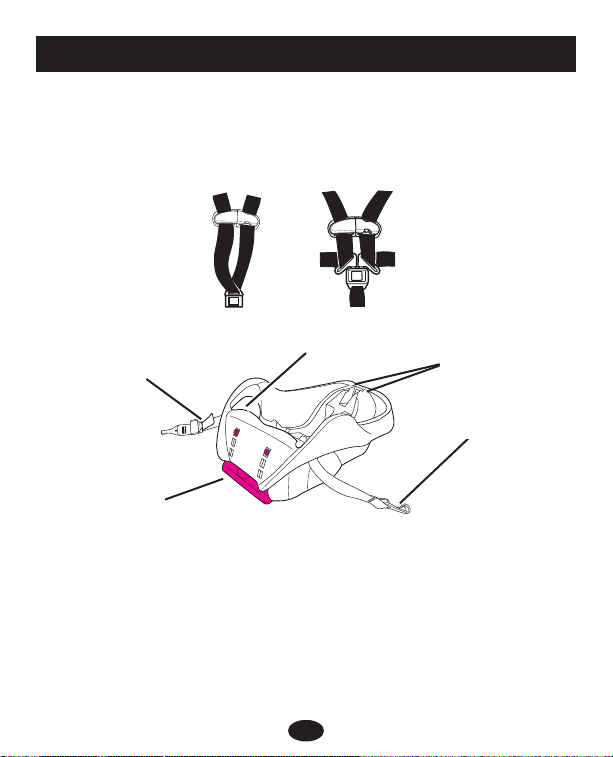

Each model of the infant restraint comes with different harness
options. To adjust your infant restraint properly, it is very
important to follow the instructions that are appropriate for the
model you have purchased.
2.0 Features and Components
OR 5-Point Harness3-Point Harness
United States Federal Motor Vehicle Safety Standards have defined a
new system for installing car seats in vehicles. The system is called
LATCH.
* LATCH may be used IN PLACE of vehicle belt ONLY if vehicle is equipped
with LATCH anchor points. Please refer to vehicle owners manual for
LATCH locations.
Base
Adjustable Foot
LATCH Connectors
Adjustment Belt LATCH
Storage
Bars
7
2.1 3-Point Harness Model
Handle
Harness
slots
Vehicle belt
hook
Handle
adjustment
button
Harness
clip
Harness
buckle Harness
straps

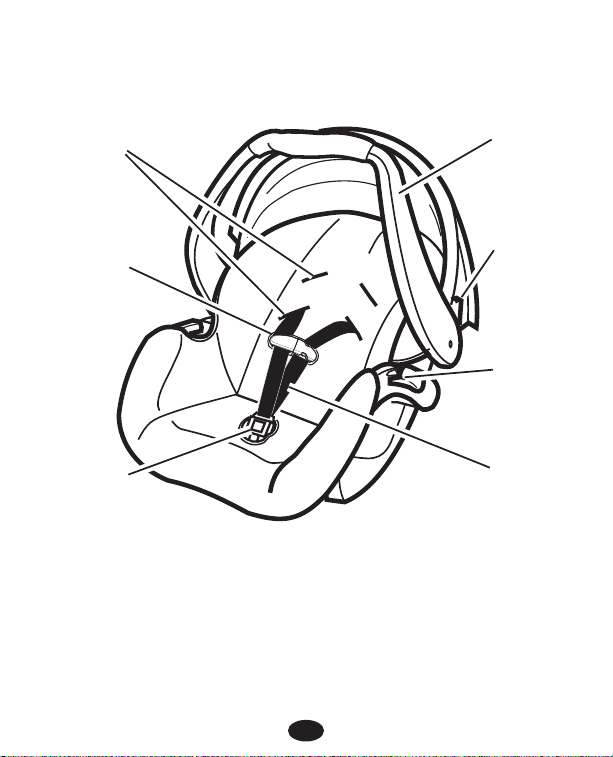

FRONT VIEW: 3-POINT HARNESS
8

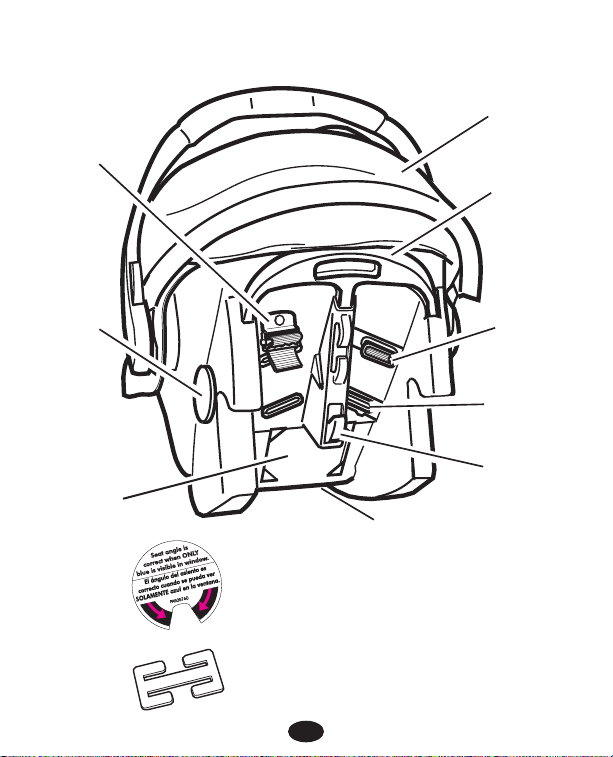

REAR VIEW: 3-POINT HARNESS
Canopy
Harness
slot
Release
handle
Attachment
latch
Level
indicator*
Owner’s
manual
pocket Locking
clip**
Harness
anchor
buckle
Harness
tightener
The level indicator is attached to the side of
the infant restraint, and indicates whether or
not the infant restraint is properly reclined.
The locking clip is stored on the bottom of
the infant restraint. You will need to use it
with certain types of vehicle seat belts.
**Locking
Clip
*Level
Indicator
9
2.2 5-Point Harness Model

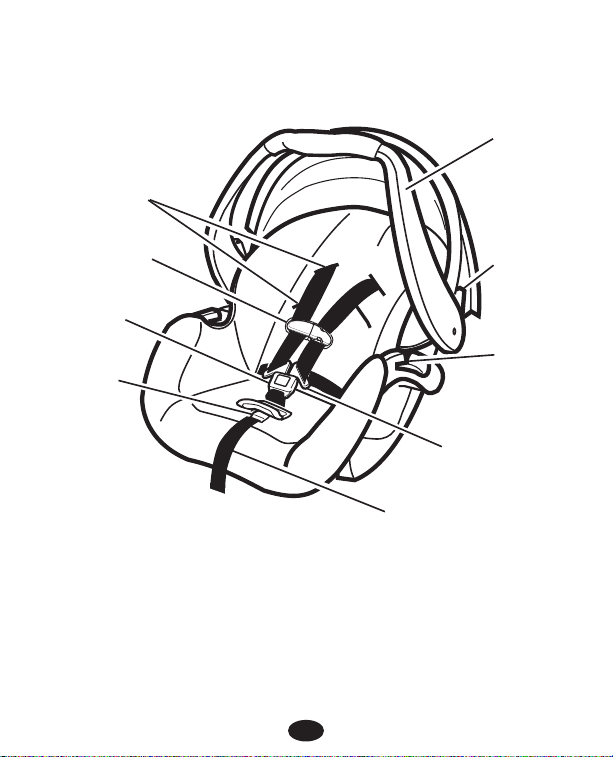

FRONT VIEW: 5-POINT HARNESS
Handle
Harness
slots
Vehicle
belt
hook
Handle
adjustment
button
Harness
clip
Harness
adjustment strap
Harness
buckle
Harness
adjustment
button
Harness
buckle tongues
10

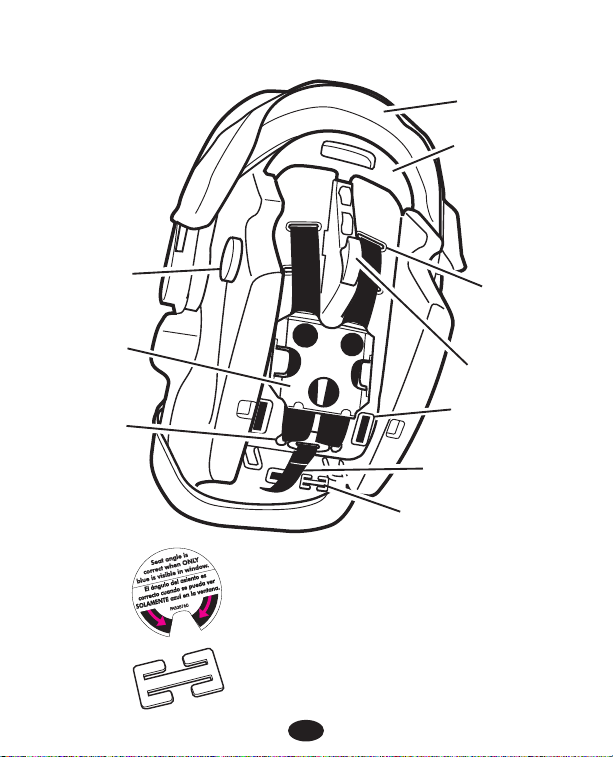

REAR VIEW: 5-POINT HARNESS
Canopy
Harness slot
Release handle
Attachment
latch
Level
indicator*
Owner’s manual
pocket
Harness adjustment
strap
Metal
junction
plate
Locking clip**
Waist strap
anchor buckle
The level indicator is attached to the side of
the infant restraint, and indicates whether or
not the infant restraint is properly reclined.
The locking clip is stored on the bottom of
the infant restraint. You will need to use it
with certain types of vehicle seat belts.
**Locking
Clip
*Level
Indicator
