Graco Car Seat Manuel utilisateur

Infant

Restraint/

Carrier

Owner’s Manual

READ THIS MANUAL

KEEP INSTRUCTIONS

FOR FUTURE USE.

Do not install or use

this infant restraint until you

read and understand the

instructions in this manual.

FAILURE TO PROPERLY

USE THIS INFANT

RESTRAINT INCREASES

THE RISK OF SERIOUS

INJURY OR DEATH

IN A SUDDEN STOP

OR CRASH.

1.0 Warning to Parents and Other Users . . . . . . . . . . . . . . . . .4-5

2.0 Registration Information . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

2.1 Register Your Infant Restraint . . . . . . . . . . . . . . . . . . . . . .6

2.2 Recall Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.3 If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3.0 Features and Components . . . . . . . . . . . . . . . . . . . . . . . .8-12

3.1 Removing andAttaching Base . . . . . . . . . . . . . . . . . . . . .10

3.2 Adjusting Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

3.3 Attaching Canopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.4 Head Support (on certain models) . . . . . . . . . . . . . . . . . .12

4.0 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . .13-17

4.1 Warnings for Use as Infant Restraint . . . . . . . . . . . . . . . .13

4.2 Warning for Use With a Stroller . . . . . . . . . . . . . . . . . . . .15

4.3 Additional Warnings for Use as Carrier . . . . . . . . . . . . . .16

4.4 Height and Weight Limits . . . . . . . . . . . . . . . . . . . . . . . .17

5.0 Infant Restraint Location . . . . . . . . . . . . . . . . . . . . . . . .18-23

5.1 Vehicle Seat Requirements . . . . . . . . . . . . . . . . . . . . . . .18

5.2 Vehicle Seat Belt Requirements . . . . . . . . . . . . . . . . . . .19

5.2.1 UNSAFE Vehicle Belt Systems . . . . . . . . . . . . . . . .20

5.2.2 SAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . . .21

5.3 LATCH Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

6.0 Using Infant Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-34

6.1 Positioning Harness Straps . . . . . . . . . . . . . . . . . . . . . . .24

6.2 Securing Child in Infant Restraint . . . . . . . . . . . . . . . . . .26

6.3 Installing the Infant Restraint/Base Using Vehicle Belt . . .28

6.4 Using LATCH to Install Base . . . . . . . . . . . . . . . . . . . . . .31

6.5 Reclining Infant Restraint/Base . . . . . . . . . . . . . . . . . . . .32

7.0 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . .35-37

7.1 Airplane Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

7.2 Storing LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

7.3 Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . .36

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

No infant restraint can guarantee protection from injury in every

situation. However, proper use of this infant restraint reduces the

risk of serious injury or death to your child.

Failure to properly use this infant restraint increases the risk of

serious injury or death in a sharp turn, sudden stop or crash.

Your child’s safety depends on you installing and using this

infant restraint correctly.

Even if using this infant restraint seems easy to figure out on your

own, it is very important to READ THE OWNER’S MANUAL.

The manual is located in the back pocket of the infant restraint.

You must also read your vehicle owner’s manual.

Your child’s safety depends on:

1. Choosing a suitable location in your vehicle. Some seating

positions, such as those equipped with air bags, may not be

safe locations for this infant restraint.

2. Inserting the harness straps in the proper slots for your child.

3. Properly securing your child in the infant restraint.

1.0 Warnings to Parents and

Other Users

4. Placing infant restraint/base in a rear-facing position.

5. Properly routing the vehicle seat belt or LATCH.

6. Properly reclining the infant restraint.

7. Properly securing the infant restraint in the vehicle using a

seat belt designed to restrain an infant restraint or by using

LATCH. Many seat belts are NOT safe to use with infant

restraints, even though they can easily be threaded through

the infant restraint!

Model Number:

Manufactured in:

Purchase Date:

2.1 Register Your Infant Restraint

Please fill in the above information. The model and serial numbers

can be found on a label underneath your infant restraint. Fill out the

prepaid registration postcard attached to the seat cover and mail

it today.

Child restraints could be recalled for safety reasons. You must

address and model/serial numbers to:

Graco Children’s Products Inc.

150 Oaklands Blvd.

Exton, PA19341

or call 1-800-345-4109

or www.gracobaby.com

• Call the U.S. Government’s Auto Safety Hotline

at 1-800-424-9393 (202-366-0123 in D.C. area)

• www.nhtsa.dot.gov

• Graco: 1-800-345-4109 or www.gracobaby.com

2.2 Recall Information

2.0 Registration Information

2.3 If You Need Help

In the U.S.A. or Canada, please contact our Customer Service

Department with any questions you may have concerning parts, use,

or maintenance. When you contact us, please have your product’s

model and serial numbers ready so that we may help you

efficiently. These numbers can be found on a sticker on the

underside of your infant restraint.

USA: 1-800-345-4109 or www.gracobaby.com

Canada: 1-800-667-8184 Montreal: 514-344-3533

3.0 Features and Components

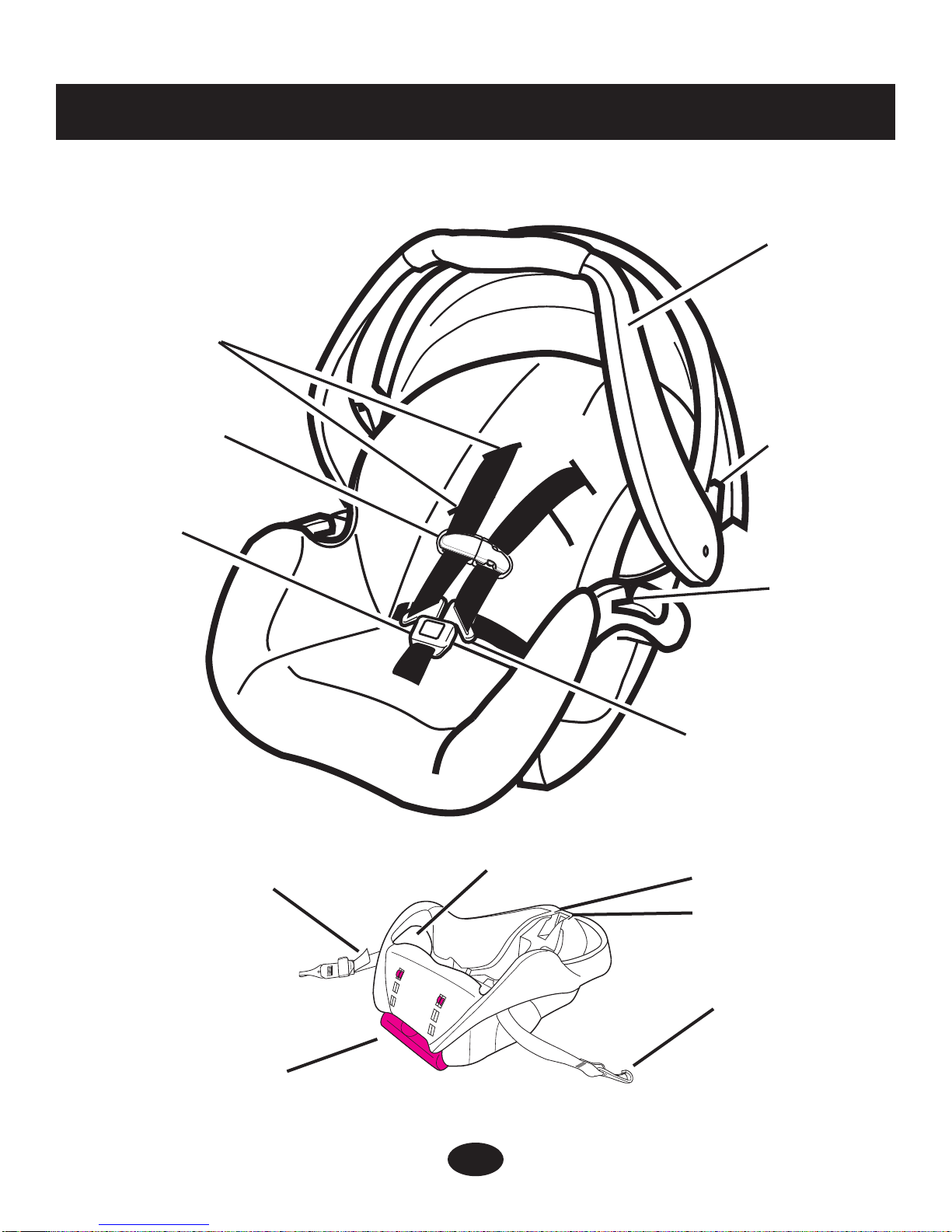

FRONT VIEW

Handle

Harness

slots

Vehicle

belt

hook

Handle

adjustment

button

Harness

clip

Harness

buckle

Harness

buckle tongues

Vehicle belt/LATCH path

Base

Adjustable Foot

LATCH Connector

Adjustment Belt LATCH

Storage

Bars

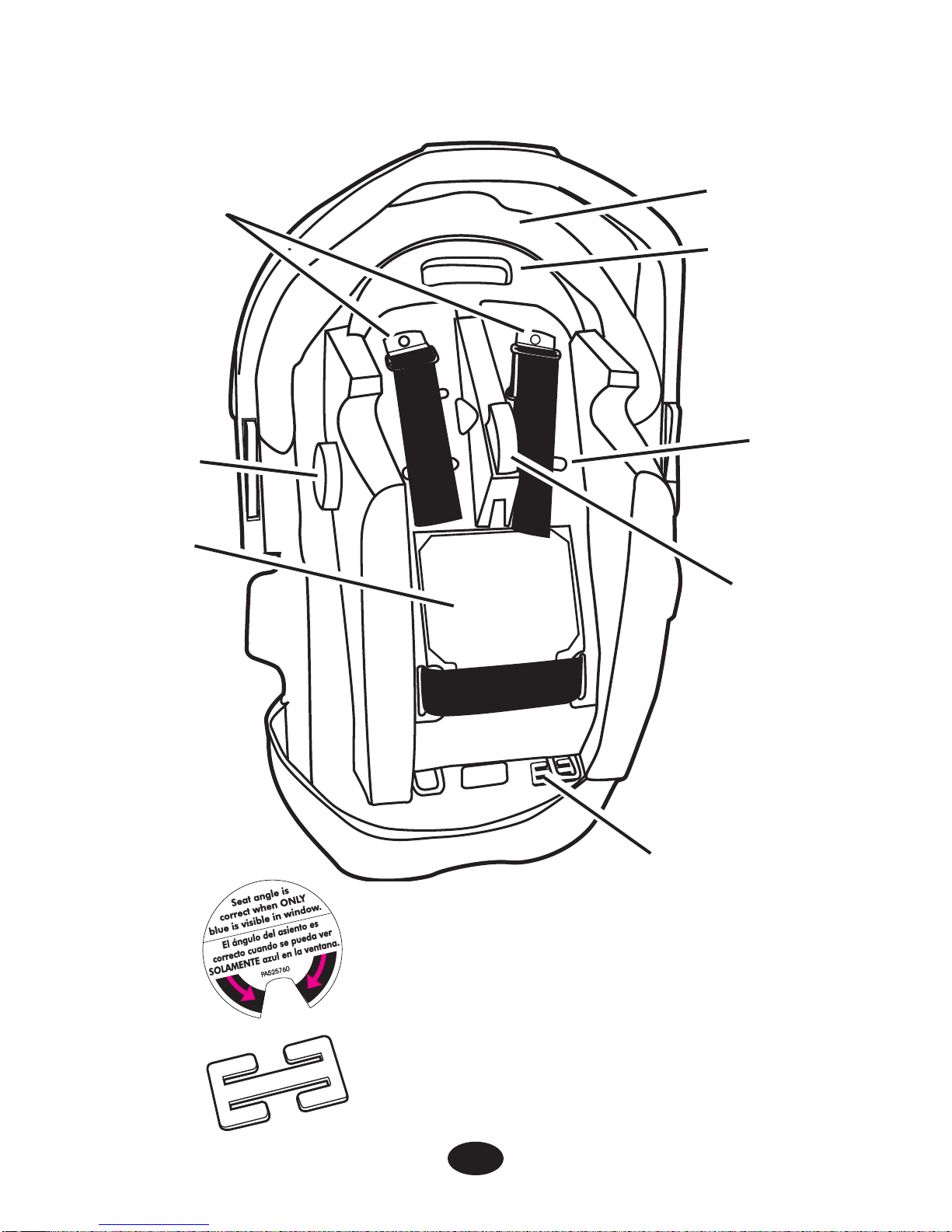

REAR VIEW

Canopy

Harness slot

Release handle

Attachment

latch

Level

indicator*

Owner’s manual

pocket

Harness

tightener

Locking clip**

The level indicator is attached to the side of

the infant restraint, and indicates whether or

not the infant restraint is properly reclined.

The locking clip is stored on the bottom of

the infant restraint. You will need to use it

with certain types of vehicle seat belts.

**Locking

Clip

*Level

Indicator

3.1 Removing and Attaching Base

3.2 Adjusting Handle

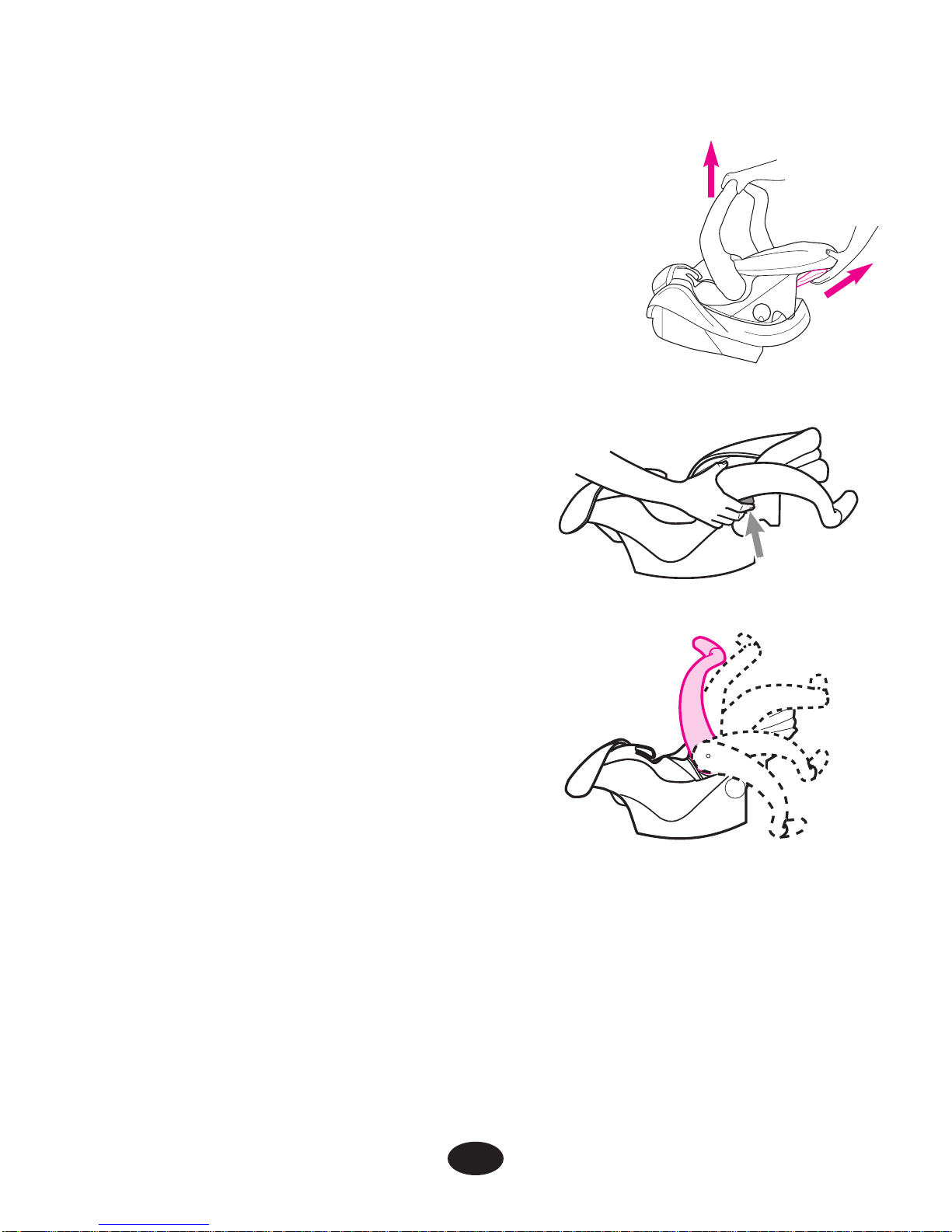

To remove infant restraint, squeeze handle at

back of seat and lift infant restraint from base

as shown .

To put infant restraint in base, push infant

restraint down until it clicks into base. Pull up

on infant restraint to be sure it is latched

firmly into base.



1. Press handle adjustment buttons on

both sides of handle .

2. Rotate handle until it clicks into any

of the 5 positions:

Position A: MUST be used

when carrying by handle,

Position B,C,D: are convenience

positions,

Position E: is the sitting position,

NEVER use positions Bor C

in the vehicle.

BOTH handle adjustment

buttons must pop out to lock

handle in place .

3. Push and pull on the handle

to be sure it is locked firmly

in position.





Carrying

Sitting

ABC
