Gofanco HD20Ext-Cas Manuel utilisateur

18G HDMI 2.0 CAT Extender

with Cascade - 70m

User's Guide

G4-0109A

P/N: HD20Ext-Cas & HD20Ext-RX

Thank you for purchasing from gofanco. Our

products aim to meet all your connectivity needs

wherever you go. For optimum performance

and safety, please read the instructions carefully

and keep this User’s Guide for future reference.

If you need more information about our

products, please visit www.gofanco.com. For

technical support, please email us at

[email protected]. For drivers/manuals

download, please go to www.gofanco.com/

downloads.

Important Safety Notices

Please read safety instructions carefully before

installation and operation.

• Please pay close attention to all warnings

and hints for this device

• Do not expose this unit to rain, heavy

moisture, or liquid

• Do not repair the device or open the

enclosure without professional guidance

to avoid electric shocks. Doing so may void

your warranty

• Keep the product in a well-ventilated

location to avoid damage from overheating

• Shut off power and make sure environment

is safe before installation

• Do not plug the HDMI cables and IR cables

in/out when the device is in use to avoid

cable damage. Make sure they are plugged

into the correct ports

• Usetheincluded poweradapteronly. Make

sure the specification matches if using 3rd-

party DC power adapters

Introduction

The 18G HDMI 2.0 CAT Extender with Cascade

- 70m extends UHD 4K HDR HDMI signals up to

70 meters over a single CAT6 cable.

Features

• Extends HDMI transmissions up to 70m

(230ft) at 4K and 1080p

• Can cascade up to 10 receivers (RX), part#

HD20Ext-RX, sold separately

• Supports UHD 4K@60Hz YUV 4:4:4, HDR

with 18Gbps bandwidth

• HDMI 2.0 and HDCP 2.2 compliant

• HDMI loop-out equipped on the TX,

bi-directional IR

• Supports 5.1ch digital audio and audio

extraction to Toslink

• Near zero latency

• Lightning/Surge/ESD protection

PackageContents

• 18G HDMI 2.0 CAT Extender with Cascade

- 70m (1 Transmitter & 1 Receiver)

• 1x IR Blaster cable and 1x IR Receiver cable

• 2x Power adapter (5VDC/2A)

• Surface mount accessories

• User's guide

Installation Requirements

1. HDMI source device (computer, DVD

player, XBOX, PS3, etc)

2. HDMI display device (SDTV/Monitor,

HDTV/Monitor, projector, etc.)

3. UTP/STP CAT6 cable following

IEEE-T568B wiring standard

4. Additional RXs for cascading: 18G HDMI

2.0 CAT Receiver, part# HD20Ext-RX, sold

separately

Product Layout

Transmitter TX Front and Rear Panel

1. Reset Button: Press to reset the TX

2. RJ45 Out: Connects to the Receiver's RJ45 In

using a CAT cable

3. Power/Signal LED: Blinks when powered

on with no HDMI signal detected, and solid

on when HDMI signal is detected

4. PowerJack:Connectstotheincludedpower

adapter

5. HDMI Out: Connects to an HDMI display

for local monitoring of the remote display

6. HDMI In: Connects to your HDMI source

7. IR In: Connects to the included IR Receiver

cable to control the remote display device

from the HDMI source location

8. IR Out: Connects to the included IR Blaster

cable to control the HDMI source device

from the remote display location

Receiver RX Front and Rear Panel

1. Reset Button: Press to reset the RX

2. Audio Switch: Extracts HDMI/ARC audio

to Optical Out:

• S/PDIF: Extracts audio from the HDMI

source (from TX) to S/PDIF Toslink output

• ARC: Extracts audio from the display

(RX's HDMI output) to S/PDIF Toslink

output

3. RJ45 In: Connects to the Transmitter's RJ45

Out using a CAT cable. When cascading,

connects to the former receiver's RJ45 Out

using a CAT cable.

4. Power/Signal LED: Blinks when powered

on with no HDMI signal detected, and solid

on when HDMI signal is detected.

5. PowerJack:Connects to the includedpower

adapter.

6. RJ45 Out: Optional: When cascading

receivers, connects to the latter receiver's

RJ45 In using a CAT cable

7. Optical Out: Connects to your speakers or

AVR

8. HDMI Out: Connects to an HDMI display

9. IR In: Connects to the included IR Receiver

cable to control the remote display device

from the HDMI source location

10. IR Out: Connects to the included IR Blaster

cable to control the HDMI source device

from the remote display location

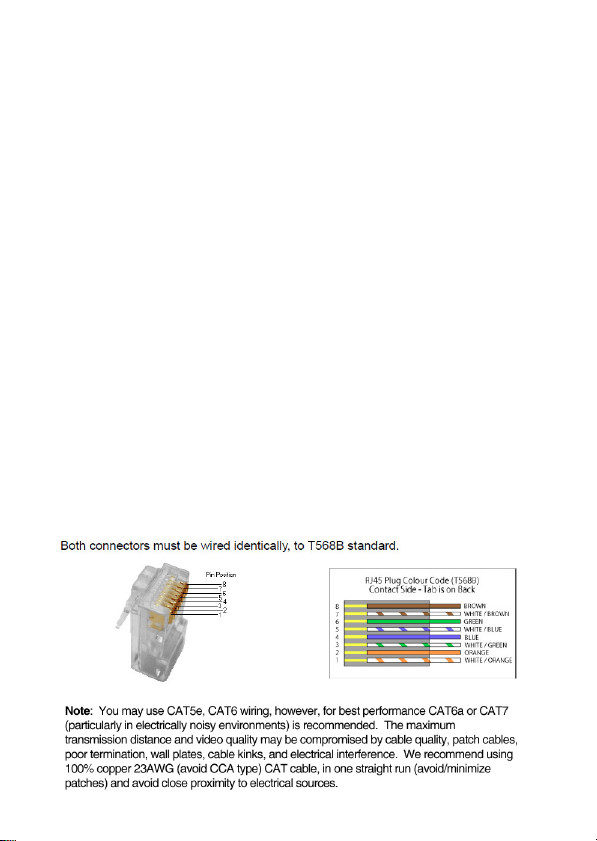

CAT Cable Wiring

We suggest both RJ45 connectors be wired

identically using T568B wiring standard for the

best performance and compatibility.

Hardware Installation

1. Power off all devices including your HDMI

source and HDMI display(s).

2. Connect your HDMI source device to the

Transmitter's HDMI In connector with an

HDMI cable (HDMI cable not included).

3. Optional: Connect your HDMI display to

theTransmitter's HDMI Out connectorwith

an HDMI cable (HDMI cable not included)

for local monitoring of the HDMI signal.

4. Optional: Connect the IR cable to the

Transmitter'sIR port. See theIR Application

on page 9 for proper cable connection.

5. PlugaCAT6cable betweenthe Transmitter's

RJ45Out andReceiver'sRJ45 In. Ifcascading

RXs is required, connect the RJ45 Out of the

former RX to the RJ45 In of the latter RX.

6. Connect your HDMI display to the

Receiver's HDMI Out connector with an

HDMI cable (HDMI cable not included).

7. Optional: Connect the IR cable to the

Receiver's IR port. See the IR Application

on page 9 for proper cable connection.

8. Plug the included power adapters into the

TX's and RX's power jack, then plug the

poweradapters into reliable powersources.

9. Power on all connected devices.

10. The HDMI extender is ready for use.

IR Application

Control HDMI source device from RX location

1. Connect the IR Blaster cable to the TX's IR

Out port. Face the eye towards your HDMI

source device's IR window.

2. Connect the IR Receiver cable to the RX's IR

In port.

Control display device from TX location

1. Connect the IR Blaster cable to the RX's IR

Outport.Face the eye towards your Display

device's IR window.

2. Connect the IR Receiver cable to the TX's IR

In port.

Application Diagram

1-to-1 Connection

1-to-Many Connection
