INSTRUCTION MANUAL

RGBLED

RGB LED Light Stick

Made in China



:2

:0755-29609320(8062):0755-25723423:godox@godox.com

godox.com

Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District,

Shenzhen, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423

E-mail: [email protected]

GODOX Photo Equipment Co., Ltd.

705-LC50R0-03





QCPASS

Foreword

Warning

Thank you for purchasing this Godox Product!

This RGB LED Light Stick LC500R is a continuous light with high light brightness,

wireless adjustment and multiple modes. Suitable for almost all shooting occasions

e.g. live, camping, make up, portrait shooting, make up, video, wedding, children

photography, etc. It’s portable and easy to be operated.

Features:

● Freely switch LED bicolor mode, colorful light mode and 39 situational special effects

modes

● Easy to adjust color temperature, light brightness, hue and color saturation

● Blink and change colors with the rhythm of music

● With a display to clearly show the parameters

● With easy operation and wide application

Always keep this product dry. Do not use in rain or in damp conditions.

Do not disassemble. Should repairs become necessary, this product must be

sent to an authorized maintenance center.

Keep out of reach of children.

As this product do not have waterproof function, please take measures of

waterproof in rainy or damp environment.

Do not use the flash unit in the presence of flammable gases, chemicals and

other similar materials. In certain circumstance, these materials may be

sensitive to the strong light emitting from this flash unit and fire or

electromagnetic interference may result.

As this product has built-in lithium battery, do not disassemble, impact,

squeeze or put it into fire. If serious bulge occurs, please do not use. Do not

use or store the product if the ambient temperature reads over 50°C. Please

charge the product with specialized charger and correctly operate it within the

defined voltage and working temperate according to the instruction manual.

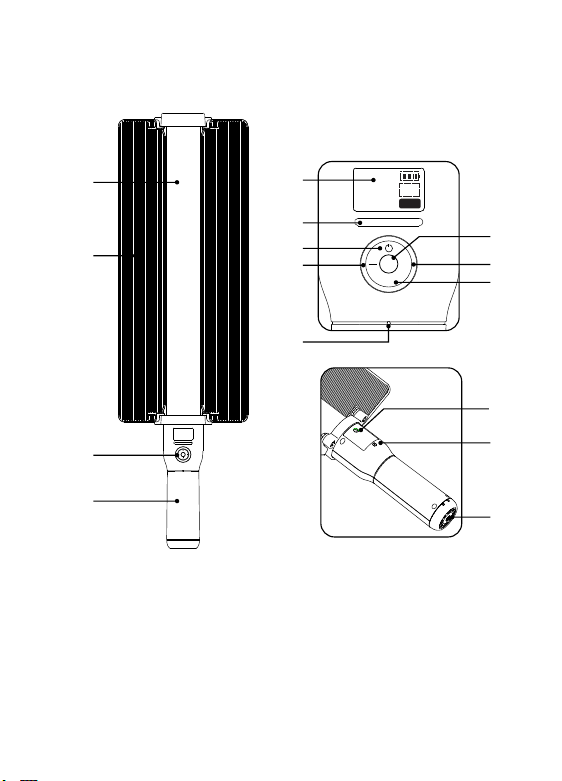

Parts

● Body

01. LED Beads

02. Handle

03. DC Power Jack

04. Bracket Mounting Hole

05. Reset Button

GR FN

MOD

DIM

S:99

>H:354°100

HSI

06. Reflector

07. Control Panel

08. Power Switch

09. CH/GR Button

10. MOD Button

①

②

③

④

⑤

⑥

⑦



⑧

⑨



⑩

11. FN Multifunctional

Select Dial

12. DIM Button

13. Color Gamut

14. MIC Hole

15. LCD Panel





- 11 - - 12 -

Foreword

Warning

Thank you for purchasing this Godox Product!

This RGB LED Light Stick LC500R is a continuous light with high light brightness,

wireless adjustment and multiple modes. Suitable for almost all shooting occasions

e.g. live, camping, make up, portrait shooting, make up, video, wedding, children

photography, etc. It’s portable and easy to be operated.

Features:

● Freely switch LED bicolor mode, colorful light mode and 39 situational special effects

modes

● Easy to adjust color temperature, light brightness, hue and color saturation

● Blink and change colors with the rhythm of music

● With a display to clearly show the parameters

● With easy operation and wide application

Always keep this product dry. Do not use in rain or in damp conditions.

Do not disassemble. Should repairs become necessary, this product must be

sent to an authorized maintenance center.

Keep out of reach of children.

As this product do not have waterproof function, please take measures of

waterproof in rainy or damp environment.

Do not use the flash unit in the presence of flammable gases, chemicals and

other similar materials. In certain circumstance, these materials may be

sensitive to the strong light emitting from this flash unit and fire or

electromagnetic interference may result.

As this product has built-in lithium battery, do not disassemble, impact,

squeeze or put it into fire. If serious bulge occurs, please do not use. Do not

use or store the product if the ambient temperature reads over 50°C. Please

charge the product with specialized charger and correctly operate it within the

defined voltage and working temperate according to the instruction manual.

Parts

● Body

01. LED Beads

02. Handle

03. DC Power Jack

04. Bracket Mounting Hole

05. Reset Button

GR FN

MOD

DIM

S:99

>H:354°100

HSI

06. Reflector

07. Control Panel

08. Power Switch

09. CH/GR Button

10. MOD Button

①

②

③

④

⑤

⑥

⑦



⑧

⑨



⑩

11. FN Multifunctional

Select Dial

12. DIM Button

13. Color Gamut

14. MIC Hole

15. LCD Panel





- 11 - - 12 -

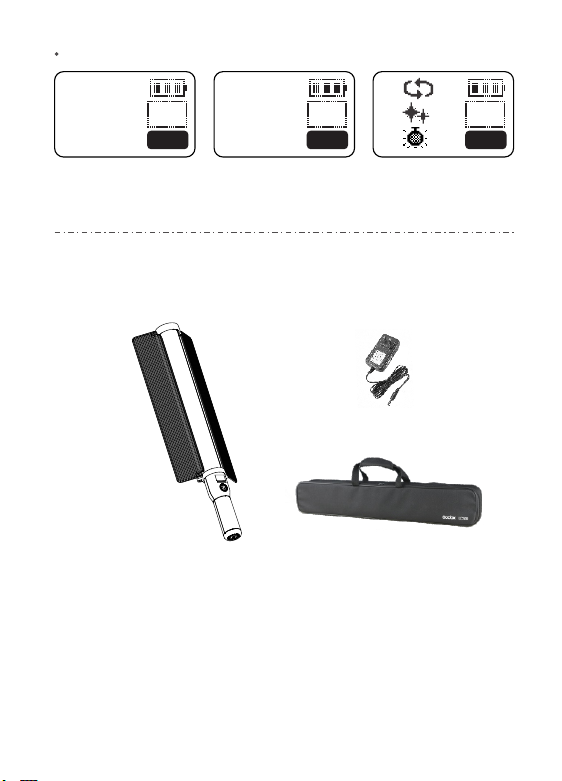

LCD Panel

CCT: Bicolor Modes HSI: Colorful Light

Modes

FX: Situational

Special Effects Modes

>1: I

I100

3: I

S:99

>H:354 100

HSI

>2500K 100

CCT

Body *1

Included Items

1. Power Supply

With built-in Li-polymer battery which can offer about 1.5 hours’lighting in

100% brightness once got fully charged.

2. Charge

The whole charging takes about 2.5 hours. The charge indicator turns to red

in charging while green once got fully charged.

Battery Management

Attaching Reflector

Installation: Choose the side which

needs reflector and adjust the reflector’s

direction. Match the ridge in the

reflector’s handle ring with the groove on

the handle(as shown) and slip the

reflector over the LED ice light and push

in. Extend the reflector for shooting.

Detachment: Hold the handle and push

the reflector from the bottom up to

detach.

- 13 - - 14 -

Portable Bag *1

Charger(16.8V/1.2A) *1 Reflector *1

LCD Panel

CCT: Bicolor Modes HSI: Colorful Light

Modes

FX: Situational

Special Effects Modes

>1: I

I100

3: I

S:99

>H:354 100

HSI

>2500K 100

CCT

Body *1

Included Items

1. Power Supply

With built-in Li-polymer battery which can offer about 1.5 hours’lighting in

100% brightness once got fully charged.

2. Charge

The whole charging takes about 2.5 hours. The charge indicator turns to red

in charging while green once got fully charged.

Battery Management

Attaching Reflector

Installation: Choose the side which

needs reflector and adjust the reflector’s

direction. Match the ridge in the

reflector’s handle ring with the groove on

the handle(as shown) and slip the

reflector over the LED ice light and push

in. Extend the reflector for shooting.

Detachment: Hold the handle and push

the reflector from the bottom up to

detach.

- 13 - - 14 -

Portable Bag *1

Charger(16.8V/1.2A) *1 Reflector *1

Operation

S:99

>H:354°100

HSI

GR FN

MOD

DIM

GR FN

MOD

DIM

>1: I

I100

3: I

>2500K 100

CCT

S:99

>H:354°100

HSI

GR FN

MOD

DIM

GR FN

MOD

DIM

ID:99

GR:A

>CH:32

GR FN

MOD

DIM

GR FN

MOD

DIM

ID:99

>GR:F

CH:32

GR FN

MOD

DIM

GR FN

MOD

DIM

>ID:99

GR:F

CH:32

GR FN

MOD

DIM

GR FN

MOD

DIM

ID:99

GR:F

CH:32

>ON

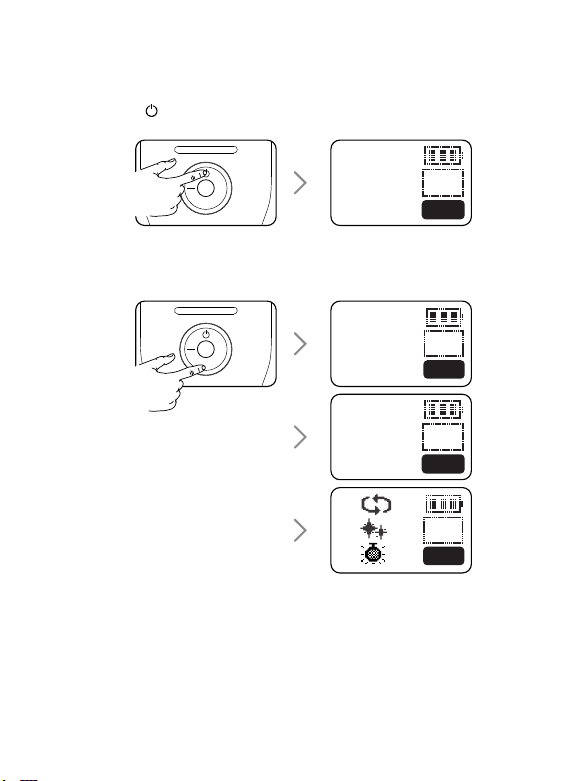

1. Setting

1.1 Power On/Off

Long press the to power on/off the LED light and the current information will

be displayed on the LCD panel.

1.2 Mode Selection: Bicolor Mode/Colorful Mode/Situational Special Effects

Mode. Press MOD button to switch different modes: CCT displayed on the

screen means bicolor mode, HIS displayed on the screen means colorful mode

and FX means situational special effects mode.

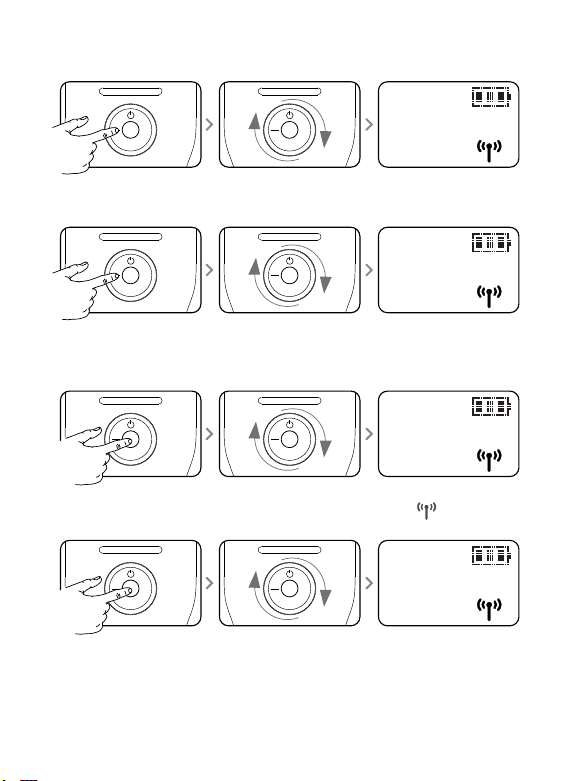

2. Wireless Remote Control

With 2.4G wireless system, this product has remote grouping and control

function. Up to 6 groups of LED light stick can be controlled. 16 channels are

available with strong anti-interference capability.

Please set the channels and groups of LED ice light to the same as those of

remote control before usage.

Channel/Group/ID Setting: Press CH/GR to enter the setting interface.

2.1 Channel setting: press the FN button to choose CH and turn the select

dial to choose channel value from 1 to 32.

2.2 Group setting: press the FN button to choose GR and turn the select dial

to choose group value from A to F.

2.3 ID setting: press the FN button to choose ID and turn the select dial to

choose ID from 1 to 99.

2.4 Turn on/off the wireless: press the FN button to choose and turn the

select dial to turn on or off the wireless.

- 15 - - 16 -

Note: Remote control purchased separately

Operation

S:99

>H:354°100

HSI

GR FN

MOD

DIM

GR FN

MOD

DIM

>1: I

I100

3: I

>2500K 100

CCT

S:99

>H:354°100

HSI

GR FN

MOD

DIM

GR FN

MOD

DIM

ID:99

GR:A

>CH:32

GR FN

MOD

DIM

GR FN

MOD

DIM

ID:99

>GR:F

CH:32

GR FN

MOD

DIM

GR FN

MOD

DIM

>ID:99

GR:F

CH:32

GR FN

MOD

DIM

GR FN

MOD

DIM

ID:99

GR:F

CH:32

>ON

1. Setting

1.1 Power On/Off

Long press the to power on/off the LED light and the current information will

be displayed on the LCD panel.

1.2 Mode Selection: Bicolor Mode/Colorful Mode/Situational Special Effects

Mode. Press MOD button to switch different modes: CCT displayed on the

screen means bicolor mode, HIS displayed on the screen means colorful mode

and FX means situational special effects mode.

2. Wireless Remote Control

With 2.4G wireless system, this product has remote grouping and control

function. Up to 6 groups of LED light stick can be controlled. 16 channels are

available with strong anti-interference capability.

Please set the channels and groups of LED ice light to the same as those of

remote control before usage.

Channel/Group/ID Setting: Press CH/GR to enter the setting interface.

2.1 Channel setting: press the FN button to choose CH and turn the select

dial to choose channel value from 1 to 32.

2.2 Group setting: press the FN button to choose GR and turn the select dial

to choose group value from A to F.

2.3 ID setting: press the FN button to choose ID and turn the select dial to

choose ID from 1 to 99.

2.4 Turn on/off the wireless: press the FN button to choose and turn the

select dial to turn on or off the wireless.

- 15 - - 16 -

Note: Remote control purchased separately

4500K Color Temperature

Brightness

GR FN

MOD

DIM

>2500K 100

CCT

>8500K 100

CCT

GR FN

MOD

DIM

GR FN

MOD

DIM

8500K 0

CCT

GR FN

MOD

DIM

GR FN

MOD

DIM

S:99

>H:360°100

HSI

GR FN

MOD

DIM

GR FN

MOD

DIM

>S:99

H:360°100

HSI

GR FN

MOD

DIM

GR FN

MOD

DIM

S:99

H:360° 0

HSI

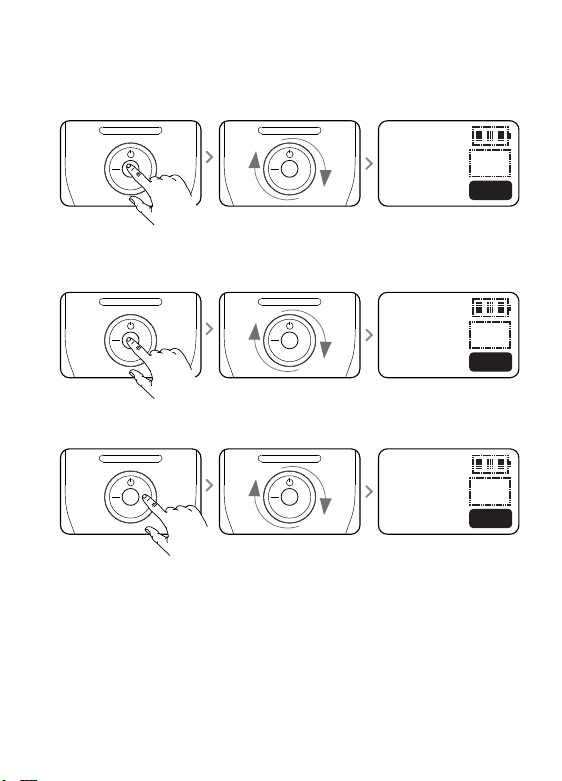

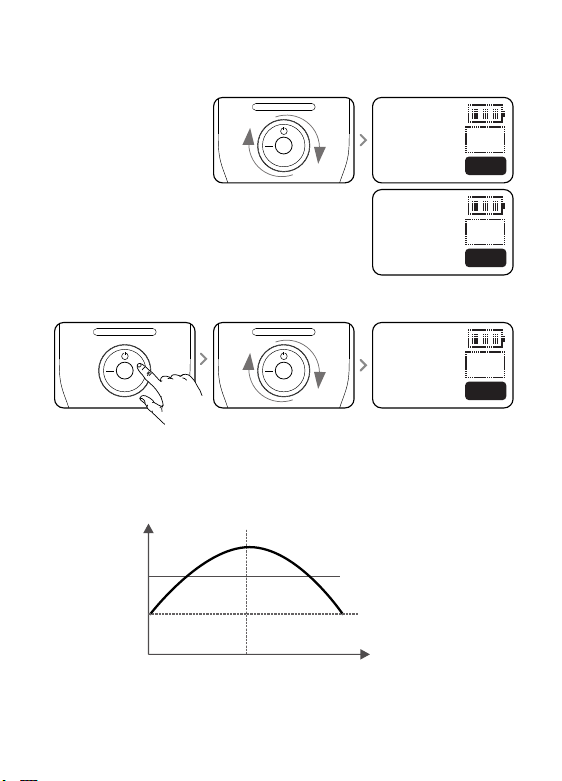

3. Bicolor Mode

3.1 Color temperature adjustment: turn the FN multifunctional select dial to

adjust the color temperature from 2500K to 8500K.

3.2 Light brightness adjustment: press the DIM button and the brightness

value will be blinking. Turn the select dial to adjust the value from 0 to 100%.

3.3 P mode: press the FN button and P will be displayed on the LCD panel,

which means P mode. In P mode, the brightness will be change with the color

temperature and reach the maximum value when color temperature is 4500K.

In general mode, the brightness will keep the same when adjusting the color

temperature.

4. Colorful Mode

4.1 Adjust hue H: press the FN multifunction select dial and H is selected.

Turn the FN multifunctional select dial to adjust the hue from 0 to 360°.

4.2 Adjust saturation S: press the FN multifunction select dial and S is

selected. Turn the FN multifunctional select dial leftwards or rightwards to

adjust the saturation from 0 to 100.

4.3 Adjust light brightness: press the DIM button and turn the select dial to

adjust the brightness from 0~100%.

Press MOD button to enter setting interface.

- 17 - - 18 -

4500K Color Temperature

Brightness

GR FN

MOD

DIM

>2500K 100

CCT

>8500K 100

CCT

GR FN

MOD

DIM

GR FN

MOD

DIM

8500K 0

CCT

GR FN

MOD

DIM

GR FN

MOD

DIM

S:99

>H:360°100

HSI

GR FN

MOD

DIM

GR FN

MOD

DIM

>S:99

H:360°100

HSI

GR FN

MOD

DIM

GR FN

MOD

DIM

S:99

H:360° 0

HSI

3. Bicolor Mode

3.1 Color temperature adjustment: turn the FN multifunctional select dial to

adjust the color temperature from 2500K to 8500K.

3.2 Light brightness adjustment: press the DIM button and the brightness

value will be blinking. Turn the select dial to adjust the value from 0 to 100%.

3.3 P mode: press the FN button and P will be displayed on the LCD panel,

which means P mode. In P mode, the brightness will be change with the color

temperature and reach the maximum value when color temperature is 4500K.

In general mode, the brightness will keep the same when adjusting the color

temperature.

4. Colorful Mode

4.1 Adjust hue H: press the FN multifunction select dial and H is selected.

Turn the FN multifunctional select dial to adjust the hue from 0 to 360°.

4.2 Adjust saturation S: press the FN multifunction select dial and S is

selected. Turn the FN multifunctional select dial leftwards or rightwards to

adjust the saturation from 0 to 100.

4.3 Adjust light brightness: press the DIM button and turn the select dial to

adjust the brightness from 0~100%.

Press MOD button to enter setting interface.

- 17 - - 18 -

* Product design and specifications are subject to change without notice.

Technical Data

Model

Built-in Lithium Battery

Power

Channel

Group

Color Temperature Range

Light Brightness Range

RGB Color Gamut

100% Light Brightness(LUX)

CRI()

TLCI()

Duration(continuous output

in 100% full power)()

Operation Temperature

Dimension (without reflector)

Net Weight (without reflector)

LC500R

14.4V/2600mAh lithium battery

Max. 23W

6（A B C D E F）

2500K～8500K

0%~100%

0～360°

Max. 5800

Approx. 90 minutes

-10~40 °C

616*56*56mm

0.81Kg

>1: I

I100

3: I

GR FN

MOD

DIM

>1: III

I100

3: I

GR FN

MOD

DIM

GR FN

MOD

DIM

GR FN

MOD

DIM

>1: III

I 0

3: I

No. Display Situation Display

Colorful lights recycle

Flash

Laser colorful lights

Lightning

Broken bulb

Candle

Fire

Firework

Police car

Fire truck

Ambulance

Music

SOS

Slow speed

Flash

Birthday party

Discontinuous

Slow speed

Discontinuous

Firewood

Brief

Strong flash

Music I

Medium speed

Press conference

KTV

Frequent

Medium speed

Frequent

Campfire

Continuous

Frequent flash

Music II

Quick speed

Paparazzi

Disco

Sustainable

Quick speed

Sustainable

Fire hazard

Show

Quick flash

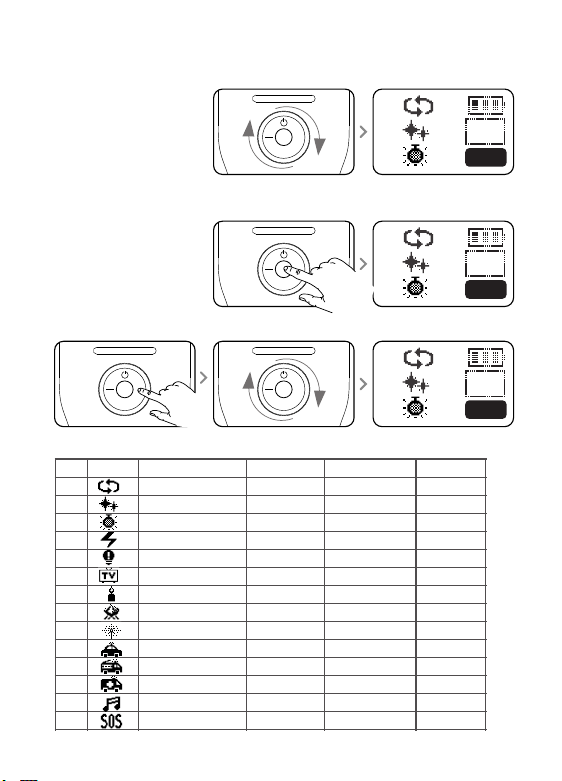

5. FX Situational Special Effects Mode(39 kinds)

5.1 Turn the select dial to choose different special effects modes from 1 to 14.

And the modes will display circularly by turning the select dial.

5.2 After choosing the current mode, press down the FN multifunctional select

dial from I, II and III.And the modes will display circularly when keeping

pressing the FN multifunctional select dial.

5.3 Adjust light brightness: turn the light brightness select dial to adjust from

0 to 100%.

5.4 There’re 39 kinds of situational special effects mode which are divided into

14 categories for your choice.

Display IIIDisplay II

- 19 - - 20 -

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Autres manuels pour LC500R

Table des matières

Autres manuels Godox Équipement d'éclairage

Godox

Godox ES45 KIT Manuel utilisateur

Godox

Godox R1 Manuel utilisateur

Godox

Godox LP75R Manuel utilisateur

Godox

Godox Knowled M300Bi Manuel utilisateur

Godox

Godox TL60 Manuel utilisateur

Godox

Godox LD75R Manuel utilisateur

Godox

Godox SL150II Manuel utilisateur

Godox

Godox DPIII Series Manuel utilisateur

Godox

Godox LC500 Manuel utilisateur

Godox

Godox R2400 Manuel utilisateur

Godox

Godox LED308W II Manuel utilisateur

Godox

Godox AD200 Pro Manuel utilisateur

Godox

Godox LED126 Manuel utilisateur

Godox

Godox VL150 Manuel utilisateur

Godox

Godox QT400IIM Manuel utilisateur

Godox

Godox LEDM150 Manuel utilisateur

Godox

Godox UL150 Manuel utilisateur

Godox

Godox LED1000D II Manuel utilisateur

Godox

Godox RING72 Manuel utilisateur

Godox

Godox Lux Junior Manuel utilisateur

Godox

Godox LEDP120C Manuel utilisateur

Godox

Godox KNOWLED M600 Bi Manuel utilisateur

Godox

Godox ST250 Manuel utilisateur

Godox

Godox SL Series Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
