Godox ML60Bi Manuel utilisateur

Instruction Manual

   

705-ML60BY-00

Made in China



: 2

: 0755-29609320(8062) : 0755-25723423 : godox@godox.com

godox.com

Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District,

Shenzhen, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423 E-mail: [email protected]

GODOX Photo Equipment Co., Ltd.

LED

Bi-color LED Video Light

6500K



QCPASS

6500K

Foreword

Warning

Thank you for purchasing this Godox Product!

This Bi-color LED Video Light ML60Bi is a light that is easy to fill. It has high

brightness, wireless adjustable, and color temperature adjustable functions.

Suitable for almost all shooting occasions e.g. live, camping, make up, portrait

shooting, make up, video, wedding, children photography, etc. It’s portable and easy

to be operated.

Features:

● Freely switch LED bi-color mode and 21 Light effects modes

● 0% to 100% Precisely adjust light brightness

● 16 Groups and 32 channels wireless remote control

● Switch silent mode to light without interference

● Compact and lightweight, easy to be held in hand

● Freely adjust color temperature

● Combined control by smartphone APP/2.4G wireless

Always keep this product dry. Do not use in rain or in damp conditions.

Do not disassemble. Should repairs become necessary, this product must be

sent to an authorized maintenance center.

Keep out of reach of children.

As this product do not have waterproof function, please take measures of

waterproof in rainy or damp environment.

Do not use the flash unit in the presence of flammable gases, chemicals and

other similar materials. In certain circumstance, these materials may be

sensitive to the strong light emitting from this flash unit and fire or

electromagnetic interference may result.

Parts

01. Body

02. Power Switch

03. DC Power Socket

04. Control Panel

05. CCT/SET Select Dial

06. DIM Select Dial

07. Display

08. Thermovent

09. Fixing Socket for Handle

10. Accessory Locking Ring

11. LED Light Beads

12. Radiator

























- 13 - - 14 -

6500K

Foreword

Warning

Thank you for purchasing this Godox Product!

This Bi-color LED Video Light ML60Bi is a light that is easy to fill. It has high

brightness, wireless adjustable, and color temperature adjustable functions.

Suitable for almost all shooting occasions e.g. live, camping, make up, portrait

shooting, make up, video, wedding, children photography, etc. It’s portable and easy

to be operated.

Features:

● Freely switch LED bi-color mode and 21 Light effects modes

● 0% to 100% Precisely adjust light brightness

● 16 Groups and 32 channels wireless remote control

● Switch silent mode to light without interference

● Compact and lightweight, easy to be held in hand

● Freely adjust color temperature

● Combined control by smartphone APP/2.4G wireless

Always keep this product dry. Do not use in rain or in damp conditions.

Do not disassemble. Should repairs become necessary, this product must be

sent to an authorized maintenance center.

Keep out of reach of children.

As this product do not have waterproof function, please take measures of

waterproof in rainy or damp environment.

Do not use the flash unit in the presence of flammable gases, chemicals and

other similar materials. In certain circumstance, these materials may be

sensitive to the strong light emitting from this flash unit and fire or

electromagnetic interference may result.

Parts

01. Body

02. Power Switch

03. DC Power Socket

04. Control Panel

05. CCT/SET Select Dial

06. DIM Select Dial

07. Display

08. Thermovent

09. Fixing Socket for Handle

10. Accessory Locking Ring

11. LED Light Beads

12. Radiator

























- 13 - - 14 -

6500K

















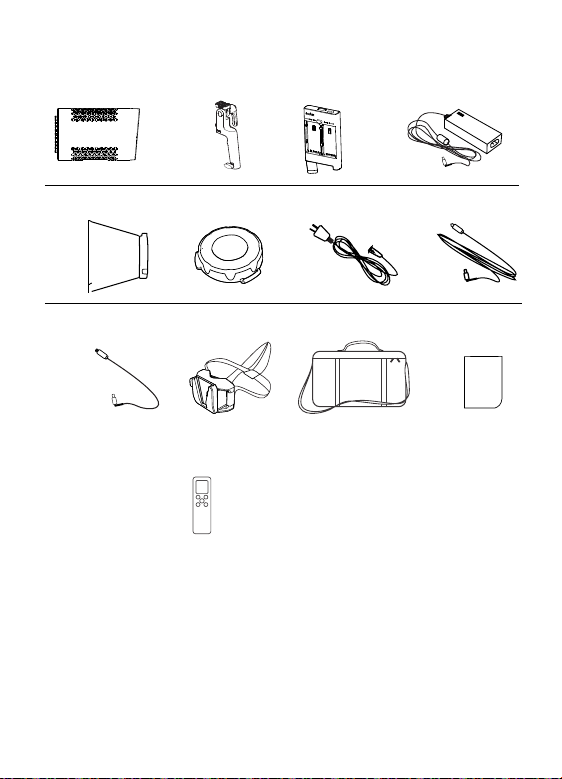

Light Body ML60Bi

Handle *1 Battery Case

BC60 *1

Adapter *1

Reflector *1 Protect Cover *1 5m AC Power Cable

1.5m DC Power Cable

0.2m DC Power Cable *1 Portable Bag *1 Instruction Manual *1

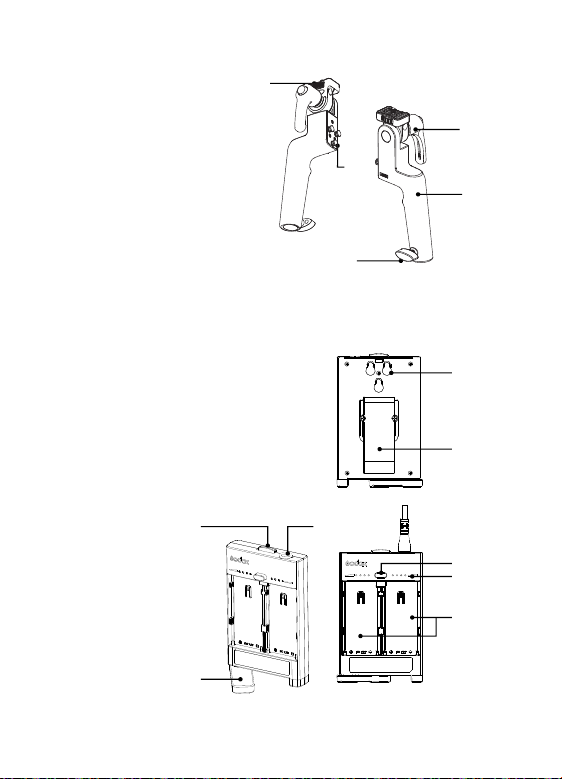

● Handle

13. Handle Bracket

14. Direction Adjusting Ring

15. Fixing Screw for Light Head

16. Fixing Screw for Light Stand

17. Fixing Buckle for Battery Case

● Battery Case

18. Clip

19. Fixing Hole for Battery Case

20. Locking Ring for Battery Case

21. Battery Compartment 1 and 2

22. Battery Level Display Button/

Battery Locking Ring

23. Battery Level Indicator

24. Battery Case Leg

25. Battery Power Output Port

Power Management

1. Power Supply

Adapter power supply: input: 100-240V~50/60Hz 2A, output: 16.8V 4.2A.

External battery power supply: install two NP-F970 batteries into the battery

compartment. Then, use DC power line to connect the battery case with the light

body to achieve power supply.

The battery case can only offer battery discharging instead of charging. When powered

by battery box, two batteries shall be used simultaneously. Please do not use one

battery individually.

What's in the Box

Adapter Holder *1











RC-A6 remote control

Optional Accessory

- 15 - - 16 -

















Light Body ML60Bi

Handle *1 Battery Case

BC60 *1

Adapter *1

Reflector *1 Protect Cover *1 5m AC Power Cable

1.5m DC Power Cable

0.2m DC Power Cable *1 Portable Bag *1 Instruction Manual *1

● Handle

13. Handle Bracket

14. Direction Adjusting Ring

15. Fixing Screw for Light Head

16. Fixing Screw for Light Stand

17. Fixing Buckle for Battery Case

● Battery Case

18. Clip

19. Fixing Hole for Battery Case

20. Locking Ring for Battery Case

21. Battery Compartment 1 and 2

22. Battery Level Display Button/

Battery Locking Ring

23. Battery Level Indicator

24. Battery Case Leg

25. Battery Power Output Port

Power Management

1. Power Supply

Adapter power supply: input: 100-240V~50/60Hz 2A, output: 16.8V 4.2A.

External battery power supply: install two NP-F970 batteries into the battery

compartment. Then, use DC power line to connect the battery case with the light

body to achieve power supply.

The battery case can only offer battery discharging instead of charging. When powered

by battery box, two batteries shall be used simultaneously. Please do not use one

battery individually.

What's in the Box

Adapter Holder *1











RC-A6 remote control

Optional Accessory

- 15 - - 16 -

Operation

1. Power On

Press the power switch to control the on/off of the light, and the OLED display will

show the current information.

3. 2.4G Wireless setting

ML60Bi has 2.4G wireless receiving function, and the remote control RC-A6 can

be purchased separately for wireless remote control. Using 2.4G wireless

technology function, it can control 16 Groups, 32 channels, and 99 wireless IDs at

the same time, with strong anti-interference.

Note: Before use, please set the channel (CH), group (GR) and ID of the remote control

and the LED light to be the same. The LED light can only receive wireless signals when

it is turned on.

Turn on/off 2.4G wireless: press CCT/SET button to enter the menu. Turn the

CCT/SET select dial until the wireless icon is displayed. Then, turn the DIM select

dial to turn on or off 2.4G wireless.

Channel CH Setting: press CCT/SET button to enter the menu. Turn the

CCT/SET select dial until the CH is displayed. Then, turn the DIM select dial to

choose channel from 1 to 32.

Group GR Setting: press CCT/SET button to enter the menu. Turn the CCT/SET

select dial until the GR is displayed. Then, turn the DIM select dial to choose

group from A to E and 0 to 9.

ID setting: press CCT/SET button to enter the menu. Turn the CCT/SET select

dial until the ID is displayed. Then, turn the DIM select dial to choose 99 IDs from

1 to 99.

Special Effects Situation Display

Fx1

FX2

FX3

FX4

FX5

FX6

FX7

Flash

Discontinuous

Slow speed

Intermittently

Wood fire

Short

Press conference

Frequent

Medium speed

Frequent

Bonfire

Continuous

Paparazzi

Continuous

Quick speed

Continuous

Fire

Performance

Display IIIDisplay II

Flash

lightning

Broken bulb

Candle

Fire

Fireworks

2.2 Light effect mode:There are seven types and 21 kinds of light effect modes.

Color temperature mode: the main interface is the color temperature mode

2.1.1 Color temperature adjustment: Rotate the CCT/SET knob on the main

interface to adjust the color temperature (2800~6500K). Normally rotate 100 unit

values, and quickly rotate 500 unit values.

2.1.2 Brightness Adjustment: Select the DIM dial to adjust brightness from

0% to 100%.

Display

Tip: Rotate DIM dial to select light efficiency type, and then press DIM dial to realize

speed switching.

- 17 - - 18 -

2. Mode Selection: Bi-color mode/FX Special Effects Mode

6500K

Operation

1. Power On

Press the power switch to control the on/off of the light, and the OLED display will

show the current information.

3. 2.4G Wireless setting

ML60Bi has 2.4G wireless receiving function, and the remote control RC-A6 can

be purchased separately for wireless remote control. Using 2.4G wireless

technology function, it can control 16 Groups, 32 channels, and 99 wireless IDs at

the same time, with strong anti-interference.

Note: Before use, please set the channel (CH), group (GR) and ID of the remote control

and the LED light to be the same. The LED light can only receive wireless signals when

it is turned on.

Turn on/off 2.4G wireless: press CCT/SET button to enter the menu. Turn the

CCT/SET select dial until the wireless icon is displayed. Then, turn the DIM select

dial to turn on or off 2.4G wireless.

Channel CH Setting: press CCT/SET button to enter the menu. Turn the

CCT/SET select dial until the CH is displayed. Then, turn the DIM select dial to

choose channel from 1 to 32.

Group GR Setting: press CCT/SET button to enter the menu. Turn the CCT/SET

select dial until the GR is displayed. Then, turn the DIM select dial to choose

group from A to E and 0 to 9.

ID setting: press CCT/SET button to enter the menu. Turn the CCT/SET select

dial until the ID is displayed. Then, turn the DIM select dial to choose 99 IDs from

1 to 99.

Special Effects Situation Display

Fx1

FX2

FX3

FX4

FX5

FX6

FX7

Flash

Discontinuous

Slow speed

Intermittently

Wood fire

Short

Press conference

Frequent

Medium speed

Frequent

Bonfire

Continuous

Paparazzi

Continuous

Quick speed

Continuous

Fire

Performance

Display IIIDisplay II

Flash

lightning

Broken bulb

Candle

Fire

Fireworks

2.2 Light effect mode:There are seven types and 21 kinds of light effect modes.

Color temperature mode: the main interface is the color temperature mode

2.1.1 Color temperature adjustment: Rotate the CCT/SET knob on the main

interface to adjust the color temperature (2800~6500K). Normally rotate 100 unit

values, and quickly rotate 500 unit values.

2.1.2 Brightness Adjustment: Select the DIM dial to adjust brightness from

0% to 100%.

Display

Tip: Rotate DIM dial to select light efficiency type, and then press DIM dial to realize

speed switching.

- 17 - - 18 -

2. Mode Selection: Bi-color mode/FX Special Effects Mode

6500K

4. Brightness adjustment: Rotate DIM to adjust brightness, normally

rotate 1 unit value, and quickly rotate 10 unit value.

5. Silent mode:

When is displayed, the silent mode is turned on.

Turn on the silent mode: press CCT/SET button to enter the menu. Then, screw

the DIM select dial to turn on or off the fan. Set it to on to enter non-silent mode

while set it to off to enter silent mode. In silent mode, the brightness adjustment

range is from 0% to 50%.

6.2 Detach battery case: push the battery case’

locking ring and push the battery case upwards

to take it out.

6. Install and detach battery case

6.1 Install battery case: Aim the handle’s

fixing buckles into the battery case’s fixing

holes, pull the batter case downwards until

being tightened.

6.3 Connect the battery case with light head:

Insert one end of the power cord into the battery

box and the other end into the DC socket of the

lamp cap.

6.4 Insert two FP970 batteries, and the LED light

can be put into usage.

Note: Press the DIM select dial to

turn off brightness, and then press

dim to restore the brightness of the

last time it was turned off.

- 19 - - 20 -

6500K

4. Brightness adjustment: Rotate DIM to adjust brightness, normally

rotate 1 unit value, and quickly rotate 10 unit value.

5. Silent mode:

When is displayed, the silent mode is turned on.

Turn on the silent mode: press CCT/SET button to enter the menu. Then, screw

the DIM select dial to turn on or off the fan. Set it to on to enter non-silent mode

while set it to off to enter silent mode. In silent mode, the brightness adjustment

range is from 0% to 50%.

6.2 Detach battery case: push the battery case’

locking ring and push the battery case upwards

to take it out.

6. Install and detach battery case

6.1 Install battery case: Aim the handle’s

fixing buckles into the battery case’s fixing

holes, pull the batter case downwards until

being tightened.

6.3 Connect the battery case with light head:

Insert one end of the power cord into the battery

box and the other end into the DC socket of the

lamp cap.

6.4 Insert two FP970 batteries, and the LED light

can be put into usage.

Note: Press the DIM select dial to

turn off brightness, and then press

dim to restore the brightness of the

last time it was turned off.

- 19 - - 20 -

6500K

7. Low Battery Indication

When the battery is below one grid, the low battery

indicator will pop out.

8. Locking Function

In power on state, long press the CCT/SET button

for 2 seconds and the locking icon will appear on the

display. Long press the button for 2 seconds again to

unlock.

10. Bluetooth Control

10.1 Press the CCT/SET button to enter the menu,

turn the CCT/SET knob to the Bluetooth symbol ,

turn the DIM knob (OFF/Bluetooth MAC code/Reset

cycle selection), select OFF when the Bluetooth is

turned off; When the Bluetooth MAC code (For

example: CE8C) is selected, Bluetooth is turned on

and the Bluetooth symbol appears on the main

interface; select Reset and then press the DIM button

to perform the Bluetooth reset function.

Note: The first mobile device (mobile phone or tablet) can

directly use the APP to control the light body. When

replacing other mobile devices (mobile phones or tablets),

the lamp body can be connected normally after Bluetooth

reset.

10.2 Scan the QR code to download the "Godox Light"

mobile app. (It can be used on both Android

and Apple systems) (QR code diagram) . For specific

operations, please refer to the "Help" manual of the

mobile APP, which contains detailed tutorials.

6500K

CE8C

Note: The locking function only locks the control panel function,

the 2.4G wireless remote control and Bluetooth control are not affected.

9. High Temperature Alarm Function

9.1 When the LED Light bead temperature is too high, the display screen will

display the high temperature alarm symbol .

9.2 When the LED Light temperature returns to normal, the lamp will automatically

release the alarm. At this time, the DIM dial can be rotated to change the

brightness.

9.3 When the temperature sensor failure symbol appears on the display, it

means that the high temperature alarm function of the machine has failed.

- 21 - - 22 -

Errl

Autres manuels pour ML60Bi

Table des matières

Autres manuels Godox Équipement d'éclairage

Godox

Godox TL60 Manuel utilisateur

Godox

Godox LED500 Manuel utilisateur

Godox

Godox FL150S Manuel utilisateur

Godox

Godox SZ200 Bi Manuel utilisateur

Godox

Godox LD75R Manuel utilisateur

Godox

Godox ML60 LED Light Manuel utilisateur

Godox

Godox 2ABYN004 Manuel utilisateur

Godox

Godox Lux Junior Manuel utilisateur

Godox

Godox AD200 Pro Manuel utilisateur

Godox

Godox R2400 Manuel utilisateur

Godox

Godox CL10 Manuel utilisateur

Godox

Godox LEDM150 Manuel utilisateur

Godox

Godox SL150IIBi Manuel utilisateur

Godox

Godox ML-150 II Manuel utilisateur

Godox

Godox LEDP260C Manuel utilisateur

Godox

Godox DS300II Manuel utilisateur

Godox

Godox LP75R Manuel utilisateur

Godox

Godox SZ150R Manuel utilisateur

Godox

Godox KNOWLED M600 Bi Manuel utilisateur

Godox

Godox ML30Bi Manuel utilisateur

Godox

Godox LDX100 Bi Manuel utilisateur

Godox

Godox S30 Manuel utilisateur

Godox

Godox M1 Manuel utilisateur

Godox

Godox SL60II Bi Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
