Godox XT16S Manuel utilisateur

6odox "*

XT16/XT16S

. anual Ii>tBJ:l¥Jlfr

Instruction m I I<1'~3ZXl1~

. English Bilingua

Chinese

For your safety

Before using this product, please read the following safety

instructions carefully in order to ensure your safety and the

proper operation of this product. Keep for future reference.

Failure to observe the following precautions marked by A

could result in product damages. The A icon indicates

warnings that should be read beforehand to avoid any possible

damage or injury.

.A.Do not disassemble or modify.

Failure to observe this precaution could result in electric shock

or product malfunction. Should this product break open due to

falling or other accident, take out the batteries and sent ii to an

authorized maintenance center.

A Keep dry.

Do not handle with wet hands, immerse in water, or expose to

rain. Failure to observe this precaution could cause fire or

electric shock.

.A.Do not use in the presence of flammable gases.

Failure to observe this precaution could result in fire or

explosion.

.A.Keep out of the reach of children.

This product contains small parts that may pose a choking

hazard. Should a child swallows any part of this product,

consult a physician immediately .

.A,.Turn off the trigger immediately should malfunction

occurs.

Should smoke or an unusual smell come from this product,

take out the batteries immediately in case of burning and send

this product to an authorized maintenance center. Continued

use may result in injuries.

Power off (OFF)

02. LCD display

03. Power-Control Group Select Dial (POWER)

04. Channel Select Switch (CHANNEL)

05. Set Button (SET)

06. Buzz Switch (BUZZ)

07. Modeling Lamp Switch (LAMP)

AF-assist Beam Switch

08. Test Button (TEST)

09. <-> Button

10. <+> Button

11.Hot shoe

12. Indicator

13.Antenna

14. Battery Compartment

15.Wireless Control Plug

Transmitter XT16 n-"

01 ~-- --,fft---06

- ~+---12

~ '- -+---07

Lil'-+---08

05--++ ,..,

09--++- -<SII

~ ----- 10

16-

11-------'~ ~ ~

r"""""-l >rr-12

IIUillittt-tt--04

ReceiverXTR1BS

ReceiverXTR16

Channel 9 10 11 12 13 14 15 16

S1 0 1 0 1 0 1 0 1

S2 0 0 1 1 0 0 1 1

S3 0 0 0 0 1 1 1 1

S4 1 1 1 1 1 1 1 1

The relat1onsh1pof XT wireless system and X1 wireless system:

I XT-16

(Code Switch)

~ ~

ITT;

~ ~ ~ ~

l(Displa~!creen) CH01 CH02 CH03 CH04 CH05 CH06 CHO? CHOB

I XT-16

(Code Switch) ~;-~_·

~~-~-

i,f_;r_

~l,_;~ ·~-~

~·-·--

-·-~-·-·

_,_l'L'_'

/i:rj

l(Displi:;1:reen) CH09 CH10 CH11 CH12 CH13 CH14 CH15 CH16

Note: When use X1 series transmitter in combination with XT series

receiver, please set the transmitter to M mode. XTR-16 cannot receive the

parameters that emitted by the transmitter in TTL and M mode.

The transmitter and the receiver must be set to the same

channel for wireless control. Otheiwise, the receiver does not

respond.

Power-Control Group Selection

Both the transmitter and the receiver have a 16-grade Power-

Control Group Select Dial {hereinafter referred to as Dial). With

these 16 grades, you can wireless control at most 16 flash

groups in terms of the following functions: adjusting the power

ratios and turning on/off the buzzer and the modeling lamp or

the AF-assist beam, as well as flash triggering.

Attach the receiver(s) on multiple flashes/one flash and set the

Dial of each receiver to the same grade. This is a flash group.

Then attach the transmitter on the camera's hotshoe or hold it

in hand, and set the Dial to the same grade as that of

receiver(s). After settings, the flashes will be under your

command.

UsingtheTriggerSet

• Wireless Adjusting Flash Settings

The trigger set can wireless adjust the following settings: the

flash power ratio, the on-or-off of the buzzer and the modeling

lamp or the AF-assist beam, as well as the power-ratio display

mode.

1. On the transmitter and the receiver, set the Channel Select

Switch to the same position and the Power-Control Group

Select Dial to the same grade.

2. Insert the receiver into the Wireless Control Port of the flash

unit. Then power the flash on.

3.Adjust the flash settings on your transmitter.

• Wireless Triggering the Flash

1. On the transmitter and the receiver, set the Channel Select

Switch to the same position.

2. Insert the receiver into the Wireless Control Port of the flash

unit. Then power the flash on.

3. Press the Test Button to fire a flash. Alternatively, you can

set the transmitter onto the camera's hot shoe and press the

camera's shutter-release button to fire a flash.

ConnecUDisconnectXTR168

Connection Disconnection Way

Proper Improper

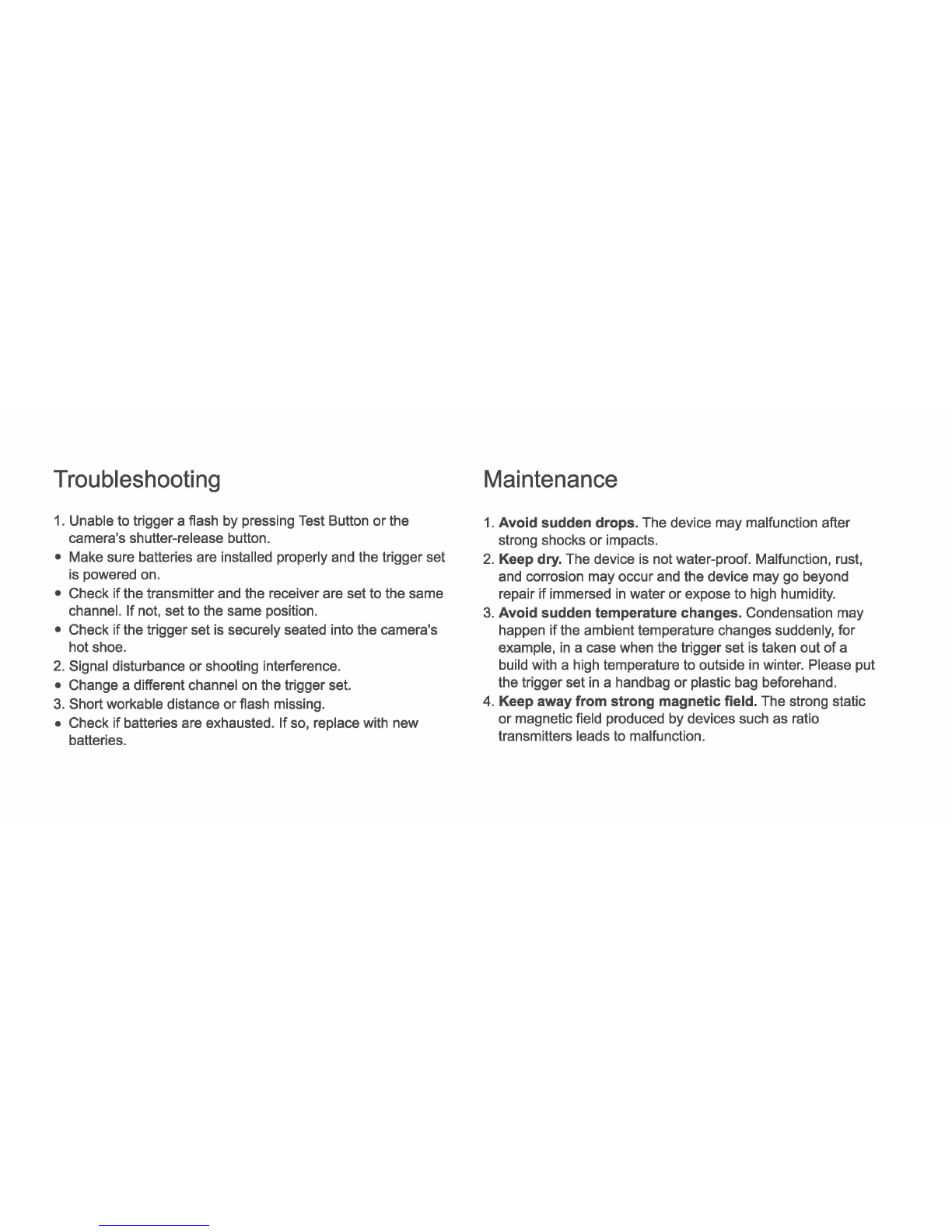

Troubleshooting

1. Unable to trigger a flash by pressing Test Button or the

camera'sshutter-releasebutton.

• Make sure batteries are installed properly and the trigger set

ispoweredon.

• Check if the transmitter and the receiver are set to the same

channel. If not, set to the same position.

• Check if the trigger set is securely seated into the camera's

hot shoe.

2. Signal disturbance or shooting interference.

• Change a different channel on the trigger set.

3. Short workable distance or flash missing.

• Check if batteries are exhausted. If so, replace with new

batteries.

Maintenance

1.Avoid sudden drops. The device may malfunction after

strong shocks or impacts.

2. Keep dry. The device is not water-proof. Malfunction, rust,

and corrosion may occur and the device may go beyond

repair if immersed in water or expose to high humidity.

3. Avoid sudden temperature changes. Condensation may

happen if the ambient temperature changes suddenly, for

example, in a case when the trigger set is taken out of a

build with a high temperature to outside in winter. Please put

the trigger set in a handbag or plastic bag beforehand.

4. Keep away from strong magnetic field. The strong static

or magnetic field produced by devices such as ratio

transmitters leads to malfunction.
