X570 AORUS MASTER

User's Manual

Rev. 1002

12ME-X57AMTR-1002R

For more product details, please visit GIGABYTE's website.

To reduce the impacts on global warming, the packaging materials of this product are

recyclable and reusable. GIGABYTE works with you to protect the environment.

May 10, 2019

Motherboard

X570 AORUS MASTER

May 10, 2019

Motherboard

X570 AORUS MASTER

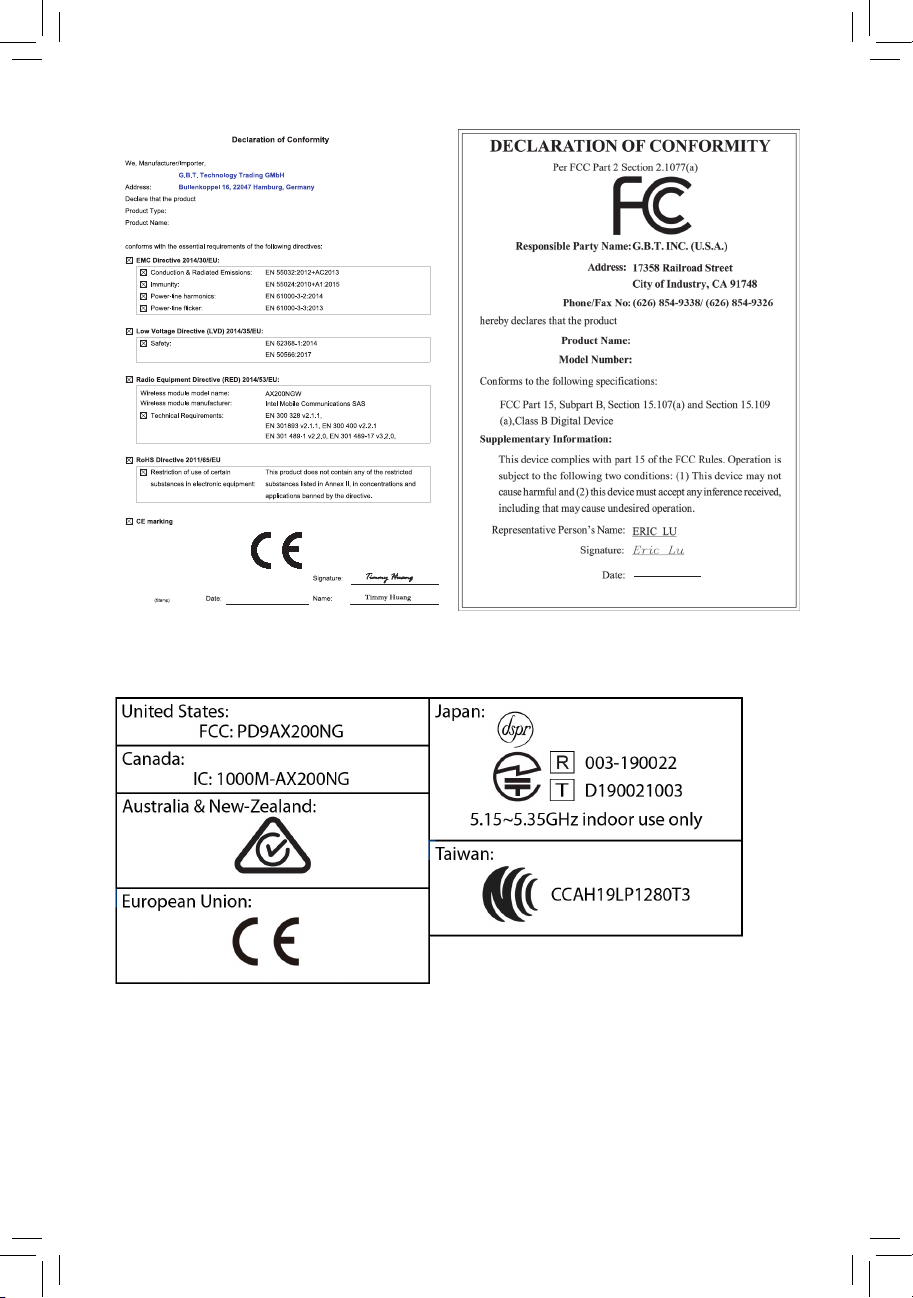

Wireless Module Country Approvals:

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in

any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of docu-

mentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

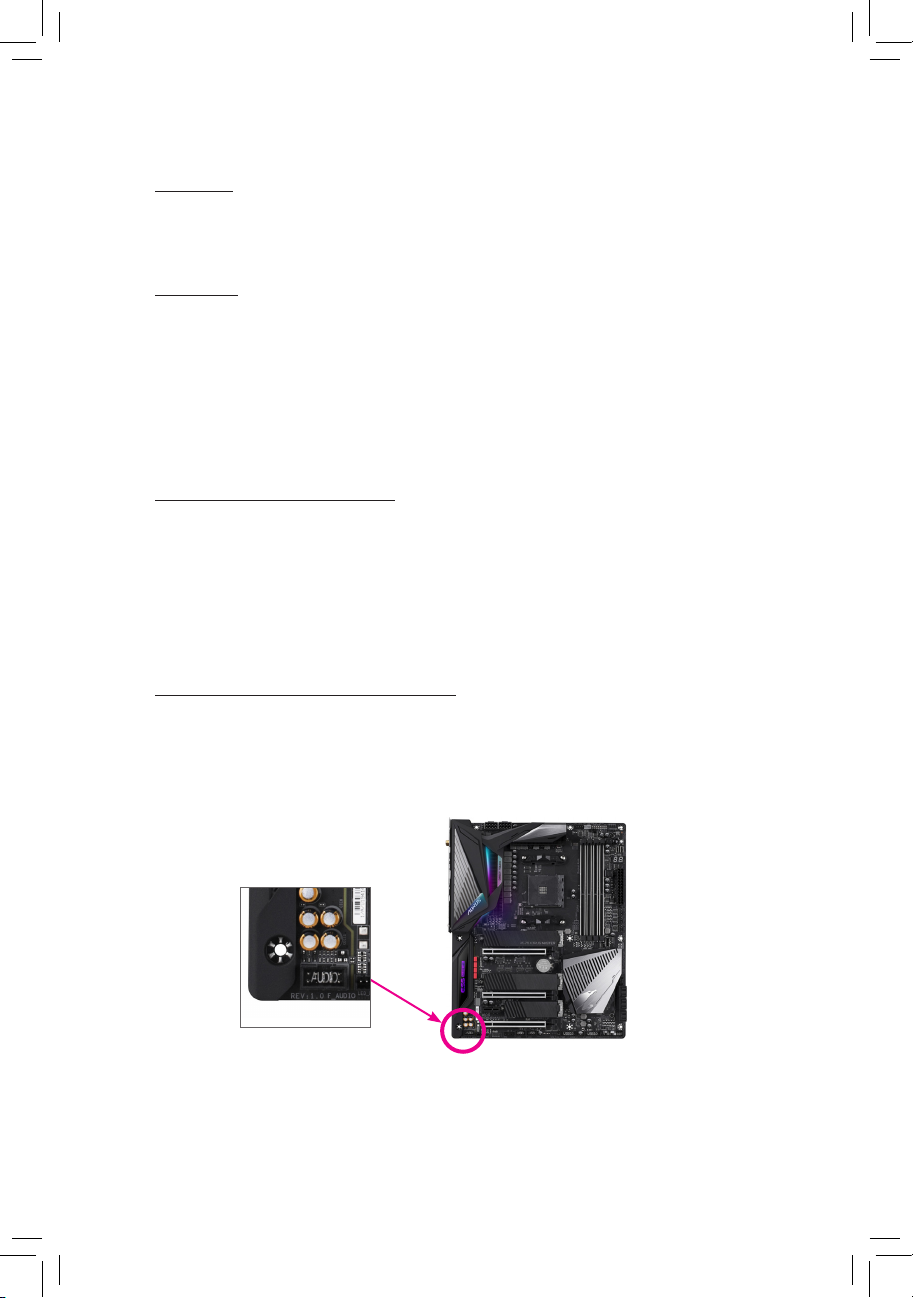

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents...................................................................................................................6

Optional Items .................................................................................................................6

X570 AORUS MASTER Motherboard Layout .................................................................7

Chapter 1 Hardware Installation .....................................................................................9

1-1 Installation Precautions ................................................................................... 9

1-2 ProductSpecications................................................................................... 10

1-3 Installing the CPU and CPU Cooler............................................................... 14

1-3-1 Installing the CPU ..................................................................................................14

1-3-2 Installing the CPU Cooler ......................................................................................16

1-4 Installing the Memory .................................................................................... 17

1-4-1 DualChannelMemoryConguration....................................................................17

1-4-2 Installing a Memory................................................................................................18

1-5 Installing an Expansion Card......................................................................... 19

1-6

Setting up AMD CrossFire

™

/NVIDIA

SLI

™

Conguration ............................... 20

1-7 Back Panel Connectors ................................................................................. 21

1-8 Onboard Buttons, Switches and LEDs.......................................................... 23

1-9 Internal Connectors ....................................................................................... 25

Chapter 2 BIOS Setup ..................................................................................................39

2-1 Startup Screen............................................................................................... 40

2-2 The Main Menu.............................................................................................. 41

2-3 Favorites (F11) ............................................................................................... 43

2-4 Tweaker.......................................................................................................... 44

2-5 Settings.......................................................................................................... 48

2-6 System Info. ................................................................................................... 54

2-7 Boot................................................................................................................ 55

2-8 Save & Exit .................................................................................................... 58

Chapter3 ConguringaRAIDSet ...............................................................................59

3-1 ConguringSATAControllers........................................................................ 59

3-2 Installing the SATA RAID/AHCI Driver and Operating System ..................... 64

Chapter 4 Drivers Installation .......................................................................................67

4-1 Drivers & Software......................................................................................... 67

4-2 Application Software...................................................................................... 68

4-3 Information..................................................................................................... 68

- 5 -

Chapter 5 Unique Features...........................................................................................69

5-1 BIOS Update Utilities..................................................................................... 69

5-1-1 Updating the BIOS with the Q-Flash Utility.......................................................... 69

5-1-2 Updating the BIOS with the @BIOS Utility............................................................72

5-1-3 Using Q-Flash Plus................................................................................................73

5-2 APP Center.................................................................................................... 74

5-2-1 AutoGreen..............................................................................................................75

5-2-2 Cloud Station .........................................................................................................76

5-2-3 EasyTune................................................................................................................81

5-2-4 Fast Boot................................................................................................................82

5-2-5 Game Boost .......................................................................................................... 83

5-2-6 RGB Fusion........................................................................................................... 84

5-2-7 Smart Keyboard.................................................................................................... 86

5-2-8 Smart Backup ........................................................................................................87

5-2-9 System Information Viewer................................................................................... 89

5-2-10 Smart Survey ........................................................................................................ 90

5-2-11 USB Blocker...........................................................................................................91

5-2-12 USB TurboCharger ................................................................................................92

Chapter 6 Appendix......................................................................................................93

6-1 ConguringAudioInputandOutput.............................................................. 93

6-1-1 Conguring2/4/5.1/7.1-ChannelAudio..................................................................93

6-1-2 ConguringS/PDIFOut........................................................................................ 95

6-1-3 Stereo Mix............................................................................................... 96

6-1-4 Using the Voice Recorder......................................................................................97

6-2 Troubleshooting ............................................................................................. 98

6-2-1 Frequently Asked Questions ................................................................................ 98

6-2-2 Troubleshooting Procedure .................................................................................. 99

6-3 Debug LED Codes....................................................................................... 101

Regulatory Statements........................................................................................... 105

Contact Us ...............................................................................................................111

- 6 -

Box Contents

5X570 AORUS MASTER motherboard

5Motherboard driver disk

5User's Manual

5Quick Installation Guide

5Four SATA cables

5One Wi-Fi antenna

5One G Connector

5One addressable LED strip adapter cable

5One RGB LED strip extension cable

5One noise detection cable

5Two Velcro cable ties

5Two thermistors cables

5M.2 screw(s)/M.2 standoff(s)

Optional Items

2-port USB 2.0 bracket (Part No. 12CR1-1UB030-6*R)

eSATA bracket (Part No. 12CF1-3SATPW-4*R)

3.5" Front Panel with 2 USB 3.1 Gen 1 ports (Part No. 12CR1-FPX582-2*R)

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

- 7 -

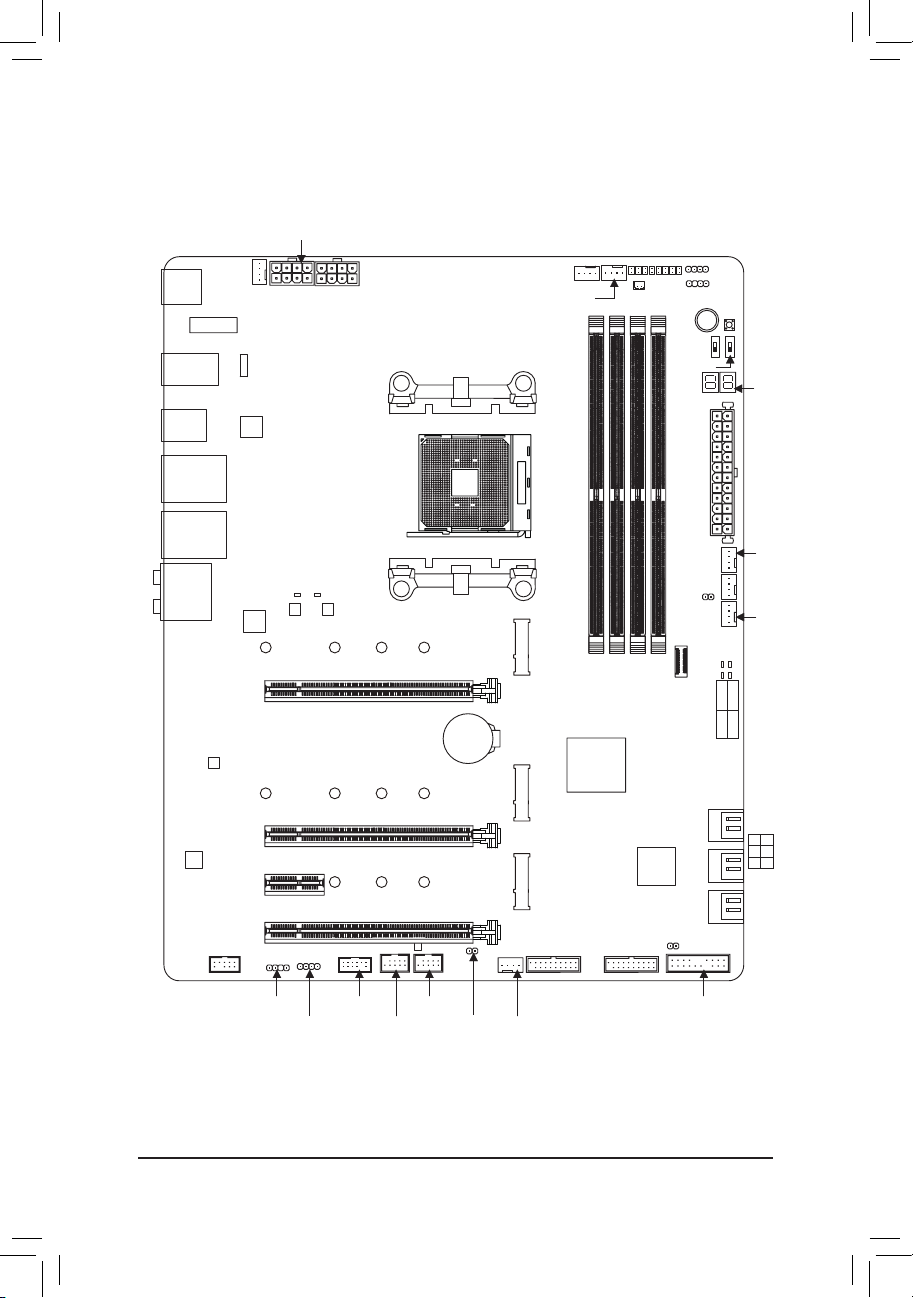

X570 AORUS MASTER Motherboard Layout

(Note) For debug code information, please refer to Chapter 6.

R_USB

R_USB30

TYPEC

USB31_LAN2

USB31_LAN1

Socket AM4 ATX

AUDIO

ATX_12V

AMD X570

M_BIOS

B_BIOS

PCIEX8

PCIEX4

PCIEX16

PCIEX1

F_USB30_1

F_USB31C

SYS_FAN5_PUMP

M2A_SOCKET

CODEC

X570 AORUS MASTER

F_PANEL

SYS_FAN1 CPU_FAN

LED_C2

CPU_OPT

iTE®

Super I/O

426080110

SATA3 420

531

BAT

Intel®GbE

LAN

EC_TEMP1

EC_TEMP2

CLR_CMOS

SYS_FAN6_PUMP

DB_PORT (Note)

F_USB1

F_USB2

TPM

LED_C1

D_LED1

F_AUDIO

ESS SABRE9118

USB 2.0 Hub

M2B_SOCKET

426080110

M2C_SOCKET

426080

D_LED2

VGA CPU

BOOT DRAM

ATX_12V1

REAR_BUTTON

M2_WIFI

MBIOS_LED

BBIOS_LED

NOISE SENSOR

PW_SW

RST_SW

BIOS_SW

SYS_FAN2

SYS_FAN4

F_USB30_2

Realtek®GbE

LAN

USB 2.0 Hub

DDR4_A1

DDR4_A2

DDR4_B1

DDR4_B2

- 8 -

- 9 -

Hardware Installation

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep

your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its instal-

lation and/or grounding instructions.

- 10 -

Hardware Installation

1-2 ProductSpecications

CPU AMD Socket AM4, support for:

3rd Generation AMD Ryzen™processors/

2nd Generation AMD Ryzen™processors/

2nd Generation AMD Ryzen™with Radeon™Vega Graphics processors/

AMD Ryzen™with Radeon™Vega Graphics processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD X570

Memory

3rd Generation AMD Ryzen

™

processors

- Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules

2nd Generation AMD Ryzen

™

processors/2nd GenerationAMD Ryzen

™

with Radeon

™

Vega Graphics processors/AMD Ryzen

™

with Radeon

™

Vega Graphics processors

- Support for DDR4 2933/2667/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Audio Realtek®ALC1220-VB codec

* The front panel line out jack supports DSD audio.

ESS SABRE9118 DAC chip

High Denition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN 1 x Intel®GbE LAN chip (10/100/1000 Mbit) (LAN1)

1 x Realtek®GbE LAN chip (10/100/1000/2500 Mbit) (LAN2)

Wireless

Communication

Module

Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.0

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots Integrated in the CPU (PCIEX16/PCIEX8):

3rd Generation AMD Ryzen

™

processors

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)

2nd Generation AMD Ryzen

™

processors

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd

Generation AMD Ryzen™processors/2nd Generation AMD Ryzen™processors,

the PCIEX16 slot operates at up to x8 mode.

2nd Generation AMD Ryzen

™

with Radeon

™

Vega Graphics processors/AMD Ryzen

™

with Radeon

™

Vega Graphics processors

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)

Autres manuels pour X570 AORUS MASTER

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-K8N Ultra-SLI Manuel utilisateur

Gigabyte

Gigabyte GA-78LMT-S2PT Manuel utilisateur

Gigabyte

Gigabyte GA-Z87-D3H Manuel utilisateur

Gigabyte

Gigabyte 6EX Manuel utilisateur

Gigabyte

Gigabyte GS-R12P4S Manuel utilisateur

Gigabyte

Gigabyte GA-7VM266 Manuel utilisateur

Gigabyte

Gigabyte GA-A55M-DS2 Manuel utilisateur

Gigabyte

Gigabyte GA-8GEM800 Manuel utilisateur

Gigabyte

Gigabyte GA-Z170MX-Gaming 5 Manuel utilisateur

Gigabyte

Gigabyte GA-7DXC Manuel utilisateur

Gigabyte

Gigabyte H610M H DDR4 Manuel utilisateur

Gigabyte

Gigabyte GA-8I925XC-G Manuel utilisateur

Gigabyte

Gigabyte B550 AORUS ELITE Manuel utilisateur

Gigabyte

Gigabyte Z590 UD AC Manuel utilisateur

Gigabyte

Gigabyte GA-A320M-S2H Manuel utilisateur

Gigabyte

Gigabyte B550M AORUS ELITE AX Manuel utilisateur

Gigabyte

Gigabyte MZ01-CE0 Manuel utilisateur

Gigabyte

Gigabyte GA-B150M-D3P Manuel utilisateur

Gigabyte

Gigabyte Z590 AORUS XTREME Manuel utilisateur

Gigabyte

Gigabyte MS33-AR1 Manuel utilisateur

Gigabyte

Gigabyte GA-B85-HD3 Manuel utilisateur

Gigabyte

Gigabyte GA-7PESH4 Manuel utilisateur

Gigabyte

Gigabyte GA-EP45T-EXTREME Manuel utilisateur

Gigabyte

Gigabyte A520M DS3H AC Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
