GA-A320M-S2H

User's Manual

Rev. 1201

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

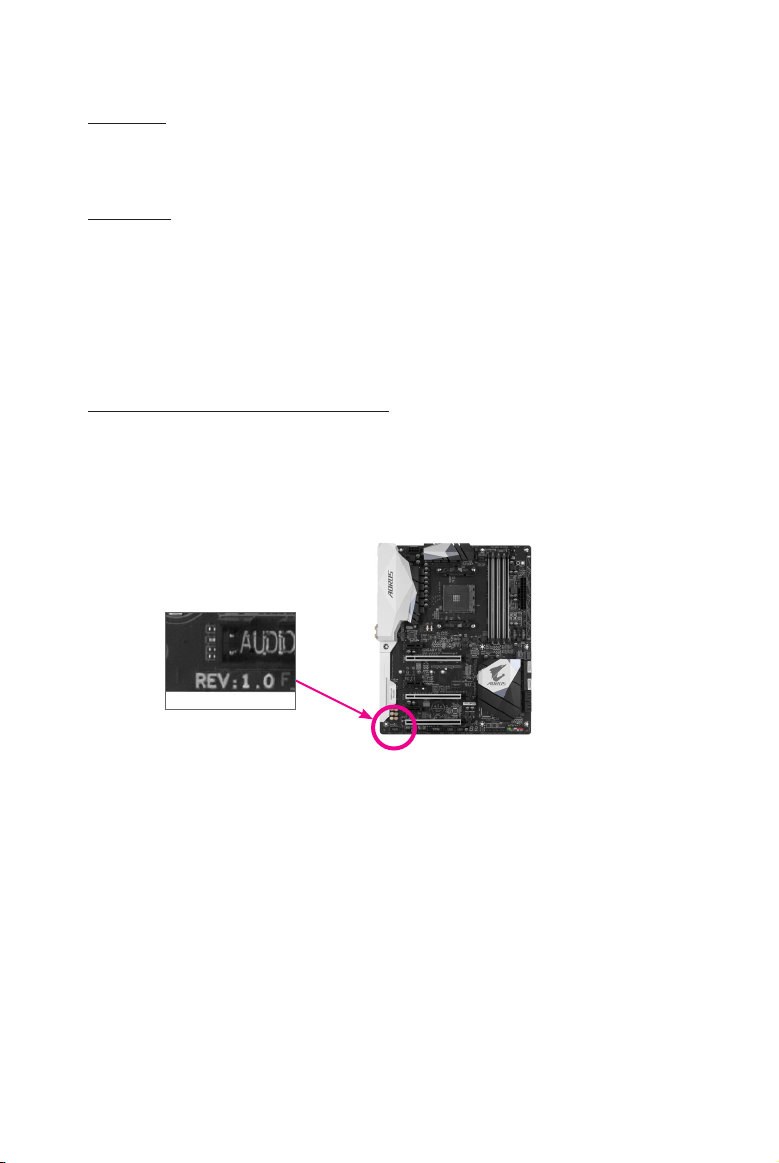

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

GA-A320M-S2H Motherboard Layout .............................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................20

2-1 Startup Screen ............................................................................................... 20

2-2 M.I.T. .............................................................................................................. 21

2-3 System ........................................................................................................... 25

2-4 BIOS............................................................................................................... 26

2-5 Peripherals..................................................................................................... 29

2-6 Chipset........................................................................................................... 30

2-7 Power............................................................................................................. 32

2-8 Save & Exit..................................................................................................... 34

Chapter 3 Appendix ......................................................................................................35

3-1 ConguringaRAIDSet.................................................................................. 35

3-2 DriversInstallation.......................................................................................... 37

RegulatoryNotices.................................................................................................... 38

Contact Us ................................................................................................................ 39

- 4 -

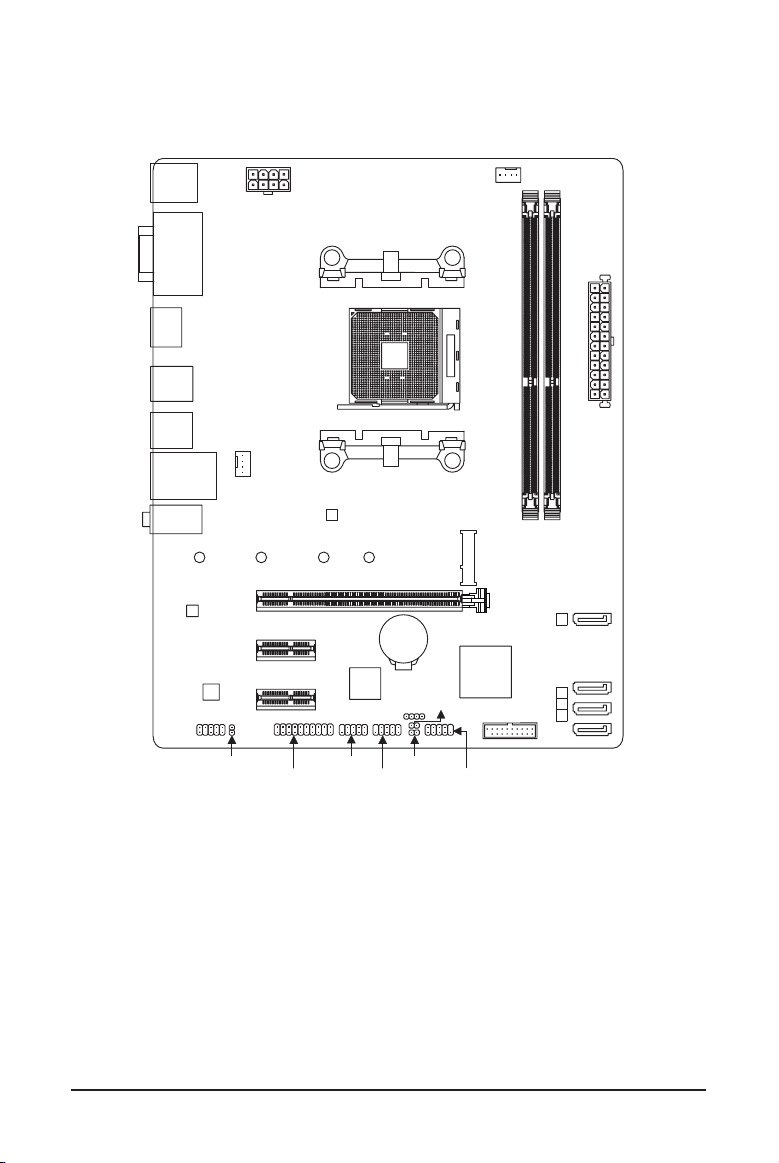

GA-A320M-S2H Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-A320M-S2H motherboard 5Two SATA cables

5Motherboard driver disc 5I/O Shield

5User's Manual

KB_MS CPU_FAN

SYS_FAN1

ATX

GA-A320M-S2H

AUDIO

DDR4_2

DDR4_1

BAT

ATX_12V

AMD

A320

R_USB30_1

HDMI

CODEC

M_BIOS

VGA

DVI

PCIEX16

PCIEX1_1

PCIEX1_2 iTE®

Super I/O

Realtek®

GbELAN

F_USB30

SPEAKER

F_USB1 F_PANEL

F_USB2SPDIF_O

SATA3

012

USB_LAN

Socket AM4

R_USB30_2

CLR_CMOS

TPM

F_AUDIO

M2F_32G

80 60 42110

SATA3

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damagedasaresultofelectrostaticdischarge(ESD).Priortoinstallation,carefullyreadtheuser's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Priorto installation,donot remove orbreak motherboard S/N(Serial Number)sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It isbest to wear an electrostatic discharge (ESD) wrist strap when handling electronic

componentssuchasamotherboard,CPUormemory.IfyoudonothaveanESDwriststrap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Donotplacethecomputersystemonanunevensurface.

•Donotplacethecomputersysteminahigh-temperatureorwetenvironment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU AM4 Socket:

- AMDRyzen™processor

- AMD7thGenerationA-series/Athlon™processors

(GotoGIGABYTE'swebsiteforthelatestCPUsupportlist.)

Chipset AMDA320

Memory 2xDDR4DIMMsocketssupportingupto64GB(32GBsingleDIMMcapacity)

of system memory

Dualchannelmemoryarchitecture

SupportforDDR42667(Note1)/2400/2133MHzmemorymodules

Supportfor ECCUn-bufferedDIMM1Rx8/2Rx8memory modules(operatein

non-ECCmode)

Supportfornon-ECCUn-bufferedDIMM1Rx8/2Rx8/1Rx16memorymodules

SupportforExtremeMemoryProle(XMP)memorymodules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

 - 1xD-Subport,supportingamaximumresolutionof1920x1200@60Hz

 - 1xDVI-Dport,supportingamaximumresolutionof1920x1200@60Hz

* TheDVI-DportdoesnotsupportD-Subconnectionbyadapter.

 - 1xHDMIport,supportingamaximumresolutionof4096x2160@24Hz

* SupportforHDMI1.4version.

Maximum shared memory of 2 GB

Audio Realtek®AudioCODEC

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youneedtoopentheaudiosoftwareandselect

Deviceadvanced settings> PlaybackDevice to change the default setting rst.

PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.

SupportforS/PDIFOut

LAN Realtek®GbELANchip(10/100/1000Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (Note1)

 (ThePCIEX16slotconformstoPCIExpress3.0standard.)

2 x PCI Express x1 slots

 (ThePCIExpressx1slotsconformtoPCIExpress2.0standard.)

Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe

x4/x2 (Note2)SSDsupport)

4 x SATA 6Gb/s connectors

SupportforRAID0,RAID1,andRAID10

* Referto"1-7InternalConnectors,"fortheinstallationnoticesfortheM.2connector.

(Note 1)Actual support may vary by CPU.

(Note 2)Supports only M.2 SATA SSDs when using an AMD7th Generation A-series or Athlon™processor.

- 6 -

USB Chipset:

- 2 x USB 3.1 Gen 1 ports available through the internal USB header

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

theinternalUSBheaders)

CPU:

- 4 x USB 3.1 Gen 1 ports on the back panel

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1xS/PDIFOutheader

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1xTrustedPlatformModule(TPM)header(2x10pin,fortheGC-TPM2.0module

only)

1 x speaker header

1 x Clear CMOS jumper

1 x chassis intrusion header

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1xD-Subport

1xDVI-Dport

1xHDMIport

4 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1xRJ-45port

3xaudiojacks(LineIn,LineOut,MicIn)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1x128Mbitash

Use of licensed AMI UEFI BIOS

PnP1.0a,DMI2.7,WfM2.0,SMBIOS2.7,ACPI5.0

- 7 -

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFFCharge

- Smart Backup

- System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®InternetSecurity(OEMversion)

cFosSpeed

Operating

System

Support for Windows 10 64-bit

Support for Windows 7 64-bit

* Pleasedownloadthe"WindowsUSBInstallationTool"fromGIGABYTE'swebsite

and install it before installing Windows 7.

Form Factor Micro ATX Form Factor; 24.4cm x 19.5cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules,SSDs,andM.2devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 8 -

1-3 Installing the CPU

ReadthefollowingguidelinesbeforeyoubegintoinstalltheCPU:

•Make sure that the motherboard supports the CPU.

(GotoGIGABYTE'swebsiteforthelatestCPUsupportlist.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•DonotturnonthecomputeriftheCPUcoolerisnotinstalled,otherwiseoverheatinganddamage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

1-4 Installing the Memory

Readthefollowingguidelinesbeforeyoubegintoinstallthememory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(GotoGIGABYTE'swebsiteforthelatestsupportedmemoryspeedsandmemorymodules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. Amemory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

Please visit GIGABYTE's website for details on hardware installation.

Installing the CPU

CompletelyliftuptheCPUsocketlockinglever.Locatethepinone(denotedbyasmalltriangle)oftheCPU

socketandtheCPU.OncetheCPUispositionedintoitssocket,placeonengerdownonthemiddleofthe

CPU, lowering the locking lever and latching it into the fully locked position.

AM4 Socket

A Small Triangle

MarkingDenotesPin

One of the Socket AM4 CPU

A Small Triangle

MarkingDenotesCPU

Pin One

- 9 -

1-5 Installing an Expansion Card

Readthefollowingguidelinesbeforeyoubegintoinstallanexpansioncard:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

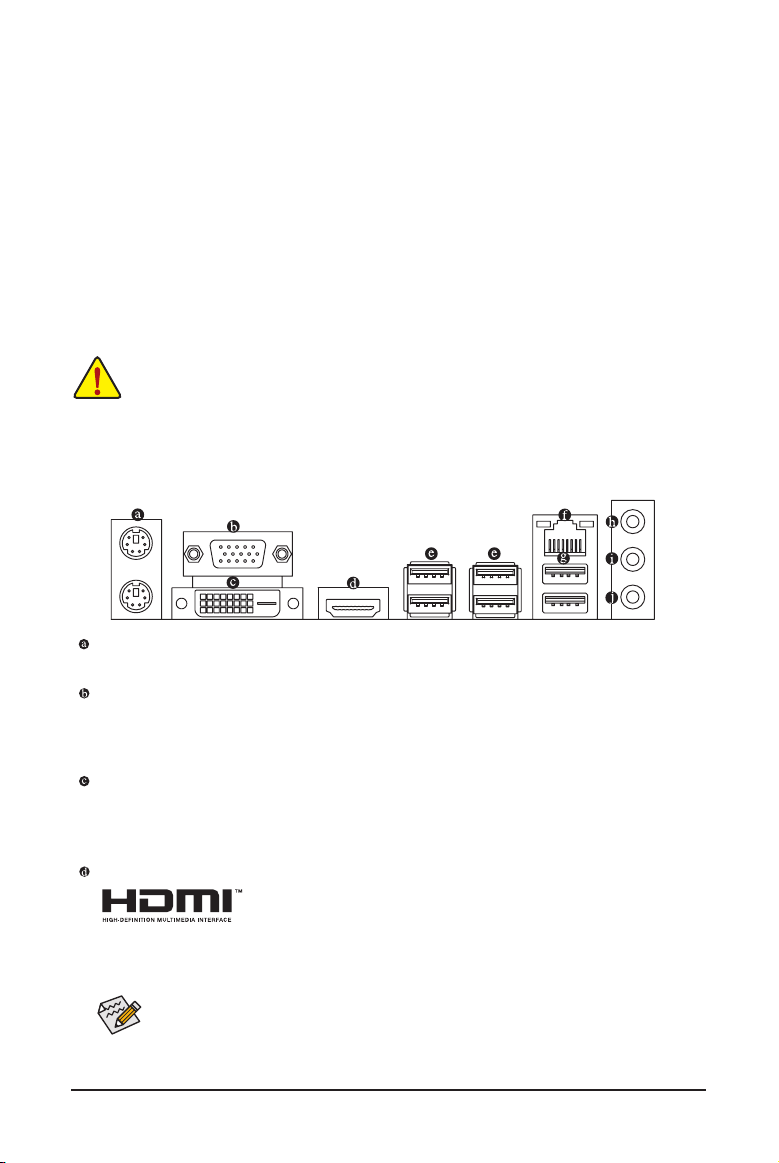

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Usetheupperport(green)toconnectaPS/2mouseandthelowerport(purple)toconnectaPS/2keyboard.

D-Sub Port

TheD-Subportsupportsa15-pinD-Subconnectorandsupportsamaximumresolutionof1920x1200@60Hz

(theactualresolutionssupporteddependonthemonitorbeingused).Connectamonitorthatsupports

D-Subconnectiontothisport.

DVI-D Port (Note)

TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof1920x1200@60Hz

(theactualresolutionssupporteddependonthemonitorbeingused).Connectamonitorthatsupports

DVI-Dconnectiontothisport.

HDMI Port

TheHDMIportisHDCPcompliantandsupportsDolbyTrueHDandDTSHD

MasterAudioformats.Italsosupportsupto192KHz/24bit7.1-channelLPCM

audiooutput.YoucanusethisporttoconnectyourHDMI-supportedmonitor.Themaximumsupported

resolutionis 4096x2160@24 Hz, buttheactual resolutions supportedaredependenton the monitor

being used.

AfterinstallingtheHDMIdevice,makesuretosetthedefaultsoundplaybackdevicetoHDMI.(The

itemnamemaydifferdependingonyouroperatingsystem.)

(Note) TheDVI-DportdoesnotsupportD-Subconnectionbyadapter.

DualChannelMemoryConguration

ThismotherboardprovidestwomemorysocketsandsupportsDualChannelTechnology.Afterthememory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

ThetwoDDR4memorysocketsaredividedintotwochannelsandeachchannelhasonememorysocketas

following:

ChannelA:DDR4_2

ChannelB:DDR4_1

DuetoCPUlimitations,readthefollowingguidelinesbeforeinstallingthememoryinDualChannelmode.

1. DualChannelmodecannotbeenabledifonlyonememorymoduleisinstalled.

2. WhenenablingDualChannelmodewithtwomemorymodules,itisrecommendedthatmemoryof

the same capacity, brand, speed, and chips be used.

- 10 -

Autres manuels pour GA-A320M-S2H

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-P55M-UD2 Manuel utilisateur

Gigabyte

Gigabyte GA-H61M-D2H Manuel utilisateur

Gigabyte

Gigabyte GA-EP43T-USB3 Manuel utilisateur

Gigabyte

Gigabyte GA-785GMT-USB3 Manuel utilisateur

Gigabyte

Gigabyte GA-8N775 Manuel utilisateur

Gigabyte

Gigabyte GA-7VAXP-A Ultra Manuel utilisateur

Gigabyte

Gigabyte GA-H110M-DS2V Manuel utilisateur

Gigabyte

Gigabyte GA - 586S2 Manuel utilisateur

Gigabyte

Gigabyte B650 GAMING X AX Manuel utilisateur

Gigabyte

Gigabyte GA-7ZXR Manuel utilisateur

Gigabyte

Gigabyte GA-Z77X-UD3H Manuel utilisateur

Gigabyte

Gigabyte H610 Series Manuel utilisateur

Gigabyte

Gigabyte GA-9ITDW Guide rapide

Gigabyte

Gigabyte GA-MA790FX-DQ6 Manuel utilisateur

Gigabyte

Gigabyte H310M S2V Manuel utilisateur

Gigabyte

Gigabyte 6WMM7 Series Manuel utilisateur

Gigabyte

Gigabyte GA-X38-DS4 Manuel utilisateur

Gigabyte

Gigabyte GA-EX38-DQ6 Manuel utilisateur

Gigabyte

Gigabyte B460M GAMING HD Manuel utilisateur

Gigabyte

Gigabyte GA-H61M-S2PH Manuel utilisateur

Gigabyte

Gigabyte AMD Socket AM2 Processor Motherboard... Manuel utilisateur

Gigabyte

Gigabyte GA-8S661FXM-775 Manuel utilisateur

Gigabyte

Gigabyte Z370 HD3 Manuel utilisateur

Gigabyte

Gigabyte H470M S2 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
