Gigabyte MBBZ1AI Manuel utilisateur

MBBZ1AI

AMD®Fusion APU E-450 processor motherboard

User's Manual

Rev. 1201

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specifications and features in this manual may be made by GIGABYTE

without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of documentation:

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at:

http://www.gigabyte.com

- 3 -

Table of Contents

Box Contents...................................................................................................................4

MBBZ1AI Motherboard Layout........................................................................................5

Chapter 1 Hardware Installation .....................................................................................7

1-1 Installation Precautions.................................................................................... 7

1-2 ProductSpecications...................................................................................... 8

1-3 Installing the Memory..................................................................................... 10

1-3-1 SingleChannelMemoryConguration...................................................................10

1-3-2 Installing a Memory ...............................................................................................11

1-4 Back Panel Connectors.................................................................................. 12

1-5 Internal Connectors........................................................................................ 14

Chapter 2 BIOS Setup ..................................................................................................24

2-1 The Main Menu .............................................................................................. 26

2-2 Advanced Menu ............................................................................................. 28

2-2-1 ACPI Settings .........................................................................................................29

2-2-2 CPUConguration..................................................................................................30

2-2-3 SATAConguration.................................................................................................32

2-2-4 USBConguration..................................................................................................33

2-2-5 F81214FirstSuperIOConguration......................................................................34

2-2-6 F81214SecondSuperIOConguration ................................................................36

2-2-7 Network Stack ........................................................................................................38

2-3 Chipset Menu................................................................................................. 39

2-3-1 SB Hardware Monitor .............................................................................................41

2-4 Boot Menu...................................................................................................... 42

2-4-1 CSM parameters ...................................................................................................44

2-5 Security Menu ................................................................................................ 46

2-5-1 Secure Boot menu (Optional).................................................................................47

2-5-1-1 Image Execution policy ..........................................................................................48

2-5-1-2 Key Management ..................................................................................................49

2-6 Save & Exit Menu........................................................................................... 51

- 4 -

Box Contents

MBBZ1AI motherboard

Driver CD

Two SATA cables

I/O Shield

•The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

•The motherboard image is for reference only.

- 5 -

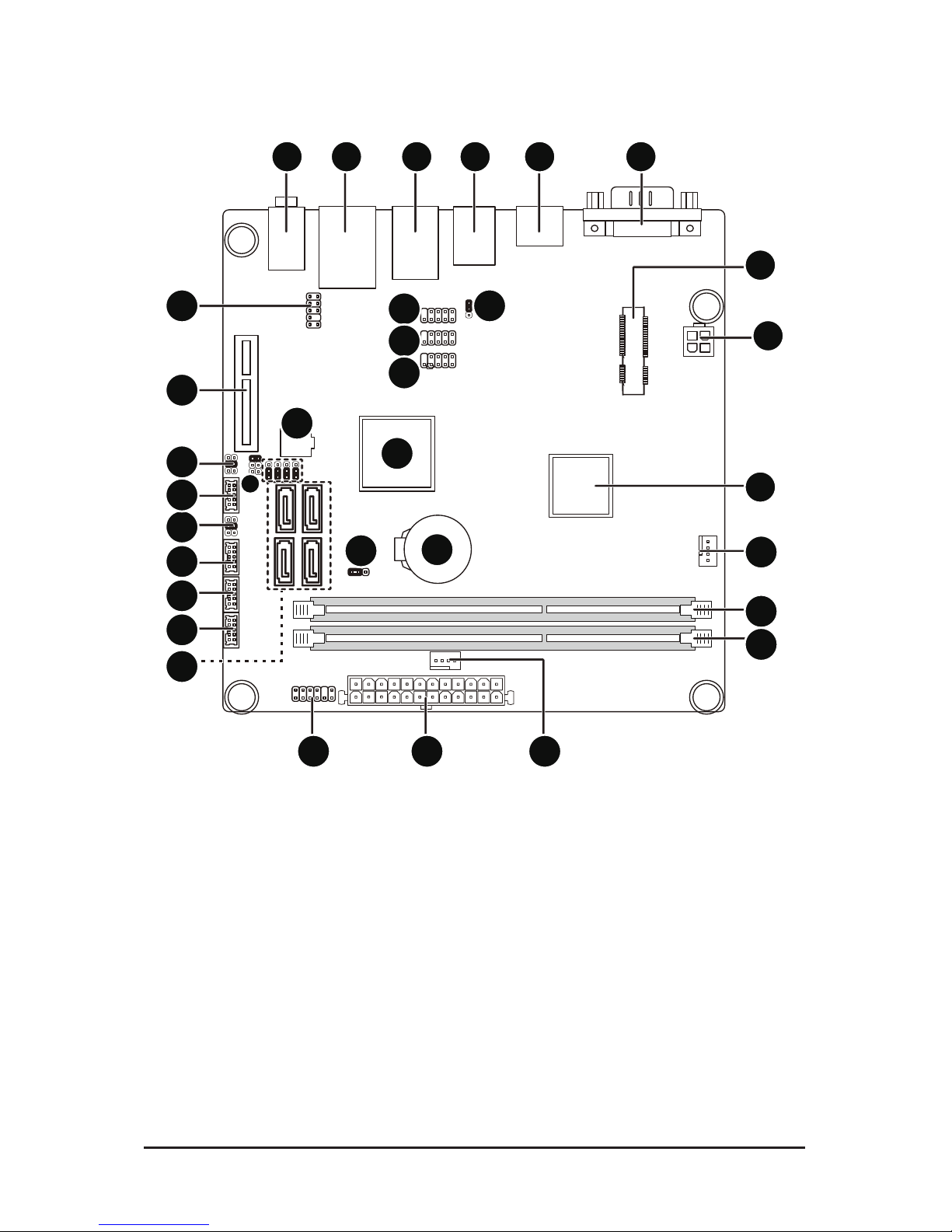

MBBZ1AI Motherboard Layout

1 2 3 4 6

131415

29 30

- 6 -

Item Code Description

1 AUDIO Audio connectors

2 USB_LAN RJ45 LAN port (top) / USB 2.0 ports

(buttom)

3 USB2 USB 2.0 ports

4 USB3 USB 3.0 ports

5 HDMI HDMI port

6 VGAVGA_DVI VGA port (top) / DVI-D port (buttom)

7 MPCIE1X Mini PCI Express connector

8 ATX_12V 4 pin power connector

9 U1 Embedded porcessor

10 CPU_FAN CPU fan connector

11 DDRIII_1 DDR3 SO-DIMM slot

12 DDRIII_2 DDR3 SO-DIMM slot

13 SYS_FAN System fan connector

14 ATX 24 pin power connector

15 F_PANEL Front panel header

16 BATTERY Battery socket

17 CLR_CMOS Clear CMOS jumper

18 U3 AMD Hudsion-M1 Fusion Controller

Hub (A50M)

19 SATAIII_0/12/3 SATA 6Gb/s connectors

20 COM1 Serial port cable header

21 COM2 Serial port cable header

22 COM4 Serial port cable header

23 JCOM4 Serial port #4 5V,12V, RI select

jumper

24 COM3 Serial port cable header

25 JRS4 RS232,RS422,RS485 Select jumper

26 JCOM3 Serial port #3 5V,12V, RI select

jumper

27 BIOS BIOS Upgrade ROM

28 PCIE4X PCI Express x1 slot

29 F_AUDIO Audio cable connector

30 F_USB_1 Front USB header

31 F_USB_2 Front USB header

32 F_USB_3 Front USB header

33 USB_PWR USB header #1 power select jumper

- 7 -

Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•

Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

• Before unplugging the power supply cable from the motherboard, make sure the power sup-

ply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hard-

ware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

• Do not place the computer system on an uneven surface

• Do not place the computer system in a high-temperature environment.

• Turning on the computer power during the installation process can lead to damage to sys-

tem components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

Chapter 1 Hardware Installation

- 8 -

Hardware Installation

1-2 ProductSpecications

CPU Supports single AMD® Fusion APU E-450 processor

Supports Dual Core up to 1.65GHz

TDP 18W

Supports 1M Cache

Chipset AMD®FCH Hudson-D3 chipset

Memory 2 x 1.5V DDR3 slots

Max. to 8GB (4GB x 2)

Support for DDR3 800/1066 MHz

Display 1 x HDMI 1.3a

1 x DVI-D port

1 x VGA port

Audio Realtek ALC887 codec

High Denition Audio

5.1 Channel/Line in/Line out/MIC

LAN 1 x Realtek RTL8111E supports 10/100/1000 Mbps

Expansion Slots 1 x Mini PCI Express slot (Fullsize)

1 x PCI Express x4 solt

Onboard

Graphics

Build in Intel®processor

Storage Interface 4 x SATA 6Gb/s connectors

USB 2 x USB 3.0 ports (Rear I/O)

4 x USB 2.0 ports (Rear I/O)

3 x USB 2.0 headers

Internal

Connectors

1 x 4 pin 12V power connector

1 x 10 pin power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x System fan header

1 x Front panel header

1 x Front Audio header

3 x USB 2.0 header

4 x Serial port headers

3 x Serial port headers

Back Panel

Connectors

1 x VGA Port

1 x DVI-D port

1 x HDMI port

2 x USB 3.0 ports

4 x USB 2.0 ports

3 x Audio connectors (1 x Line-out/ 1 x Line-in/ 1 x MIC)

Hardware Installation

- 9 -

I/O Controller iTE IT81214 chip

Hardware

Monitor

CPU/System temperature detection

CPU fan speed detection

BIOS 1 x 16 Mbit ash

AMI BIOS

Form Factor Mini ITX Form Factor; 170cm x 170cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information

without prior notice.

Hardware Installation

- 10 -

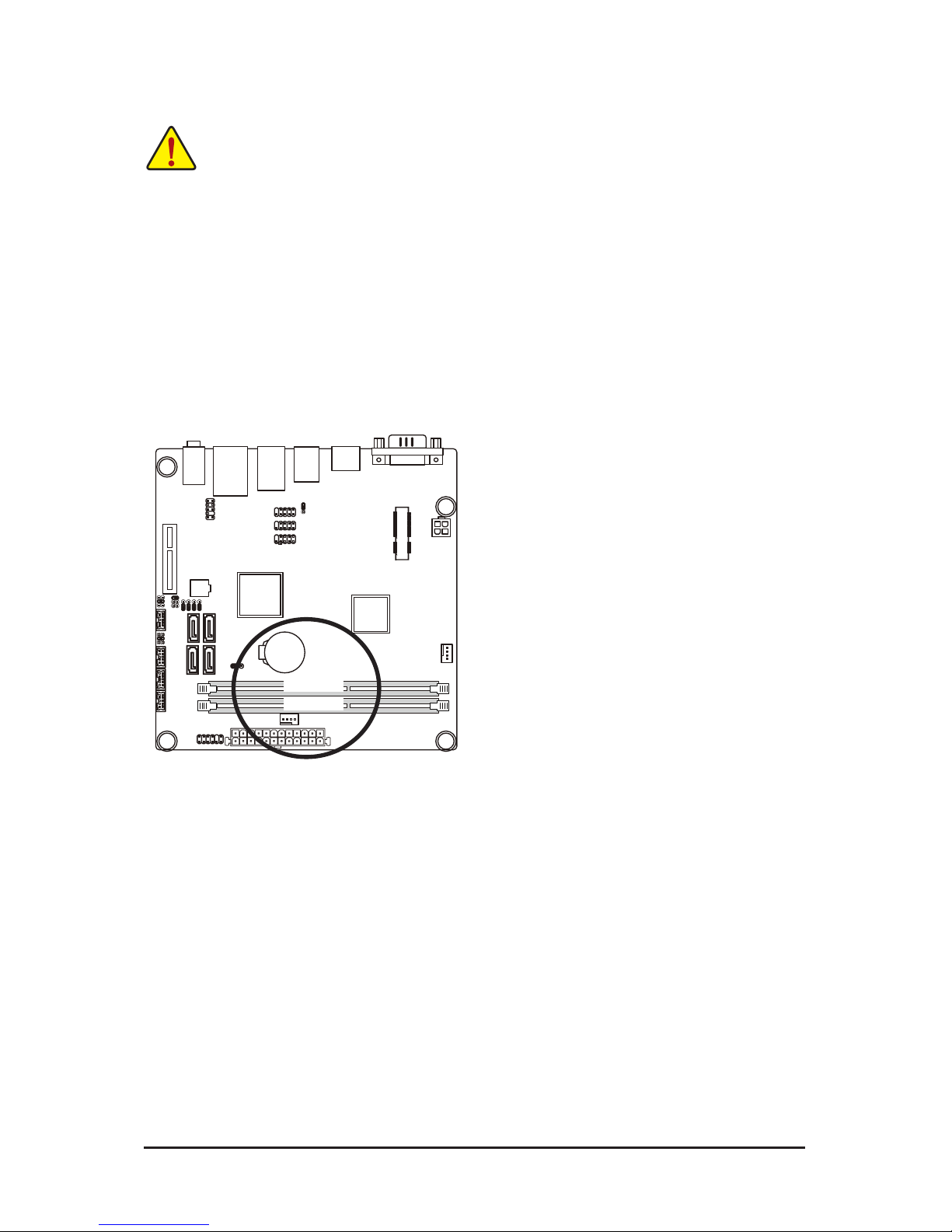

1-3-1 SingleChannelMemoryConguration

This motherboard provides two DDR3 memory sockets and supports Single Channel Technology. After the

memory is installed, the BIOS will automatically detect the specications and capacity of the memory. En-

abling Dual Channel memory mode will double the original memory bandwidth.

1-3 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

•Always turn off the computer and unplug the power cord from the power outlet before installing

the memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one

direction. If you are unable to insert the memory, switch the direction.

DDRIII2

DDRIII1
