Gigabyte MB10-DS1 Manuel utilisateur

MB10-DS1

BIOS Setup

User’s Guide

Rev.1.0

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specifications and features in this manual may be made by GIGABYTE without prior

notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

Documentation Classifications

In order to assist in the use of this product, GIGABYTE provides the following types of documentation:

 User Manual: detailed information & steps about the installation, configuration and use of this product

(e.g. motherboard, server barebones), covering hardware and BIOS.

 User Guide: detailed information about the installation & use of an add-on hardware or software

component (e.g. BMC firmware, rail-kit) compatible with this product.

 Quick Installation Guide: a short guide with visual diagrams that you can reference easily for

installation purposes of this product (e.g. motherboard, server barebones).

Please see the support section of the online product page to check the current availability of these documents.

For More Information

For related product specifications, the latest firmware and software, and other information please visit our website

at http://www.gigabyte.com

For GIGABYTE distributors and resellers, additional sales & marketing materials are available from our reseller

portal: http://reseller.b2b.gigabyte.com

For further technical assistance, please contact your GIGABYTE representative or visit

https://esupport.gigabyte.com/ to create a new support ticket

For any general sales or marketing enquiries, you may also message GIGABYTE server directly by email:

server.grp@gigabyte.com

III

Table of Contents

DISCLAIMER II

DOCUMENTATION CLASSIFICATIONS II

FOR MORE INFORMATION II

TABLE OF CONTENTS III

BIOS SETUP 5

Main Menu 7

Advanced Menu 10

iSCSI Configuration 11

Trusted Computing 12

AST2400 Super IO Configuration 13

Serial Port Configuration 15

PCI Subsystem Settings 18

Network Stack Configuration 20

CSM Configuration 21

Post Report Configuration 23

NVMe Configuration 24

USB Configuration 25

Chipset Configuration 26

IntelRCSetup 27

Processor Configuration 28

Pre-socket Configuration 30

Advanced Power Configuration 31

CPU P-State Control 32

CPU HWPM Control 33

CPU C State Control 34

CPU T State Control 35

CPU Advanced PM Turning 36

Memory Configuration 37

Memory Thermal 38

Memory Map 39

Memory RAS Configuration 40

IIO Configuration 41

IOAT Configuration 42

PCH Configuration 44

PCH Devices 45

PCH SATA Configuration 46

USB Configuration 48

Miscellaneous Configuration 49

Server ME Configuration 50

Runtime Error Logging 51

Whea Configuration 52

Memory Error Enabling 53

PCI/PCI-E Error Enabling 54

Server Management 55

System Event Log 56

View FRU Information 57

BMC network Configuration 58

IPv6 BMC Network Configuration 59

Security Menu 60

Key Management 62

Boot Option Menu 63

Exit Menu 64

BIOS BEEP CODES 66

BIOS POST Beep code (AMI standard)

BIOS Setup

System

BIOS

BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the

motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup,

saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that

allows the user to modify basic system configuration settings or to activate certain system features. When the

power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to keep the

configuration values in the CMOS.

To access the BIOS Setup program, press the <DEL> key during the POST when the power is turned on.

•

When changing the system configuration settings

•

When redefining the communication ports to prevent any conflicts

•

When modifying the power management configuration

•

When changing the password or making other changes to the security setup

•

When a configuration error is detected by the system and you are prompted (“Run Setup”

message) to make changes to the BIOS setup

NOTE: If you repeatedly receive Run Setup messages, the battery may be bad. Ask qualified technician for

assistance.

NOTE: The screenshots used in this guide display default system values. These values may not be the same

those found in your system.

Entering BIOS Setup

1. Turn on the server and the monitor.

If the server is already turned on, close all open applications, then restart the server.

2. During POST, press DEL

If you fail to press DEL before POST is completed, you will need to restart the server. The Setup Main menu

will be displayed showing the Setup’s menu bar. Use the left and right arrow keys to move between

selections on the menu bar.

BIOS Setup Program Function Keys

< →><←> Move the selection bar to select the screen

< ↑><↓> Move the selection bar to select an item

<Enter> Execute command or enter the submenu

<+> Increase the numeric value or make changes

<-> Decrease the numeric value or make changes

<F1> Show descriptions of general help

<F3> Restore the previous BIOS settings for the current submenus

<F9> Load the Optimized BIOS default settings for the current submenus

<F10> Save all the changes and exit the BIOS Setup program

<Esc> Main Menu: Exit the BIOS Setup program

Submenus: Exit current submenu

Main

This setup page includes all the items of the standard compatible BIOS.

Advanced

This setup page includes all the items of AMI BIOS special enhanced features.

(ex: Auto detect fan and temperature status, automatically configure hard disk parameters.)

Chipset

This setup page includes all the submenu options for configuring the functions of the Platform Controller Hub.

Server Management

Server additional features enabled/disabled setup menus.

Security

Change, set, or disable supervisor and user password. Configuration supervisor password allows you to restrict

access to the system and BIOS Setup.

A supervisor password allows you to make changes in BIOS Setup.

A user password only allows you to view the BIOS settings but not to make changes.

Boot

This setup page provides items for configuration of the boot sequence.

Save & Exit

Save all the changes made in the BIOS Setup program to the CMOS and exit BIOS Setup. (Pressing <F10>

can also carry out this task.)

Abandon all changes and the previous settings remain in effect. Pressing <Y> to the confirmation message will

exit BIOS Setup. (Pressing <Esc> can also carry out this task.).

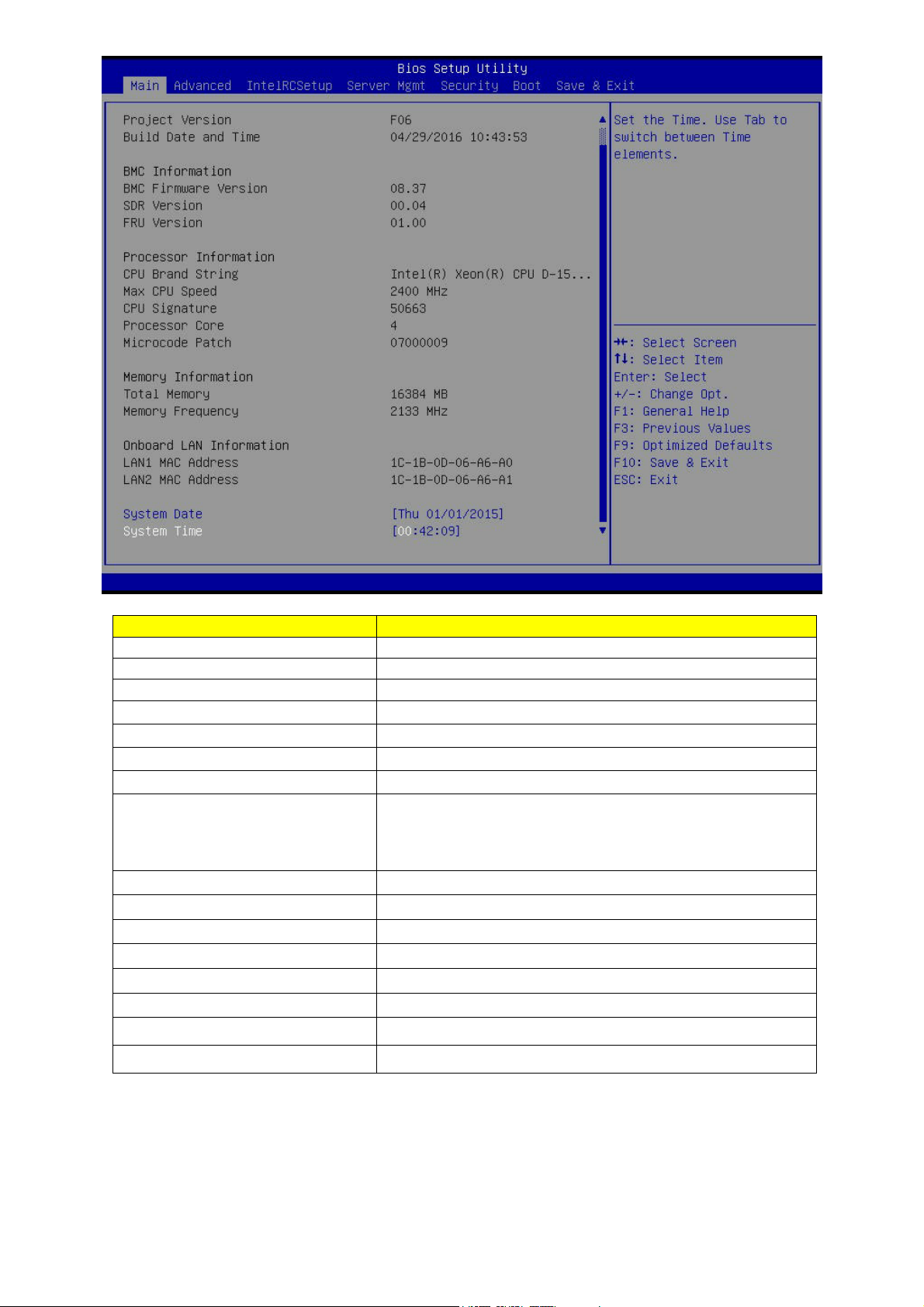

Main Menu

Parameter Description

Project Name Displays the project name information.

Project Version Displays version number of the BIOS setup utility.

Build Date and Time Displays the date and time when the BIOS setup utility was created.

BMC Information(Note1)

BMC Firmware Version(Note1) Displays BMC firmware version information.

SDR Information Displays BMC SDR information.

FRU Information Displays BMC FRU information.

Processor Information

Name/ Brand String/ Frequency/

Processor ID/ Stepping/ Count/ Microcode

Revision

Technical specifications for the installed processor.

Memory Information(Note2)

Total Memory Determines how much total memory is present during the POST.

Frequency Technical specifications for the installed memory.

Onboard LAN Information(Note3)

LAN1 MAC Address Displays LAN MAC address information.

LAN2 MAC Address Displays LAN MAC address information.

System Date Set the date following the weekday-month-day- year format.

System Time Set the system time following the hour-minute- second format.

NOTE!

1. Functions available on selected models.

2. This section will display capacity and frequency information of the memory that the customer has

3. The number of LAN ports listed will depend on the motherboard / system model.

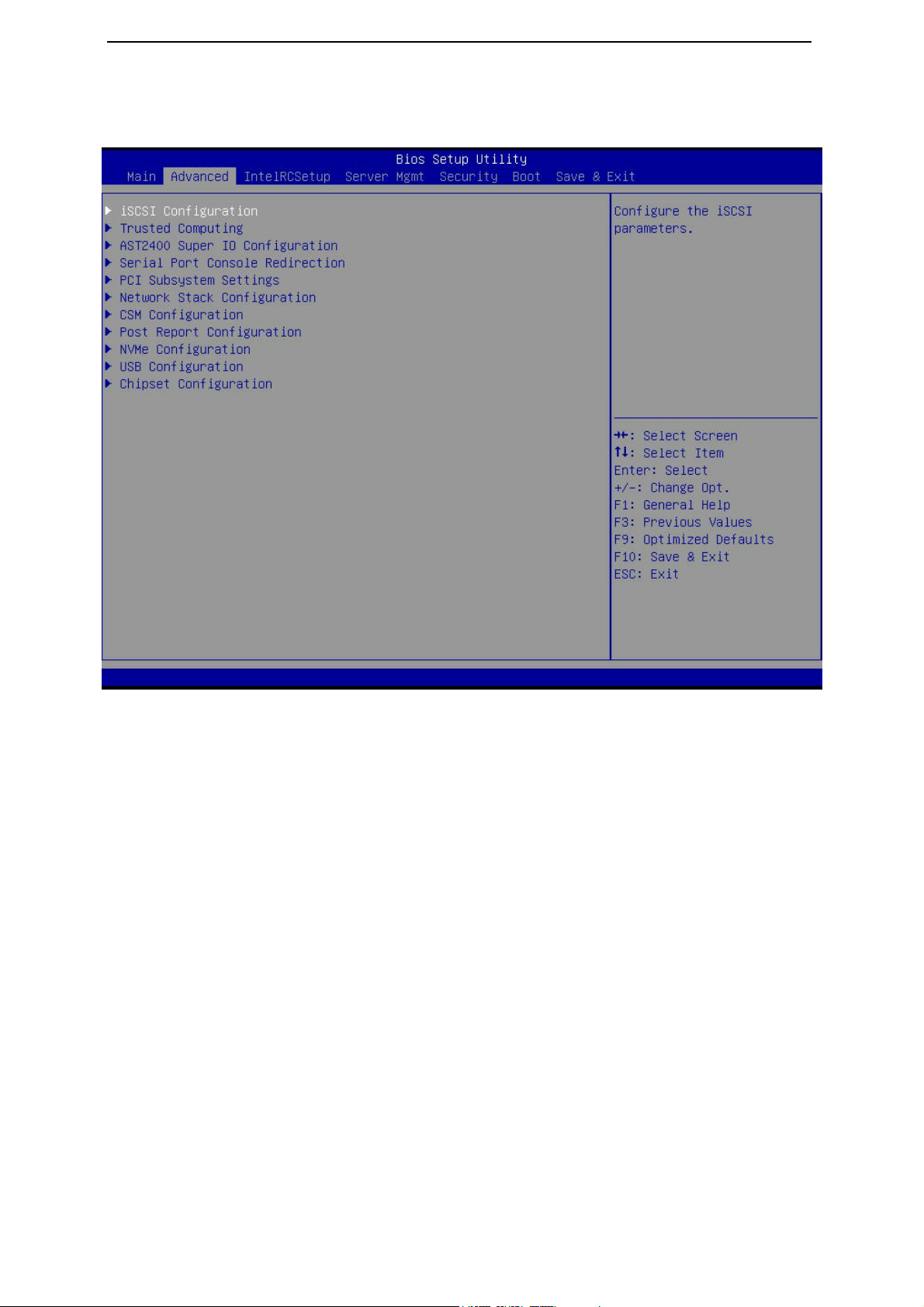

Advanced Menu

The Advanced menu display submenu options for configuring the function of various hardware

components. Select a submenu item, then press Enter to access the related submenu screen.
