Gigabyte 6BX Manuel utilisateur

R-02-01-080508

6BX

USER'S MANUAL

1. System power on by PS/2 Mouse: First, enable this function in

CMOS Setup, then you can power on the system by double

clicking the right or left button of your PS/2 Mouse.

2. System power on by Keyboard: If your ATX power supply

supports larger than 720 mA 5V Stand-By current, you can

power on your system by entering password from the

keyboard after setting the “Keyboard power on” password in

CMOS Setup.

3. Supports 3 steps ACPI LED.

4. Modem Ring-On. (COM B)

5. Wake-Up on LAN. (on JP7) (The ATX power supply supports

larger than 600 mA)

6. Supports LDCM®

Pentium



II Processor MAINBOARD

REV. 2.0 First Edition

6BX

The author assumes no responsibility for any errors or omissions that may

appear in this document nor does it make a commitment to update the

information contained herein.

Third-party brands and names are the property of their respective owners.

Sound Blaster is a registered trademark of Creative Technology Ltd in the

United States and certain other countries. Sound Blaster-LINK and

SB-LINK are trademarks of Creative Technology Ltd.

May 08, 1998 Taipei, Taiwan

Quick Installation Guide

I. Quick Installation Guide :

CPU SPEED SETUP

The system bus speed is selectable between 66.6MHz and 100 MHz. The

user can select the system bus speed (JP6) and change the DIP SWITCH

(SW) selection to set up the CPU speed for 200 - 633MHz processor.

The CPU speed MUST match with the frequency RATIO. It will cause

system hanging up if the frequency RATIO is higher than that of CPU.

CLK RATIO SW 1 SW 2 SW 3 SW 4

X3 ON OFF ON ON

X3.5 OFF OFF ON ON

X4 ON ON OFF ON

X4.5 OFF ON OFF ON

X5 ON OFF OFF ON

X5.5 OFF OFF OFF ON

JP6

1-2 CLOSE : System Speed is set to 66 MHz

2-3 CLOSE : Set system speed to Auto −

−−

−auto detect system

speed (66 / 100MHz FSB)

1-2-3 OPEN : System Speed is set to 100MHz

6BX

I. Set system speed to 66MHz: JP6 pin 1-2 short will cause

system always run at 66 MHz FSB (Front Side Bus).

II. Set system speed to 100MHz: JP6 pin 1-2-3 open will cause

system always run at 100MHz FSB.

III. Set system speed to Auto: auto detect system speed

(66/100MHz FSB)

There are two ways to set system speed

1. 66MHz (JP6) (1-2 short) or Auto detect (2-3 short)

2. 100MHz (JP6) (1-2-3 open) or Auto detect (2-3 short)

1. PentiumII 300 / 100MHz FSB

JP6

CPU

Intel

440BX

PIIX4

6BX

1 2 3 JP6

4321OFF

SW 1 2 3 JP6

JP6 1 2 3

Quick Installation Guide

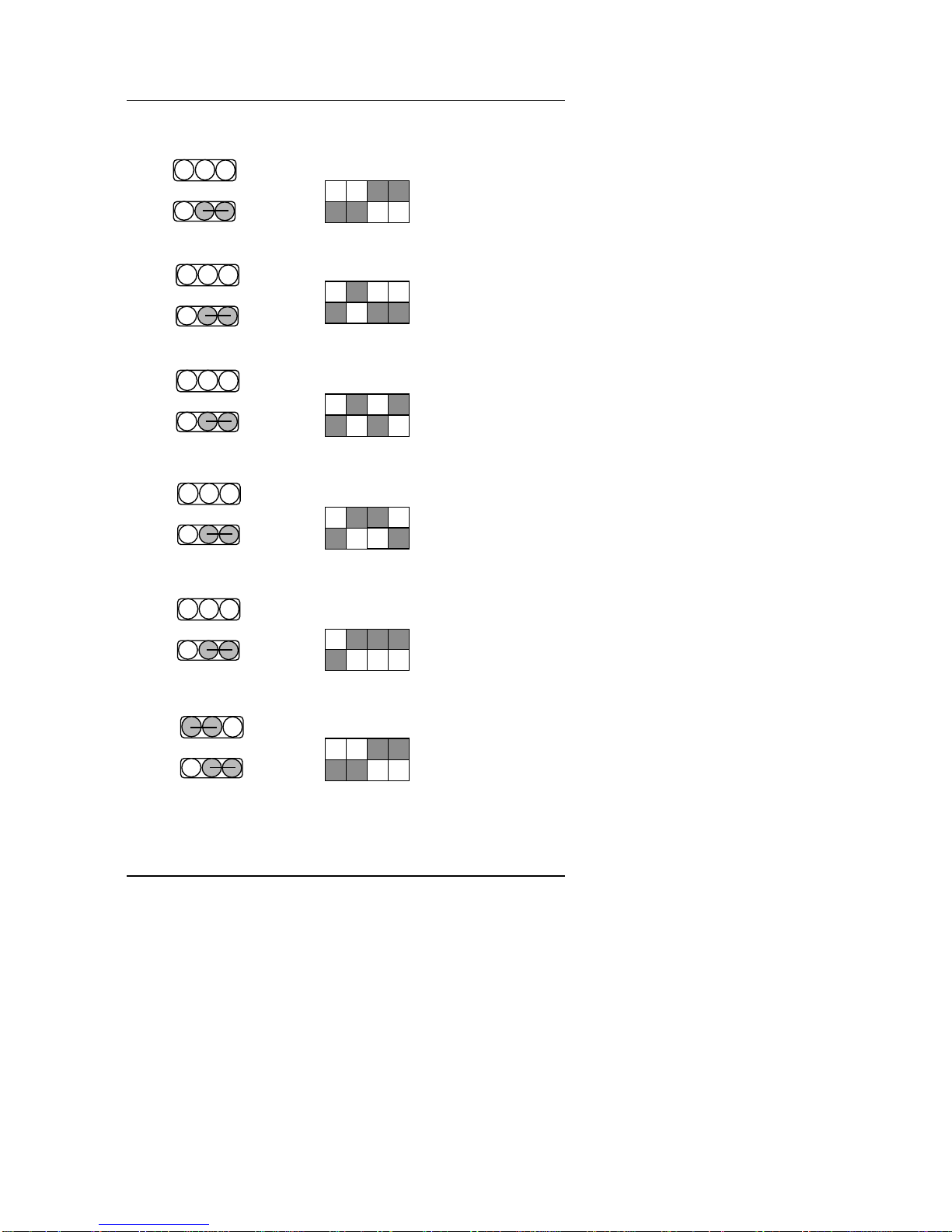

2. PentiumII 350 / 100MHz FSB

3. PentiumII 400 / 100MHz FSB

4. PentiumII 450 / 100MHz FSB

5. PentiumII 500 / 100MHz

6. PentiumII 550 / 100MHz

7. PentiumII 233 MHz / 66MHz FSB

SW ON

4 3 2 1 OFF

SW 4 3 2 1

OFF

SW ON

4 3 2 1 OFF

SW ON

4 3 2 1 OFF

JP6 1 2 3

SW ON

4 3 2 1 OFF

SW ON

4 3 2 1 OFF

JP6 1 2 3

6BX

8. PentiumII 266 MHz / 66MHz FSB

9. PentiumII 300 MHz / 66MHz FSB

10. PentiumII 333 MHz / 66MHz FSB

11. PentiumII 366 / 66MHz

II. Jumper setting :

SPK : Speaker Connector

CPU

Intel

440BX

PIIX4

6BX

Pin No. Function

VCC

3NC

4Data

SW ON

4 3 2 1 OFF

SW ON

4 3 2 1 OFF

SW ON

4 3 2 1 OFF

SW ON

4 3 2 1 OFF

JP6 1 2 3

Quick Installation Guide

RST : Reset Switch

CPU

Intel

440BX

PIIX4

6BX

Open:

Normal

operation

Short:

For Hardware

Reset System

PW LED : Power LED Connector

CPU

Intel

440BX

PIIX4

6BX

Pin No. Function

2LED anode

(

)

LED cathode (-)3LED cathode (-)

Pin No. Function

2LED anode

(

)

LED cathode (-)3NC

6BX

HD : IDE Hard Disk Active LED

CPU

Intel

440BX

PIIX4

6BX

No. Function

LED

anode (+)

LED

cathode (-)

LED

cathode (-)

4LED

anode (+)

No. Function

LED

anode (+)

LED

cathode (-)

IR : Infrared Connector (Optional)

CPU

Intel

440BX

PIIX4

6BX

No.

IR Data

Output

GND

IR Data

POWER (+)

Function

Quick Installation Guide

GN : Green Function Switch

CPU

Intel

440BX

PIIX4

6BX

Open:

Normal

operation

Short:

Entering

Green Mode.

GD : Green LED

CPU

Intel

440BX

PIIX4

6BX

PIN1:LED

Anode (+)

PIN2:LED

Cathode(-)
