Gigabyte M5NM1I Manuel utilisateur
M5NM1I
Intel®Atom™D2500/D2550/D2560 processor motherboard
User's Manual
Rev. 1001
Copyright
©2012 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentation:
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
http://www.gigabyte.com
- 3 -
Table of Contents
Box Contents...................................................................................................................4
M5NM1I Motherboard Layout..........................................................................................5
Chapter 1 Hardware Installation .....................................................................................7
1-1 Installation Precautions.................................................................................... 7
1-2 ProductSpecications...................................................................................... 8
1-3 Installing the Memory..................................................................................... 10
1-3-1 DualChannelMemoryConguration .....................................................................10
1-3-2 Installing a Memory ...............................................................................................11
1-4 Back Panel Connectors.................................................................................. 12
1-5 Internal Connectors........................................................................................ 13
Chapter 2 BIOS Setup ..................................................................................................26
2-1 The Main Menu .............................................................................................. 28
2-2 Advanced Menu ............................................................................................. 30
2-2-1 CPUConguration..................................................................................................31
2-2-2 SATAConguration.................................................................................................33
2-2-3 USBConguration..................................................................................................35
2-2-4 F81214SuperIOConguration..............................................................................37
2-2-5 H/W Monitor............................................................................................................39
2-3 Chipset Menu................................................................................................. 40
2-4 Boot Menu...................................................................................................... 41
2-5 Security Menu ................................................................................................ 43
2-6 Save & Exit Menu........................................................................................... 44
- 4 -
Box Contents
M5NM1I motherboard
Driver CD
Two SATA cables
I/O Shield
•The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
•The motherboard image is for reference only.
- 5 -

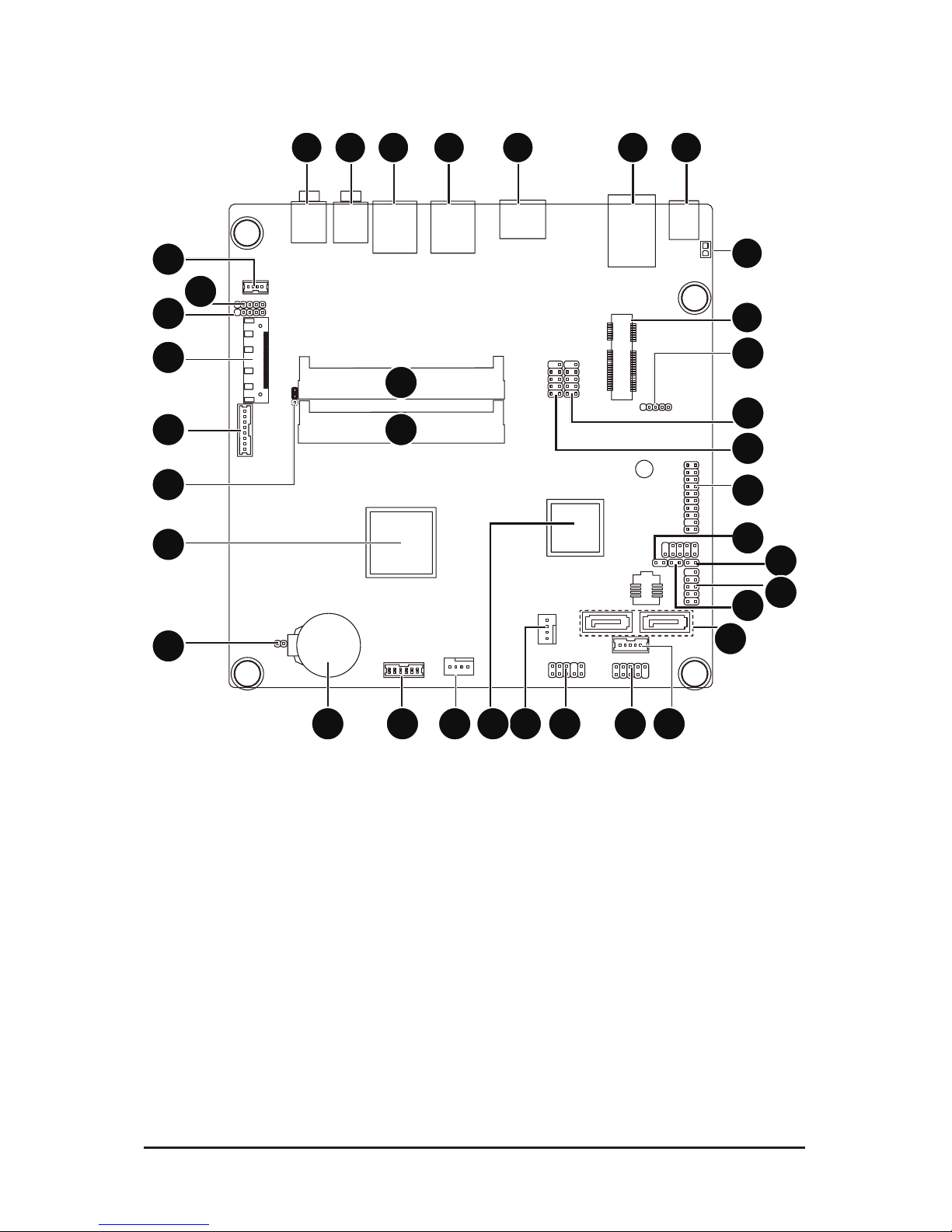

M5NM1I Motherboard Layout
8
10
9
13
14
15
16
17
18
2224
27
28
29
30
31
34
35
36
1926 25
32
33
23
11
12
2021
1 2 3 4 5 6 7
- 6 -
Item Code Description
1 LINE_IN Audio Line In port
2 LINE_OUT Audio Line Out port
3 R_USB1 USB 2.0 ports
4 R_USB2 USB 2.0 ports
5 HDMI HDMI port
6 LAN RJ45 LAN port
7 DC_IN DC In power connector
8 ATX_19V 2 pin power connector
9 MIN_PCIE1 Mini PCi Express connector
10 F_USB2 Front USB connector
11 COM2 Serial port cable header
12 COM1 Serial port cable header
13 TPM TPM moudle header
14 LAN_LED LAN LED header
15 BL_SW Back Light switch header
16 F_PANEL Front panel header
17 WF_LED WF LED header
18 SATAII_1/SATAII_2 SATA cable connectors
19 HDD_PWR Hard disk power connector
20 F_USB2_1 Front USB connector
21 F_AUDIO Audio cable connector
22 CPU_FAN CPU fan connector
23 CPU Embedded porcessor
24 SYS_FAN System fan connector
25 VGA_PH VGA cable connector
26 BATTERY Battery socket
27 CLR_CMOS Clear CMOS jumper
28 PCH Intel 82NM10 chipset
29 LVDS_EN LVDS Enable/Disable jumper
30 FPD Flat Panel Display connector
31 EDP LVDS connector
32 DMIC_CON Digital Mic header
33 WEB_CON WEBCAM header
34 SPEK Speaker cable connector
35 SO_DIMM1 DDR3 SO-DIMM slot (channel 1)
36 SO_DIMM2 DDR3 SO-DIMM slot (channel 2)
- 7 -
Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-
ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keep your hands dry and rst touch a metal object to eliminate static electricity.
•
Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power sup-
ply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hard-
ware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface
.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to sys-
tem components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certied computer technician.
Chapter 1 Hardware Installation
Hardware Installation
- 8 -
1-2 ProductSpecications
CPU Supports single Intel® Atom D2500/D2500/D2560 processors
Supports 1.8GHz
Chipset Intel®82NM10 chipset
Memory 2 x 1.5V DDR3 SO-DIMM slots
Max. to 8GB (4GB x 2)
Dual channel architecture
Support for DDR3 800/1066 MHz
Display 1 x HDMI 1.3 out
1 x LVDS connector
Audio Realtek ALC887 codec
High Denition Audio
2 Channel / SPDIF out
LAN 1 x Realtek RTL8111E supports 10/100/1000 Mbps
Expansion Slots 1 x Mini PCI Express slot (Half size)
Onboard
Graphics
Build in Intel®processor
Storage Interface 2 x SATA 3Gb/s connectors
USB 4 x USB 2.0 ports (back panel)
2 x USB 2.0/1.1 headers
Internal
Connectors
1 x 2-pin power connector
1 x TPM header
2 x SATA 3Gb/s connectors
1 x HDD power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Audio header
2 x USB 2.0 headers
1 x Speaker header
1 x LVDS connector
1 x FPD connector
1 x Web CAM header
1 x DMIC header
1 x Serial port cable headers
1 x VGA cable connector
- 9 -
Hardware Installation
Back Panel
Connectors
1 x DC-IN
1 x RJ-45 port
1 x HDMI port
4 x USB 2.0 ports
1 x Audio Line In
1 x Audio Line Out
I/O Controller iTE IT8773 chip
Hardware
Monitor
CPU/System temperature detection
CPU fan speed detection
BIOS 1 x 64 Mbit ash
AMI BIOS
Form Factor Mini ITX Form Factor; 170cm x 170cm
* GIGABYTE reserves the right to make any changes to the product specications and product-related information
without prior notice.
Hardware Installation
- 10 -

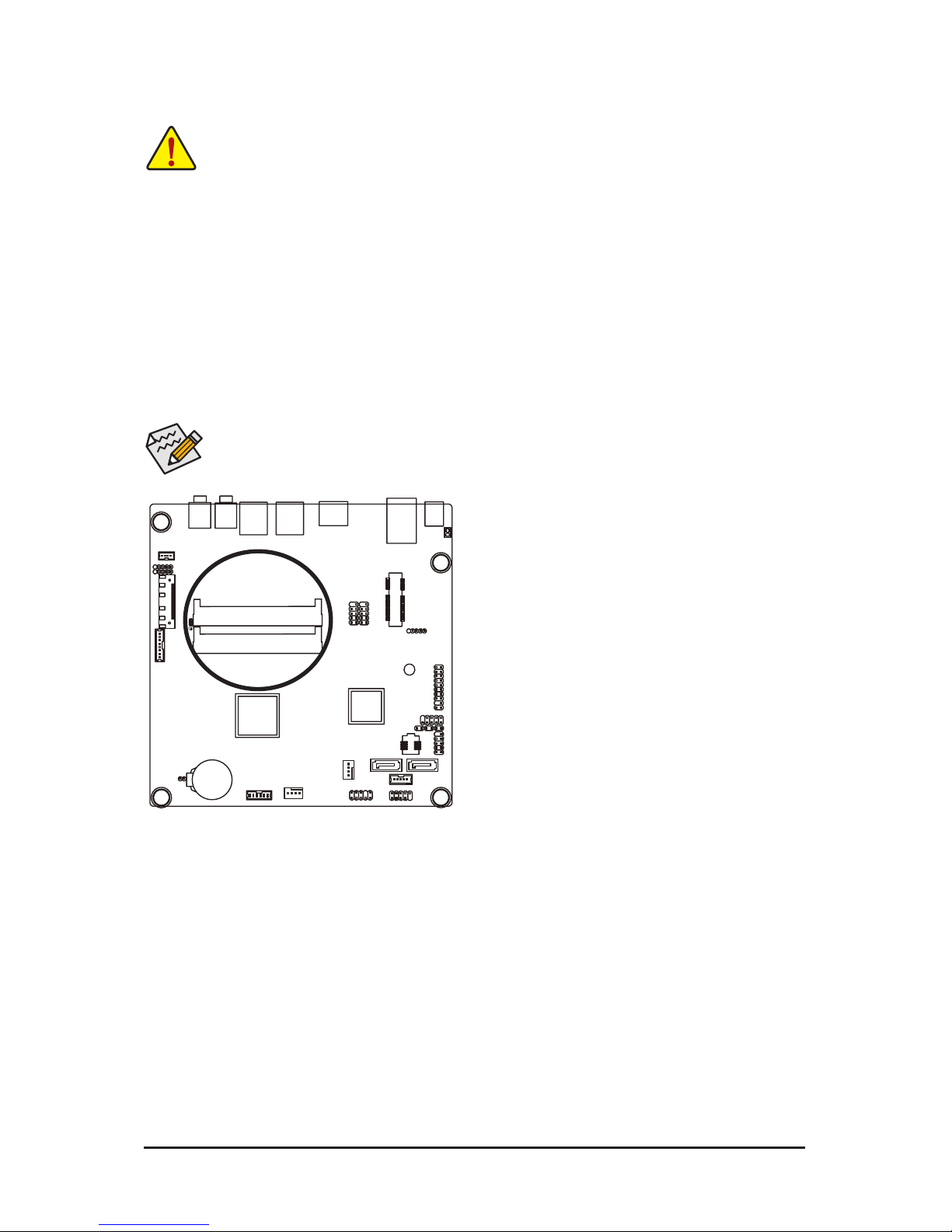

1-3-1 DualChannelMemoryConguration
This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology. After the
memory is installed, the BIOS will automatically detect the specications and capacity of the memory. En-
abling Dual Channel memory mode will double the original memory bandwidth.
1-3 InstallingtheMemory
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
•Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
NOTE!
•DIMM must be populated in order starting from SO_DIMM2 socket. For Dual-channel operation,
DIMMs must be installed in matched pairs.
SO_DIMM1
SO_DIMM2
