Gigabyte GA-8VD667 Manuel utilisateur

MThe author assumes no responsibility for any errors

or omissions that may appear in this document nor

does the author make a commitment to up

date the information contained herein.

MThird-party brands and names are the property of

their respective owners.

MPlease do not remove any labels on motherboard, this

may void the warranty of this motherboard.

MDue to rapid change in technology, some of the

specifications might be out of date before publication

of this booklet.

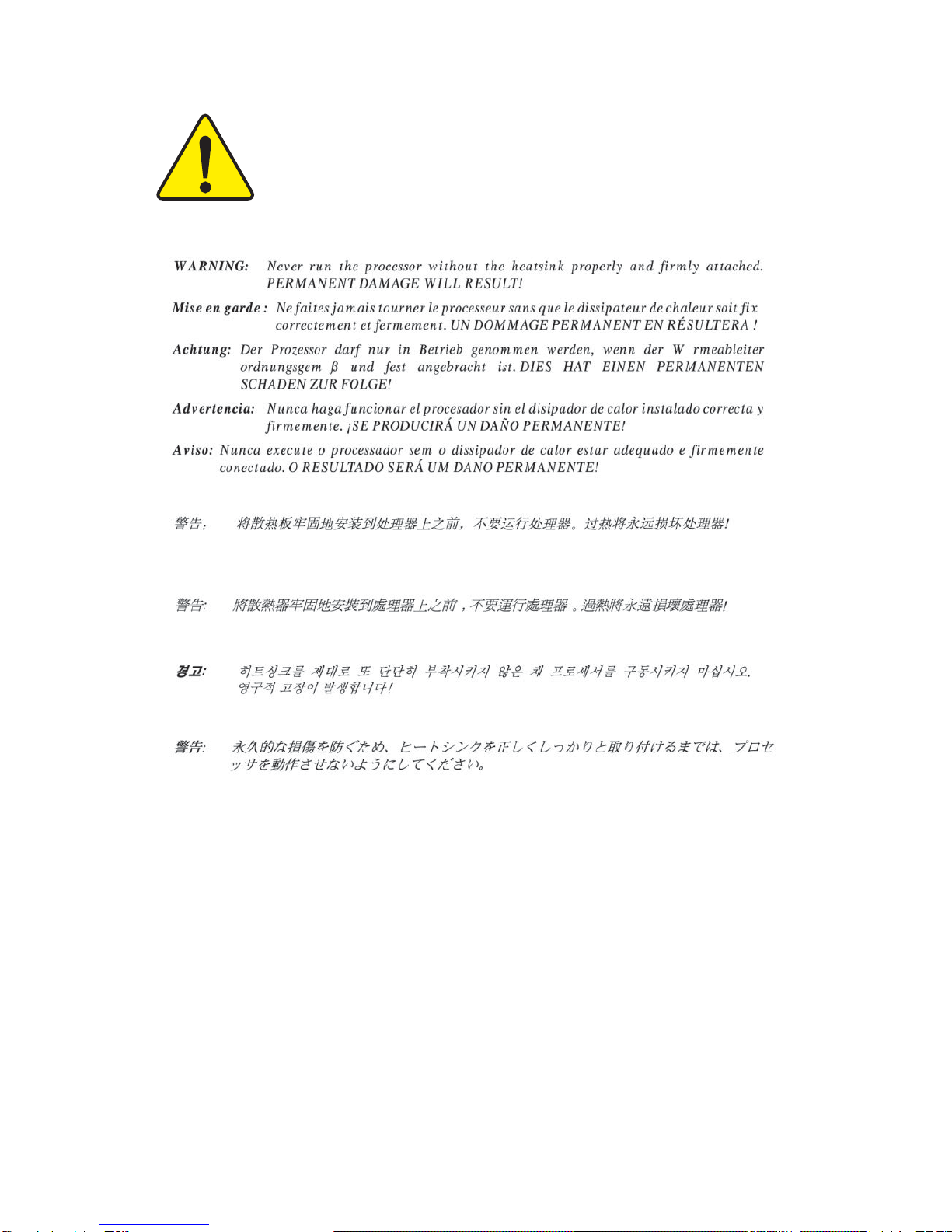

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

Mother Board

GA-8VD667

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive



EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment



EN 61000-3-2*

7EN 60555-2

Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Harmonics”



EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment



EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Voltage fluctuations”



EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

7EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

7EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry



EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment



EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment



EN 55082-2

7EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus



ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)



EN50091-2



EN 55020



DIN VDE 0855



part 10



part 12

(EC conformity marking)

7CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use



EN 60950



EN 60065

Safety of household and similar

electrical appliances



EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : Dec. 6, 2002

7EN 60555-3

Timmy Huang



EN 50091-1

Safety for information technology equipment

including electrical bussiness equipment

General and Safety requirments for

uninterruptible power systems (UPS)

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109

(a),Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name:

Address:

Phone/Fax No:

hereby declares that the product

Product Name:

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful and (2) this device must accept any inference received,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric Lu

Supplementary Information:

Model Number:

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Motherboard

GA-8VD667

Date:

ERIC LU

Dec. 6,2002

USER'S MANUAL

GA-8VD667

P4 Titan-DDR Motherboard

Pentium®4 Processor Motherboard

Rev. 1001

12ME-8VD667-1001

- 2 -GA-8VD667 Motherboard

English

Table of Content

Item Checklist ......................................................................................... 4

WARNING! ............................................................................................... 4

Chapter 1 Introduction ............................................................................. 5

Features Summary ...................................................................................... 5

GA-8VD667 Motherboard Layout ................................................................ 7

Block Diagramt .................................................................................. 8

Chapter 2 Hardware Installation Process ................................................ 9

Step 1: Install the Central Processing Unit (CPU)..................................... 10

Step1-1 CPU Installation ................................................................................................. 10

Step1-2 CPU Heat Sink Installation ................................................................................. 11

Step 2: Install memory modules ................................................................ 12

Step 3: Install expansion cards ................................................................. 14

Step 4: Connect ribbon cables, cabinet wires, and power supply ........... 15

Step4-1 I/O Back Panel Introduction .............................................................................. 15

Step4-2 Connectors Introduction .................................................................................... 17

Chapter 3 BIOS Setup .......................................................................... 29

The Main Menu (For example: BIOS Ver. :F1) ......................................... 30

Standard CMOS Features......................................................................... 32

Advanced BIOS Features .......................................................................... 35

Integrated Peripherals .............................................................................. 37

Table of Content

English

- 3 -

Power Management Setup ....................................................................... 42

PnP/PCI Configurations ............................................................................. 45

PC Health Status........................................................................................ 46

Frequency/Voltage Control ........................................................................ 48

Top Performance ...................................................................................... 50

Load Fail-Safe Defaults ............................................................................. 51

Load Optimized Defaults ........................................................................... 52

Set Supervisor/User Password .................................................................. 53

Save & Exit Setup ....................................................................................... 54

Exit Without Saving ................................................................................... 55

Chapter 4 Technical Reference ............................................................ 57

@ BIOS Introduction .................................................................................. 57

Face-Wizard Utilities Installation ............................................................... 58

BIOS Flash PRocedure ............................................................................. 59

2-/4-/6-Channel Audio Function Introduction ............................................ 74

Chapter 5 Appendix .............................................................................. 81

- 4 -GA-8VD667 Motherboard

English

The GA-8VD667 motherboard I/O Shield

IDE cable x 1/ Floppy cable x 1

CD for motherboard driver & utility

GA-8VD667 user’s manual

Item Checklist

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or

othercomponents.

4. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX

power connector on the motherboard.

If the motherboard has mounting holes, but they don’t line up with the holes on the base and there are

no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting

holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful

of your hands). In this way you can still attach the motherboard to the base without worrying about short

circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard

PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the screw contact

any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the

board or cause board malfunctioning.

Installing the motherboard to the chassis…

Introduction

English

- 5 -

Form Factor y21.0cm x 24.3cm Micro ATX size form factor, 4 layers PCB.

CPU ySocket 478 for Intel®Micro FC-PGA2 Pentium®4 processor

y Support Intel®Pentium®4 (Northwood, 0.13 m) processor

y Support Intel ®Pentium ®4 Processor with HT Technology

yIntel Pentium®4 533/400MHz FSB

y2nd cache depends on CPU

Chipset yChipset 82845GV HOST/AGP/Controller

yICH4 I/O Controller Hub

Memory y2 184-pin DDR DIMM sockets

ySupports DDR266/200 DDR SDRAM

ySupports up to 2GB DRAM (Max)

ySupports only 2.5V DDR SDRAM

I/O Control yITE8712

Slots y3 PCI slot supports 33MHz & PCI 2.2 compliant

On-Board IDE y2 IDE controller on the Intel ICH4 PCI chipset

provides IDE HDD/CD-ROM with PIO, Bus Master (Ultra

DMA33/ATA66/ATA100) operation modes.

yCan connect up to four IDE devices

On-Board Peripherals y1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M

and 2.88M bytes.

y1 Parallel port supports Normal/EPP/ECP mode

y1 Serial ports (COMA,) 1 VGA port ,COMB onboard

y6 x USB 2.0/1.1 (2x Rear, 4 Front by cable)

y1 Front Audio connector

On-Board VGA yBuilt in Intel 845GV Chipset

On-Board Sound yRealTek AC97 CODEC

y1 Buzzer

yLine In/Line Out/Mic In/AUX In/CD In/Game Port

On-Board LAN yBuilit in RTL8101L Chipset

y1 RJ 45 port

Chapter 1 Introduction

to be continued......

Features Summary

- 6 -GA-8VD667 Motherboard

English

Please set the CPU host frequency in accordance with your processor’s specifications.

We don’t recommend you to set the system bus frequency over the CPU’s specification

because these specific bus frequencies are not the standard specifications for CPU,

chipset and most of the peripherals. Whether your system can run under these specific

bus frequencies properly will depend on your hardware configurations, including CPU,

Chipsets,SDRAM,Cards….etc.

Hardware Monitor yCPU/System Fan Revolution detect

yCPU/System Fan Control

yCPU Overheat Warning

ySystem Voltage Detect

PS/2 Connector yPS/2 Keyboard interface and PS/2 Mouse interace

BIOS yLicensed AWARD BIOS, 2M bit FWH

ySupport Q-flash function

AdditionalFeatures yExternal Modem wake up

yPS/2 Keyboard password power on

yPS/2 Mouse power on

yAC Recovery

yUSB KB/Mouse wake up from S3

yPoly fuse for keyboard,USB,game port over-current protection

ySupports @BIOS

ySupports EasyTune4

"*" HT functionality requirement content :

Enabling the functionality of Hyper-Threading Technology for your computer system requires all

of the following platform components:

- CPU: An Intel®Pentium 4 Processor with HT Technology

- Chipset: An Intel®Chipset that supports HT Technology

- BIOS: A BIOS that supports HT Technology and has it enabled

- OS: An operation system that has optimizations for HT Technology

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-8S661FXMP-RZ Manuel utilisateur

Gigabyte

Gigabyte B650M H Manuel utilisateur

Gigabyte

Gigabyte GA-8I915P-D Manuel utilisateur

Gigabyte

Gigabyte B660M GAMING X AX Manuel utilisateur

Gigabyte

Gigabyte 12QU-MBQUICK-106DR Manuel utilisateur

Gigabyte

Gigabyte MZ01-CE0 Manuel utilisateur

Gigabyte

Gigabyte GA-Z87X-UD7 TH Manuel utilisateur

Gigabyte

Gigabyte MSH61DI Manuel utilisateur

Gigabyte

Gigabyte GA-8IDML Series Manuel utilisateur

Gigabyte

Gigabyte GA-F2A75M-DS2 Manuel utilisateur

Gigabyte

Gigabyte GA-B150M-D2V DDR3 Manuel utilisateur

Gigabyte

Gigabyte GA-Z87X-UD3H Manuel utilisateur

Gigabyte

Gigabyte GA-Z68XP-UD3P Manuel utilisateur

Gigabyte

Gigabyte Z790 AORUS ELITE X WIFI7 Manuel utilisateur

Gigabyte

Gigabyte GA-9ILDR Manuel utilisateur

Gigabyte

Gigabyte GA-8VT800 Manuel utilisateur

Gigabyte

Gigabyte GA-EG45M-UD2H Manuel utilisateur

Gigabyte

Gigabyte GA-8GE800 Pro Manuel utilisateur

Gigabyte

Gigabyte Z690 AORUS ELITE AX Manuel utilisateur

Gigabyte

Gigabyte GA-P55-UD3L Manuel utilisateur

Gigabyte

Gigabyte 8I945PE-FS Manuel utilisateur

Gigabyte

Gigabyte GA-A55M-S2H Manuel utilisateur

Gigabyte

Gigabyte GA-8I915G-ZFD Manuel utilisateur

Gigabyte

Gigabyte MZ72-HB2 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
