Gigabyte GA-X99-SLI Manuel utilisateur

GA-X99-SLI

User's Manual

Rev. 1003

12ME-X99SLI-1003R

For more product details, please visit GIGABYTE's website.

To reduce the impacts on global warming, the packaging materials of this product are

recyclable and reusable. GIGABYTE works with you to protect the environment.

Motherboard

GA-X99-SLI

Apr. 16, 2015

Motherboard

GA-X99-SLI

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of docu-

mentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

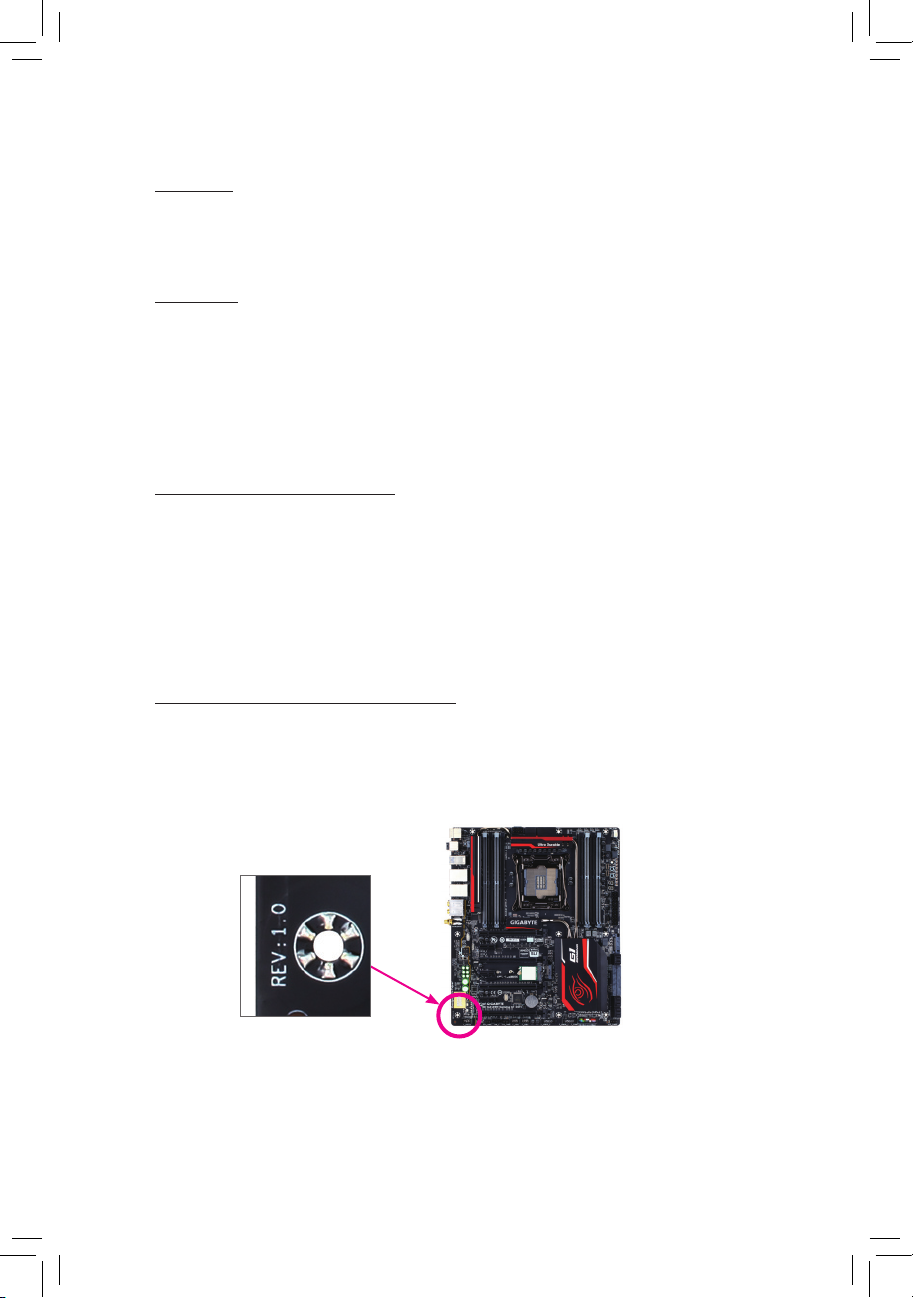

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents...................................................................................................................6

Optional Items .................................................................................................................6

GA-X99-SLI Motherboard Layout ...................................................................................7

GA-X99-SLI Motherboard Block Diagram.......................................................................8

Chapter 1 Hardware Installation .....................................................................................9

1-1 Installation Precautions ................................................................................... 9

1-2 ProductSpecications................................................................................... 10

1-3 Installing the CPU and CPU Cooler............................................................... 13

1-3-1 Installing the CPU ..................................................................................................13

1-3-2 Installing the CPU Cooler ......................................................................................15

1-4 Installing the Memory .................................................................................... 16

1-4-1 4ChannelMemoryConguration..........................................................................16

1-4-2 Installing a Memory................................................................................................17

1-5 Installing an Expansion Card......................................................................... 18

1-6 Setting up AMD CrossFire™/NVIDIA®SLI™Conguration............................. 19

1-7 Back Panel Connectors ................................................................................. 21

1-8 Internal Connectors ....................................................................................... 23

Chapter 2 BIOS Setup ..................................................................................................37

2-1 Startup Screen............................................................................................... 38

2-2 The Main Menu.............................................................................................. 39

2-3 M.I.T. .............................................................................................................. 42

2-4 System Information........................................................................................ 54

2-5 BIOS Features ............................................................................................... 55

2-6 Peripherals..................................................................................................... 58

2-7 Chipset........................................................................................................... 59

2-8 Power Management....................................................................................... 62

2-9 Save & Exit .................................................................................................... 64

- 5 -

Chapter3 ConguringSATAHardDrive(s) ..................................................................65

3-1 ConguringSATAControllers........................................................................ 65

3-2 Installing the SATA RAID/AHCI Driver and Operating System ..................... 77

Chapter 4 Appendix......................................................................................................81

Drivers Installation .................................................................................................... 81

Regulatory Statements............................................................................................. 82

Contact Us ................................................................................................................ 87

- 6 -

Box Contents

5GA-X99-SLI motherboard

5Motherboard driver disk

5User's Manual

5Quick Installation Guide

5Four SATA cables

5I/O Shield

5One 2-Way SLI bridge connector

5One 2-Way CrossFire bridge connector

Optional Items

2-portUSB2.0bracket(PartNo.12CR1-1UB030-6*R)

eSATAbracket(PartNo.12CF1-3SATPW-4*R)

3.5"FrontPanelwith2USB3.0/2.0ports(PartNo.12CR1-FPX582-2*R)

3-WaySLIbridgeconnector(GC-3SLI)(PartNo.5C3SLI-00-10*)

3-WaySLIbridgeconnector(GC-3SLI-X99)(PartNo.5C3SLIX99-00-10*)

4-WaySLIbridgeconnector(GC-4SLI)(PartNo.5C4SLI-00-10*)

The box contents above are for reference only and the actual items shall depend on the product package you

obtain. The box contents are subject to change without notice.

- 7 -

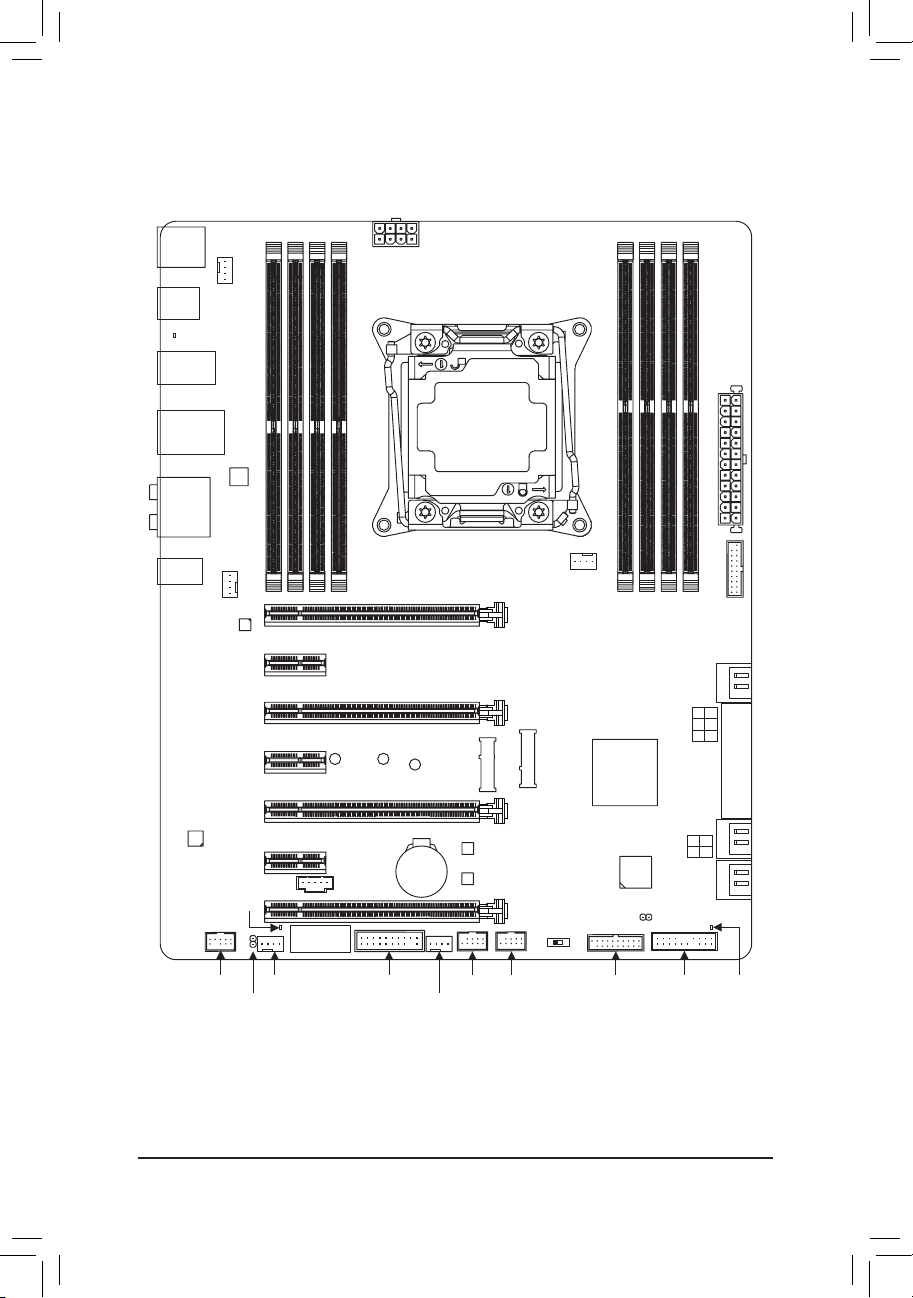

GA-X99-SLI Motherboard Layout

KB_MS

FBIOS_LED

R_USB

R_USB30

USB_LAN

CPU_FAN

SYS_FAN1

LGA2011-3

ATX

AUDIO

ANTENNA_

BRACKET

DDR4_8_2D

DDR4_1_1A

DDR4_7_1D

DDR4_2_2A

DDR4_6_2C

DDR4_3_1B

DDR4_5_1C

DDR4_4_2B

BAT

ATX_12V_2X4

Intel®X99

CLR_CMOS

CPU_MODE

M_BIOS

B_BIOS

PCIE_5

Intel®GbE LAN

PCIE_4

PCIE_2

PCIE_1

PCIE_3

PCIE_6

PCIE_7

CPU_OPT

M2_10G

M2_WIFI

CODEC

GA-X99-SLI

F_PANEL

F_USB30_1

F_USB30_2F_USB1F_USB2TPM

SYS_FAN2

ATX4P

SPDIF_O

THB_C

SYS_FAN3

System Temperature

Sensor 1

System Temperature

Sensor 2

F_AUDIO

iTE®

Super I/O

SATA3

sSATA3 321

540

3 1

2 0

SATA_EXPRESS

Renesas®

USB 3.0 Hub

60 30

- 8 -

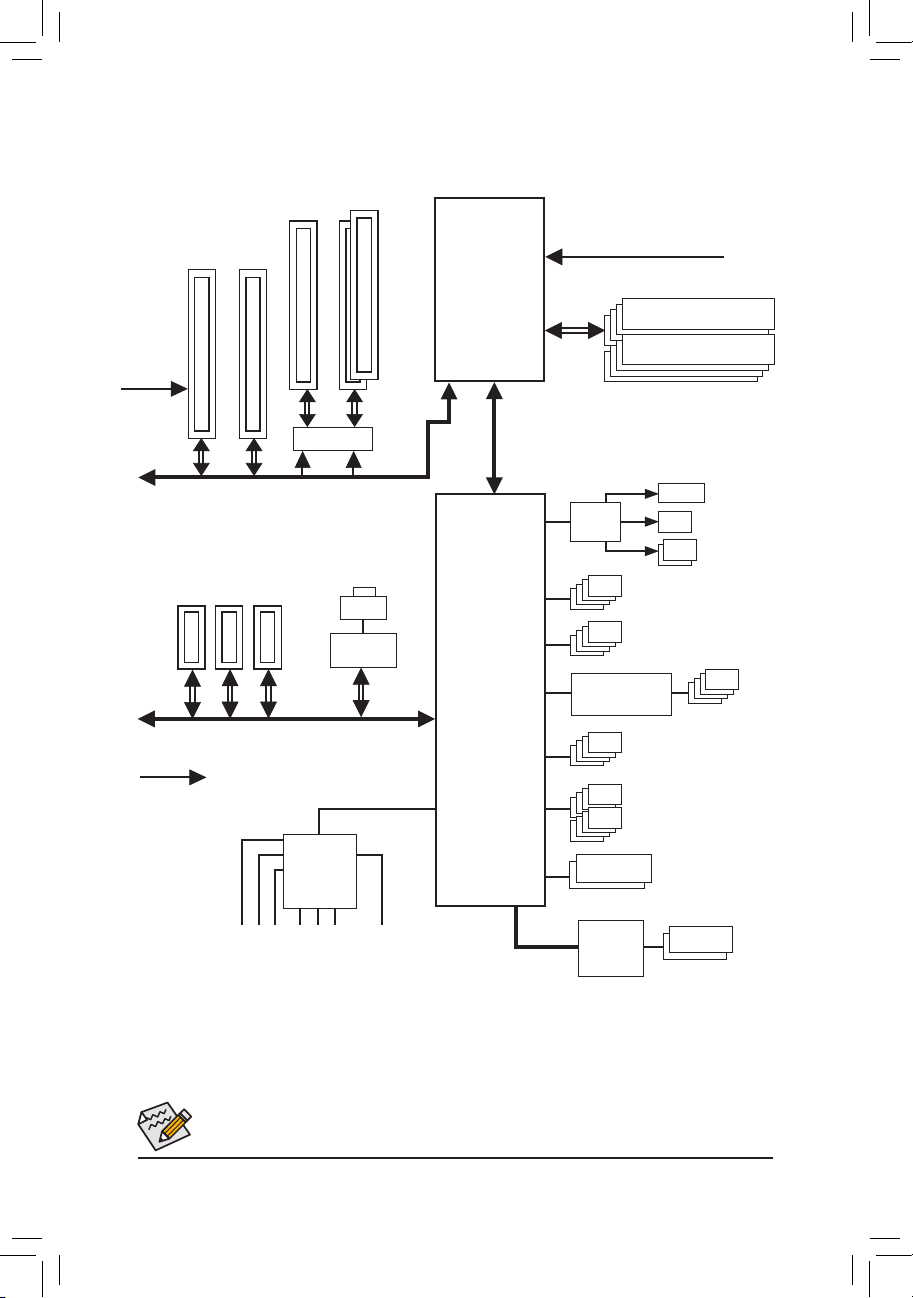

GA-X99-SLI Motherboard Block Diagram

Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."

4 Channel Memory

DDR4 2133/1866/1600/1333 MHz

LGA2011-3

CPU

CPUCLK+/-(100MHz)

DMI 2.0

LPC Bus

PS/2 KB/Mouse

iTE®

Super I/O

Intel®X99

4 USB 3.0/2.0

8 USB 2.0/1.1

PCI Express Bus

LAN

RJ45

Intel®GbE

LAN

4 USB 3.0/2.0

4 SATA 6Gb/s

PCIe CLK

(100MHz)

PCIe CLK

(100MHz)

Switch

x16

1 PCI Express x16 2 PCI Express x8

x16 x8

1 PCI

Express x8

1 PCI

Express x16

3 PCI Express x1

x1 x1

Dual BIOS

4 SATA 6Gb/s

Center/Subwoofer Speaker Out

Line Out

MIC

Line In

S/PDIF Out

Side Speaker Out

Rear Speaker Out

CODEC

SATA Express

M.2

Switch

2 SATA 6Gb/s

Renesas®

USB 3.0 Hub

- 9 -

Hardware Installation

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damagedasaresultofelectrostaticdischarge(ESD).Priortoinstallation,carefullyreadtheuser's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Priorto installation,do notremove or breakmotherboard S/N(Serial Number)stickeror

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•Itisbesttowearanelectrostaticdischarge(ESD)wriststrapwhenhandlingelectroniccom-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep

yourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its instal-

lation and/or grounding instructions.

- 10 -

Hardware Installation

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors in the LGA2011-3 package

(GotoGIGABYTE'swebsiteforthelatestCPUsupportlist.)

L3 cache varies with CPU

Chipset Intel®X99 Express Chipset

Memory 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory

* DuetoaWindows32-bitoperatingsystemlimitation,whenmorethan4GBofphysical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

4 channel memory architecture

Support for DDR4 2133/1866/1600/1333 MHz memory modules

Support for non-ECC memory modules

SupportforExtremeMemoryProle(XMP)memorymodules

SupportforRDIMM1Rx8/2Rx8/1Rx4/2Rx4memorymodules(operateinnon-

ECCmode)

(GotoGIGABYTE'swebsiteforthelatestsupportedmemoryspeedsandmemory

modules.)

Audio Realtek®ALC1150 codec

HighDenitionAudio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN Intel®GbELANchip(10/100/1000Mbit)

Expansion Slots 2xPCIExpressx16slots,runningatx16(PCIE_1,PCIE_2)

* Foroptimumperformance,ifonlyonePCIExpressgraphicscardistobeinstalled,

be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics

cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.

2xPCIExpressx16slots,runningatx8(PCIE_3,PCIE_4)

* ThePCIE_4slotsharesbandwidthwiththePCIE_1slot.WhenthePCIE_4slotis

populated, the PCIE_1 slot will operate at up to x8 mode.

* Whenani7-5820KCPUisinstalled,thePCIE_2slotoperatesatuptox8modeand

the PCIE_3 operates at up to x4 mode.

(AllPCIExpressx16slotsconformtoPCIExpress3.0standard.)

3 x PCI Express x1 slots

(ThePCIExpressx1slotsconformtoPCIExpress2.0standard.)

1xM.2Socket1connectorforthewirelesscommunicationmodule(M2_WIFI)

Multi-Graphics

Technology

Support for NVIDIA®Quad-GPU SLI™and 4-Way/3-Way/2-Way NVIDIA®SLI™

technologies

Support for AMD Quad-GPU CrossFireX™and 4-Way/3-Way/2-Way AMD

CrossFire™technologies

* The4-WayNVIDIA®SLI™congurationisnotsupportedwhenani7-5820KCPUis

installed.Tosetupa3-WaySLIconguration,referto"1-6SettingupAMDCrossFire™/

NVIDIA®SLI™Conguration."

Storage Interface Chipset:

- 1xM.2connector(M2_10G)(Socket3,Mkey,type2260/2280SATAand

PCIex2/x1SSDsupport)

- 1 x SATA Express connector

- 6xSATA6Gb/sconnectors(SATA30~5)

- Support for RAID 0, RAID 1, RAID 5, and RAID 10

* OnlyAHCImodeissupportedwhenanM.2PCIeSSDoraSATAExpressdeviceis

installed.

(M2_10G,SATAExpress,andSATA34/5connectorscanonlybeusedoneata

time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is

installedintheM2_10Gconnector.)

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte 5AA Manuel utilisateur

Gigabyte

Gigabyte GA-8PE800 Pro Manuel utilisateur

Gigabyte

Gigabyte 8S648FX-RZ Manuel utilisateur

Gigabyte

Gigabyte Xeon Processor Motherboard GA-5YXS-RH Manuel utilisateur

Gigabyte

Gigabyte GA-6VXC7-4X-P Manuel utilisateur

Gigabyte

Gigabyte H610I DDR4 Manuel utilisateur

Gigabyte

Gigabyte GA-MA770-DS3 Manuel

Gigabyte

Gigabyte B550 AORUS PRO AX Manuel utilisateur

Gigabyte

Gigabyte GA-M61VME-S2 Manuel utilisateur

Gigabyte

Gigabyte Z370 AORUS Gaming 7 Manuel utilisateur

Gigabyte

Gigabyte GA-8VT800 Manuel utilisateur

Gigabyte

Gigabyte GA-M55SLI-S4 Manuel utilisateur

Gigabyte

Gigabyte Z690 AORUS MASTER Manuel utilisateur

Gigabyte

Gigabyte GA-P67A-UD3R-B3 Manuel utilisateur

Gigabyte

Gigabyte GA-H67MA-UD2H Manuel utilisateur

Gigabyte

Gigabyte H410M S2H V2 Manuel utilisateur

Gigabyte

Gigabyte Z590I AORUS ULTRA Manuel utilisateur

Gigabyte

Gigabyte B460M D3H Manuel utilisateur

Gigabyte

Gigabyte GA-8IE800 Manuel utilisateur

Gigabyte

Gigabyte GA-K8NF9-SI Manuel utilisateur

Gigabyte

Gigabyte H370N WIFI Manuel utilisateur

Gigabyte

Gigabyte A620M DS3H Manuel utilisateur

Gigabyte

Gigabyte GA-IMB410TN Manuel utilisateur

Gigabyte

Gigabyte GA-790XTA-UD4 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
