Z690AORUSXTREME

User's Manual

Rev. 1001

12ME-Z69XTRM-1001R

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of

documentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

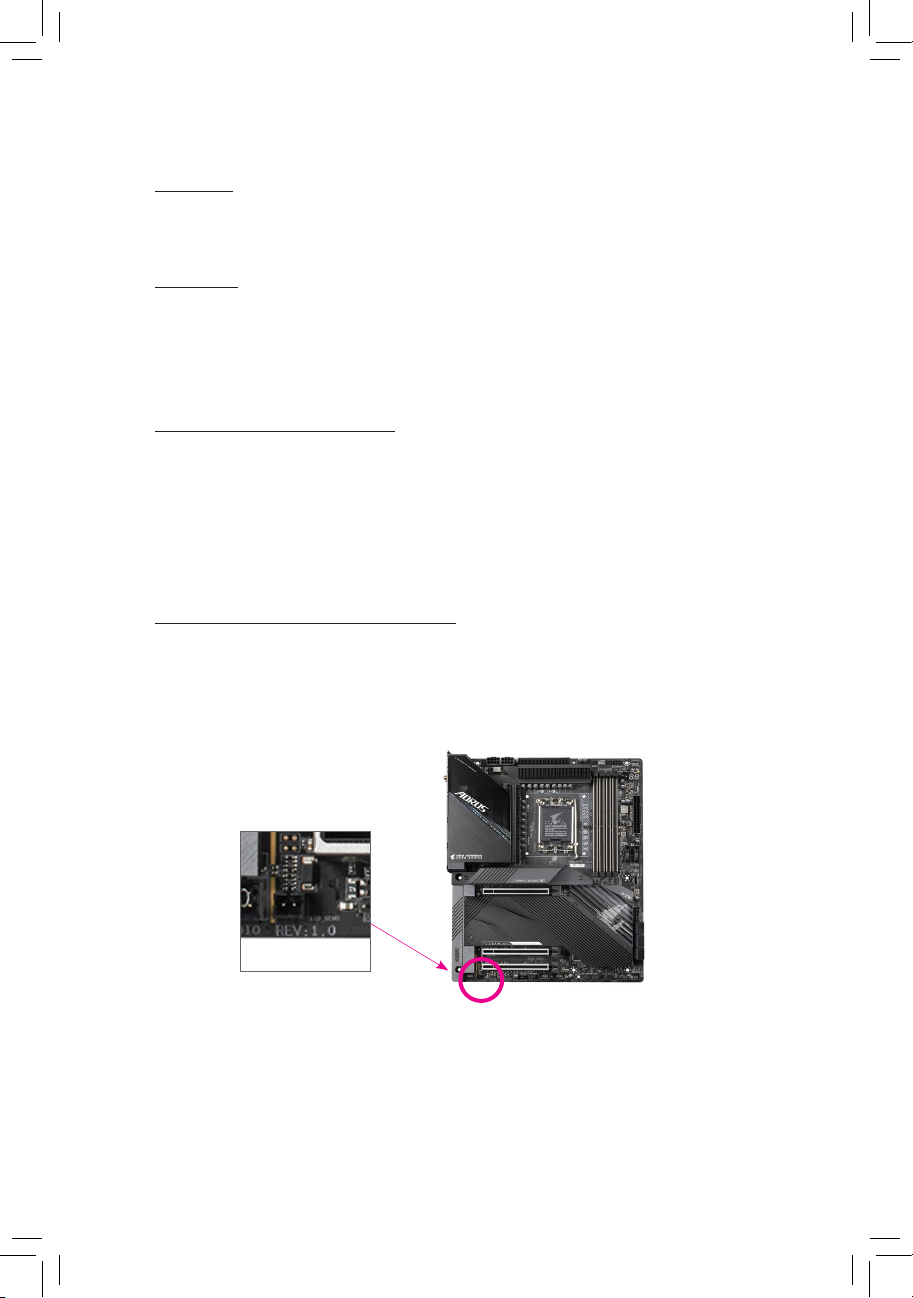

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Motherboard Block Diagram ............................................................................ 5

1-3 Box Contents.................................................................................................... 6

Chapter 2 Hardware Installation .....................................................................................7

2-1 Installation Precautions.................................................................................... 7

2-2 Product Specications...................................................................................... 8

2-3 Installing the CPU and CPU Cooler ............................................................... 12

2-4 Installing the Memory..................................................................................... 15

2-5 Installing an Expansion Card ......................................................................... 17

2-6 Setting up an AMD CrossFire™ Conguration................................................ 18

2-7 Back Panel Connectors.................................................................................. 19

2-8 Internal Connectors........................................................................................ 21

Chapter 3 BIOS Setup ..................................................................................................32

Chapter 4 Installing the Operating System and Drivers................................................34

4-1 Operating System Installation ........................................................................ 34

4-2 Drivers Installation.......................................................................................... 35

Chapter 5 Appendix ......................................................................................................36

5-1 Conguring a RAID Set.................................................................................. 36

5-2 Debug LED Codes ......................................................................................... 37

Regulatory Notices.................................................................................................... 41

Contact Us ................................................................................................................ 45

- 4 -

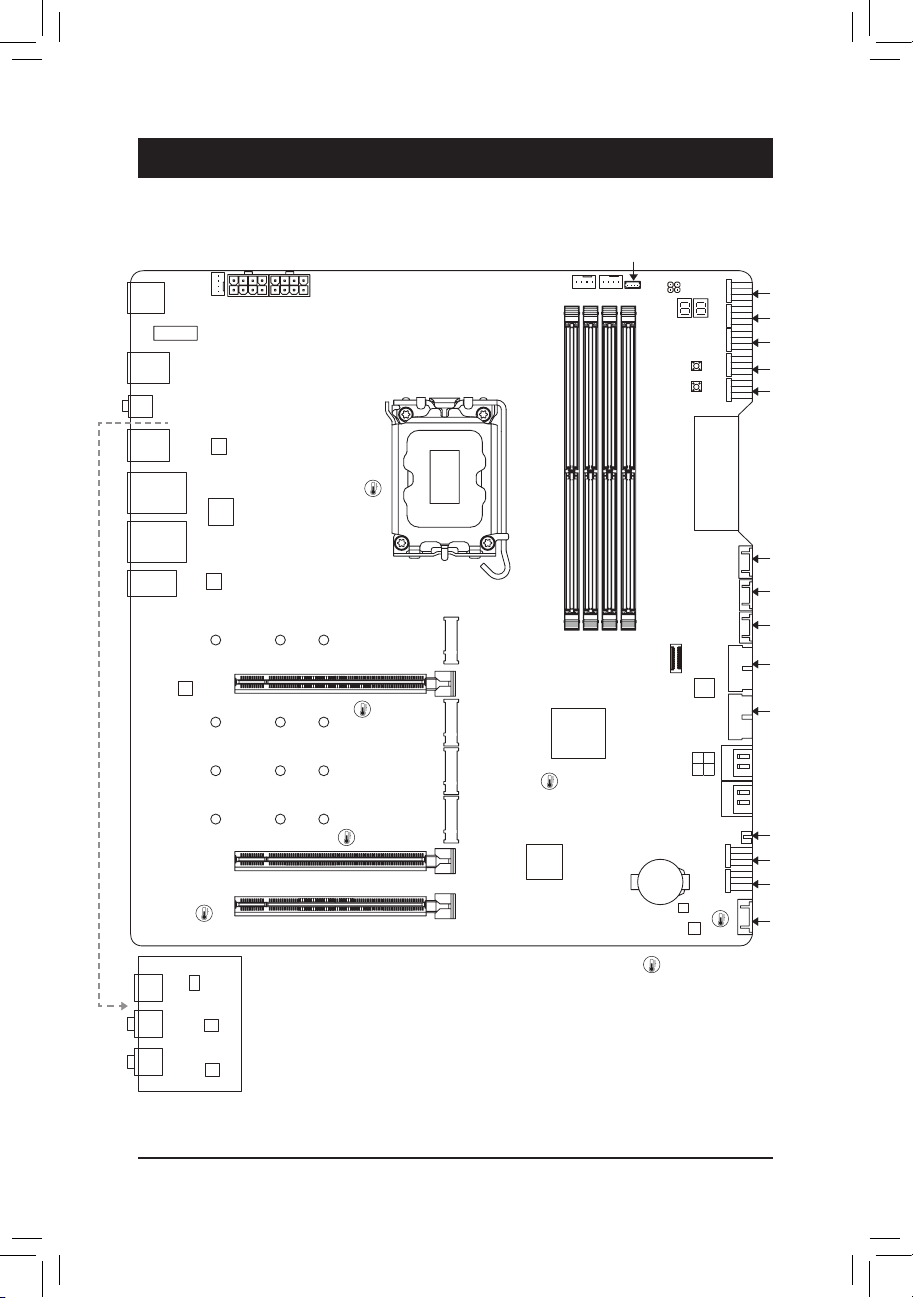

1-1 Motherboard Layout

(Note) For debug code information, please refer to Chapter 5.

Chapter 1 Product Introduction

Temperature Sensor

M2_WIFI

LGA1700

ATX

U32G2_1

Intel®Z690

M_BIOS

USB 3.2 Gen 2 Hub PCIEX16

PCIEX8

F_U320G

DB_PORT (Note)

EC_TEMP2

SYS_FAN1

110

M2A_CPU

M2P_SB

CPU_FAN

iTE®

Super I/O

LED_C1

LED_C2

PW_SW

ATX_12V_2X4_2

ATX_12V_2X4_1

SATA3 5 7

4 6

REAR_BUTTON

CPU_OPT EC_TEMP1

RST_SW

SYS_FAN5_

PUMP

SYS_FAN4

SYS_FAN3

SYS_FAN2

SYS_FAN6_

PUMP

F_PANEL

NOISE_

SENSOR

F_U32_2

SYS_FAN8_

PUMP

F_USB1

PCIEX4_1

U32G2_3

Intel®2.5GbE

LAN

M2Q_SB

M2M_SB

DDR5_A1

DDR5_A2

DDR5_B1

DDR5_B2

BAT

USB 3.2

Gen 1 Hub F_U32_1

110

Marvell®AQtion AQC113C

10GbE LAN

CMOS

U32G2_2

TYPEC_1

U32G2

_LAN2

TYPEC_2

U32G2

_LAN1

Intel®

Thunderbolt™4

Controller

USB 2.0 Hub

OPTICAL

MIC_IN

LINE_OUT

ESS ES9280AC

DAC

ESS ES9080

SYS_FAN7_

PUMP

LED_DDR

Z690 AORUS XTREME

- 5 -

1-2 Motherboard Block Diagram

LGA1700 CPU

CPU CLK+/- (80~800 MHz)

DMI 4.0

LAN1

RJ45

4 SATA 6Gb/s

(SATA3 4~7)

eSPI

Bus

SPI

Bus

PCI Express 4.0 Bus

PCI Express 3.0 Bus

Line Out

MIC

S/PDIF Out

ESS ES9280AC DAC

2 ESS ES9080

iTE®

Super I/O

4 USB 3.2 Gen 1

6 USB 3.2 Gen 2 Type-A

Intel®Z690

x4 x2

1 PCI Express x4

USB 3.2

Gen 1 Hub

4 USB 2.0/1.1

BIOS

M.2 WIFI

PCI Express 5.0 Bus

PCI Express 4.0 Bus

1 M.2 Socket 3

(M2A_CPU)

3 M.2 Socket 3

(M2P_SB, M2Q_SB, M2M_SB)

Marvell®AQtion

AQC113C

10GbE LAN

1 USB Type-C®,

with USB 3.2 Gen 2x2 support

DDR5 4800/4000 MHz

LAN2

RJ45

Intel®

2.5GbE LAN

USB 2.0

Hub

4 USB 3.2 Gen 2 Type-A

USB 3.2

Gen 2 Hub

x16

1 PCI Express x16

2 PCI Express x8

Switch

Intel®Thunderbolt™4

Controller

2 Intel®Thunderbolt™4

2 USB Type-C®, with

USB 3.2 Gen 2 support

- 6 -

1-3 Box Contents

5Z690 AORUS XTREME motherboard

5One AORUS USB ash drive with drivers

5User's Manual

5Quick Installation Guide

5Two antennas

5Four SATA cables

5Two addressable LED strip + RGB LED strip combo extension cables

5One front panel extension cable

5One front USB header extension cable

5One noise detection cable

5One ESSential USB DAC

5Two thermistor cables

5M.2 screws

5One G Connector

5One AORUS RGB Memory Armor

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

- 7 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its

installation and/or grounding instructions.

Chapter 2 Hardware Installation

- 8 -

2-2 Product Specications

CPU LGA1700 socket: Support for 12th Generation Intel®Core™i9 processors/Intel®

Core™i7 processors/Intel®Core™i5 processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®Z690 Express Chipset

Memory Support for DDR5 4800/4000 MHz memory modules

4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor+Intel®Thunderbolt™4 Controller:

- 2 x Intel®Thunderbolt™4 connectors (USB Type-C®ports), supporting

DisplayPort and Thunderbolt™video outputs and a maximum resolution of

5120x2880@60 Hz with 24 bpp (via single display output)

* Because of the limited I/O resources of the PC architecture, the number of

Thunderbolt™devices that can be used is dependent on the number of the PCI

Express devices being installed. (Refer to Chapter 2-7, "Back Panel Connectors,"

for more information.)

* Support for DisplayPort 1.4 version and HDCP 2.3

(Graphics specications may vary depending on CPU support.)

Audio 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips

DTS®Sound Unbound™

High Denition Audio

2-channel

Support for S/PDIF Out

* The line out jack and the optical S/PDIF out connector can only be used one at a time.

LAN Marvell®AQtion AQC113C 10GbE LAN chip

(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)

Intel®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)

Wireless

Communication

Module

Intel®Wi-Fi 6E AX210

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.2

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is

populated, the PCIEX16 slot operates at up to x8 mode.

(The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4_1)

(The PCIEX4_1 slot conforms to PCI Express 3.0 standard.)

- 9 -

Multi-Graphics

Technology Support forAMD Quad-GPU CrossFire™and 2-WayAMD CrossFire™technologies

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2

SSD support) (M2A_CPU)

Chipset:

- 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2

SSD support) (M2P_SB, M2Q_SB)

- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe

4.0 x4/x2 SSD support) (M2M_SB)

- 4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel®Optane™Memory Ready

* System acceleration with Intel®Optane™Memory can only be enabled on the M.2

connectors supported by the Chipset.

USB Chipset+Intel®Thunderbolt™4 Controller:

- 2 x USB Type-C®ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

- 1 x USB Type-C®port with USB 3.2 Gen 2x2 support, available through the

internal USB header

- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 2 Hub:

- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB header (with the

included front USB header extension cable)

Internal

Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

4 x system fan/water cooling pump headers

1 x noise detection header

1 x AORUS RGB Memory Armor power header

2 x addressable LED strip + RGB LED strip combo extension cable headers

4 x SATA 6Gb/s connectors

4 x M.2 Socket 3 connectors

1 x front panel header

1 x USB Type-C®header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

1 x USB 2.0/1.1 header

2 x temperature sensor headers

1 x power button

1 x reset button

- 10 -

Back Panel

Connectors

1 x Q-Flash Plus button

1 x OC Ignition button

1 x Clear CMOS button

2 x SMA antenna connectors (2T2R)

2 x Thunderbolt™4 connectors (USB Type-C®port, with USB 3.2 Gen 2 support)

10 x USB 3.2 Gen 2 Type-A ports (red)

2 x RJ-45 ports

1 x optical S/PDIF Out connector

2 x audio jacks

* The mic in jack supports only mono microphone input.

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water cooling ow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan

(pump) you install.

Noise detection

BIOS 1 x 256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- RGB Fusion

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Autres manuels pour Z690 AORUS MASTER

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-8SIMLH SERIES Manuel utilisateur

Gigabyte

Gigabyte GA-6LM7A Manuel utilisateur

Gigabyte

Gigabyte B550I AORUS PRO AX Manuel utilisateur

Gigabyte

Gigabyte GA-F2A78M-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-7TESM Manuel utilisateur

Gigabyte

Gigabyte MW83-RP0 Manuel utilisateur

Gigabyte

Gigabyte GA-F2A88XM-HD3P Manuel utilisateur

Gigabyte

Gigabyte GA-945PLM-(D)S2 Manuel utilisateur

Gigabyte

Gigabyte H310M HD3 2.0 Manuel utilisateur

Gigabyte

Gigabyte GA-970A-D3P Manuel utilisateur

Gigabyte

Gigabyte TRX40 DESIGNARE Manuel utilisateur

Gigabyte

Gigabyte GA-H110M-HD3 DDR3 Manuel utilisateur

Gigabyte

Gigabyte MU92-TU1 Manuel utilisateur

Gigabyte

Gigabyte GA-C847N-D Manuel utilisateur

Gigabyte

Gigabyte GA-Z77-HD4 Manuel utilisateur

Gigabyte

Gigabyte GA-H110M-S2HP Manuel utilisateur

Gigabyte

Gigabyte GA-H110M-S2V Manuel utilisateur

Gigabyte

Gigabyte GA-7IX Manuel utilisateur

Gigabyte

Gigabyte MZGLKAI Manuel utilisateur

Gigabyte

Gigabyte H470M S2 Manuel utilisateur

Gigabyte

Gigabyte GA-EP45-DS3 Manuel utilisateur

Gigabyte

Gigabyte MATMH61 Manuel utilisateur

Gigabyte

Gigabyte GA-P41T-ES3G Manuel utilisateur

Gigabyte

Gigabyte 5VMM Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
