Gigabyte GA-B75M-D2V Manuel utilisateur

GA-B75M-D2V

User's Manual

Rev. 1001

12ME-B75MD2V-1001R

Declaration of Conformity

We, Manufacturer/Importer,

G.B.T. Technology Trading GMbH

Address: Bullenkoppel 16, 22047 Hamburg, Germany

Declare that the product

Product Type:

Product Name:

conforms with the essential requirements of the following directives:

2004/108/EC EMC Directive:

Conduction & Radiated Emissions: EN55022:2006+A1:2007

Immunity:EN55024:1998+A1:2001+A2:2003

Power-line harmonics: EN61000-3-2:2006

Power-line flicker: EN61000-3-3:2008

2006/95/EC LVD Directive

Safety:EN60950-1:2006+A11:2009

2011/65/EU RoHS Directive

Restriction of use of certain

substances in electronic equipment:

This product does not contain any of the restricted

substances listed in Annex II, in concentrations

and applications banned by the directive.

CE marking

(EC conformity marking)

Signature:

(Stamp) Date: Name:

Timmy Huang

Motherboard

GA-B75M-D2V

Oct. 31, 2012

Motherboard

GA-B75M-D2V

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice. No part of this manual may be reproduced, copied, translated, transmit-

ted, or published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

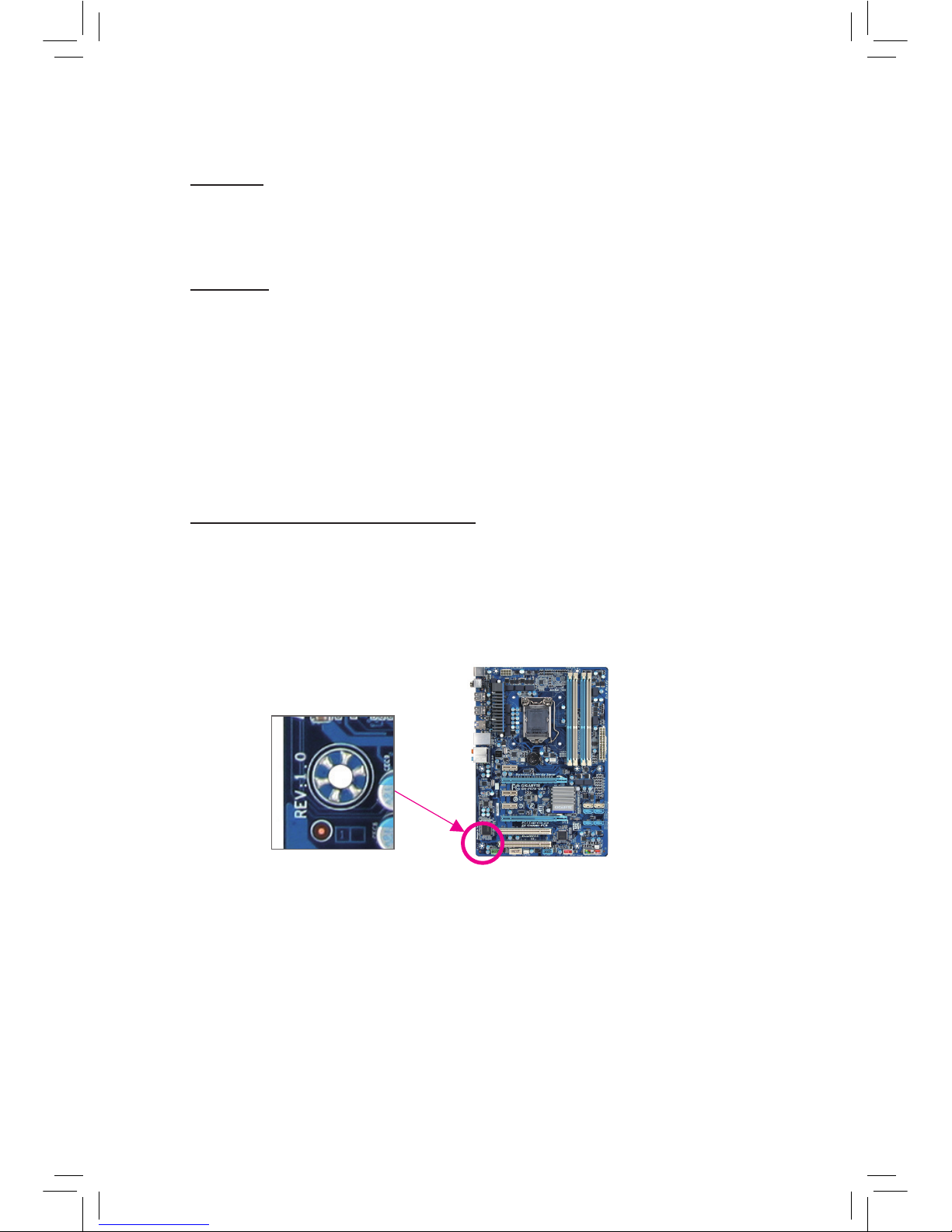

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

GA-B75M-D2V Motherboard Layout...............................................................................5

GA-B75M-D2V Motherboard Block Diagram..................................................................6

Chapter 1 Hardware Installation .....................................................................................7

1-1 Installation Precautions ................................................................................... 7

1-2 ProductSpecications..................................................................................... 8

1-3 Installing the CPU .......................................................................................... 10

1-4 Installing the Memory .....................................................................................11

1-5 Installing an Expansion Card..........................................................................11

1-6 Back Panel Connectors ................................................................................. 12

1-7 Internal Connectors ....................................................................................... 13

Chapter 2 BIOS Setup..................................................................................................20

2-1 Startup Screen............................................................................................... 20

2-2 The Main Menu.............................................................................................. 21

2-3 M.I.T. .............................................................................................................. 22

2-4 System ........................................................................................................... 30

2-5 BIOS Features ............................................................................................... 31

2-6 Peripherals..................................................................................................... 34

2-7 Power Management....................................................................................... 37

2-8 Save & Exit .................................................................................................... 39

Chapter 3 Drivers Installation .......................................................................................40

Regulatory Statements............................................................................................. 41

- 5 -

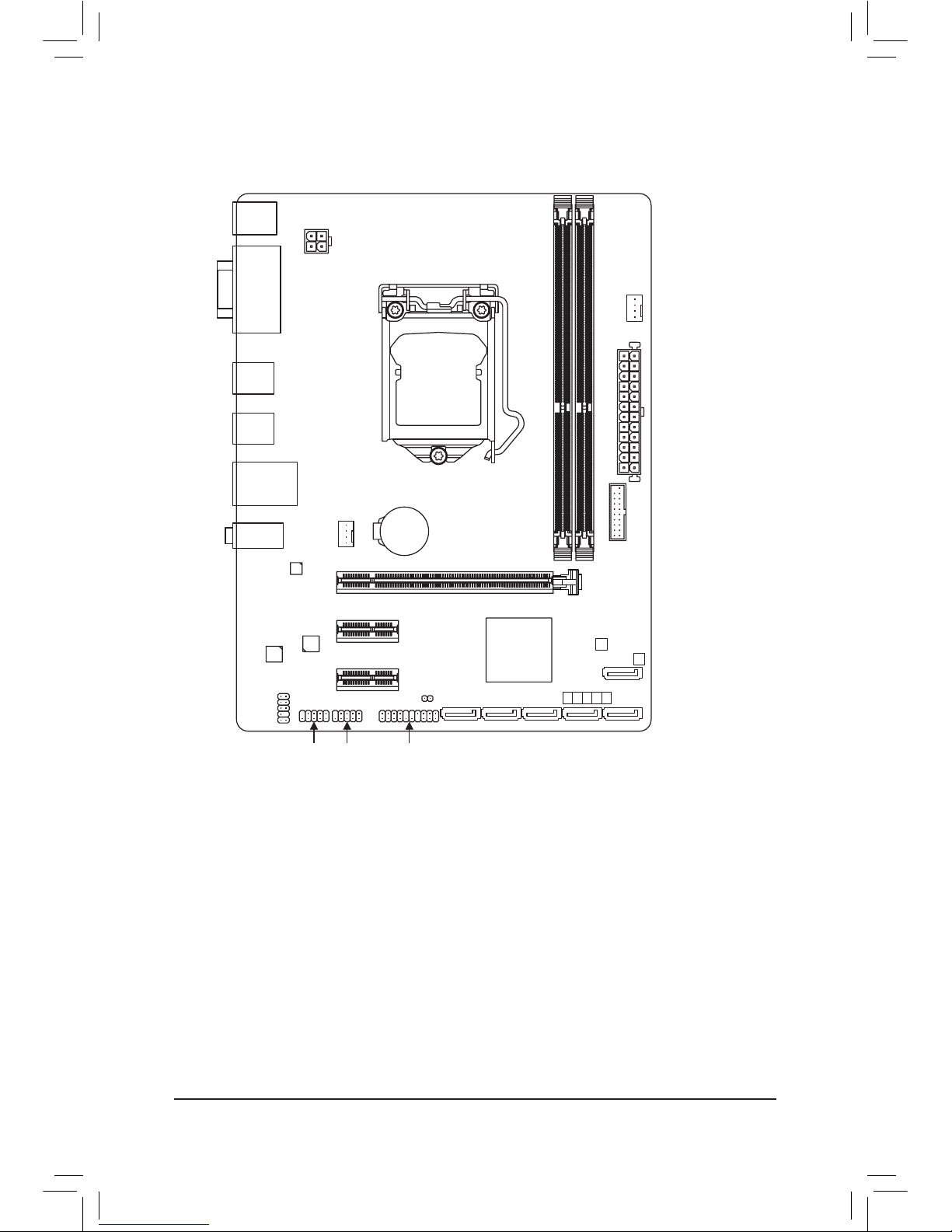

GA-B75M-D2V Motherboard Layout

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

Box Contents

5GA-B75M-D2V motherboard

5Motherboard driver disk

5Two SATA 6Gb/s cables

5User's Manual

5I/O Shield

KB_MS

CPU_FAN

SYS_FAN

LGA1155

ATX

GA-B75M-D2V

F_AUDIO

AUDIO

DDR3_1

DDR3_2

BAT

ATX_12V

Intel®B75

SATA2

R_USB

R_USB30

CODEC

CLR_CMOS

F_USB30

BIOS

DVI

VGA

USB_LAN

PCIEX16

PCIEX1_1

PCIEX1_2

iTE

Super I/O

Realtek

GbE LAN

F_USB2 F_USB1 F_PANEL

54321

SATA3 0

- 6 -

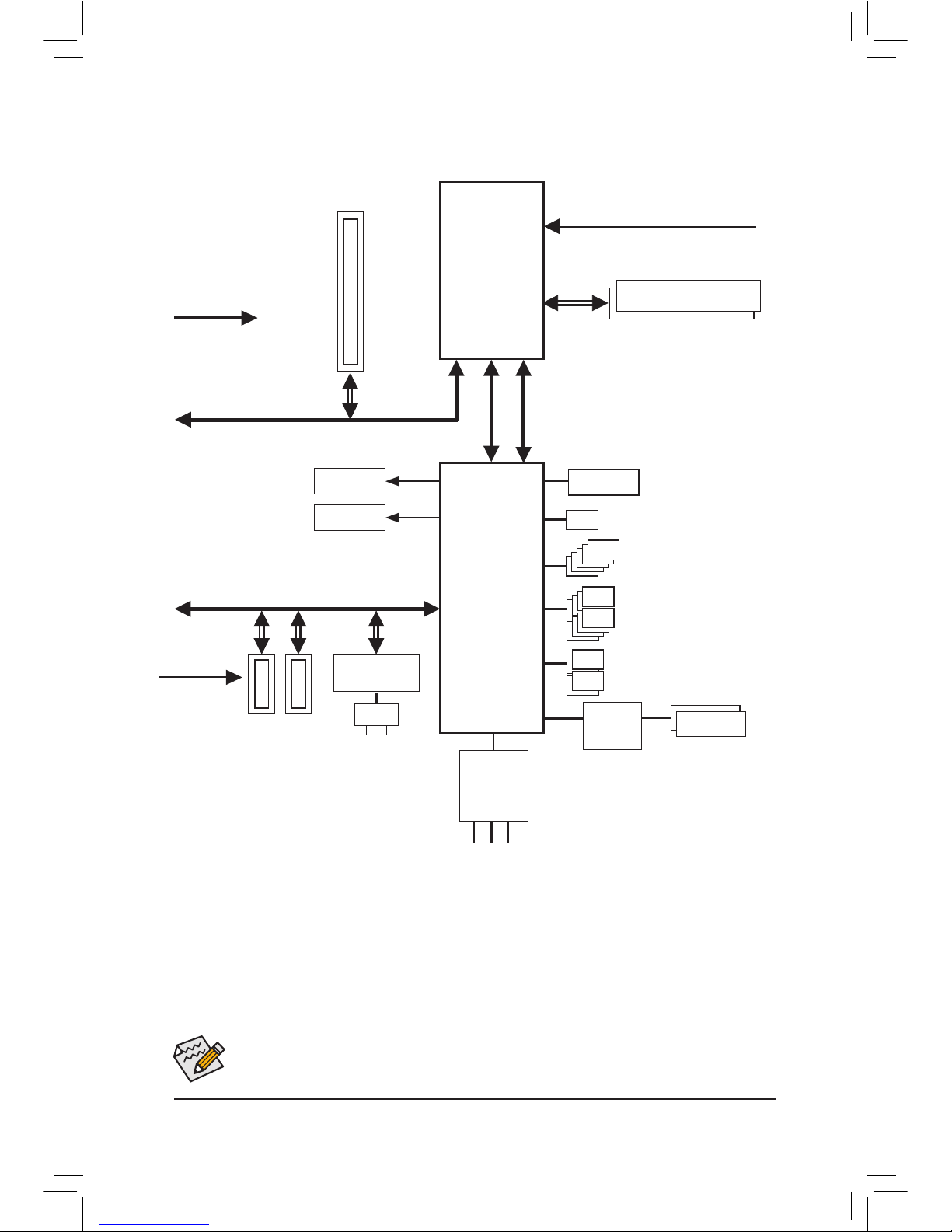

GA-B75M-D2V Motherboard Block Diagram

Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."

iTE

Super I/O

PS/2 KB/Mouse

LGA1155

CPU

Intel®B75

PCIe CLK

(100 MHz)

PCI Express Bus

CPU CLK+/- (100 MHz)

1 PCI Express x16

BIOS

8 USB 2.0/1.1

4 USB 3.0/2.0

DDR3 1600/1333/1066 MHz

PCI Express Bus

PCIe CLK

(100 MHz)

2 PCI Express x1

5 SATA 3Gb/s

D-Sub

DVI-D 1 SATA 6Gb/s

DMI 2.0

FDI

x16

Dual Channel Memory

x1 x1 x1

LAN

RJ45

Realtek

GbE LAN

LPC

Bus

Line Out (Front Speaker Out)

MIC (Center/Subwoofer

Speaker Out)

Line In (Rear Speaker Out)

CODEC

- 7 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep

yourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

- 8 -

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors

in the LGA1155 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B75 Express Chipset

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of

physical memory is installed, the actual memory size displayed will be less than the

size of the physical memory installed.

Dual channel memory architecture

Support for DDR3 1600/1333/1066 MHz memory modules

* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.

Support for non-ECC memory modules

SupportforExtremeMemoryProle(XMP)memorymodules

* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

Audio Realtek ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomodule

and enable the multi-channel audio feature through the audio driver.

LAN Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

* Whether PCI Express 3.0 is supported depends on CPU and graphics card compat-

ibility.

2 x PCI Express x1 slots

(All PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface Chipset:

- 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device

- 5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s devices

USB Chipset:

- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.

- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

- 9 -

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x SATA 6Gb/s connector

5 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1xClearCMOSjumper

Back Panel

Connectors

1 x PS/2 mouse port

1 x PS/2 keyboard port

1 x D-Sub port

1 x DVI-D port

2 x USB 3.0/2.0 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3xaudiojacks(LineIn/LineOut/Microphone)

I/O Controller iTE I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the CPU/system fan speed control function is supported will depend on the

CPU/system cooler you install.

BIOS 1x64Mbitash

Use of licensed AMI EFI BIOS

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress Install

Support for Easy Tune

* Available functions in EasyTune may differ by motherboard model.

Support for Smart Recovery 2

Support for Auto Green

Support for ON/OFF Charge

Support for Q-Share

Support for EZ Setup

- 10 -

1-3 Installing the CPU

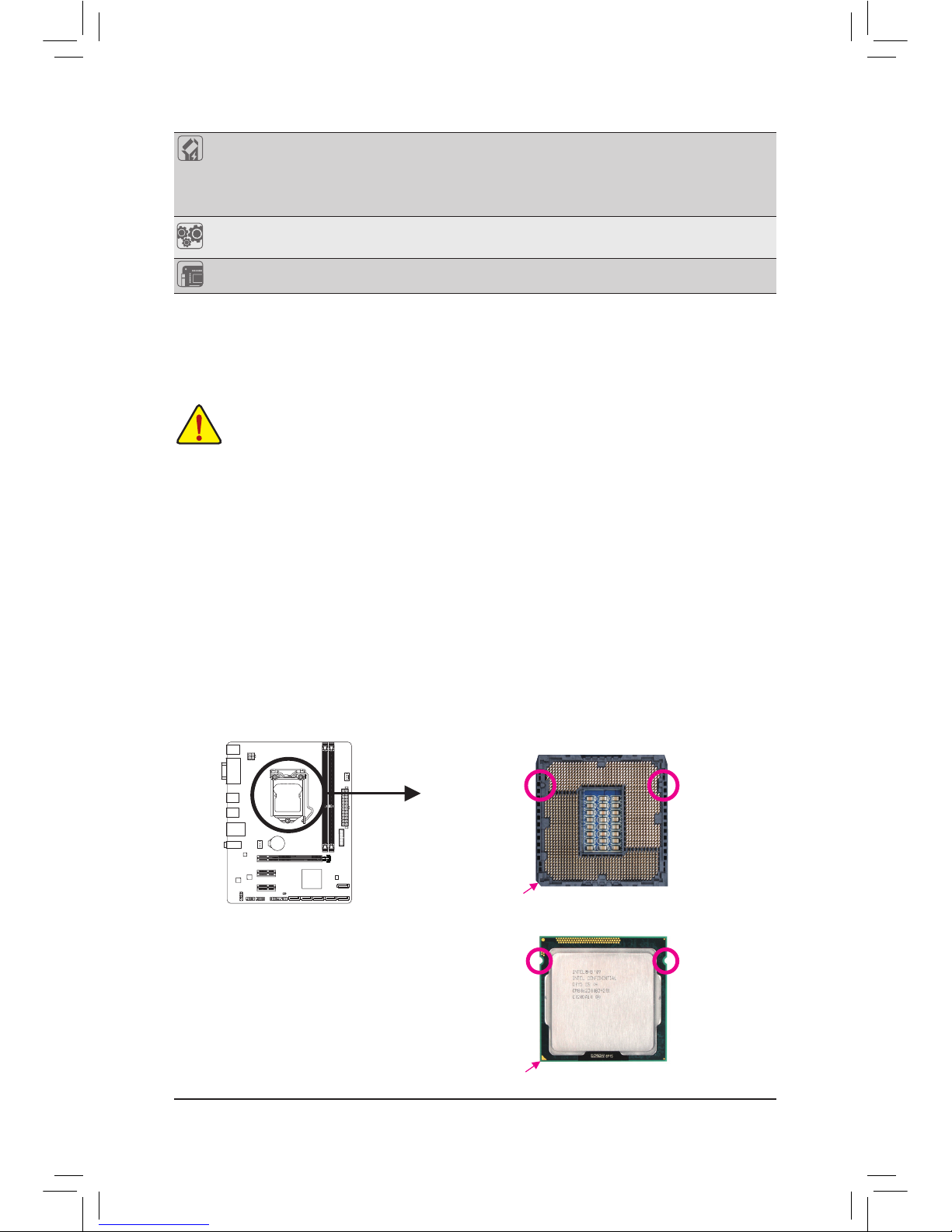

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Bundled

Software

Norton Internet Security (OEM version)

Intel®Rapid Start Technology

Intel®Smart Connect Technology

Intel®Small Business Advantage

Operating

System Support for Microsoft®Windows 8/7/XP

Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)

for the software listed in the "Unique Features" and "Bundled Software" columns.

Alignment Key

LGA1155 CPU Socket

Pin One Corner of the CPU Socket

Notch

LGA1155 CPU

Triangle Pin One Marking on the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may locate

the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPU hostfrequencyinaccordance withtheCPU specications.Itisnot recommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-H81M-S2PH Manuel utilisateur

Gigabyte

Gigabyte MDH11TI Manuel utilisateur

Gigabyte

Gigabyte GA-P41T-D3 Manuel utilisateur

Gigabyte

Gigabyte GA-3CESL3-RH Manuel utilisateur

Gigabyte

Gigabyte GA-7ZMMC Manuel utilisateur

Gigabyte

Gigabyte GA-J3455N-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-IMB4005TN-M Manuel utilisateur

Gigabyte

Gigabyte GA-B250N Phoenix-WIFI Manuel utilisateur

Gigabyte

Gigabyte GA-7DPXDW Manuel utilisateur

Gigabyte

Gigabyte GA-8IMMT4 Manuel utilisateur

Gigabyte

Gigabyte GA-EX38T-DQ6 Manuel utilisateur

Gigabyte

Gigabyte GA-8I915GV-M Manuel utilisateur

Gigabyte

Gigabyte H510M H Manuel utilisateur

Gigabyte

Gigabyte 6ZMA Manuel utilisateur

Gigabyte

Gigabyte X670E AORUS XTREME Manuel utilisateur

Gigabyte

Gigabyte R282-Z96 Manuel utilisateur

Gigabyte

Gigabyte GA-6PXSV3 Manuel utilisateur

Gigabyte

Gigabyte 6BXU Manuel utilisateur

Gigabyte

Gigabyte GA-H67MA-UD2H Manuel utilisateur

Gigabyte

Gigabyte GA-8VT880 Ultra Manuel utilisateur

Gigabyte

Gigabyte GA-78LMT-USB3 Manuel utilisateur

Gigabyte

Gigabyte X570 GAMING X Manuel utilisateur

Gigabyte

Gigabyte X570 AORUS MASTER Manuel utilisateur

Gigabyte

Gigabyte MP72-HB0 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
