Gigabyte GA-B85M-D3V Manuel utilisateur

GA-B85M-D3V

User's Manual

Rev. 1101

12ME-B85MD3V-1101R

Motherboard

GA-B85M-D3V

Aug. 30, 2013

Motherboard

GA-B85M-D3V

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by

any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

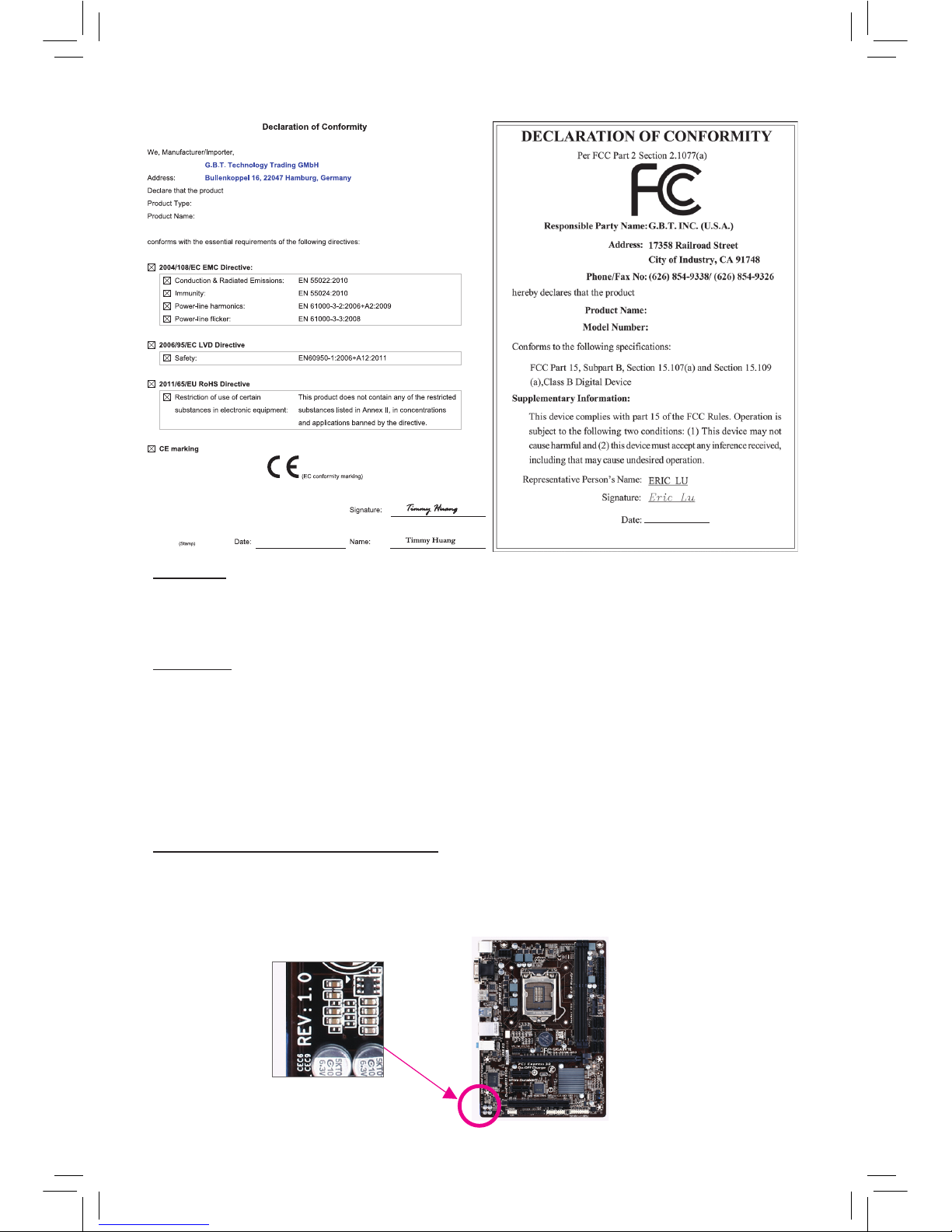

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the

revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS,

drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

GA-B85M-D3V Motherboard Layout ...............................................................................4

GA-B85M-D3V Motherboard Block Diagram...................................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory..................................................................................... 10

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................18

2-1 Startup Screen ............................................................................................... 18

2-2 M.I.T. .............................................................................................................. 19

2-3 System ........................................................................................................... 23

2-4 BIOS Features ............................................................................................... 24

2-5 Peripherals..................................................................................................... 27

2-6 Power Management....................................................................................... 30

2-7 Save & Exit..................................................................................................... 31

Chapter 3 Appendix ......................................................................................................32

Drivers Installation..................................................................................................... 32

Regulatory Statements.............................................................................................. 33

Contact Us ................................................................................................................ 36

- 4 -

GA-B85M-D3V Motherboard Layout

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-B85M-D3V motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS_USB

CPU_FAN SYS_FAN

LGA1150

ATX

GA-B85M-D3V

F_AUDIO

AUDIO

M_BIOS

DDR3_1

DDR3_2

BAT

ATX_12V_2X4

Intel®B85

R_USB30

CODEC

CLR_CMOS

B_BIOS

VGA

DVI

USB_LAN

PCIEX16

PCIEX1_1

PCIEX1_2

PCI

iTE®

Super I/O

Realtek®

GbE LAN

F_USB2 F_USB1

F_USB30

COM

LPT

SATA3 SATA2

1 3

0 2

PCIe to PCI

Bridge

F_PANEL

- 5 -

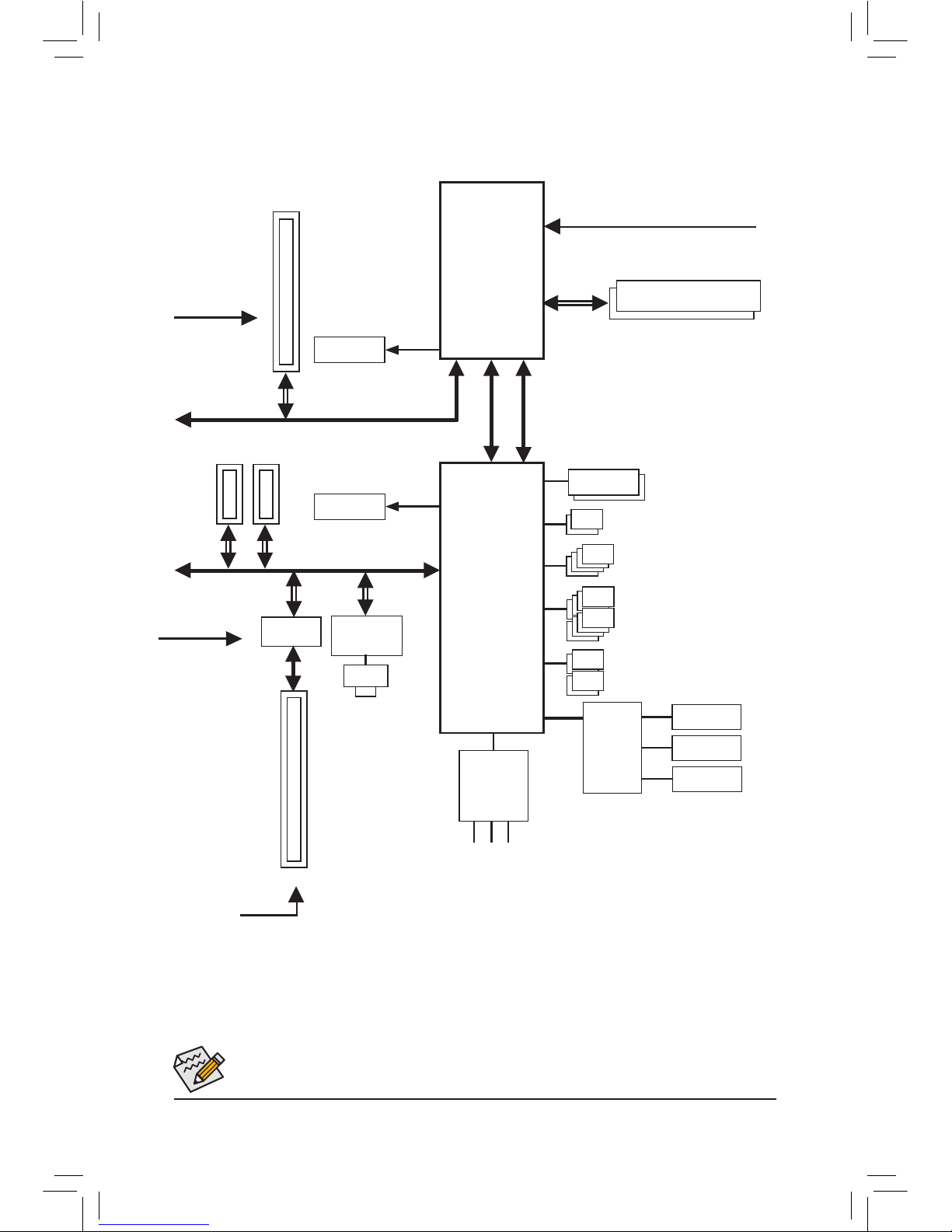

GA-B85M-D3V Motherboard Block Diagram

For detailed product information/limitation(s), refer to "1-2 Product Specications."

iTE®

Super I/O

PS/2 KB/Mouse

LGA1150

CPU

Intel®B85

PCIe CLK

(100 MHz)

PCI Express Bus

CPU CLK+/- (100 MHz)

1 PCI Express x16

Dual BIOS

COM

LPT

8 USB 2.0/1.1

4 USB 3.0/2.0

DDR3 1600/1333 MHz

PCI Express Bus

PCIe CLK

(100 MHz)

2 PCI Express x1

4 SATA 6Gb/s

D-Sub

DVI-D

2 SATA 3Gb/s

DMI 2.0

FDI

x16

Dual Channel Memory

x1 x1

LPC

Bus

Line Out (Front Speaker Out)

MIC (Center/Subwoofer

Speaker Out)

Line In (Rear Speaker Out)

CODEC

1 PCI

PCI Bus

PCI CLK

(33 MHz)

PCIe to PCI

Bridge

LAN

RJ45

Realtek®

GbE LAN

- 6 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

- 7 -

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/

Intel®Celeron®processors in the LGA1150 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B85 Express Chipset

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Dual channel memory architecture

Support for DDR3 1600/1333 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

- Maximum shared memory of 1 GB

Audio Realtek®ALC887 codec

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you have to use an HD front panel audio module

and enable the multi-channel audio feature through the audio driver.

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

1 x PCI slot

Storage Interface Chipset:

- 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)

- 2 x SATA 3Gb/s connectors (SATA2 4/5)

USB Chipset:

- 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the

internal USB header)

- 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the

internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

2 x SATA 3Gb/s connectors

1 x CPU fan header

- 8 -

Internal

Connectors

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x parallel port

1 x D-Sub port

1 x DVI-D port

2 x USB 3.0/2.0 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 2 x 64 Mbit ash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features Support for Q-Flash

Support for Xpress Install

Support for APP Center

* Available applications in APP Center may differ by motherboard model. Supported

functions of each application may also differ depending on motherboard

specications.

- @BIOS

- EasyTune

- EZ Setup

- USB Blocker

- Smart TimeLock

- Smart Recovery 2

Support for ON/OFF Charge

Bundled

Software

Norton®Internet Security (OEM version)

Intel®Rapid Start Technology

Intel®Smart Connect Technology

Intel®Small Business Advantage

- 9 -

Operating

System

Support for Windows 8.1/8/7

* If you plan to install Windows 8.1, please download the latest drivers from

GIGABYTE's website.

Form Factor

Micro ATX Form Factor; 24.4cm x 17.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)

for the software listed in the "Unique Features" and "Bundled Software" columns.

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Alignment

Key

Alignment

Key

LGA1150 CPU Socket

Pin One Corner of the CPU Socket

Notch

LGA1150 CPU

Triangle Pin One Marking on the CPU

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load plate

automatically during the process of re-engaging the lever after you insert the CPU.

- 10 -

DualChannelMemoryConguration

This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology. After the memory

is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

The two DDR3 memory sockets are divided into two channels and each channel has one memory socket as

following:

Channel A: DDR3_1

Channel B: DDR3_2

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used for optimum performance.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

1-6 Back Panel Connectors

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB

keyboard/mouse, USB printer, USB ash drive and etc.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

Parallel Port

Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also called

a printer port.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-8PENXP Manuel utilisateur

Gigabyte

Gigabyte GA-965G-DS3 Manuel utilisateur

Gigabyte

Gigabyte GA-6OXM7E Manuel utilisateur

Gigabyte

Gigabyte GA-8ID533 Manuel utilisateur

Gigabyte

Gigabyte GA-H270-HD3 Manuel utilisateur

Gigabyte

Gigabyte GA-Z68X-UD3-B3 Manuel utilisateur

Gigabyte

Gigabyte 6BXA Manuel utilisateur

Gigabyte

Gigabyte GA-AX370-Gaming 5 Manuel utilisateur

Gigabyte

Gigabyte GA-B150M-DS3H Manuel utilisateur

Gigabyte

Gigabyte Z370 AORUS Gaming 7 Manuel utilisateur

Gigabyte

Gigabyte GA-AB350M-D3V Manuel utilisateur

Gigabyte

Gigabyte GA-MA790FXT-UD5P Manuel utilisateur

Gigabyte

Gigabyte GA-X48-DS4 Manuel utilisateur

Gigabyte

Gigabyte GA-MA790FX-DQ6 Manuel utilisateur

Gigabyte

Gigabyte GA-H61M-D2P-B3 Manuel utilisateur

Gigabyte

Gigabyte R121-340 Manuel utilisateur

Gigabyte

Gigabyte X470 AORUS GAMING 7 WIFI Manuel utilisateur

Gigabyte

Gigabyte GA-8I865PEM-775 Manuel utilisateur

Gigabyte

Gigabyte GA-HA65M-UD3H-B3 Manuel utilisateur

Gigabyte

Gigabyte 6BXDS Manuel utilisateur

Gigabyte

Gigabyte Z490M Manuel utilisateur

Gigabyte

Gigabyte GA-EG41M-US2H Manuel utilisateur

Gigabyte

Gigabyte GA-AB350-Gaming 3 Manuel utilisateur

Gigabyte

Gigabyte GA-P61A-D3 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
