Gigabyte MSQ77DI Manuel utilisateur

MSQ77DI

LGA1155 socket motherboard for Intel®Core™i3 / Core™i5

Core™i7 processors/ Intel®Pentium®series processors

User's Manual

Rev. 1001

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specifications and features in this manual may be made by GIGABYTE

without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at:

http://www.gigabyte.com

- 3 -

Table of Contents

Box Contents...................................................................................................................4

MSQ77DI Motherboard Layout........................................................................................5

Chapter 1 Hardware Installation .....................................................................................7

1-1 Installation Precautions.................................................................................... 7

1-2 ProductSpecications...................................................................................... 8

1-3 Installing the CPU and CPU Cooler ............................................................... 10

1-3-1 Installing the CPU...................................................................................................10

1-3-2 Installing the CPU Cooler .......................................................................................12

1-4 Installing the Memory..................................................................................... 13

1-4-1 DualChannelMemoryConguration .....................................................................13

1-4-2 Installing a Memory ...............................................................................................14

1-5 Back Panel Connectors.................................................................................. 15

1-6 Internal Connectors........................................................................................ 17

Chapter 2 BIOS Setup ..................................................................................................29

2-1 The Main Menu .............................................................................................. 31

2-2 Advanced Menu ............................................................................................. 33

2-2-1 ACPI Settings .........................................................................................................34

2-2-2 Trusted Computing .................................................................................................35

2-2-3 CPUConguration..................................................................................................36

2-2-4 SATAConguration.................................................................................................38

2-2-5 IntelTXT(LT)Conguration ....................................................................................40

2-2-6 AMTConguration..................................................................................................41

2-2-7 H/W Monitor............................................................................................................42

2-2-8 CPUPPMConguration.........................................................................................43

2-3 Chipset Menu................................................................................................. 44

2-4 Boot Menu...................................................................................................... 45

2-5 Security Menu ................................................................................................ 46

2-6 Exit Menu ....................................................................................................... 47

- 4 -

Box Contents

MSQ77DI motherboard

Driver CD

Two SATA cables

I/O Shield

•The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

•The motherboard image is for reference only.

- 5 -

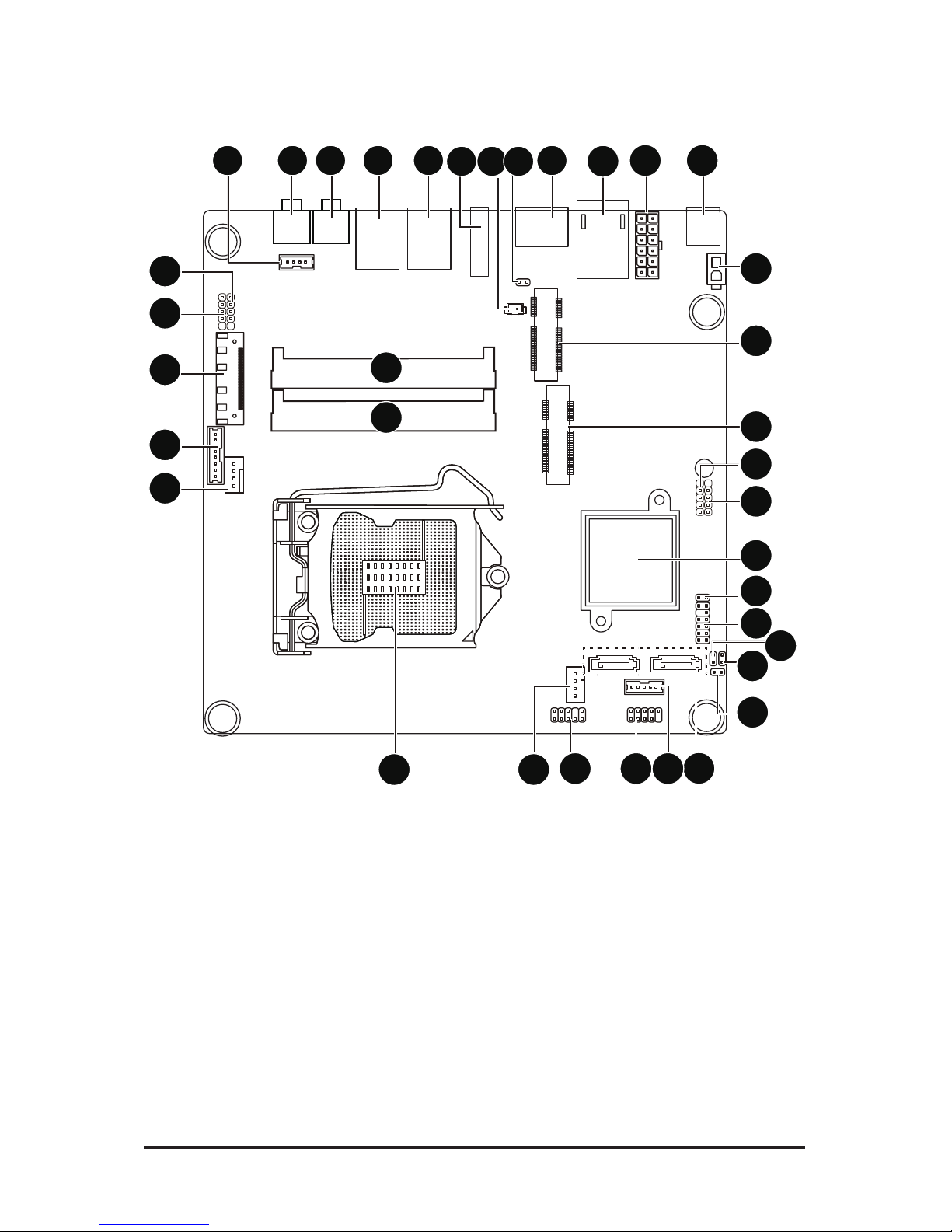

MSQ77DI Motherboard Layout

3421 5710 11 12

252627

2829

- 6 -

Item Code Description

1 SPEK Speaker cable connector

2 LINE_IN Audio Line In port

3 SPDIF Optical S/PDIF Out connector

4 R_USB2 USB 3.0 ports

5 R_USB1 USB 3.0 ports

6 HDMI1 HDMI port

7BAT Battery cable connector

8 DP DisplayPort connector

9 CLR_CMOSHW Clear CMOS jumper

10 LAN RJ45 LAN port

11 PWRCON 12-pin power connector

12 DC_IN DC In power connector

13 AD_IN 2 pin power connector

14 MIN_PCIE1 Mini PCi Express connector

15 M_SATA MSATA connector

16 TP_USB Touch panel USB header

17 TV_USB TV tuner USB header

18 U52 Intel BD82Q77 Chipset

19 BL_SW Back Light switch

20 F_PANEL Front panel header

21 LAN LED LAN LED header

22 WF_LED Wireless LAN LED header

23 ME_LVDS_JP LVDS Enabled Jumper

24 SATA0/SATA1 SATA cable connectors

25 HDD_PWR Hard disk power connector

26 F_USB1 USB connector

27 F_AUDIO Audio cable connector

28 CPU_FAN CPU fan connector

29 CPU Intel LGA1155 socket

30 SYS_FAN System fan connector

31 FPD Flat Panel Display connector

32 LVDS LVDS connector

33 DMIC_CON Digital Mic connector

34 WEB_CON WEBCAM connector

35 SODIMMB1 DDR3 SO-DIMM slot (channel B-1 )

36 SODIMMA1 DDR3 SO-DIMM slot (channel A-1 )

- 7 -

Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•

Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

• Before unplugging the power supply cable from the motherboard, make sure the power sup-

ply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hard-

ware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

• Do not place the computer system on an uneven surface

• Do not place the computer system in a high-temperature environment.

• Turning on the computer power during the installation process can lead to damage to sys-

tem components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

Chapter 1 Hardware Installation

Hardware Installation

- 8 -

1-2 ProductSpecications

CPU Support for Intel®Core™i7, Core™i5, Core™i3 processors/Intel®Pentium®

processors in the LGA1155 package

Support Up to 95W

L3 cache varies with CPU

Chipset Intel®BD82Q77 Platform Controller Hub

Memory 2 x 1.5V DDR3 SO-DIMM slot

Max. to 8GB (4GB x 2)

Dual channel architecture

Support for DDR3 1333/1600 MHz

Display 1 x HDMI 1.3 out

1 x LVDS slot

Audio Realtek ALC887 codec

High Denition Audio

2 Channel / SPDIF out

LAN 1 x Intel 82579LM supports 10/100/1000 Mbps

Supports AMT 8.0

Expansion Slots 1 x Mini PCI Express slot (Half size)

1 x Mini PCI Express slot (Full size/MSATA function/optional)

Onboard

Graphics

Build in Intel®processor

Storage Interface 2 x SATA 6Gb/s connectors

USB 4 x USB 3.0 ports (back panel)

5 x USB 2.0/1.1 headers (Card reader/Touch panel/webcam and other devices)

Internal

Connectors

1 x 12-pin power connector

1 x 2-pin power connector

2 x SATA 6Gb/s connectors

1 x HDD power connector

1 x CPU fan header

1 x System fan header

1 x Front panel header

1 x Audio header

3 x USB 2.0 headers

1 x Speaker header

1 x LVDS connector

1 x FPD connector

1 x Web CAM header

1 x DMIC header

- 9 -

Hardware Installation

Back Panel

Connectors

1 x DC-IN

1 x RJ-45 port

1 x HDMI port

1 x DisplayPort connector

4 x USB 3.0 ports

1 x SPDIF Out port (Optical)

1 x Audio Line In

I/O Controller iTE IT8773 chip

Hardware

Monitor

CPU/System temperature detection

CPU fan speed detection

BIOS 1 x 64 Mbit ash

AMI BIOS

Form Factor Mini ITX Form Factor; 170cm x 170cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information

without prior notice.

- 10 -

Hardware Installation

1-3 Installing the CPU and CPU Cooler

1-3-1 Installing the CPU

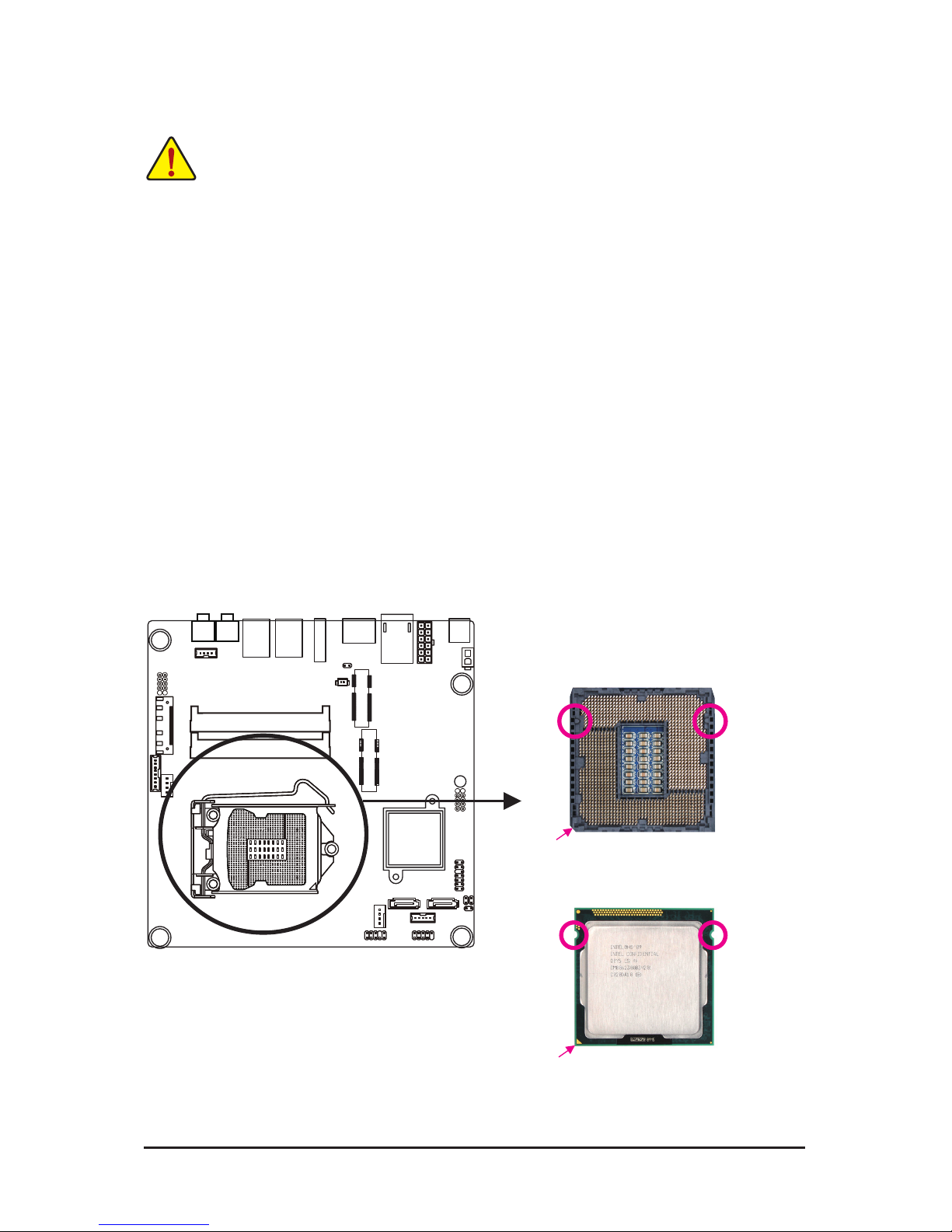

A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Read the following guidelines before you begin to install the CPU:

• Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

• Always turn off the computer and unplug the power cord from the power outlet before installing

the CPU to prevent hardware damage.

• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

• Apply an even and thin layer of thermal grease on the surface of the CPU.

• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and

damage of the CPU may occur.

• Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specifications, please do so according to your hardware specifications including the CPU,

graphics card, memory, hard drive, etc.

Notch

Alignment KeyAlignment Key

Notch

LGA1155 CPU

LGA1155 CPU Socket

Pin One Corner of the CPU Socket

Triangle Pin One Marking on the CPU
