1-1 Motherboard Layout

Chapter 1 Product Introduction

Temperature sensors

CPU_FAN

ATX

B650M D2H

A620M D2H

F_ AUDIO

AUDIO

BAT

ATX_12V

CODEC

CLR_CMOS

USB_LAN

PCIEX16

iTE®

Super I/O

Realtek®

2.5 GbE LAN

ESPI_DB F_USB1

F_PANEL

SYS_FAN1

F_USB2SPI_TPM

SATA3 1 0

3 2

U32

M_BIOS

LED_C

D_LED

QFLASH_PLUS

F_U32

HDMI

M2A_CPU

DDR5_B1

DDR5_A1

SYS_FAN2

QFLED

PCIEX1

KB_MS_USB

Socket AM5

AMD

Chipset

USB 2.0 Hub

- 5 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

Chapter 2 Hardware Installation

- 6 -

2-2 ProductSpecications

CPU AMD Socket AM5, support for:

AMD Ryzen™7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD B650j/A620k

MEMORY Support for DDR55200/4800/4400 MT/s memory modules

2 xDDR5DIMM sockets supportingup to 96 GB (48 GB single DIMM capacity)

of systemmemory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support forAMD EXtended Proles for Overclocking(AMD EXPO™)and Extreme

Memory Prole (XMP) memory modules

(The CPU and memory conguration may affect the supported memory types, data

rate (speed), and number of DRAM modules, please refer to "Memory Support

List"on GIGABYTE's website for more information.)

Onboard

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP2.3.

** Support for native HDMI 2.1 TMDScompatible ports.

(Graphics specications may vary depending on CPU support.)

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jackusingthe audio software. To congure

7.1-channel audio, access the audio software for audio settings.

LAN Realtek®2.5GbE LAN chip (2.5Gbps/1 Gbps/100 Mbps)

Expansion Slots CPU:

- 1 xPCI Express x16 slot, supportingPCIe 4.0 and runningat x16

Chipset:

- 1 xPCI Express x1 slot, supportingPCIe 3.0 and runningat x1

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

Chipset:

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB CPU:

- 2 x USB 3.2 Gen 1 ports on the back panel

- 1 x USB 2.0/1.1 port on the back panel

Chipset:

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through

the internal USB header)

Chipset+USB 2.0 Hub:

- 2 x USB 2.0/1.1 ports available through the internal USB header

jOnly for B650M D2H.

kOnly for A620M D2H.

- 7 -

Internal

Connectors

1 x24-pin ATXmain power connector

1 x8-pin ATX12Vpower connector

1 xCPU fan header

2 xsystemfan headers

1 xaddressable LED strip header

1 xRGB LED strip header

1 xM.2 Socket 3 connector

4 xSATA 6Gb/s connectors

1 xfront panel header

1 xfront panel audio header

1 xUSB 3.2 Gen 1 header

2 xUSB 2.0/1.1 headers

1 xClear CMOSjumper

1 xTrusted PlatformModule header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/

GC-TPM2.0 SPI V2 module only)

BackPanel

Connectors

4 xUSB 2.0/1.1 ports

1 xPS/2 keyboard/mouse port

1 xQ-FlashPlus button

2 xUSB 3.2 Gen 1 ports

1 xHDMI port

1 xRJ-45port

3 xaudio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS1 x256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP1.0a, DMI 2.7, WfM 2.0, SM BIOS2.7, ACPI 5.0

Unique Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions

of eachapplication may also vary dependingon motherboard specications.

Support for Q-Flash

Support for Q-FlashPlus

- 8 -

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidthmanagement software

Operating

System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

FormFactor Micro ATXFormFactor; 24.0cmx22.5cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest

version of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

- 9 -

2-3 Installing the CPU and CPU Cooler

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically after you insert the CPU and close the load plate.

&Please visit GIGABYTE's website for details on hardware installation.

https://www.gigabyte.com/WebPage/210/quick-guide.html?m=sw

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

A. Note the CPU Orientation

Note the alignment keys on the motherboard CPU socket and the notches on the CPU.

Notch

Triangle Pin One

Marking on the CPU

AM5 CPU

Alignment Key

AM5 CPU Socket

Triangle Pin One Marking

of the CPU Socket

- 10 -

B. Installing the CPU

Follow the steps below to correctly install the CPU into the motherboard CPU socket.

Do not force to engage the CPU socket locking lever when the CPU is not installed correctly

as this would damage the CPU and CPU socket.

Pin One

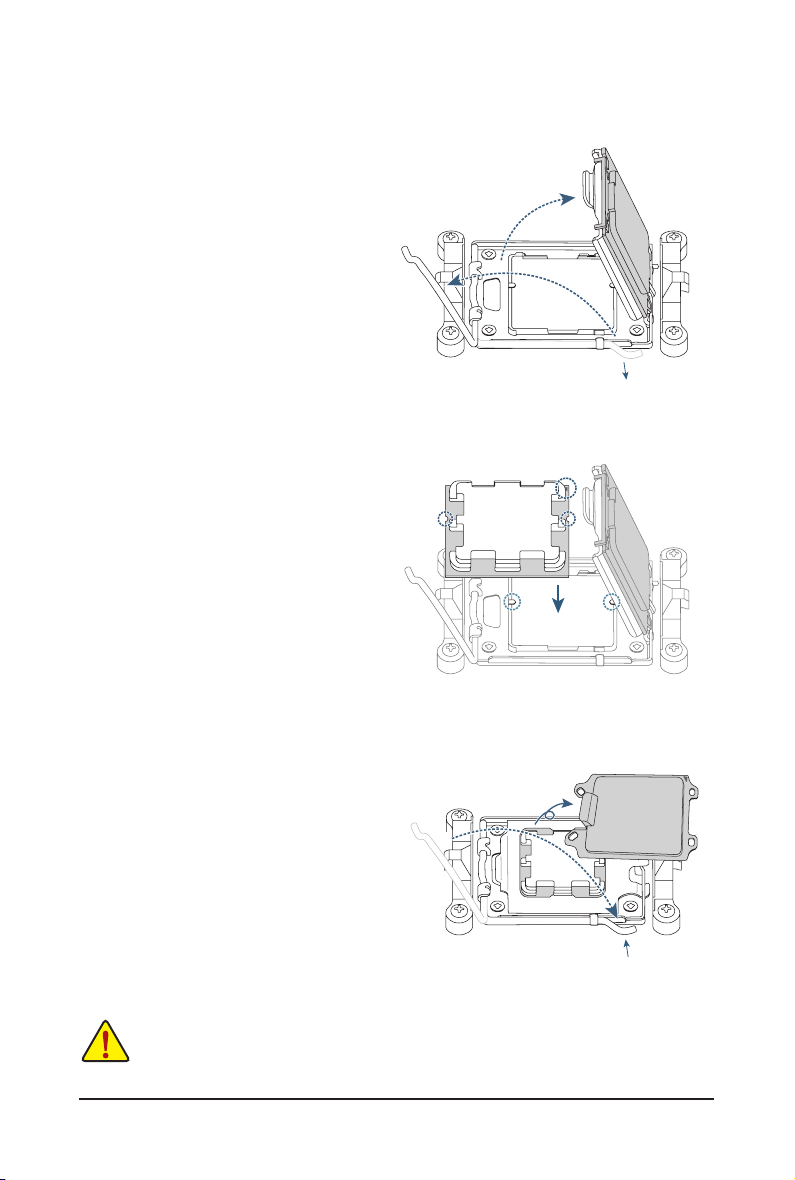

jGently press the CPU socket lever handle

down and away from the socket.

kCompletely lift up the CPU socket lock-

ing lever.

lWith your ngers, hold the plastic protec-

tive cover attached to the metal load plate

to lift open the metal load plate.

Hold the CPU with your ngers by the edges.

Align the CPU pin one marking (triangle) with

the pin one corner of the CPU socket (or you

may align the CPU notches with the socket

alignment keys) and gently insert the CPU

into position.

Make sure the CPU is properly installed and

then close the load plate. Secure the socket

lever under its retention tab. The plastic

protective cover will pop off by itself and can

be removed.

* Always replace the plastic protective cover

when the CPU is not installed to protect

the CPU socket.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-G41M-Combo Manuel utilisateur

Gigabyte

Gigabyte GA-J1800N-D2PH Manuel utilisateur

Gigabyte

Gigabyte GA-H61M-S2H Manuel utilisateur

Gigabyte

Gigabyte BX2000+ Manuel utilisateur

Gigabyte

Gigabyte H310M A 2.0 Manuel utilisateur

Gigabyte

Gigabyte 6VA Manuel utilisateur

Gigabyte

Gigabyte GA-B150M-D3V DDR3 Manuel utilisateur

Gigabyte

Gigabyte GA-9ILDR Manuel utilisateur

Gigabyte

Gigabyte GA-7BESH Manuel utilisateur

Gigabyte

Gigabyte Z690M A ELITE AX DDR4 Manuel utilisateur

Gigabyte

Gigabyte Z790 UD AX Manuel utilisateur

Gigabyte

Gigabyte B450 AORUS ELITE V2 Manuel utilisateur

Gigabyte

Gigabyte Z490 VISION D Manuel utilisateur

Gigabyte

Gigabyte GA-MA78LM-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-Z87X-UD5 TH Manuel utilisateur

Gigabyte

Gigabyte H410M H Manuel utilisateur

Gigabyte

Gigabyte GA-H110M-HD3 DDR3 Manuel utilisateur

Gigabyte

Gigabyte GA-X38-DQ6 Manuel utilisateur

Gigabyte

Gigabyte Z590 UD AC Manuel utilisateur

Gigabyte

Gigabyte GA-8I945GMF-RH Manuel utilisateur

Gigabyte

Gigabyte GA-A75M-D2H Manuel utilisateur

Gigabyte

Gigabyte GA-EP45-UD3P Manuel utilisateur

Gigabyte

Gigabyte B760 A MASTER DDR4 Manuel utilisateur

Gigabyte

Gigabyte B360M D2V Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
